◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11476 - FRR THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#121095) — 29 parça

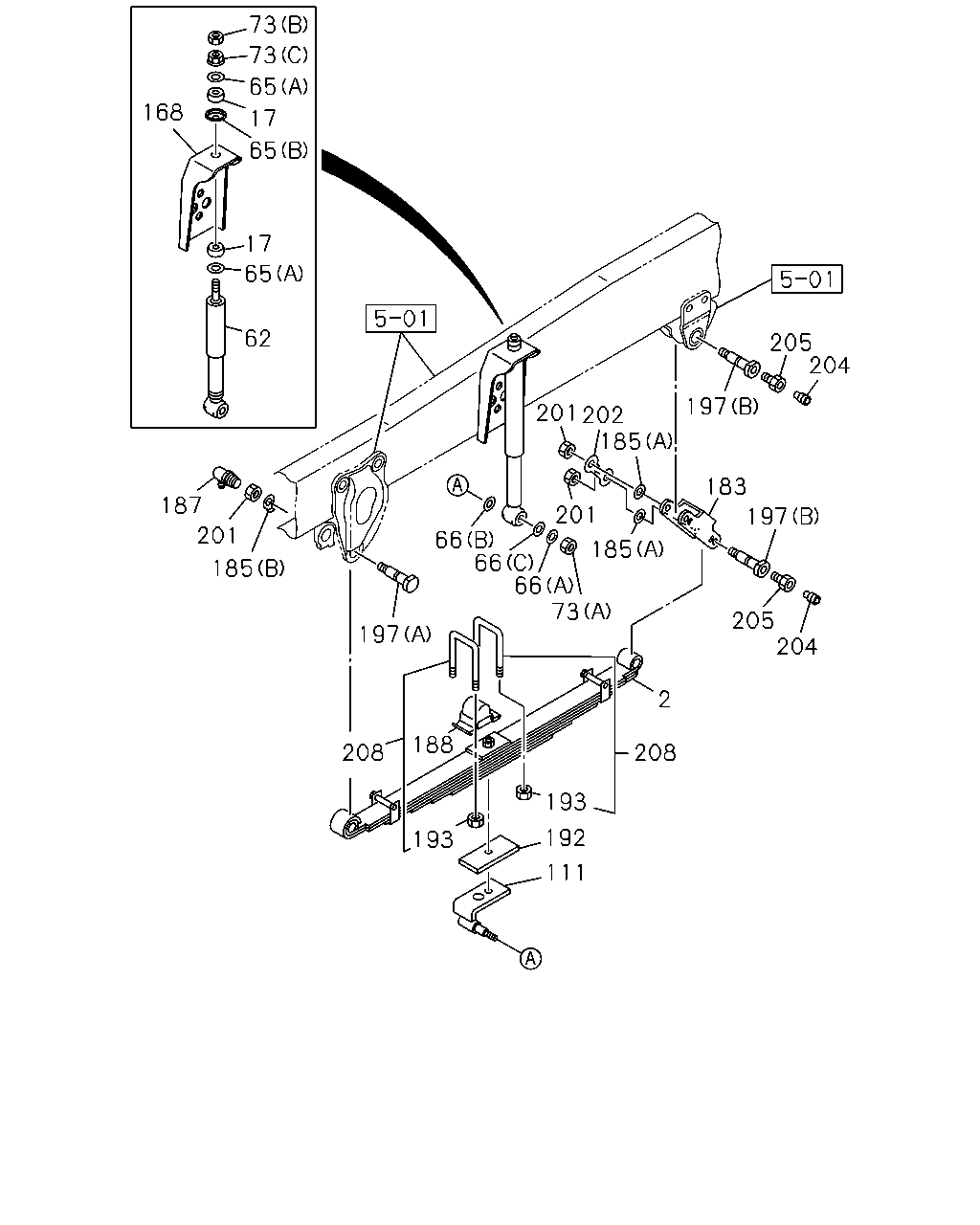

çizim 357894
73 73 65 17 65 168 17 65 62 187 201 185 197 208 188 193 192 111 193 66 66 66 73 185 201 201 202 185 183 205 204 2 208 197 205 204 197
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-98017-554-0 01 1 1304-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-98017-555-0 01 1 1304-
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1304-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-226-0 02 1 1304-
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1304-
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1304-
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1304-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1304-
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1304-
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1304-
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1304-
73 NUT; BRKT,SHOCK
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-587-4 01 1 1304-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-586-4 01 1 1304-
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 1304-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1304-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1304-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1304-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1304-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1304-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1304-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1304-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1304-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1304-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1304-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1304-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1304-
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 1304-
