Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#121082) — 393 parça

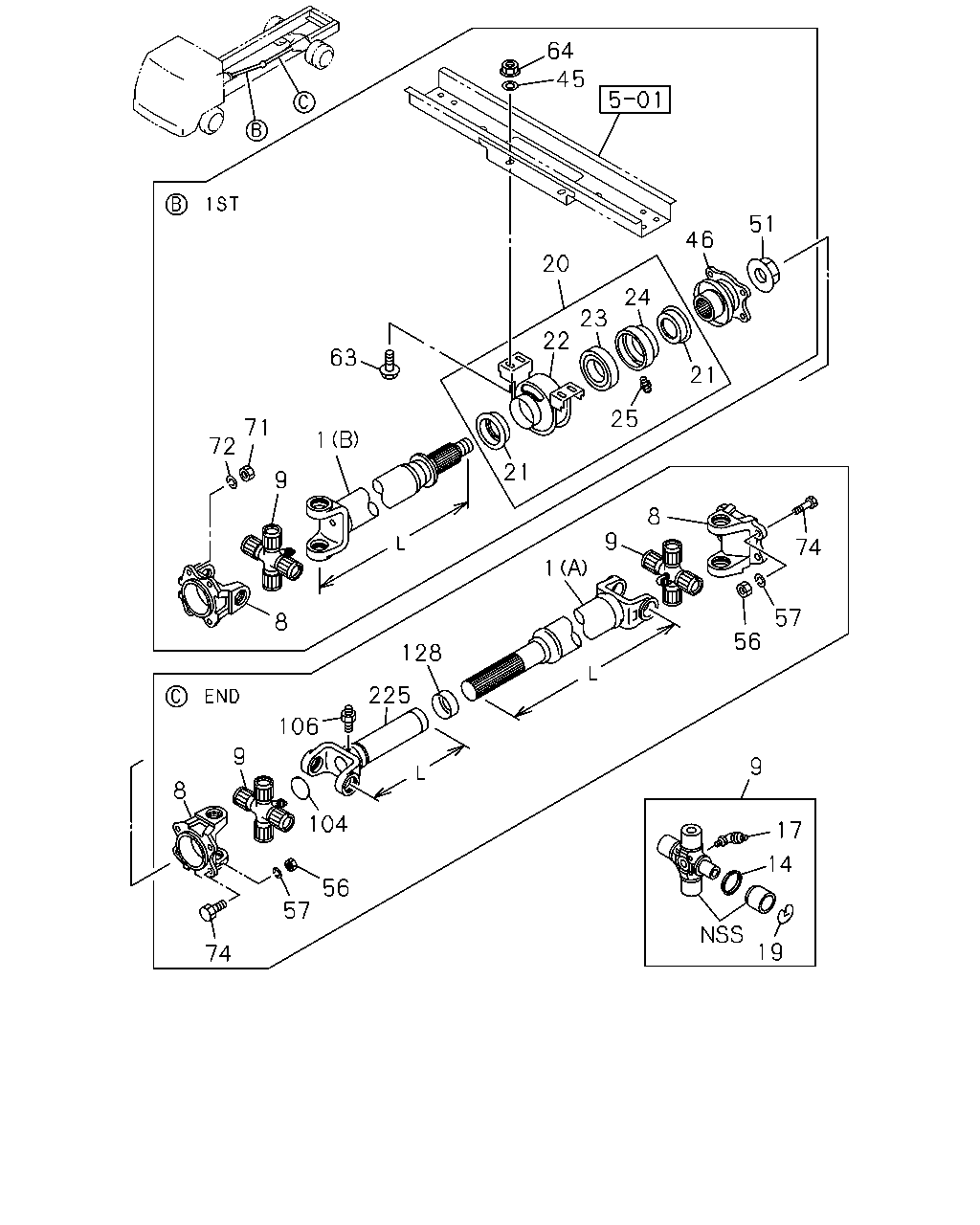

9 17 14 19 56 57 74 8 9 1 128 225 106 9 104 56 57 74 8 72 71 1 9 8 63 21 25 21 22 20 23 24 46 51 45 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZW6P M/T<RSZ> (A) L=1416 THA	8-98069-659-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (A) L=751 THA	8-98114-830-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=679 THA	8-98174-364-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1269 THA	8-98069-575-0	01	1	1304-		●
1	SHAFT; PROP (A) L=1101 THA	8-98069-675-0	01	1	1304-		●	●
1	SHAFT; PROP MZW6P M/T<RSZ> (B) L=1179 THA	8-98069-574-0	01	1	1304-		●	●
1	SHAFT; PROP (C) L=569 THA	8-98069-566-0	01	1	1304-			●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1264 THA	8-98105-706-0	01	1	1304-			●
8	YOKE; FLANGE,PROP SHAFT MZW6P M/T<RSZ> THA	1-37211-056-3	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	02	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT MZZ6W M/T<RSA> THA	1-37211-056-3	03	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-			●
9	JOURNAL ASM; PROP SHAFT MZW6P M/T<RSZ>	8-98048-925-0	02	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT MZZ6W M/T<RSA>	8-98048-925-0	03	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-			●
14	COVER; DUST,SPIDER MZW6P M/T<RSZ> THA	8-98020-800-0	08	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-		●	●
14	COVER; DUST,SPIDER MZZ6W M/T<RSA> THA	8-98020-800-0	12	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-		●	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-			●
17	NIPPLE; GREASE,PROP SHAFT MZW6P M/T<RSZ> PT1/8 ELBOW	0-90301-610-0	02	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT MZZ6W M/T<RSA> PT1/8 ELBOW	0-90301-610-0	03	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-			●
20	BEARING ASM; CTR,PROP SHAFT MZZ6W M/T<RSA> THA	8-98020-881-0	01	1	1304-	●
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-		●	●
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-			●
21	SEAL; OIL,CENTER BRG MZZ6W M/T<RSA> ID=54 THA	1-09625-161-0	02	1	1304-	●
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-		●	●
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-			●
22	RUBBER; CUSHION,CENTER BRG,1ST MZZ6W M/T<RSA> THA	1-37516-059-0	01	1	1304-	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-			●
23	BEARING; CENTER,PROP SHAFT MZZ6W M/T<RSA>	9-00090-071-0	01	1	1304-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-		●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-			●
24	RETAINER; CENTER BRG,1ST MZZ6W M/T<RSA> THA	8-98020-882-0	01	1	1304-	●
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-		●	●
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-			●
25	NIPPLE; GREASE,CENTER BRG MZZ6W M/T<RSA> THA	8-98020-889-0	01	1	1304-	●
25	NIPPLE; GREASE,CENTER BRG THA	8-98020-889-0	01	1	1304-		●	●
25	NIPPLE; GREASE,CENTER BRG THA	8-98020-889-0	01	1	1304-			●
45	WASHER; PL,RET TO BRKT MZZ6W M/T<RSA> ID=10.5 OD=22	0-91614-610-0	04	1	1304-	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1304-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZZ6W M/T<RSA> THA	8-98020-815-0	01	1	1304-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-			●
51	NUT; FLANGE,SPLINED MZZ6W M/T<RSA> M30 THA	8-97160-857-0	01	1	1304-	●
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-		●	●
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-			●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
56	NUT; YOKE MZZ6W M/T<RSA> M14 THA	0-91110-514-0	04	1	1304-	●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-		●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
57	WASHER; LK,YOKE MZZ6W M/T<RSA> ID=14.2	0-91510-614-0	04	1	1304-	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-		●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MZZ6W M/T<RSA> M10X35 FLANGE THA	0-28651-035-0	04	1	1304-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-		●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-			●
64	NUT; RET TO BRKT MZZ6W M/T<RSA> M10 FLANGE THA	0-91180-210-0	04	1	1304-	●
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-		●	●
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-			●
71	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS MZZ6W M/T<RSA> M14X37	1-09000-121-0	04	1	1304-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-		●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-			●
104	PLUG; SLEEVE YOKE THA	1-09600-064-0	01	1	1304-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1304-	●	●	●
128	SEAL; SLEEVE THA	1-37247-024-0	01	1	1304-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254 THA	8-98020-885-0	01	1	1304-	●	●	●

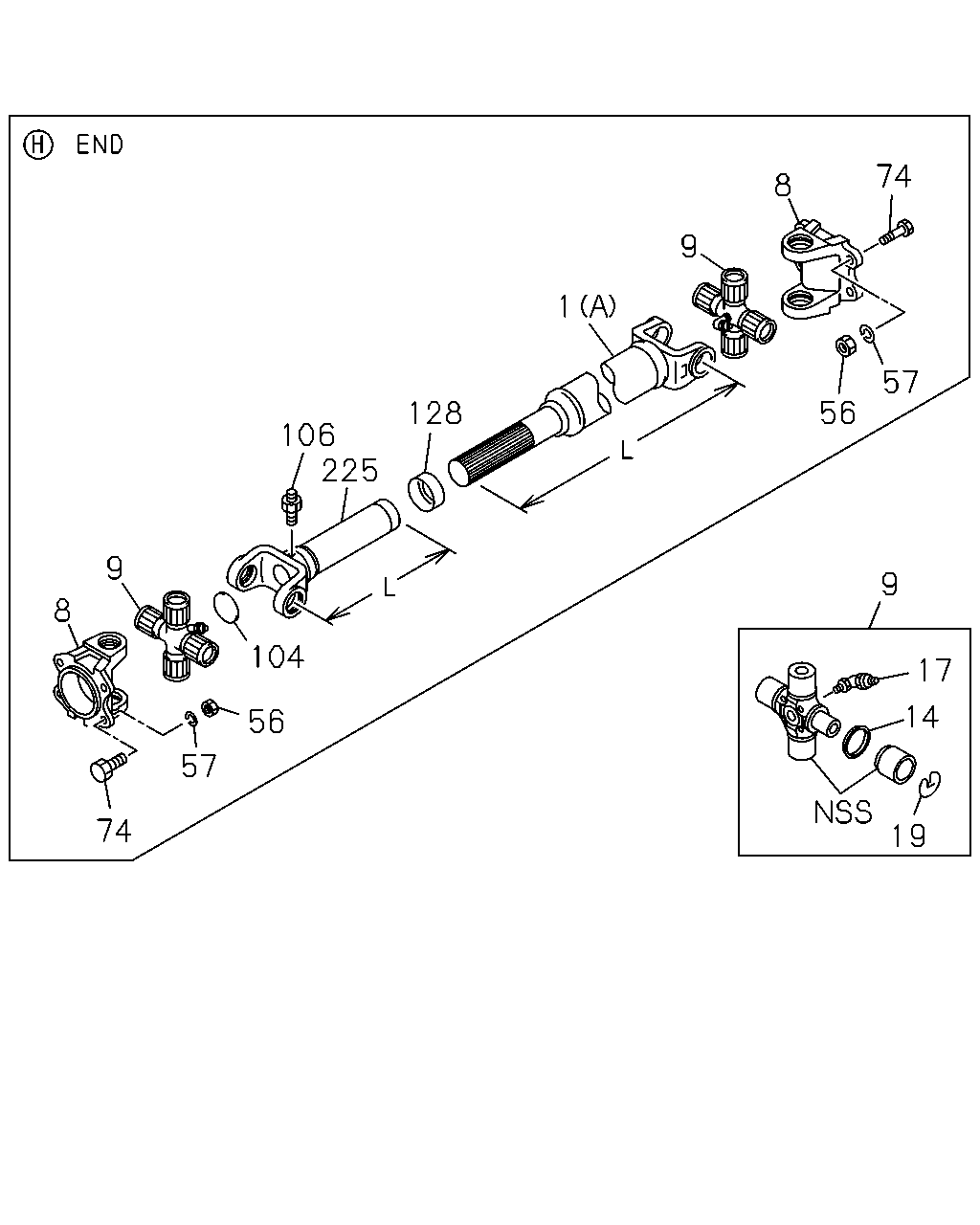

74 8 9 106 104 225 128 56 57 1 9 8 74 57 56 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZW6P M/T<RSZ> (A) L=1416 THA	8-98069-659-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (A) L=751 THA	8-98114-830-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=679 THA	8-98174-364-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1269 THA	8-98069-575-0	01	1	1304-		●
1	SHAFT; PROP (A) L=1101 THA	8-98069-675-0	01	1	1304-		●	●
1	SHAFT; PROP MZW6P M/T<RSZ> (B) L=1179 THA	8-98069-574-0	01	1	1304-		●	●
1	SHAFT; PROP (C) L=569 THA	8-98069-566-0	01	1	1304-			●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1264 THA	8-98105-706-0	01	1	1304-			●
8	YOKE; FLANGE,PROP SHAFT MZW6P M/T<RSZ> THA	1-37211-056-3	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	02	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT MZZ6W M/T<RSA> THA	1-37211-056-3	03	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-			●
9	JOURNAL ASM; PROP SHAFT MZW6P M/T<RSZ>	8-98048-925-0	02	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT MZZ6W M/T<RSA>	8-98048-925-0	03	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-			●
14	COVER; DUST,SPIDER MZW6P M/T<RSZ> THA	8-98020-800-0	08	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-		●	●
14	COVER; DUST,SPIDER MZZ6W M/T<RSA> THA	8-98020-800-0	12	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-		●	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-			●
17	NIPPLE; GREASE,PROP SHAFT MZW6P M/T<RSZ> PT1/8 ELBOW	0-90301-610-0	02	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT MZZ6W M/T<RSA> PT1/8 ELBOW	0-90301-610-0	03	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-			●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
56	NUT; YOKE MZZ6W M/T<RSA> M14 THA	0-91110-514-0	04	1	1304-	●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-		●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
57	WASHER; LK,YOKE MZZ6W M/T<RSA> ID=14.2	0-91510-614-0	04	1	1304-	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-		●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS MZZ6W M/T<RSA> M14X37	1-09000-121-0	04	1	1304-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-		●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-			●
104	PLUG; SLEEVE YOKE THA	1-09600-064-0	01	1	1304-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1304-	●	●	●
128	SEAL; SLEEVE THA	1-37247-024-0	01	1	1304-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254 THA	8-98020-885-0	01	1	1304-	●	●	●

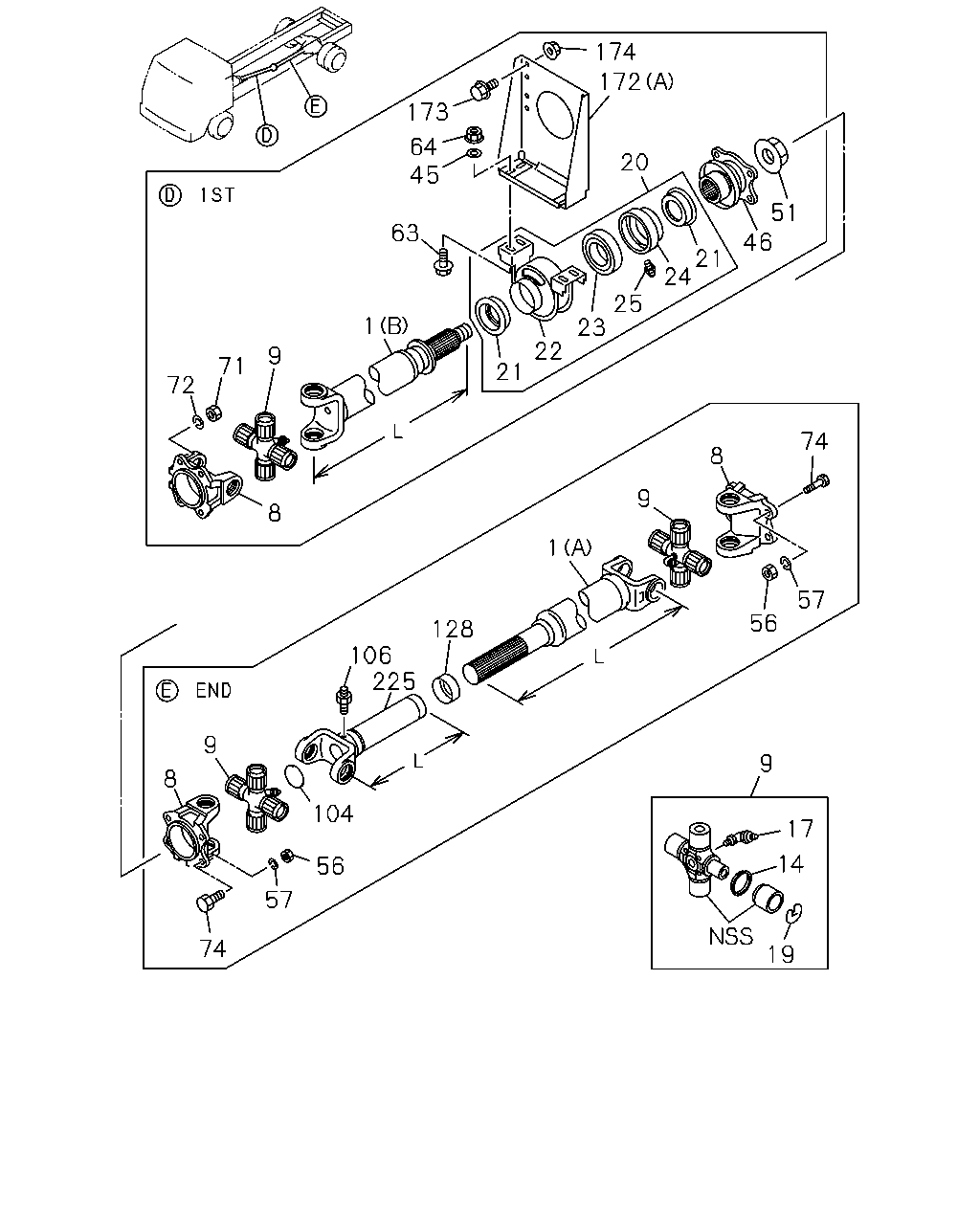

8 74 57 56 1 128 225 106 104 9 8 71 72 9 17 14 19 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZW6P M/T<RSZ> (A) L=1416 THA	8-98069-659-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (A) L=751 THA	8-98114-830-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=679 THA	8-98174-364-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1269 THA	8-98069-575-0	01	1	1304-		●
1	SHAFT; PROP (A) L=1101 THA	8-98069-675-0	01	1	1304-		●	●
1	SHAFT; PROP MZW6P M/T<RSZ> (B) L=1179 THA	8-98069-574-0	01	1	1304-		●	●
1	SHAFT; PROP (C) L=569 THA	8-98069-566-0	01	1	1304-			●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1264 THA	8-98105-706-0	01	1	1304-			●
8	YOKE; FLANGE,PROP SHAFT MZW6P M/T<RSZ> THA	1-37211-056-3	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	02	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT MZZ6W M/T<RSA> THA	1-37211-056-3	03	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-			●
9	JOURNAL ASM; PROP SHAFT MZW6P M/T<RSZ>	8-98048-925-0	02	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT MZZ6W M/T<RSA>	8-98048-925-0	03	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-			●
14	COVER; DUST,SPIDER MZW6P M/T<RSZ> THA	8-98020-800-0	08	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-		●	●
14	COVER; DUST,SPIDER MZZ6W M/T<RSA> THA	8-98020-800-0	12	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-		●	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-			●
17	NIPPLE; GREASE,PROP SHAFT MZW6P M/T<RSZ> PT1/8 ELBOW	0-90301-610-0	02	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT MZZ6W M/T<RSA> PT1/8 ELBOW	0-90301-610-0	03	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-			●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
56	NUT; YOKE MZZ6W M/T<RSA> M14 THA	0-91110-514-0	04	1	1304-	●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-		●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
57	WASHER; LK,YOKE MZZ6W M/T<RSA> ID=14.2	0-91510-614-0	04	1	1304-	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-		●	●
71	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS MZZ6W M/T<RSA> M14X37	1-09000-121-0	04	1	1304-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-		●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-			●
104	PLUG; SLEEVE YOKE THA	1-09600-064-0	01	1	1304-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1304-	●	●	●
128	SEAL; SLEEVE THA	1-37247-024-0	01	1	1304-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254 THA	8-98020-885-0	01	1	1304-	●	●	●

57 56 8 74 9 1 128 225 106 104 56 57 74 8 9 72 71 9 1 63 45 64 173 174 172 20 51 46 21 24 25 23 22 21 8 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZW6P M/T<RSZ> (A) L=1416 THA	8-98069-659-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (A) L=751 THA	8-98114-830-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=679 THA	8-98174-364-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1269 THA	8-98069-575-0	01	1	1304-		●
1	SHAFT; PROP (A) L=1101 THA	8-98069-675-0	01	1	1304-		●	●
1	SHAFT; PROP MZW6P M/T<RSZ> (B) L=1179 THA	8-98069-574-0	01	1	1304-		●	●
1	SHAFT; PROP (C) L=569 THA	8-98069-566-0	01	1	1304-			●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1264 THA	8-98105-706-0	01	1	1304-			●
8	YOKE; FLANGE,PROP SHAFT MZW6P M/T<RSZ> THA	1-37211-056-3	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	02	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT MZZ6W M/T<RSA> THA	1-37211-056-3	03	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-			●
9	JOURNAL ASM; PROP SHAFT MZW6P M/T<RSZ>	8-98048-925-0	02	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT MZZ6W M/T<RSA>	8-98048-925-0	03	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-			●
14	COVER; DUST,SPIDER MZW6P M/T<RSZ> THA	8-98020-800-0	08	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-		●	●
14	COVER; DUST,SPIDER MZZ6W M/T<RSA> THA	8-98020-800-0	12	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-		●	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-			●
17	NIPPLE; GREASE,PROP SHAFT MZW6P M/T<RSZ> PT1/8 ELBOW	0-90301-610-0	02	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT MZZ6W M/T<RSA> PT1/8 ELBOW	0-90301-610-0	03	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-			●
20	BEARING ASM; CTR,PROP SHAFT MZZ6W M/T<RSA> THA	8-98020-881-0	01	1	1304-	●
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-		●	●
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-			●
21	SEAL; OIL,CENTER BRG MZZ6W M/T<RSA> ID=54 THA	1-09625-161-0	02	1	1304-	●
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-		●	●
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-			●
22	RUBBER; CUSHION,CENTER BRG,1ST MZZ6W M/T<RSA> THA	1-37516-059-0	01	1	1304-	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-			●
23	BEARING; CENTER,PROP SHAFT MZZ6W M/T<RSA>	9-00090-071-0	01	1	1304-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-		●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-			●
24	RETAINER; CENTER BRG,1ST MZZ6W M/T<RSA> THA	8-98020-882-0	01	1	1304-	●
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-		●	●
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-			●
25	NIPPLE; GREASE,CENTER BRG MZZ6W M/T<RSA> THA	8-98020-889-0	01	1	1304-	●
25	NIPPLE; GREASE,CENTER BRG THA	8-98020-889-0	01	1	1304-		●	●
25	NIPPLE; GREASE,CENTER BRG THA	8-98020-889-0	01	1	1304-			●
45	WASHER; PL,RET TO BRKT MZZ6W M/T<RSA> ID=10.5 OD=22	0-91614-610-0	04	1	1304-	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1304-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZZ6W M/T<RSA> THA	8-98020-815-0	01	1	1304-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-			●
51	NUT; FLANGE,SPLINED MZZ6W M/T<RSA> M30 THA	8-97160-857-0	01	1	1304-	●
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-		●	●
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-			●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
56	NUT; YOKE MZZ6W M/T<RSA> M14 THA	0-91110-514-0	04	1	1304-	●
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-		●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
57	WASHER; LK,YOKE MZZ6W M/T<RSA> ID=14.2	0-91510-614-0	04	1	1304-	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-		●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MZZ6W M/T<RSA> M10X35 FLANGE THA	0-28651-035-0	04	1	1304-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-		●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-			●
64	NUT; RET TO BRKT MZZ6W M/T<RSA> M10 FLANGE THA	0-91180-210-0	04	1	1304-	●
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-		●	●
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-			●
71	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS MZZ6W M/T<RSA> M14X37	1-09000-121-0	04	1	1304-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-		●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-			●
104	PLUG; SLEEVE YOKE THA	1-09600-064-0	01	1	1304-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1304-	●	●	●
128	SEAL; SLEEVE THA	1-37247-024-0	01	1	1304-	●	●	●
172	BRACKET; CENTER BRG (A)	1-37515-120-0	01	1	1304-		●	●
172	BRACKET; CENTER BRG (B)	8-98044-076-0	01	1	1304-			●
173	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	04	1	1304-		●	●
173	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	04	1	1304-			●
174	NUT; BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-		●	●
225	YOKE; SLEEVE,PROP SHAFT L=254 THA	8-98020-885-0	01	1	1304-	●	●	●

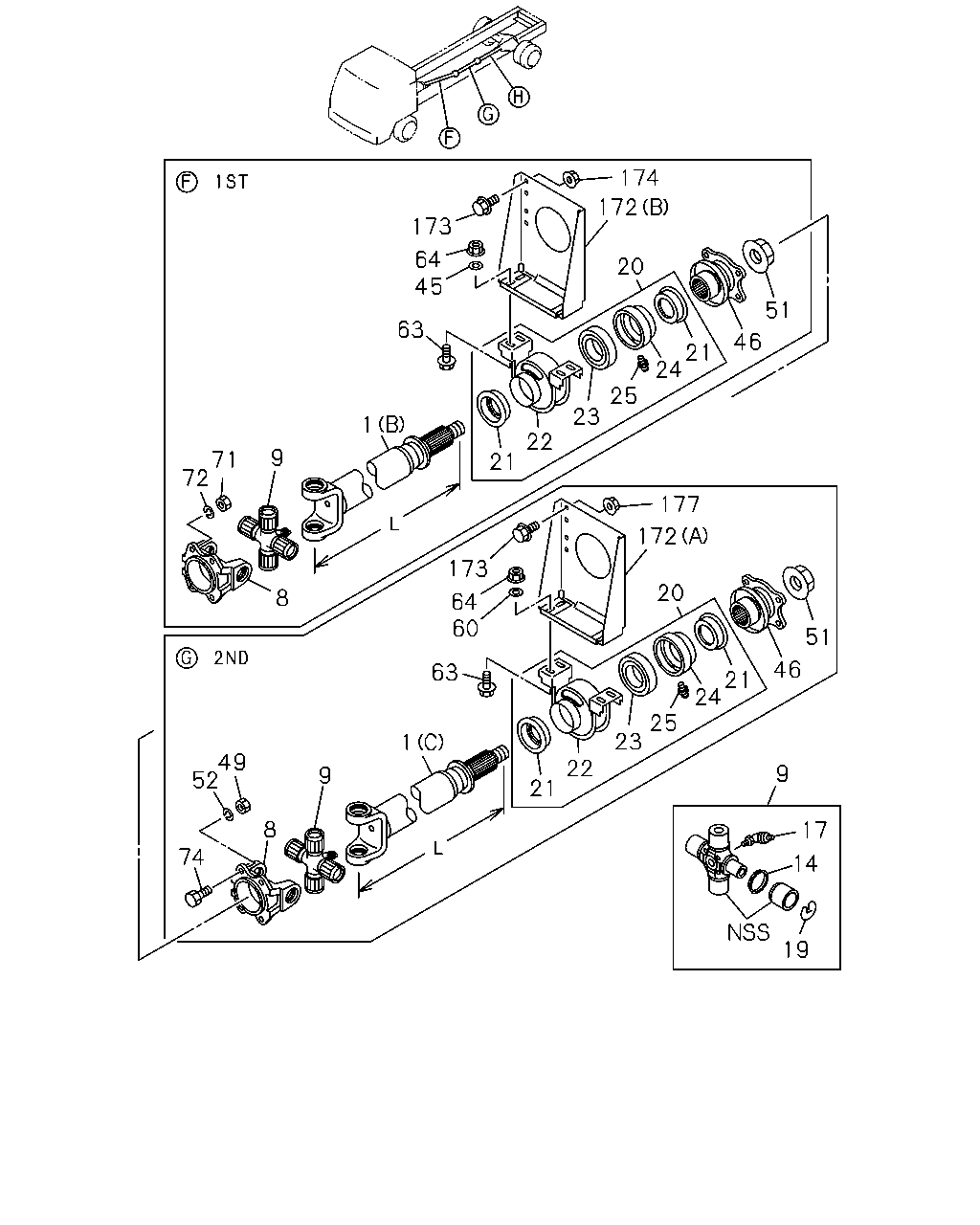

17 14 19 9 51 46 21 24 25 23 22 21 1 9 8 74 52 49 8 9 71 72 1 63 45 64 173 174 172 20 51 46 21 24 25 23 22 21 173 64 60 63 20 172 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZW6P M/T<RSZ> (A) L=1416 THA	8-98069-659-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (A) L=751 THA	8-98114-830-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=679 THA	8-98174-364-0	01	1	1304-	●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1269 THA	8-98069-575-0	01	1	1304-		●
1	SHAFT; PROP (A) L=1101 THA	8-98069-675-0	01	1	1304-		●	●
1	SHAFT; PROP MZW6P M/T<RSZ> (B) L=1179 THA	8-98069-574-0	01	1	1304-		●	●
1	SHAFT; PROP (C) L=569 THA	8-98069-566-0	01	1	1304-			●
1	SHAFT; PROP MZZ6W M/T<RSA> (B) L=1264 THA	8-98105-706-0	01	1	1304-			●
8	YOKE; FLANGE,PROP SHAFT MZW6P M/T<RSZ> THA	1-37211-056-3	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	02	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT MZZ6W M/T<RSA> THA	1-37211-056-3	03	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-056-3	01	1	1304-			●
9	JOURNAL ASM; PROP SHAFT MZW6P M/T<RSZ>	8-98048-925-0	02	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT MZZ6W M/T<RSA>	8-98048-925-0	03	1	1304-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-		●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-			●
14	COVER; DUST,SPIDER MZW6P M/T<RSZ> THA	8-98020-800-0	08	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-		●	●
14	COVER; DUST,SPIDER MZZ6W M/T<RSA> THA	8-98020-800-0	12	1	1304-	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-		●	●
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-			●
17	NIPPLE; GREASE,PROP SHAFT MZW6P M/T<RSZ> PT1/8 ELBOW	0-90301-610-0	02	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT MZZ6W M/T<RSA> PT1/8 ELBOW	0-90301-610-0	03	1	1304-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=1.95 BLUE THA	1-09587-086-0	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.00 WHITE THA	1-09587-087-2	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MZZ6W M/T<RSA> OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	12	1	1304-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-			●
20	BEARING ASM; CTR,PROP SHAFT MZZ6W M/T<RSA> THA	8-98020-881-0	01	1	1304-	●
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-		●	●
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-			●
21	SEAL; OIL,CENTER BRG MZZ6W M/T<RSA> ID=54 THA	1-09625-161-0	02	1	1304-	●
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-		●	●
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-			●
22	RUBBER; CUSHION,CENTER BRG,1ST MZZ6W M/T<RSA> THA	1-37516-059-0	01	1	1304-	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-			●
23	BEARING; CENTER,PROP SHAFT MZZ6W M/T<RSA>	9-00090-071-0	01	1	1304-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-		●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-			●
24	RETAINER; CENTER BRG,1ST MZZ6W M/T<RSA> THA	8-98020-882-0	01	1	1304-	●
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-		●	●
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-			●
25	NIPPLE; GREASE,CENTER BRG MZZ6W M/T<RSA> THA	8-98020-889-0	01	1	1304-	●
25	NIPPLE; GREASE,CENTER BRG THA	8-98020-889-0	01	1	1304-		●	●
25	NIPPLE; GREASE,CENTER BRG THA	8-98020-889-0	01	1	1304-			●
45	WASHER; PL,RET TO BRKT MZZ6W M/T<RSA> ID=10.5 OD=22	0-91614-610-0	04	1	1304-	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1304-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZZ6W M/T<RSA> THA	8-98020-815-0	01	1	1304-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-			●
49	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-			●
51	NUT; FLANGE,SPLINED MZZ6W M/T<RSA> M30 THA	8-97160-857-0	01	1	1304-	●
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-		●	●
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-			●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-			●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1304-			●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MZZ6W M/T<RSA> M10X35 FLANGE THA	0-28651-035-0	04	1	1304-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-		●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-			●
64	NUT; RET TO BRKT MZZ6W M/T<RSA> M10 FLANGE THA	0-91180-210-0	04	1	1304-	●
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-		●	●
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-			●
71	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-	●	●	●
74	BOLT; YOKE,TRANS MZZ6W M/T<RSA> M14X37	1-09000-121-0	04	1	1304-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-		●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-			●
172	BRACKET; CENTER BRG (A)	1-37515-120-0	01	1	1304-		●	●
172	BRACKET; CENTER BRG (B)	8-98044-076-0	01	1	1304-			●
173	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	04	1	1304-		●	●
173	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	04	1	1304-			●
174	NUT; BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-		●	●
177	NUT M10 FLANGE THA	0-91180-210-0	04	1	1304-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
