Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#121074) — 38 parça
◀

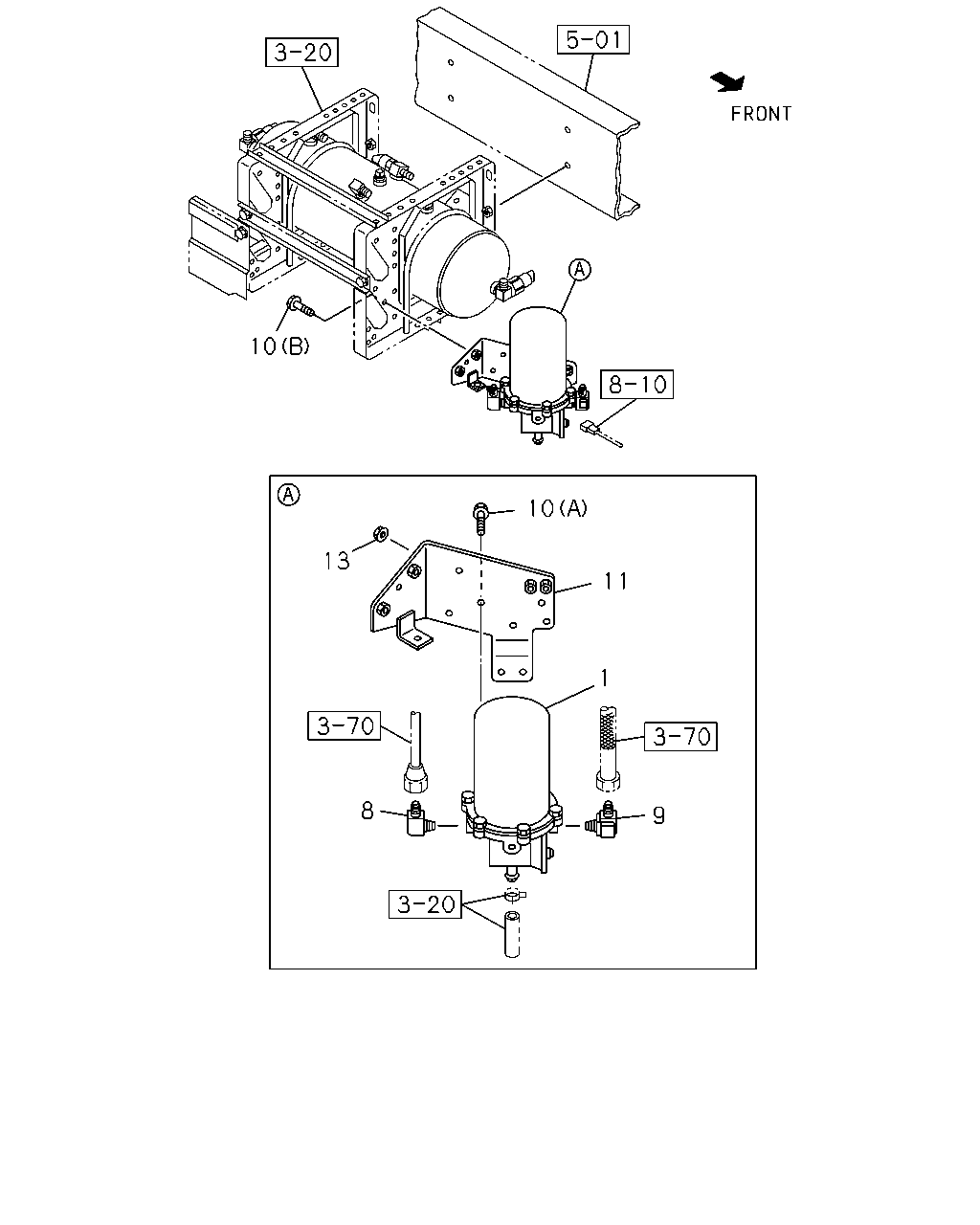

[346A] FIXING (7 parça)

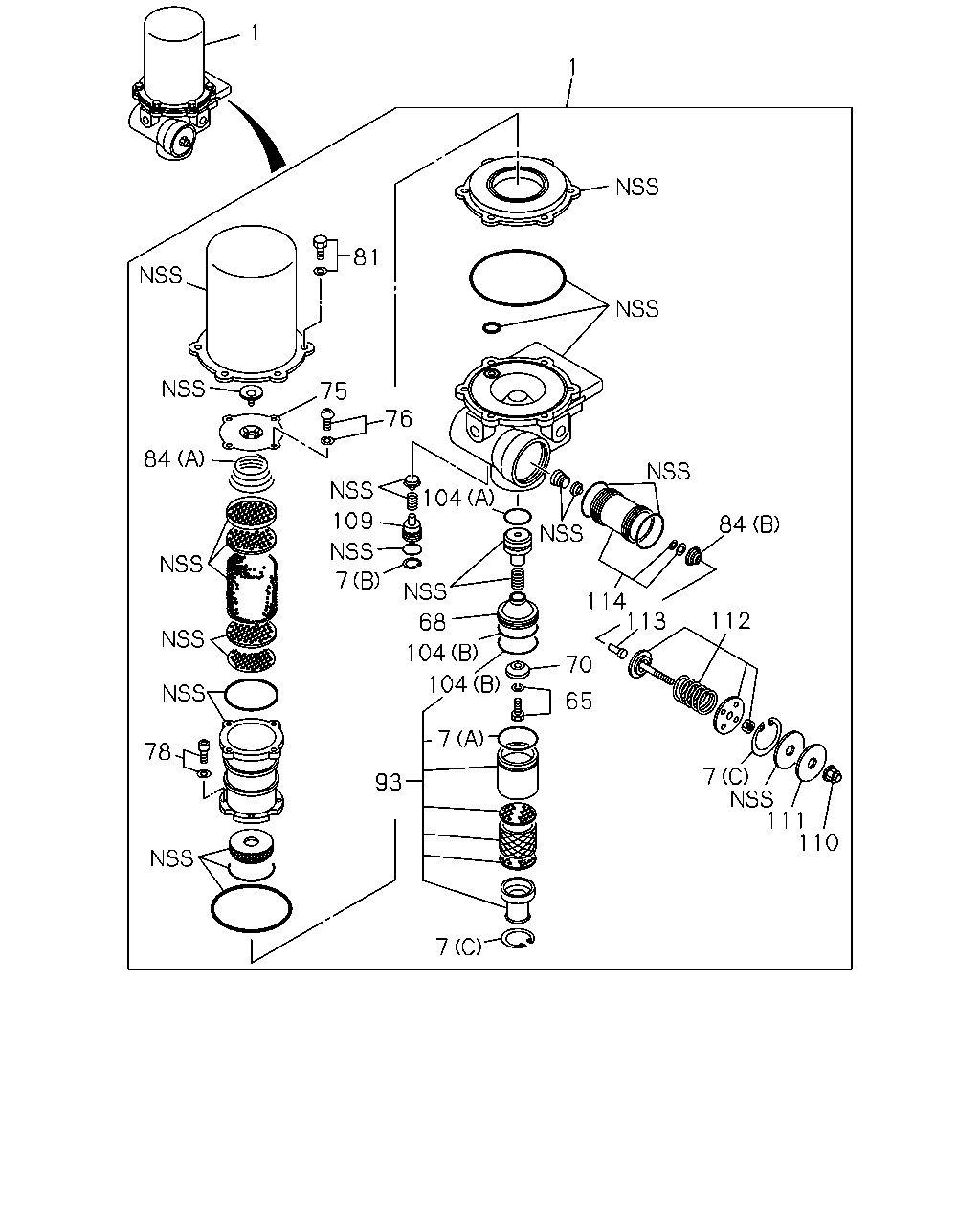

[346A] COMPONENT (24 parça)

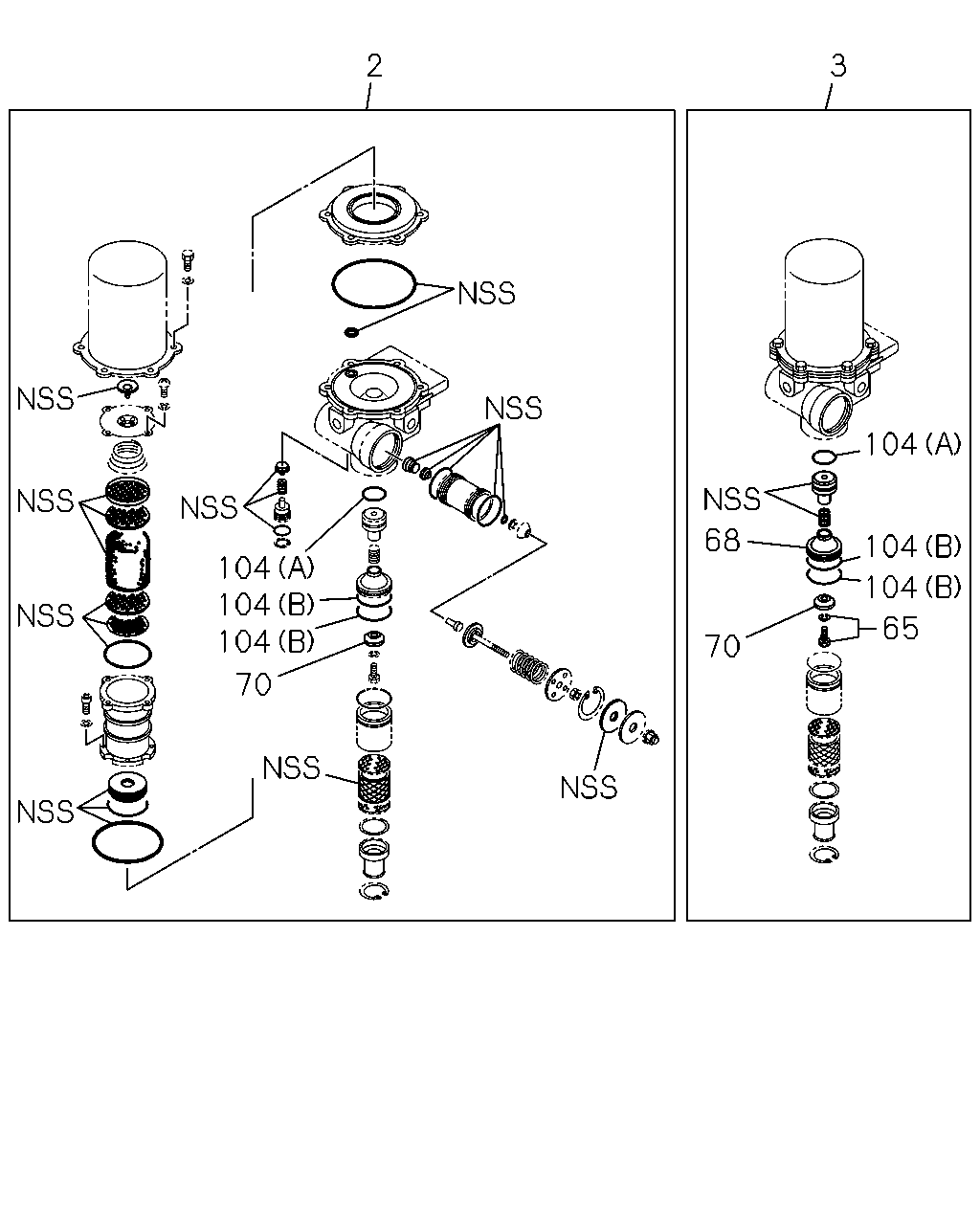

[346A] PISTON AND REPAIR KIT (7 parça)
▶
1
11
10
13
8
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98225-291-1
01
1
1304-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1304-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1304-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE THA
0-28050-820-0
02
1
1304-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE THA
0-28051-025-0
03
1
1304-
11
BRACKET; AIR DRYER
8-98044-548-4
01
1
1304-
13
NUT; AIR DRYER
M8 FLANGE THA
0-91180-108-0
02
1
1304-
84
114
113
112
7
111
110
7
7
93
65
70
104
104
68
7
109
104
76
75
81
1
1
84
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98225-291-1
01
1
1304-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
1304-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
1304-
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
1304-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1304-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1304-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1304-
75
COVER; CASE,AIR DRYER
THA
1-48199-395-0
01
1
1304-
76
BOLT; COVER,AIR DRYER
THA
1-48199-412-0
04
1
1304-
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-417-0
04
1
1304-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
06
1
1304-
84
SPRING; AIR DRYER
(A) THA
1-48199-396-0
01
1
1304-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
1304-
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
1304-
104
GASKET
(B) THA
1-48199-496-0
02
1
1304-
104
GASKET
(A) THA
8-98226-321-0
01
1
1304-
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
1304-
110
NUT; CAP
THA
1-48199-527-0
01
1
1304-
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
1304-
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
1304-1408
112
SCREW & SPRING ASM; AIR DRYER
THA
8-98292-687-0
01
1
1409-
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
1304-
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
1304-1408
114
PISTON ASM; GOVERNOR
THA
8-98292-688-0
01
1
1409-
2
104
104
104
70
3
104
104
104
65
70
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
THA
8-98226-326-0
01
1
1304-
3
PISTON KIT; AIR DRYER
THA
8-98226-322-0
01
1
1304-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1304-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1304-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1304-
104
GASKET
(B) THA
1-48199-496-0
02
1
1304-
104
GASKET
(A) THA
8-98226-321-0
01
1
1304-
