Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#121070) — 57 parça
◀

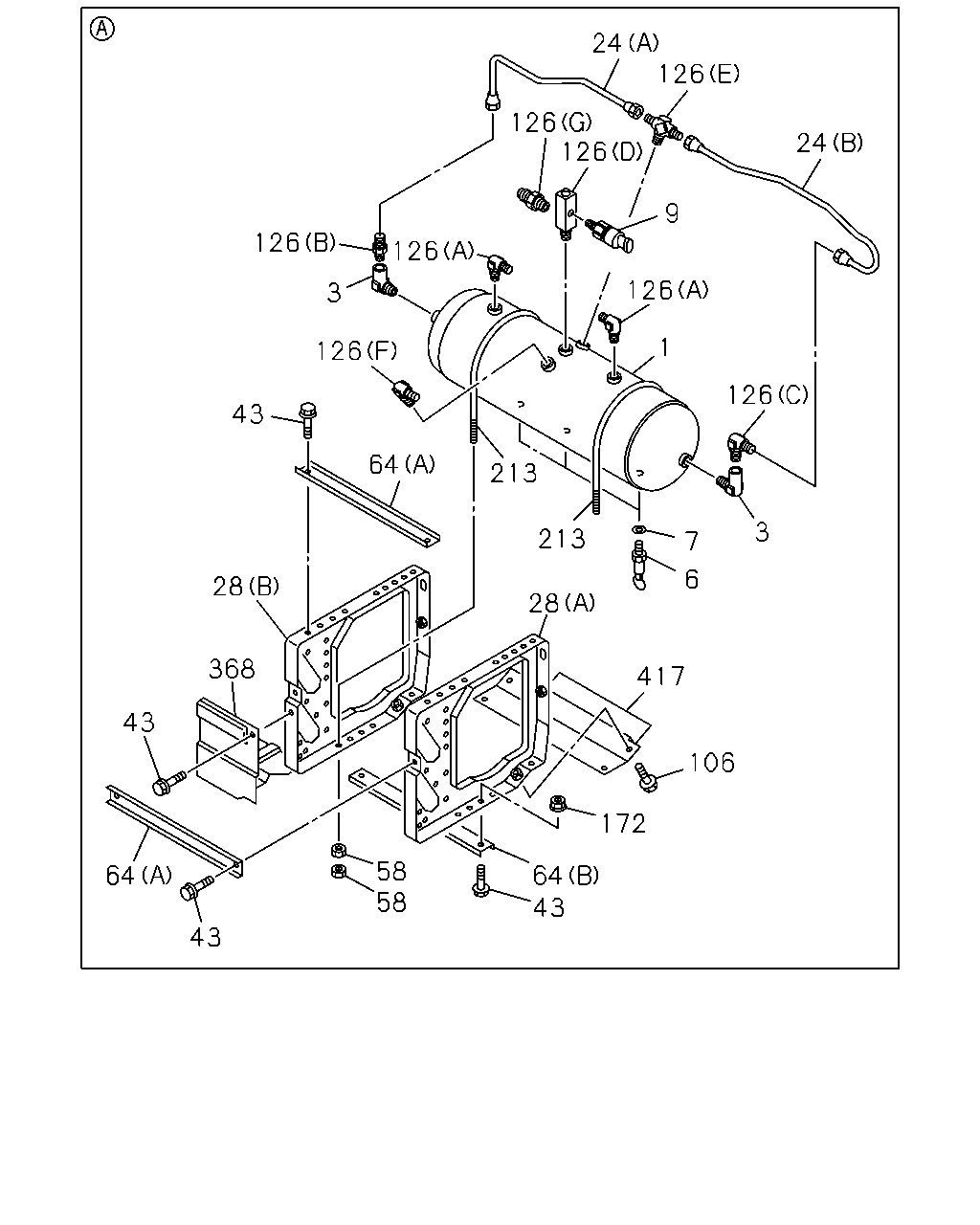

[320A] COMPONENT (25 parça)

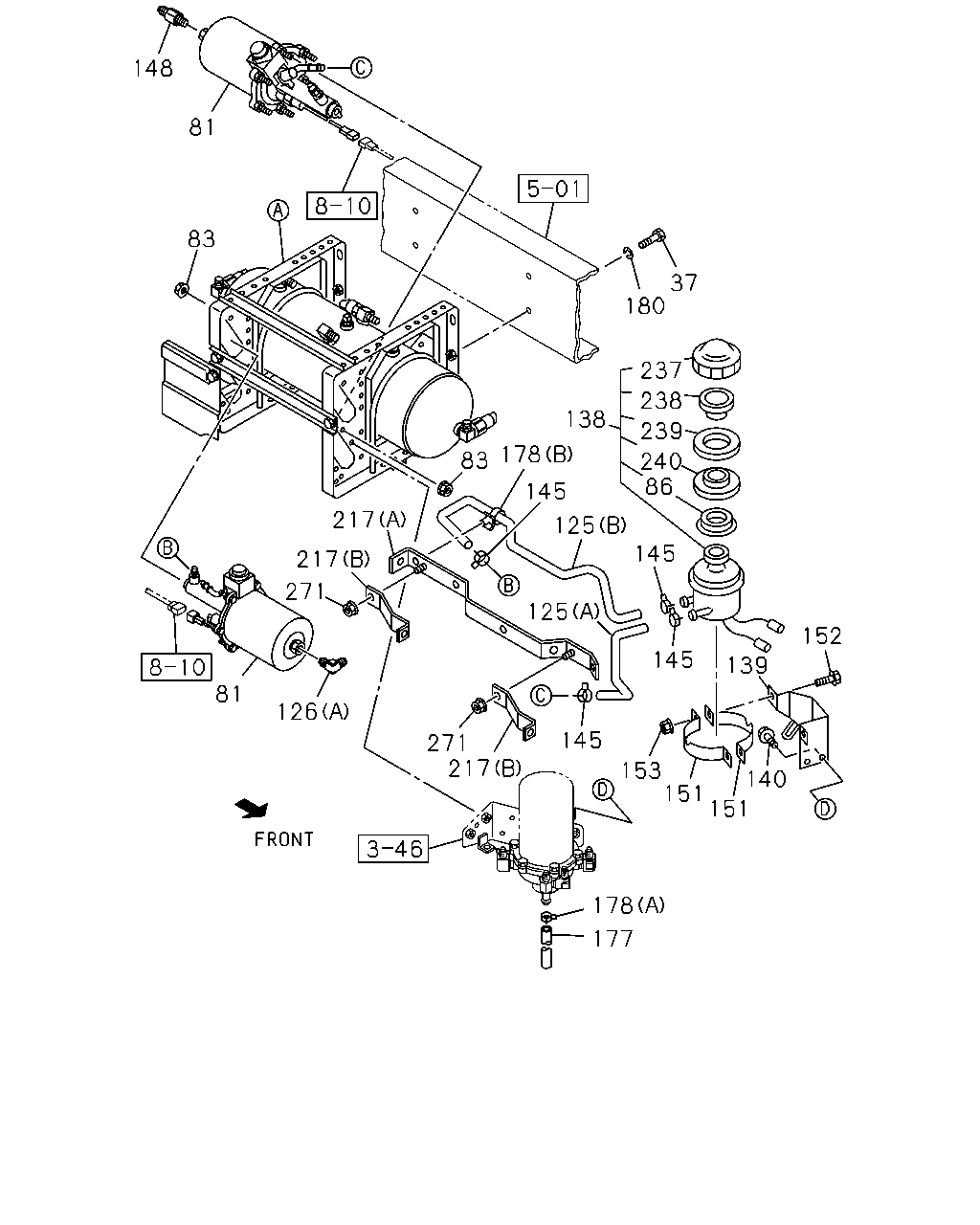

[320A] FIXING (32 parça)
▶
1
126
3
7
6
417
106
172
64
43
58
58
43
64
43
368
28
43
64
28
213
213
126
3
126
126
126
9
126
126
24
126
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
THA
8-98202-942-0
01
1
1304-
3
VALVE; CHECK,AIR TANK
1-48320-031-1
02
1
1304-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
1304-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
1304-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
01
1
1304-
24
PIPE ASM; AIR TANK
(A) THA
8-98178-465-0
01
1
1304-
24
PIPE ASM; AIR TANK
(B) THA
8-98178-466-0
01
1
1304-
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
1304-
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
1304-
43
BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE THA
0-28050-816-0
10
1
1304-
58
NUT; BAND,AIR TANK
M8
0-91110-508-0
08
1
1304-
64
STAY; AIR TANK,MAIN
(A)
8-98044-510-3
02
1
1304-
64
STAY; AIR TANK,MAIN
(B)
8-98044-511-2
01
1
1304-
106
BOLT; COVER
M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
126
CONNECTOR; ELBOW
(B) M20
0-92121-812-0
01
1
1304-
126
CONNECTOR; ELBOW
(C) M20 & PT3/8 ELBOW
0-92134-312-0
01
1
1304-
126
CONNECTOR; ELBOW
(G) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1304-
126
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
03
1
1304-
126
CONNECTOR; ELBOW
(E) M20X2 & PT3/8 3WAY
1-09656-340-1
01
1
1304-
126
CONNECTOR; ELBOW
(F) M20 & PT3/4 ELBOW
8-98067-083-1
01
1
1304-
126
CONNECTOR; ELBOW
(D)
8-98190-623-0
01
1
1304-
172
NUT; STAY,AIR TANK,MAIN
M8 FLANGE THA
0-91180-108-0
02
1
1304-
213
BOLT; U AIR TANK
8-98022-041-0
02
1
1304-
368
COVER; AIR TANK
8-98061-625-3
01
1
1304-
417
COVER; HARNESS
8-98111-401-0
01
1
1304-
37
180
237
238
239
240
86
145
145
139
152
140
151
151
153
145
178
177
217
271
126
81
271
217
217
83
178
145
125
125
138
83
81
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
04
1
1304-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-826-0
02
1
1304-
83
NUT; AIR MASTER
M8 FLANGE THA
0-91180-108-0
09
1
1304-
86
SEAL; DUST
1-47529-019-0
01
1
1304-
125
HOSE; OIL TANK TO AIR MASTER
(A)
8-98051-217-0
01
1
1304-
125
HOSE; OIL TANK TO AIR MASTER
(B)
8-98051-218-1
01
1
1304-
126
CONNECTOR; ELBOW
(B) M20
0-92121-812-0
01
1
1304-
126
CONNECTOR; ELBOW
(C) M20 & PT3/8 ELBOW
0-92134-312-0
01
1
1304-
126
CONNECTOR; ELBOW
(G) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1304-
126
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
03
1
1304-
126
CONNECTOR; ELBOW
(E) M20X2 & PT3/8 3WAY
1-09656-340-1
01
1
1304-
126
CONNECTOR; ELBOW
(F) M20 & PT3/4 ELBOW
8-98067-083-1
01
1
1304-
126
CONNECTOR; ELBOW
(D)
8-98190-623-0
01
1
1304-
138
TANK ASM; OIL,AIR MASTER
1-47530-185-1
01
1
1304-
139
BRACKET; OIL TANK
8-98051-105-0
01
1
1304-
140
BOLT; OIL TANK TO BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
1304-
148
CONNECTOR; AIR MASTER
M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
1304-
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
1304-
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
153
NUT; OIL TANK TO BAND
M8
0-91110-508-0
02
1
1304-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1304-
178
CLIP; HOSE
(B) ID=13-18 L=14.5
1-09709-290-0
08
1
1304-
178
CLIP; HOSE
(A) ID=21
8-94242-034-0
01
1
1304-
180
WASHER; LK
ID=12.5 OD=32
0-91614-712-0
04
1
1304-
217
BRACKET; RUBBER HOSE
(A)
8-98082-871-0
01
1
1304-
217
BRACKET; RUBBER HOSE
(B)
8-98085-273-1
02
1
1304-
237
CAP; OIL TANK
1-47525-030-0
01
1
1304-
238
PLATE; BAFFLE
1-47529-022-0
01
1
1304-
239
FILTER; DUST
1-47529-017-0
01
1
1304-
240
HOLDER; FILTER
1-47529-018-0
01
1
1304-
271
NUT; BRKT,HOSE
M8 FLANGE THA
0-91180-108-0
02
1
1304-
