Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

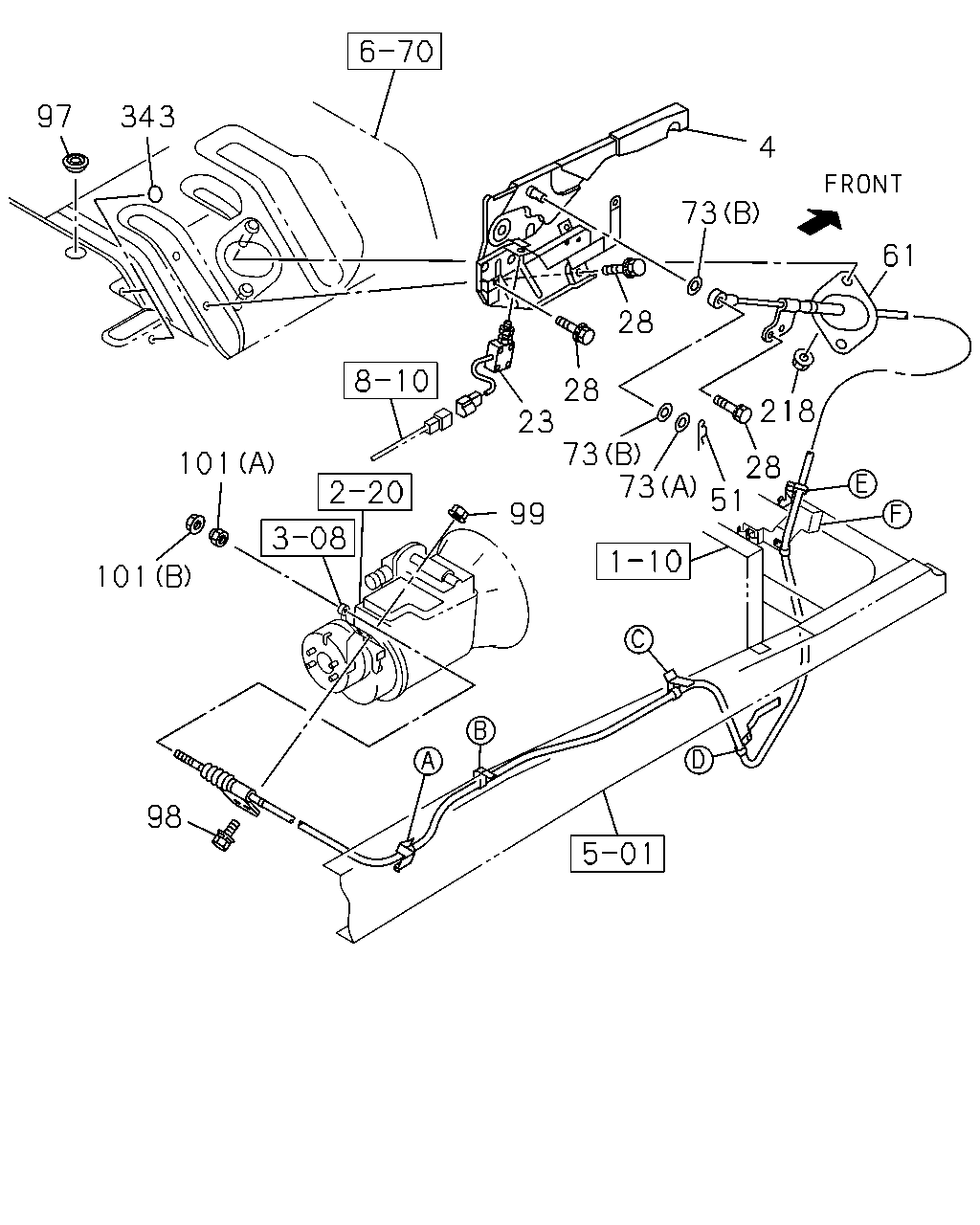

3-11 — PARKING BRAKE CONTROL
(#121069) — 45 parça
◀
[311A] NO.1 (18 parça)
[311A] NO.2 (27 parça)
▶
343
97
101
101
99
23
28
28
73
4
61
218
28
51
73
73
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-548-0
01
1
1304-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1304-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1304-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1304-
61
CABLE; PARKING BRK
MZW6P M/T<RSZ> L=4263
8-98102-305-3
01
1
1304-1401
61
CABLE; PARKING BRK
MZW6P M/T<RSZ> L=4263 THA
8-98257-630-0
01
1
1402-
61
CABLE; PARKING BRK
MZZ6W M/T<RSA> L=4253
8-98171-946-1
01
1
1304-1306
61
CABLE; PARKING BRK
MZZ6W M/T<RSA> L=4253 THA
8-97948-239-0
01
1
1307-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1304-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1304-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1304-
98
BOLT; RR COVER
4HK1-TCC ENG<RDV> M10X30 FLANGE THA
0-28651-030-0
01
1
1304-
98
BOLT; RR COVER
4HK1-TCS ENG<RJS> M10X30 FLANGE THA
0-28651-030-0
02
1
1304-
99
NUT; CONT CABLE
M10 FLANGE THA
0-91180-210-0
02
1
1304-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE THA
0-91180-108-0
01
1
1304-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
1304-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE THA
0-91180-108-0
02
1
1304-
343
SEAL
OD=25 BLACK THA
1-76798-019-0
05
1
1304-
236
235
87
237
227
228
227
228
236
227
235
237
87
236
227
237
235
336
228
228
227
61
307
351
324
351

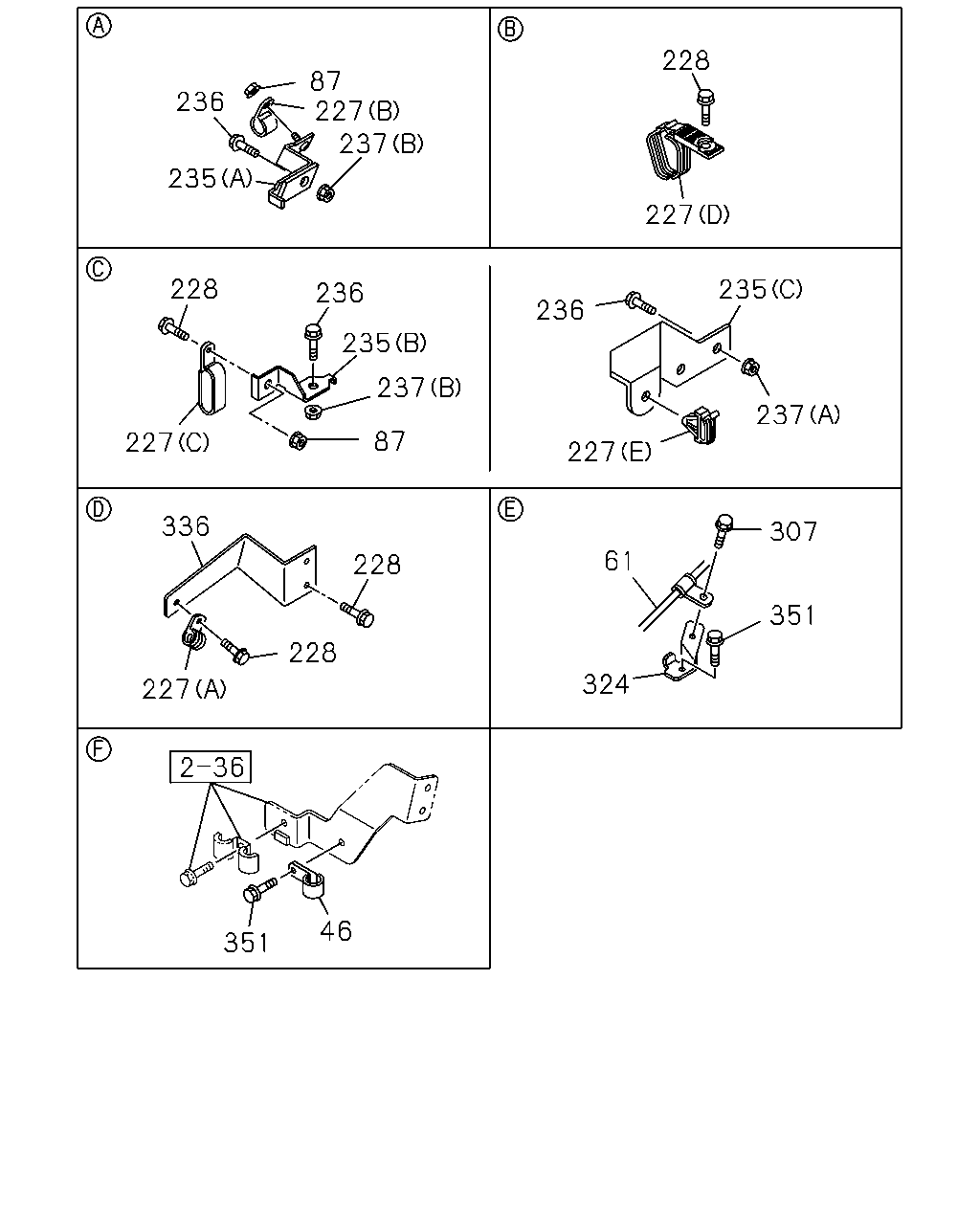

46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
MZW6P M/T<RSZ> ID=13 L=20
0-95235-235-0
01
1
1402-
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1304-1401
46
CLIP; FRT CABLE TO FLOOR
MZZ6W M/T<RSA> ID=16 L=20
0-95235-535-0
01
1
1402-
61
CABLE; PARKING BRK
MZW6P M/T<RSZ> L=4263
8-98102-305-3
01
1
1304-1401
61
CABLE; PARKING BRK
MZW6P M/T<RSZ> L=4263 THA
8-98257-630-0
01
1
1402-
61
CABLE; PARKING BRK
MZZ6W M/T<RSA> L=4253
8-98171-946-1
01
1
1304-1306
61
CABLE; PARKING BRK
MZZ6W M/T<RSA> L=4253 THA
8-97948-239-0
01
1
1307-
87
NUT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
227
CLIP; RAD
(B) ID=16 L=20
0-95235-535-0
01
1
1304-
227
CLIP; RAD
(A) ID=26 L=26
1-09701-236-0
01
1
1304-
227
CLIP; RAD
(E) ID=9.5
5-09709-020-0
01
1
1304-
227
CLIP; RAD
(C) ID=13 & 13 L=32
8-97389-264-0
01
1
1304-
227
CLIP; RAD
(D) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1304-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
228
BOLT; CLIP RAD MTG
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
228
BOLT; CLIP RAD MTG
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1304-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98100-152-0
01
1
1304-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98126-426-0
01
1
1304-
235
BRACKET; CONT CABLE TO FRAME
MZW6P M/T<RSZ> (A)
8-98077-903-2
01
1
1304-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE THA
0-28650-825-0
03
1
1304-
236
BOLT; BRKT TO FRAME
MZW6P M/T<RSZ> M10X30 FLANGE THA
0-28651-030-0
01
1
1304-
237
NUT; BRKT TO FRAME
(A) M8 FLANGE THA
0-91180-108-0
02
1
1304-
237
NUT; BRKT TO FRAME
MZW6P M/T<RSZ> (B) M10 FLANGE THA
0-91180-210-0
01
1
1304-
307
BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER
0-51640-825-0
01
1
1304-
324
BRACKET
8-98067-482-1
01
1
1304-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1304-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1304-
