3-08 — PARKING BRAKE (#121067) — 56 parça

17 20 37 114 46 41 40 42 39 32 20 33 114 17 13 8 198 23 21 2 81 54 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

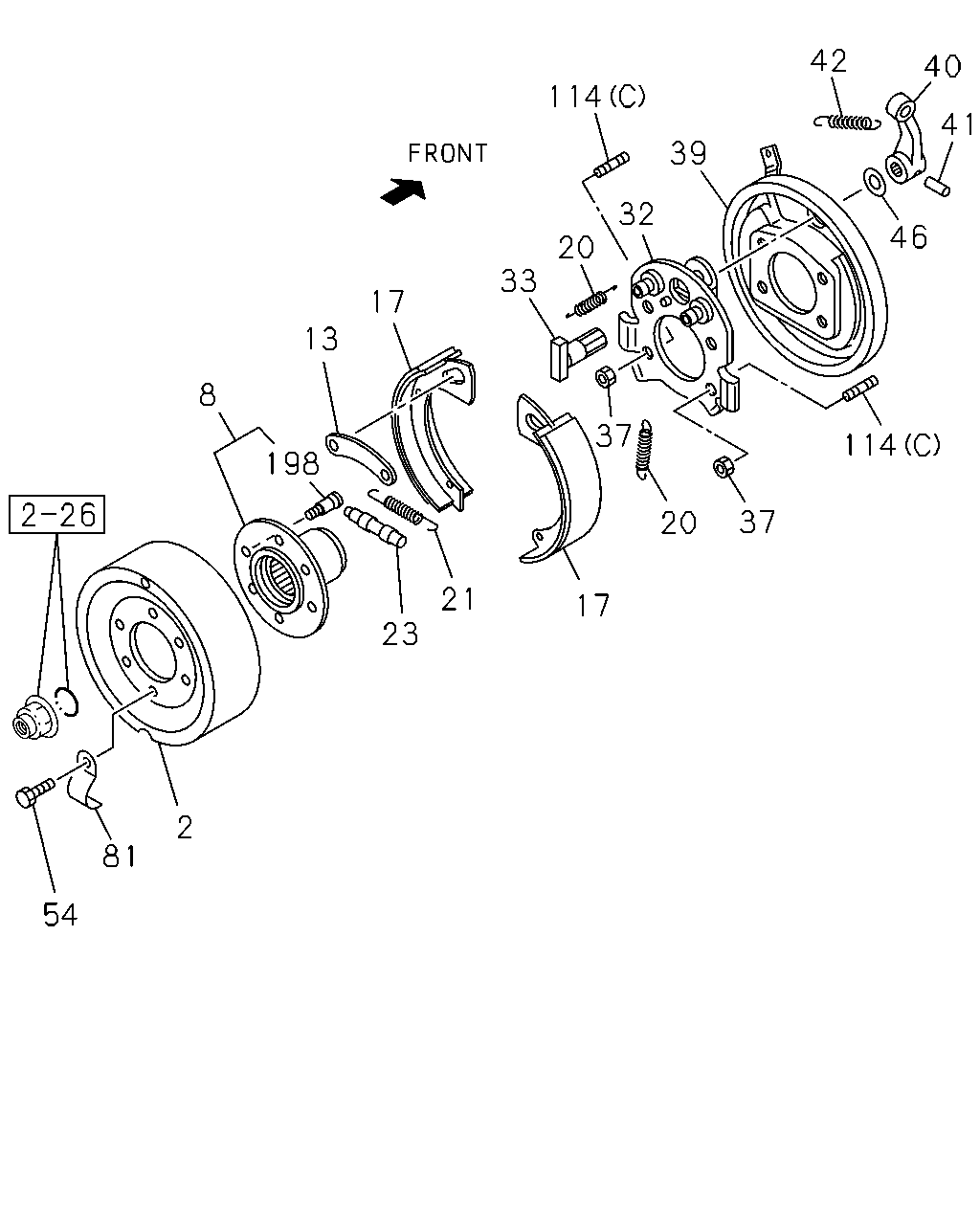

2	DRUM; PARKING BRK	1-46211-020-0	01	1	1304-	●	●
8	FLANGE; PARKING BRK	8-98171-007-0	01	1	1304-	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1304-		●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1304-	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1304-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1304-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1304-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1304-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1304-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1304-	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1304-	●	●
39	COVER; DUST,PARKING BRK	1-46213-115-0	01	1	1304-	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	1304-		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-057-0	01	1	1304-	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	1304-		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1304-	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1304-	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	1304-	●	●
54	BOLT; COVER M8X20 W/LK WASHER	0-50740-820-0	02	1	1304-	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1304-	●	●
114	STUD; SUPPORT PLATE (C) M14X22.5 L=42.5	8-97365-445-0	04	1	1304-	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1304-		●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1304-		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1304-	●	●

41 42 40 46 114 20 33 37 20 37 32 114 39 17 21 17 13 198 23 8 2 81 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

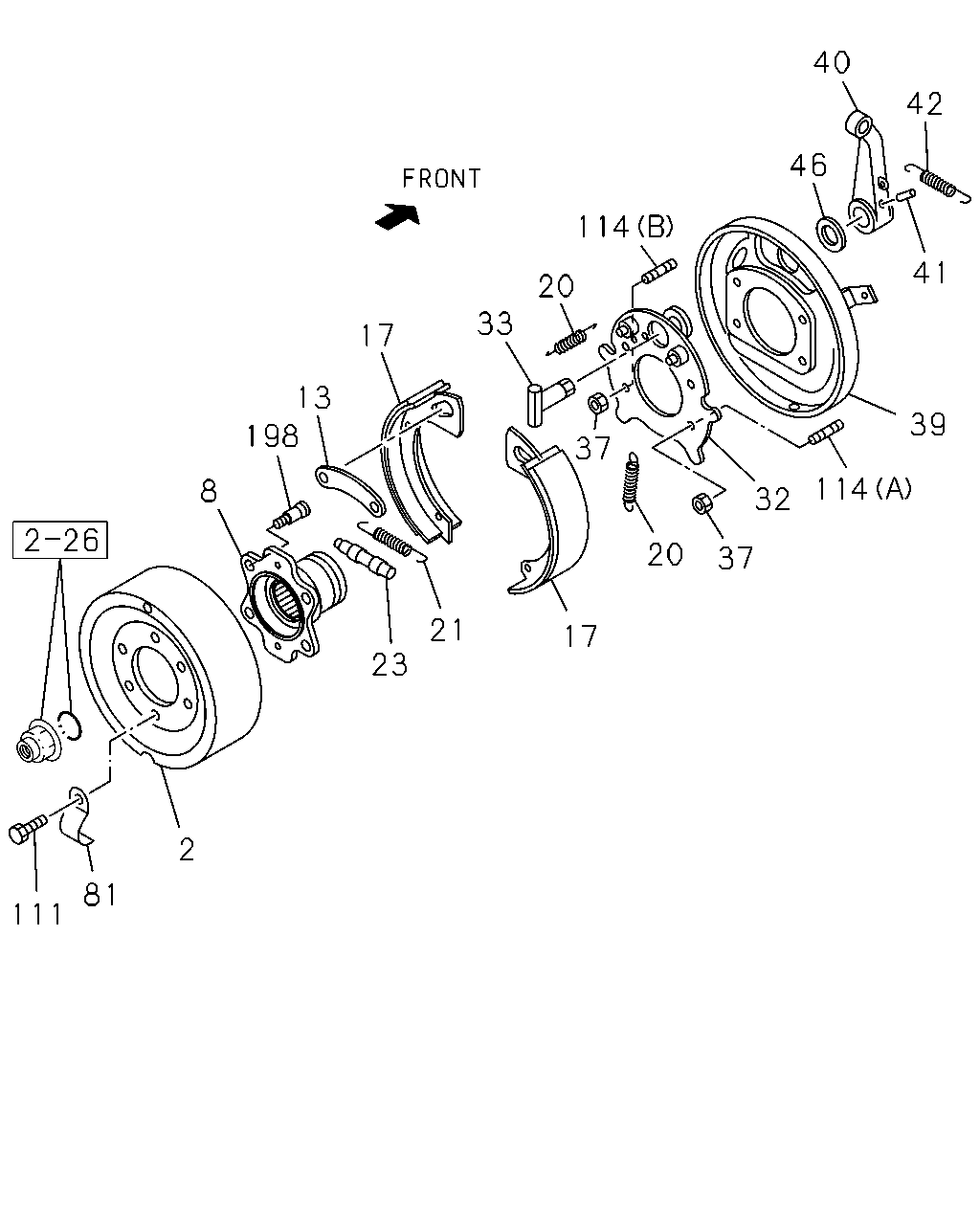

2	DRUM; PARKING BRK	1-46211-020-0	01	1	1304-	●	●
8	FLANGE; PARKING BRK	8-98171-007-0	01	1	1304-	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1304-		●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1304-	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1304-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1304-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1304-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1304-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1304-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1304-	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1304-	●	●
39	COVER; DUST,PARKING BRK	1-46213-115-0	01	1	1304-	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	1304-		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-057-0	01	1	1304-	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	1304-		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1304-	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1304-	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	1304-	●	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1304-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1304-		●
114	STUD; SUPPORT PLATE (C) M14X22.5 L=42.5	8-97365-445-0	04	1	1304-	●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1304-		●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1304-		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1304-	●	●

197 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	BOLT; BRKT M10X25 FLANGE THA	0-28151-025-0	03	1	1304-	●
130	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1304-		●

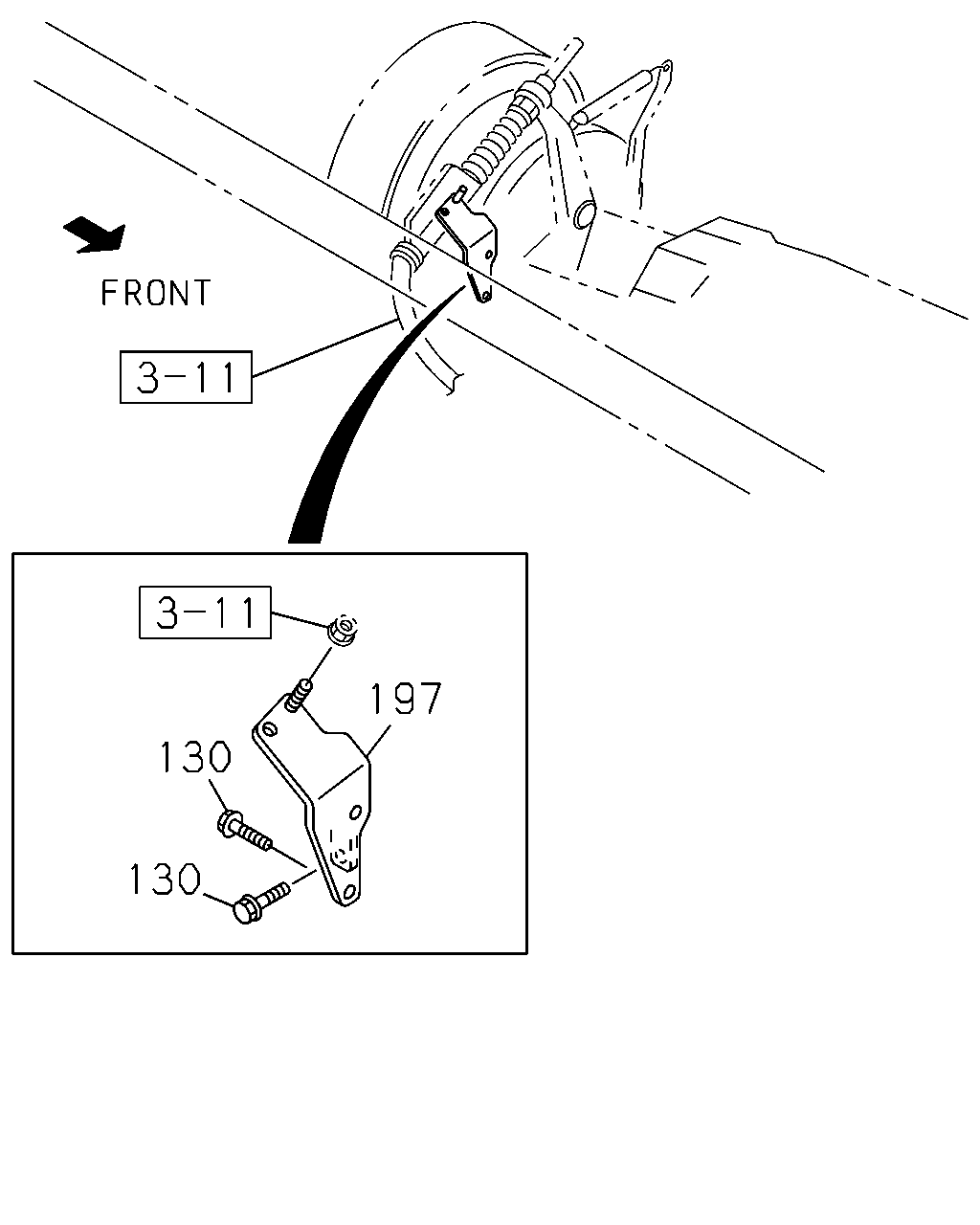

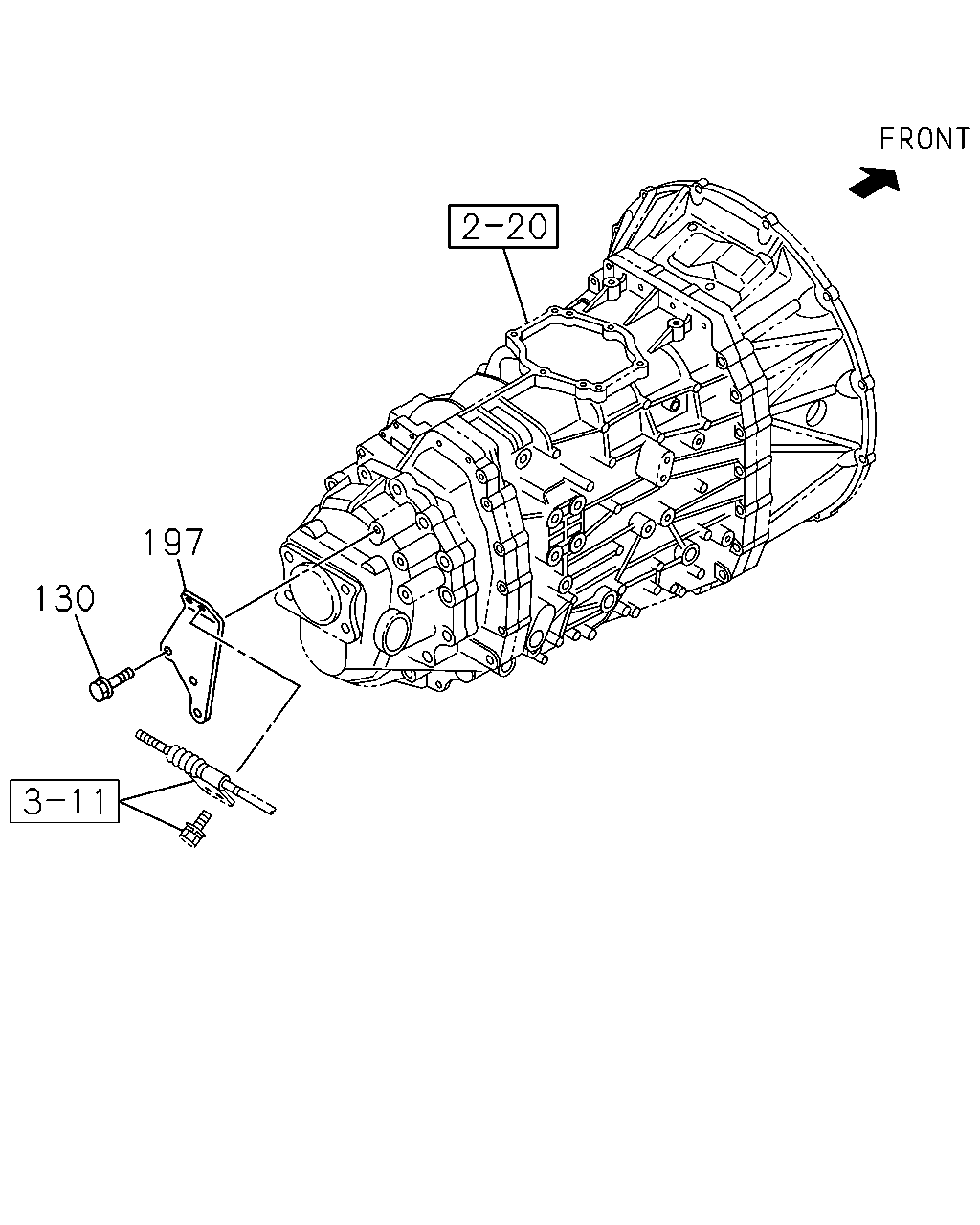

197	BRACKET; CENTER BRAKE CABLE	8-98170-963-2	01	1	1304-	●
197	BRACKET; CENTER BRAKE CABLE	8-98020-897-1	01	1	1304-		●

130 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	BOLT; BRKT M10X25 FLANGE THA	0-28151-025-0	03	1	1304-	●
130	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1304-		●
197	BRACKET; CENTER BRAKE CABLE	8-98170-963-2	01	1	1304-	●
197	BRACKET; CENTER BRAKE CABLE	8-98020-897-1	01	1	1304-		●
