Sayfa 2-81 - Isuzu EPC

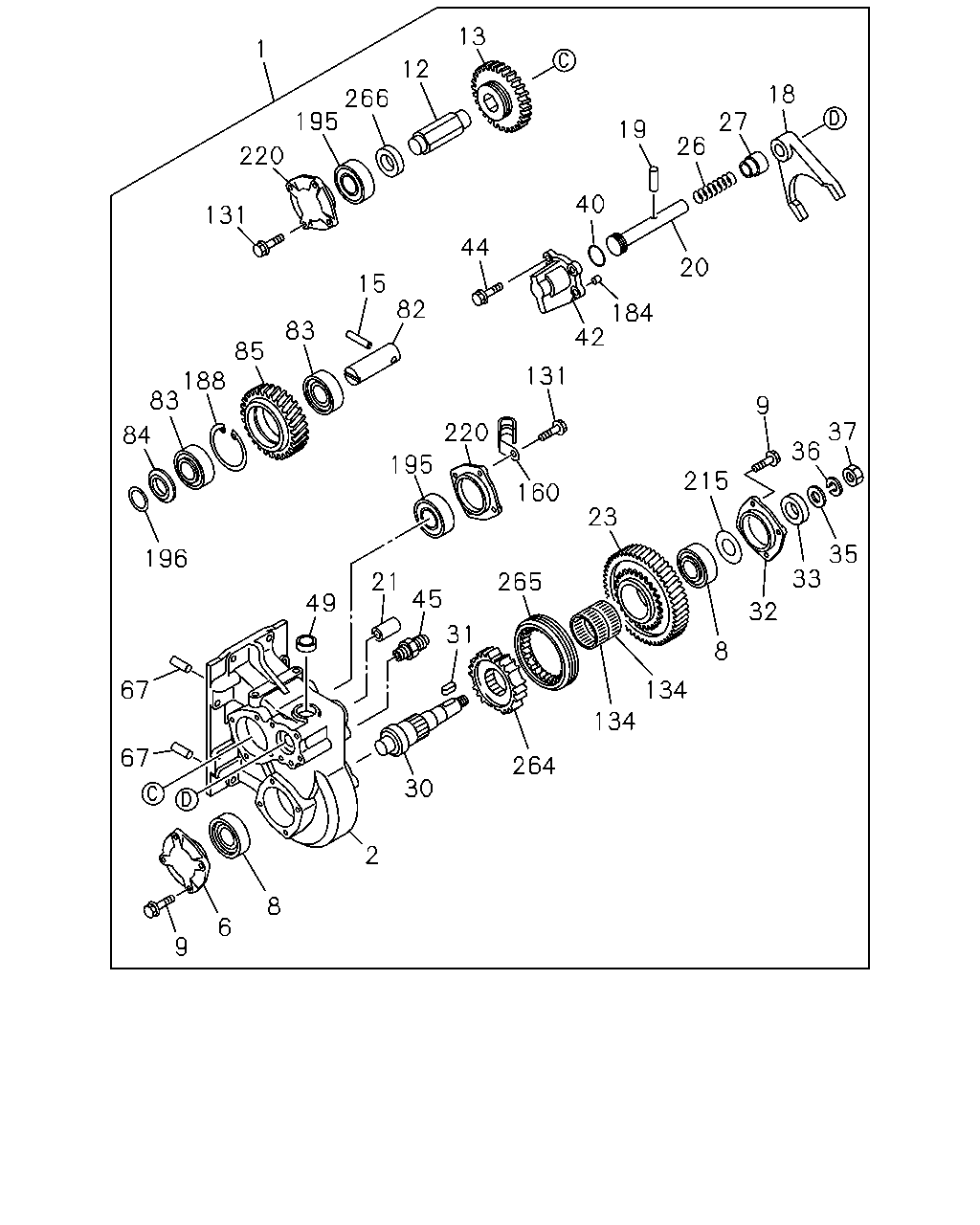

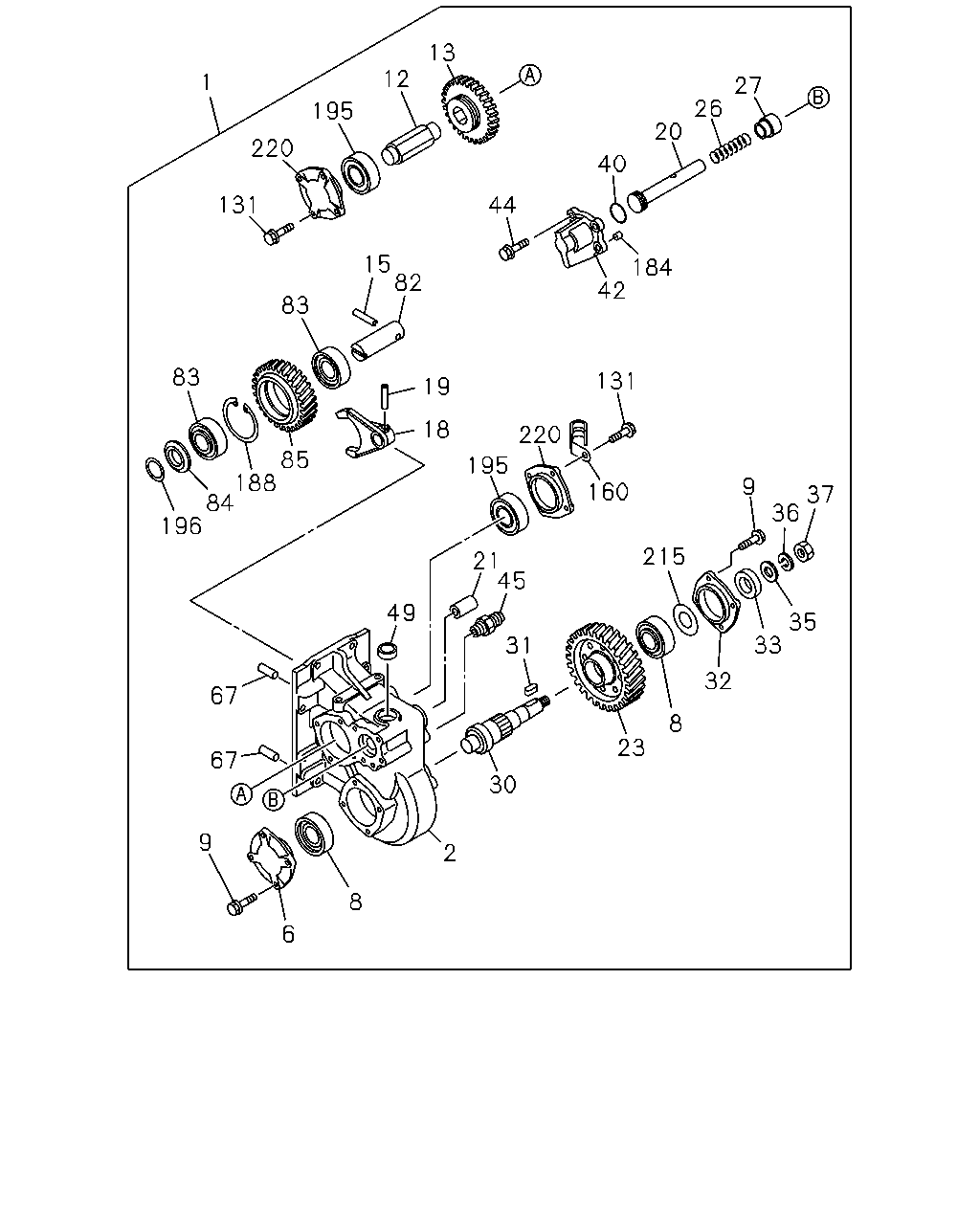

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#121063) — 212 parça

1 131 220 195 266 12 13 84 83 188 85 83 15 196 82 44 19 40 18 27 26 20 184 42 131 220 195 67 9 67 6 49 8 30 2 21 264 265 160 45 23 134 134 8 215 9 32 33 35 37 36 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97257-443-4	01	1	1304-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98118-443-3	01	1	1304-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-792-1	01	1	1304-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-894-1	01	1	1304-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-612-0	01	1	1304-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	01	1	1304-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=25 OD=62	8-94343-031-1	02	1	1304-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1304-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-817-0	01	1	1304-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98140-219-1	01	1	1304-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=36	8-97305-810-0	01	1	1304-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98134-900-1	01	1	1304-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=20 OD=4	9-09678-514-0	01	1	1304-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98009-081-0	01	1	1304-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98204-322-0	01	1	1304-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-596-0	01	1	1304-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-820-1	01	1	1304-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-062-0	01	1	1304-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-619-0	01	1	1304-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=26	8-97305-798-0	01	1	1304-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98134-902-0	01	1	1304-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38121-004-1	01	1	1304-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-912-0	01	1	1304-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-787-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1304-1312	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1401-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=25	8-98068-088-0	01	1	1304-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-794-0	01	1	1304-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38159-007-0	01	1	1304-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15	0-91610-514-0	01	1	1304-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=14.2	0-91510-814-0	01	1	1304-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M14	0-91111-514-0	01	1	1304-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-09561-324-0	01	1	1304-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-597-0	01	1	1304-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-911-1	01	1	1304-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	02	1	1304-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	04	1	1304-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	02	1	1304-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1304-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER<SH5> L=22	8-94483-674-0	02	1	1304-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER<SH5> L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-904-0	01	1	1304-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1304-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-38245-603-1	01	1	1304-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=28	8-98134-898-1	01	1	1304-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-803-0	02	1	1401-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=8.5 THA	5-09700-275-0	01	1	1304-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> OD=11 L=8	9-11229-058-1	01	1	1304-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> T=2.2 THA	1-09587-103-1	01	1	1304-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> NSK	8-97360-312-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.50	8-97106-724-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.60	8-97106-725-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.65	8-97106-726-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.70	8-97106-727-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.80	8-97106-728-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.85	8-97106-729-0	02	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.1	5-33156-022-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.2	5-33156-024-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.15	8-98067-573-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.40	8-98067-574-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.65	8-98067-575-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.80	8-98067-576-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.00	8-98134-917-0	AR	1	1304-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	02	1	1304-		●
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-804-0	01	1	1401-		●
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-802-0	01	1	1401-		●
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-806-0	01	1	1401-		●

27 26 20 40 184 42 131 220 195 160 215 9 36 37 35 33 32 8 23 31 45 21 30 2 8 6 9 67 67 49 18 19 44 15 82 83 85 188 84 196 83 131 220 195 12 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97257-443-4	01	1	1304-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98118-443-3	01	1	1304-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-792-1	01	1	1304-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-894-1	01	1	1304-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-612-0	01	1	1304-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	01	1	1304-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=25 OD=62	8-94343-031-1	02	1	1304-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1304-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-817-0	01	1	1304-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98140-219-1	01	1	1304-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=36	8-97305-810-0	01	1	1304-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98134-900-1	01	1	1304-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=20 OD=4	9-09678-514-0	01	1	1304-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98009-081-0	01	1	1304-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98204-322-0	01	1	1304-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-596-0	01	1	1304-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-820-1	01	1	1304-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-062-0	01	1	1304-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-619-0	01	1	1304-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=26	8-97305-798-0	01	1	1304-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98134-902-0	01	1	1304-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38121-004-1	01	1	1304-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-912-0	01	1	1304-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-787-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1304-1312	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1401-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=25	8-98068-088-0	01	1	1304-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-794-0	01	1	1304-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38159-007-0	01	1	1304-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15	0-91610-514-0	01	1	1304-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=14.2	0-91510-814-0	01	1	1304-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M14	0-91111-514-0	01	1	1304-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-09561-324-0	01	1	1304-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-597-0	01	1	1304-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-911-1	01	1	1304-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	02	1	1304-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	04	1	1304-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	02	1	1304-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1304-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER<SH5> L=22	8-94483-674-0	02	1	1304-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER<SH5> L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-904-0	01	1	1304-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1304-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-38245-603-1	01	1	1304-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=28	8-98134-898-1	01	1	1304-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=8.5 THA	5-09700-275-0	01	1	1304-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> OD=11 L=8	9-11229-058-1	01	1	1304-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> T=2.2 THA	1-09587-103-1	01	1	1304-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> NSK	8-97360-312-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.50	8-97106-724-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.60	8-97106-725-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.65	8-97106-726-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.70	8-97106-727-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.80	8-97106-728-0	02	1	1304-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.85	8-97106-729-0	02	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.1	5-33156-022-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.2	5-33156-024-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.15	8-98067-573-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.40	8-98067-574-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.65	8-98067-575-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.80	8-98067-576-0	AR	1	1304-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.00	8-98134-917-0	AR	1	1304-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	02	1	1304-		●

1 20 40 26 112 19 18 13 11 50 50 31 30 8 6 9 21 49 2 49 79 32 35 36 37 33 15 22 23 12 44 45 42 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97257-443-4	01	1	1304-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98118-443-3	01	1	1304-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-792-1	01	1	1304-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-894-1	01	1	1304-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-612-0	01	1	1304-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	01	1	1304-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=25 OD=62	8-94343-031-1	02	1	1304-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1304-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98068-087-0	01	1	1304-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-817-0	01	1	1304-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98140-219-1	01	1	1304-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=36	8-97305-810-0	01	1	1304-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98134-900-1	01	1	1304-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=20 OD=4	9-09678-514-0	01	1	1304-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98009-081-0	01	1	1304-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98204-322-0	01	1	1304-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-596-0	01	1	1304-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-820-1	01	1	1304-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-062-0	01	1	1304-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-619-0	01	1	1304-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98068-086-0	01	1	1304-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=26	8-97305-798-0	01	1	1304-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98134-902-0	01	1	1304-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38121-004-1	01	1	1304-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-787-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1304-1312	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1401-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=25	8-98068-088-0	01	1	1304-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-794-0	01	1	1304-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38159-007-0	01	1	1304-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15	0-91610-514-0	01	1	1304-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=14.2	0-91510-814-0	01	1	1304-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M14	0-91111-514-0	01	1	1304-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-09561-324-0	01	1	1304-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-597-0	01	1	1304-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-911-1	01	1	1304-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	02	1	1304-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	04	1	1304-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	02	1	1304-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1304-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-38226-058-1	01	1	1304-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-97305-818-0	01	1	1304-	●
79	COVER; DUST,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1304-	●
112	COLLAR; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98149-248-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
