0-60 — ENGINE ELECTRICAL CONTROL PARTS (#12106) — 136 parça

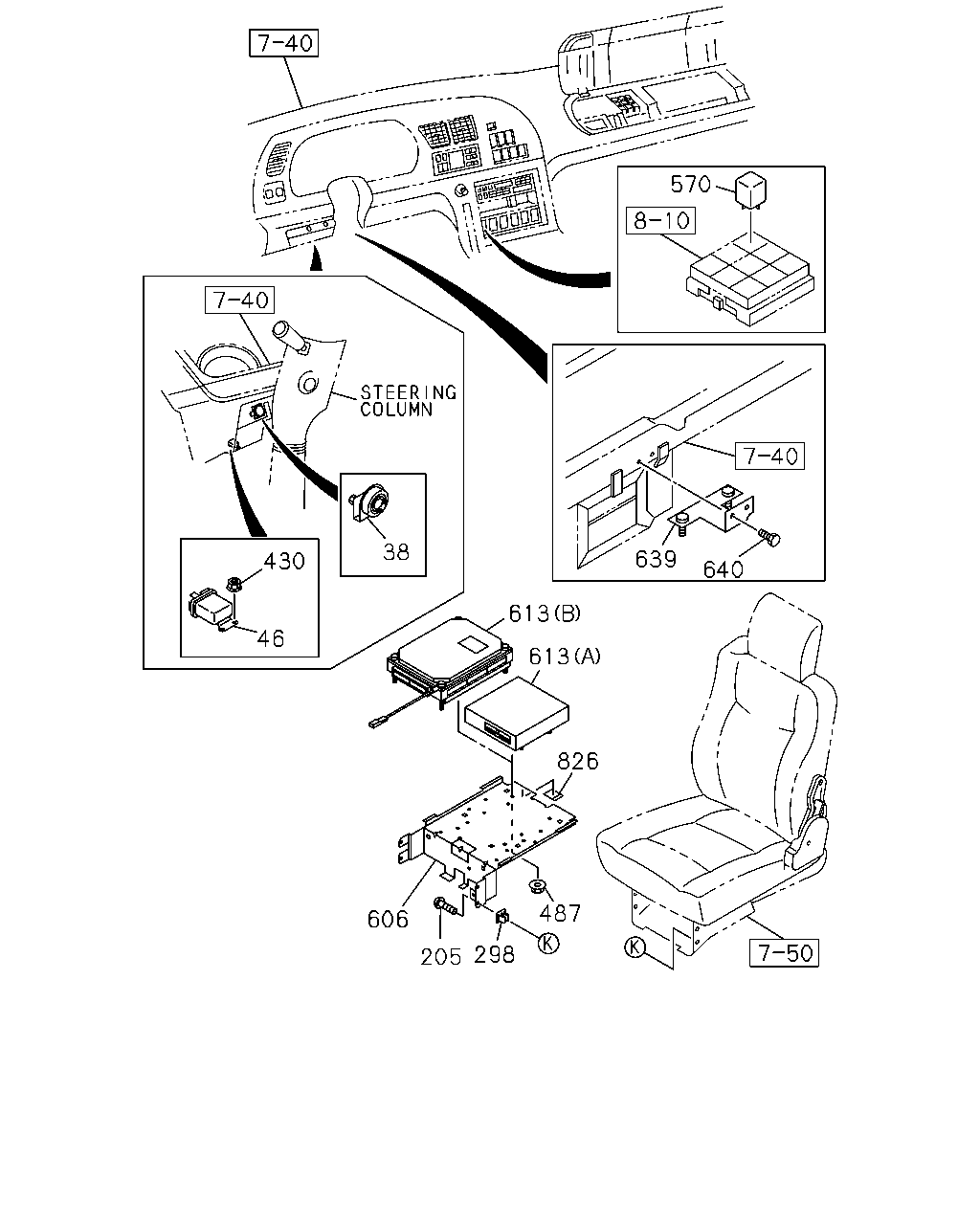

570 639 38 430 640 613 46 613 826 487 606 298 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	0105-
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	0105-
205	SCREW; BRKT 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0105-
205	SCREW; BRKT 6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0105-
298	GROMMET; SCREW 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-
298	GROMMET; SCREW 6WA1 TC-C(55L) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-
430	NUT; RELAY FIX GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	0105-0602
430	NUT; RELAY FIX GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91180-106-0	01	1	0603-
487	NUT 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91150-106-0	04	1	0105-0602
487	NUT 6WA1 TC-C(55L) M6 FLANGE	0-91150-106-0	04	1	0105-0602
487	NUT 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91180-106-0	04	1	0603-
487	NUT 6WA1 TC-C(55L) M6 FLANGE	0-91180-106-0	04	1	0603-
570	RELAY; EXH SHUTTER ELECTRONIC GOV RED3(KG5) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
606	BRACKET; CONT UNIT 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5)	1-75558-598-3	01	1	0105-
606	BRACKET; CONT UNIT 6WA1 TC-C(55L)	1-75558-598-3	01	1	0105-
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) COLOMBIA EQUIPMENT(WJ2) (A)	1-80111-094-0	01	1	0307-
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-480-0	01	1	0105-
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-666-0	01	1	0105-
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B)	1-80110-440-0	01	1	0105-
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-446-0	01	1	0105-0306
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. COLOMBIA EQUIPMENT(WJ2) (A)	1-80110-446-0	01	1	0307-
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (A)	1-80110-625-0	01	1	0105-
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-706-0	01	1	0105-
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) EMISSION "94 US FEDERAL REQUIREMENT"<NAQ> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-437-0	01	1	0105-
639	BRACKET; QOS GLOW TIMER	1-73908-161-0	01	1	0302-
640	BOLT; BRKT,QOS GLOW TIMER M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0302-
826	SEAL; NOISE INSULATION 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) 30X30	8-97866-626-0	03	1	0105-0309
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	8-97866-626-0	03	1	0105-0309
826	SEAL; NOISE INSULATION 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) 30X30	1-74998-128-1	03	1	0310-0908
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	1-74998-128-1	03	1	0310-0908
826	SEAL; NOISE INSULATION 6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) 30X30	8-98142-344-0	03	1	0909-
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	8-98142-344-0	03	1	0909-

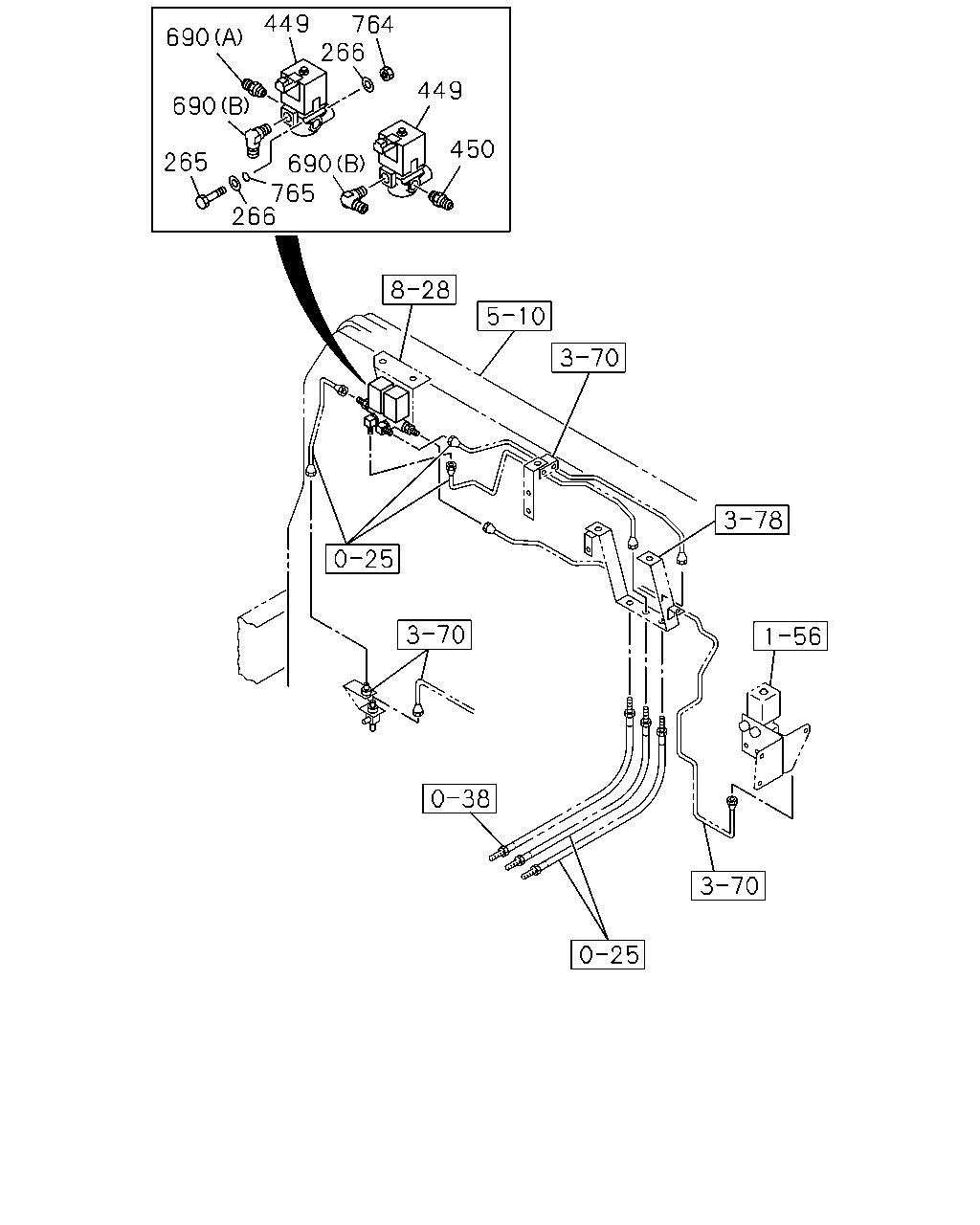

449 764 266 690 449 690 450 265 690 765 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; MAG VLV FIX 6WG1 TC-N(71L),6WG1 TC-R(75L) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512
265	BOLT; MAG VLV FIX 6WG1 TC-N(71L),6WG1 TC-R(75L) M6X50 FLANGE	0-28050-650-0	01	1	0601-
266	WASHER; PL,MAG VLV FIX 6WG1 TC-N(71L),6WG1 TC-R(75L)	1-82569-266-0	02	1	0105-
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0105-
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-N(71L),6WG1 TC-R(75L)	1-82563-871-2	02	1	0105-
450	CONNECTOR; MAG VLV,INL PORT M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
690	CONNECTOR 6WG1 TC-N(71L),6WG1 TC-R(75L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
764	NUT; MAG VLV 6WG1 TC-N(71L),6WG1 TC-R(75L) M6 FLANGE	0-91150-106-0	01	1	0105-0602
764	NUT; MAG VLV 6WG1 TC-N(71L),6WG1 TC-R(75L) M6 FLANGE	0-91180-106-0	01	1	0603-
765	GASKET; MAG VLV 6WG1 TC-N(71L),6WG1 TC-R(75L) ID=16.8	9-09565-117-0	01	1	0105-

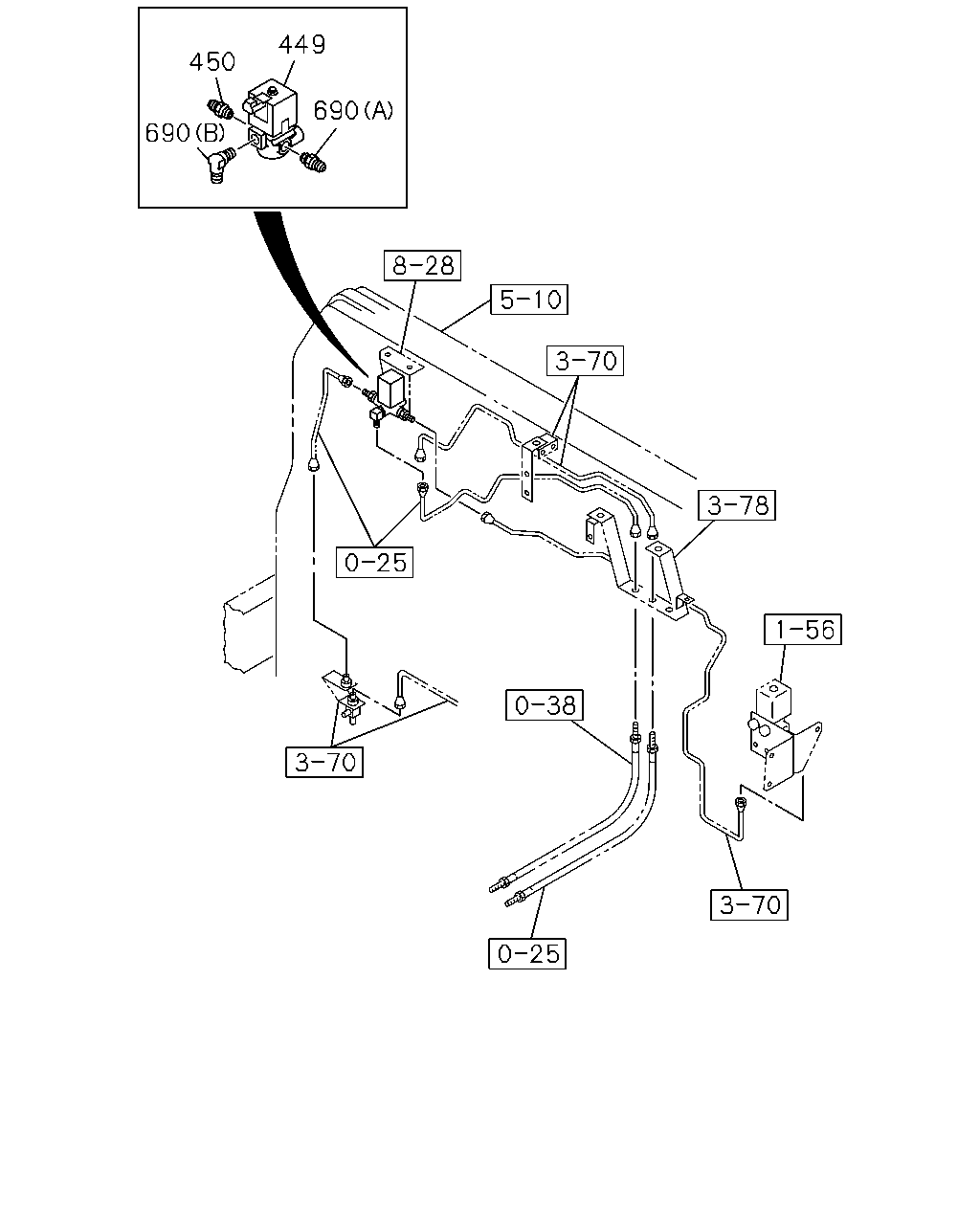

449 450 690 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0105-
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-N(71L),6WG1 TC-R(75L)	1-82563-871-2	02	1	0105-
450	CONNECTOR; MAG VLV,INL PORT M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
690	CONNECTOR 6WG1 TC-N(71L),6WG1 TC-R(75L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-

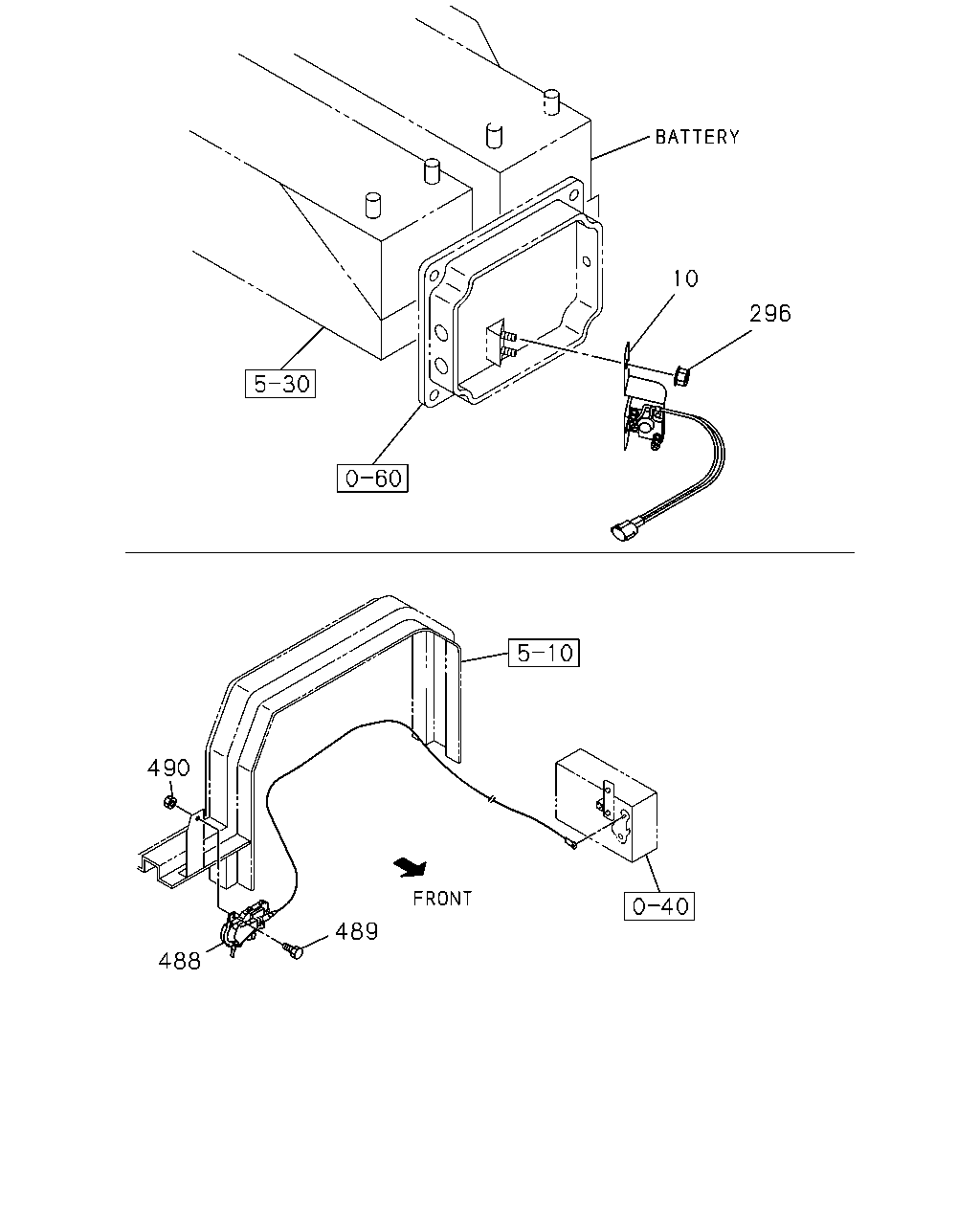

10 296 490 489 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER HITACHI	1-81171-088-0	01	1	0105-
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0105-0602
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-
488	STOPPER; ENG 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5)	1-82840-161-0	01	1	0105-
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0105-0410
489	BOLT; ENG STOPPER 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0411-0512
489	BOLT; ENG STOPPER 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0410
490	NUT; ENG STOP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0411-0602
490	NUT; ENG STOP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-

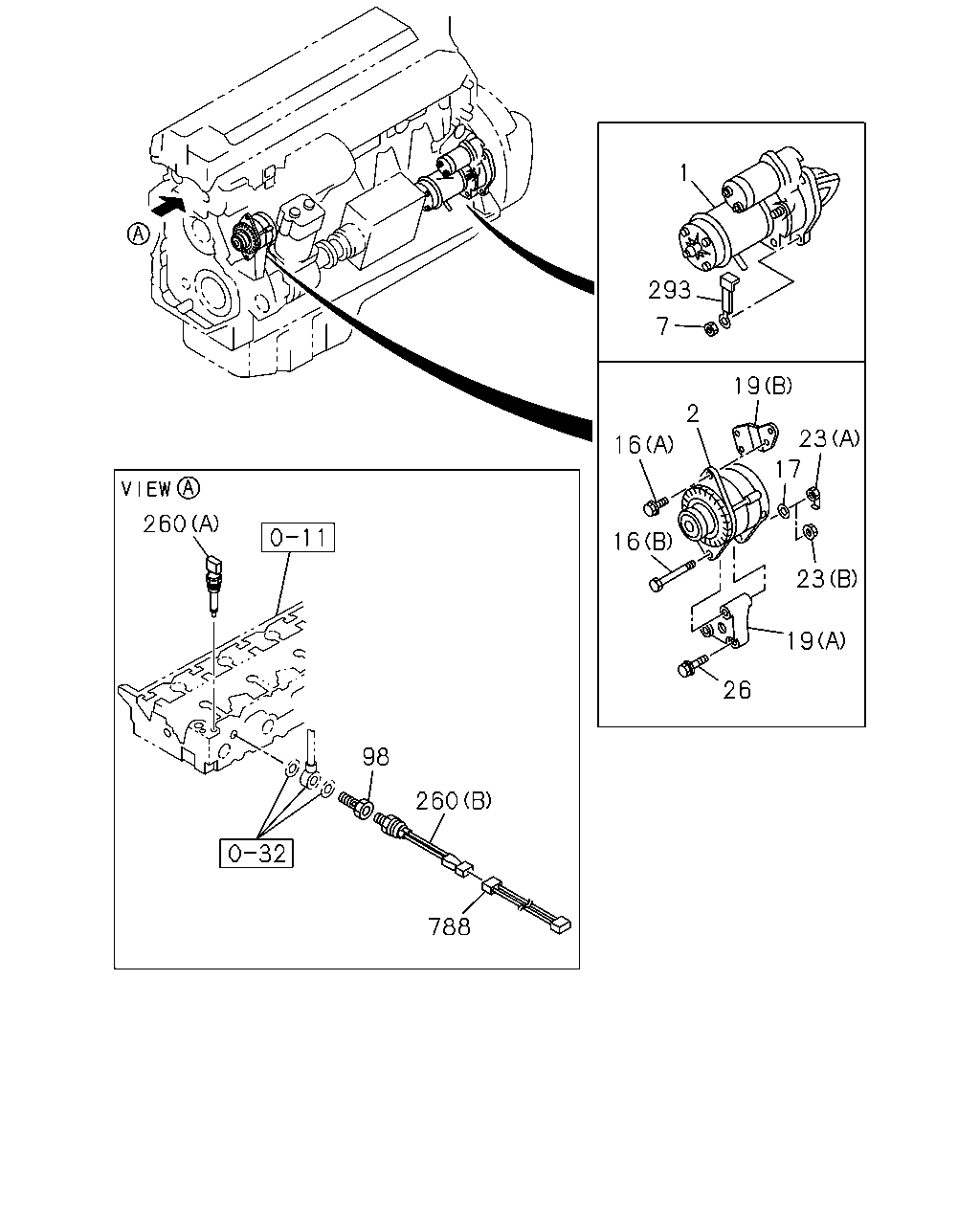

1 293 7 19 2 23 16 17 260 16 23 19 26 98 260 788

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-6	01	1	0105-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-N(71L) 24V 50A MITSUBISHI	1-81200-517-3	01	1	0105-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-3	01	1	0105-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-8	01	1	0105-
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0105-
16	BOLT; GEN (B) M14X123	1-09040-105-0	01	1	0105-
16	BOLT; GEN 6WG1 TC-N(71L),6WG1 TC-R(75L) (A) M12X40 FLANGE	0-28081-240-0	01	1	0105-0512
16	BOLT; GEN 6WG1 TC-N(71L),6WG1 TC-R(75L) (A) M12X40 FLANGE	0-28051-240-0	01	1	0601-
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0105-0605
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-
19	BRACKET; GEN (A)	1-19711-144-0	01	1	0105-
19	BRACKET; GEN 6WG1 TC-N(71L),6WG1 TC-R(75L) (B)	1-19711-082-0	01	1	0105-
23	NUT; GEN (A) M14 W/BRKT	1-19711-029-0	01	1	0105-0910
23	NUT; GEN (B) M14 FLANGE	0-91150-114-0	01	1	0911-
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	0105-0512
26	BOLT; GEN BRKT M10X60 FLANGE	0-28151-060-0	02	1	0601-
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0105-
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	0105-
260	SENSOR; WATER TEMP (B)	1-83161-038-0	01	1	0105-
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0105-
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0105-0205
788	HARNESS; EXT,WATER TEMP SENSOR 6WG1 TC-N(71L),6WG1 TC-R(75L)	1-82641-186-0	02	1	0105-0205
788	HARNESS; EXT,WATER TEMP SENSOR ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0206-0303
788	HARNESS; EXT,WATER TEMP SENSOR	1-82641-186-0	02	1	0304-

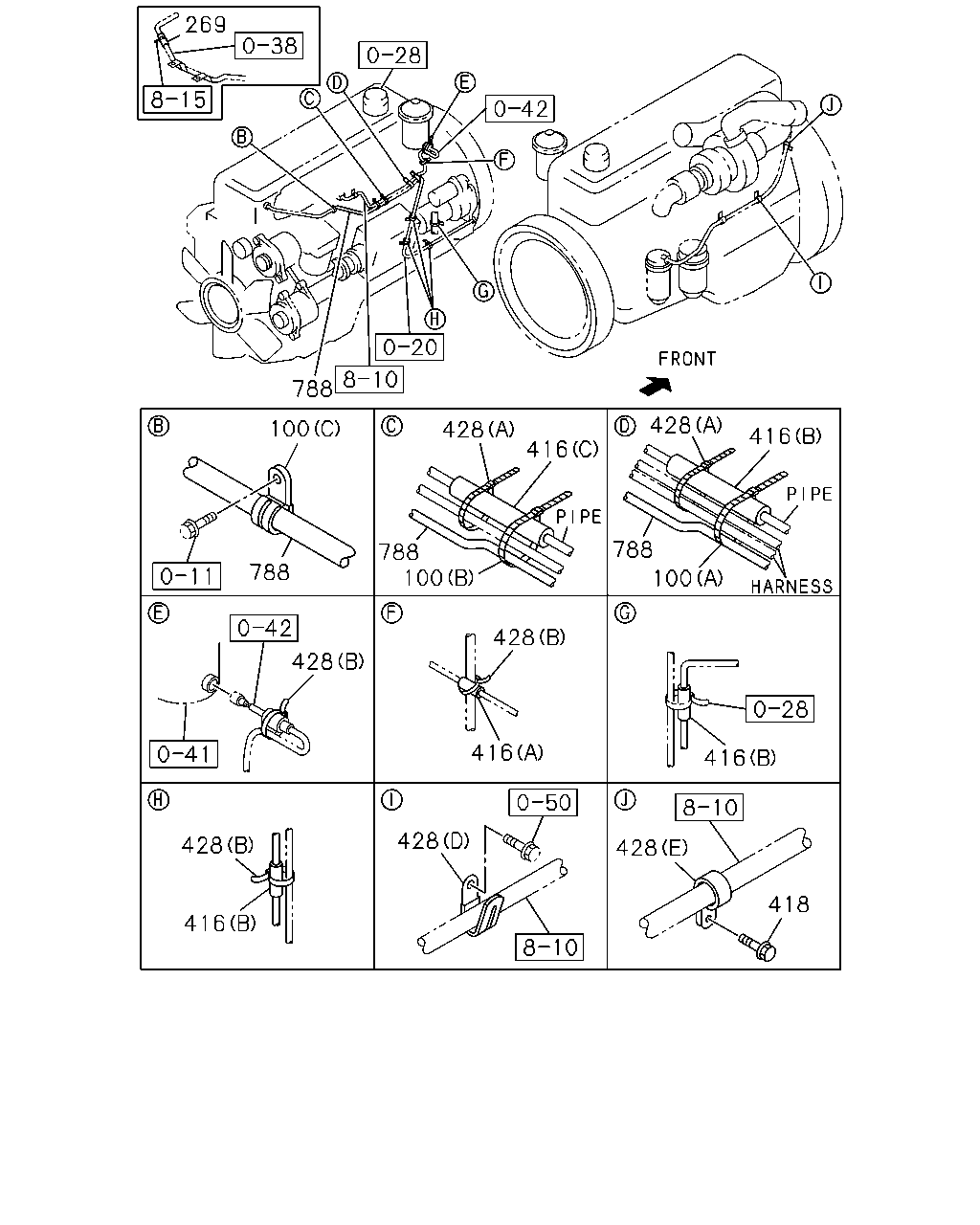

269 788 428 100 428 416 416 788 788 100 788 100 428 428 416 416 428 428 428 418 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	0105-1207
100	CLIP; HARNESS (A) L=180	8-98216-427-0	01	1	1208-
100	CLIP; HARNESS 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (C) ID=11 L=30	1-09700-511-0	01	1	0105-0205
100	CLIP; HARNESS 6WG1 TC-N(71L),6WG1 TC-R(75L) (C) ID=11 L=30	1-09700-511-0	01	1	0105-0205
100	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (C) ID=11 L=30	1-09700-511-0	01	1	0206-
100	CLIP; HARNESS 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) L=140	5-09707-031-1	01	1	0105-0205
100	CLIP; HARNESS 6WG1 TC-N(71L),6WG1 TC-R(75L) (B) L=140	5-09707-031-1	01	1	0105-0205
100	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (B) L=140	5-09707-031-1	01	1	0206-1205
100	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (B) L=140	8-98216-431-0	01	1	1206-
269	SLEEVE; RUBBER,CABLE 6WA1 TC-C(55L),6WG1 TC-N(71L) EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	01	1	0111-0205
269	SLEEVE; RUBBER,CABLE 6WG1 TC-R(75L) ID=18 OD=22 L=25	8-94412-773-0	01	1	0111-0205
269	SLEEVE; RUBBER,CABLE ID=18 OD=22 L=25	8-94412-773-0	01	1	0206-
416	SLEEVE; RUBBER (C) ID=17 OD=21 L=40	1-09337-012-0	01	1	0105-
416	SLEEVE; RUBBER (B) ID=10 OD=14 L=30	9-09956-682-0	06	1	0105-
416	SLEEVE; RUBBER 6WG1 TC-N(71L),6WG1 TC-R(75L) (A) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	0105-0512
418	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	01	1	0601-
428	CLIP; HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0105-1108
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0105-
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0105-1205
428	CLIP; HARNESS (A) L=250	8-98216-430-0	02	1	1206-
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0105-1205
428	CLIP; HARNESS (B) L=140	8-98216-431-0	05	1	1206-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0105-
428	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0105-
428	CLIP; HARNESS (E) ID=11 L=28	9-09917-544-0	01	1	0105-
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0105-0205
788	HARNESS; EXT,WATER TEMP SENSOR 6WG1 TC-N(71L),6WG1 TC-R(75L)	1-82641-186-0	02	1	0105-0205
788	HARNESS; EXT,WATER TEMP SENSOR ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0206-0303
788	HARNESS; EXT,WATER TEMP SENSOR	1-82641-186-0	02	1	0304-

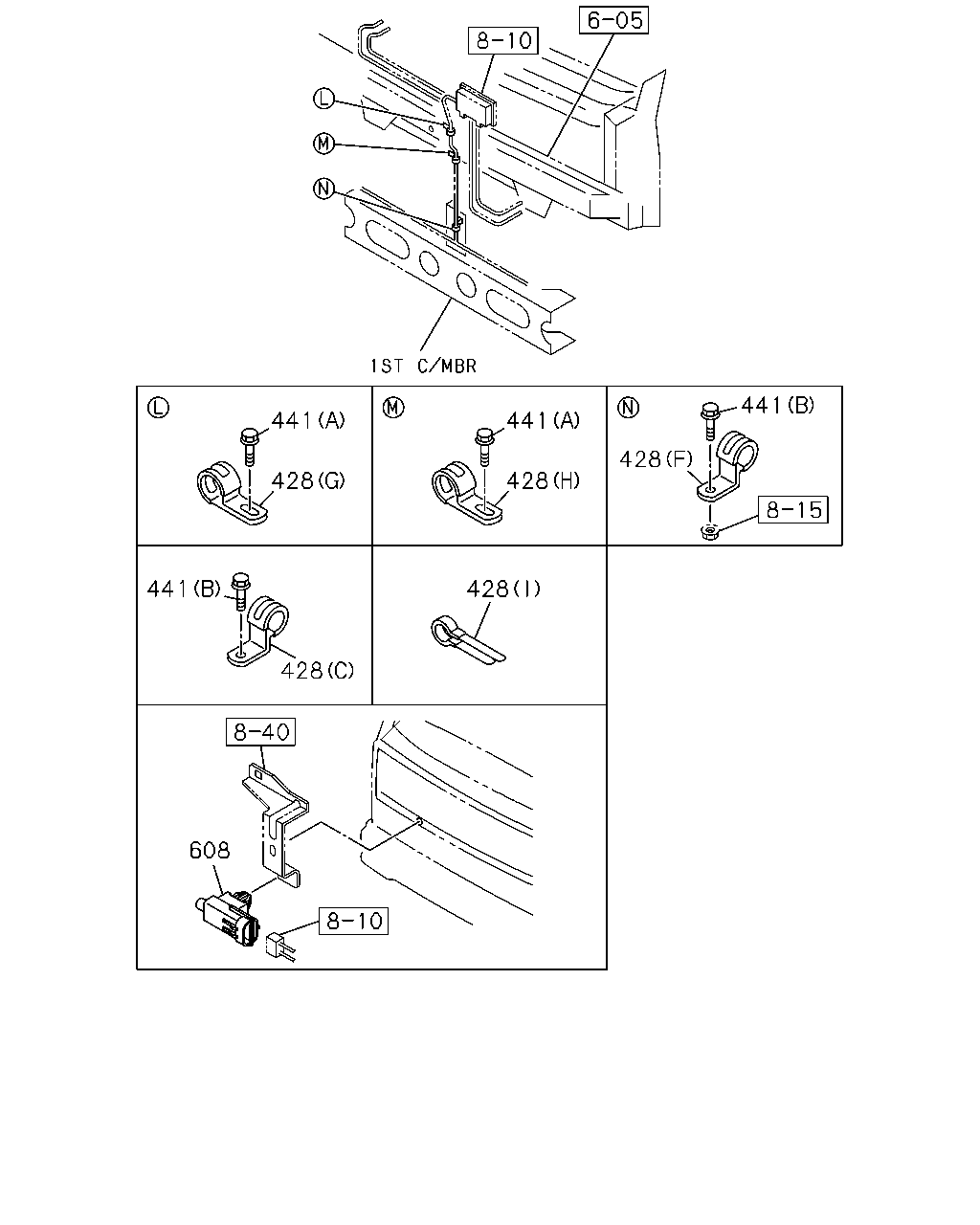

441 441 441 428 428 428 441 428 428 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
428	CLIP; HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0105-1108
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0105-
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0105-1205
428	CLIP; HARNESS (A) L=250	8-98216-430-0	02	1	1206-
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0105-1205
428	CLIP; HARNESS (B) L=140	8-98216-431-0	05	1	1206-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0105-
428	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	0105-
428	CLIP; HARNESS (E) ID=11 L=28	9-09917-544-0	01	1	0105-
441	BOLT; HARNESS TO FRAME (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0112
441	BOLT; HARNESS TO FRAME (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0112
441	BOLT; HARNESS TO FRAME (B) M8X25 FLANGE	0-28680-825-0	02	1	0201-0512
441	BOLT; HARNESS TO FRAME (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
441	BOLT; HARNESS TO FRAME (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0904
441	BOLT; HARNESS TO FRAME (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-1108
441	BOLT; HARNESS TO FRAME (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1109-
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	8-97177-549-0	01	1	0105-1204
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	8-98214-375-0	01	1	1205-
