2-26 — MANUAL TRANSMISSION GEAR (#121058) — 259 parça

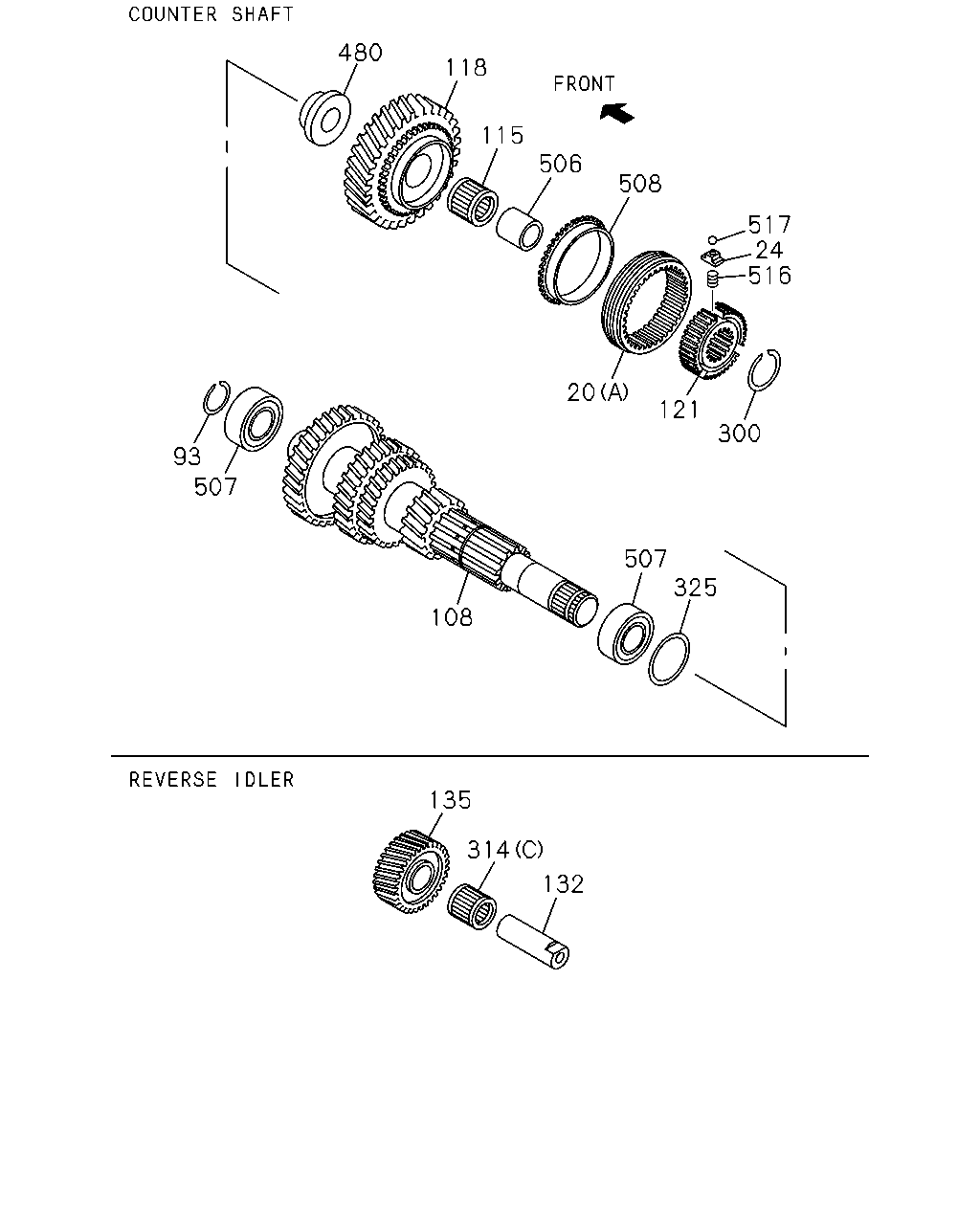

132 314 135 108 507 325 507 93 20 300 121 516 517 508 24 506 115 118 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1304-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1304-1308		●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1304-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1304-		●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1304-1308	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1304-		●
115	BEARING; NEEDLE,6TH,COUNTER	8-97253-113-0	01	1	1304-	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1304-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1304-		●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1304-	●
132	SHAFT; REV	8-97252-655-0	01	1	1304-	●
132	SHAFT; REV	8-98009-372-0	01	1	1304-		●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1304-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1304-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1304-	●
314	BEARING; NEEDLE,REV GEAR (A) KOYO	1-09811-017-0	02	1	1304-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1304-		●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1304-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1304-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1304-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1304-	●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1304-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1304-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1304-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1304-	●	●

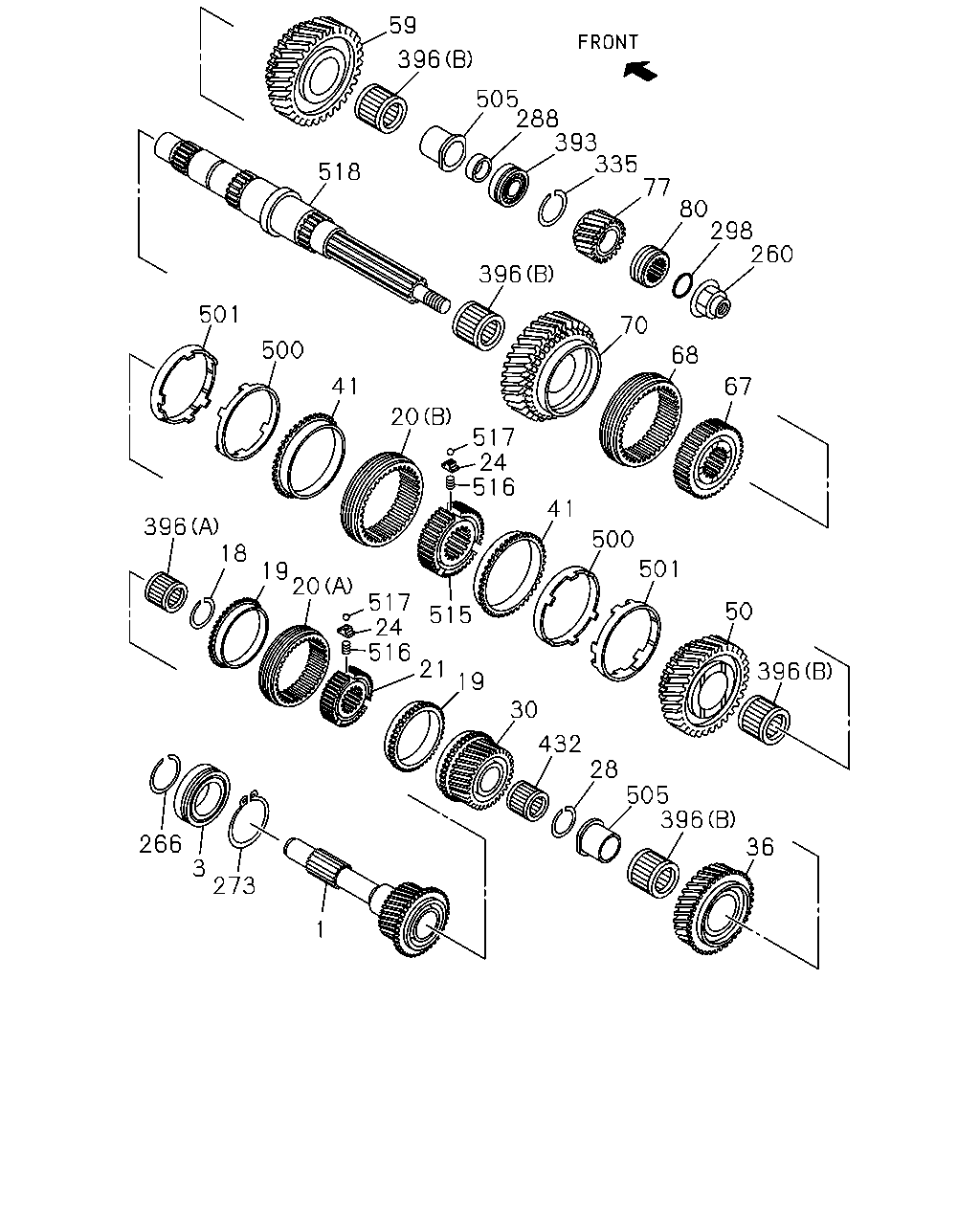

1 273 3 266 36 396 505 28 432 30 19 21 516 517 24 515 20 19 18 396 396 50 501 500 41 516 24 517 20 41 500 501 67 68 70 396 518 260 298 80 77 335 393 288 505 396 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1304-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1304-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1304-	●	●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1304-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1304-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1304-1308		●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-		●
21	HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1304-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1304-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1304-	●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1304-	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1304-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1304-		●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1304-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1304-	●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1304-	●
67	HUB; CLU,1ST TO REV	8-97255-184-1	01	1	1304-	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	1304-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1304-	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1304-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1304-		●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1304-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	1304-		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1304-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1304-		●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1304-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1304-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1304-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1304-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1304-		●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1304-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1304-	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1304-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1304-	●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1304-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1304-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1304-	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1304-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1304-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1304-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1304-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1304-	●	●
518	SHAFT; MAIN,5TH & 6TH SPEED Z=26-42-23	8-97253-115-3	01	1	1304-	●

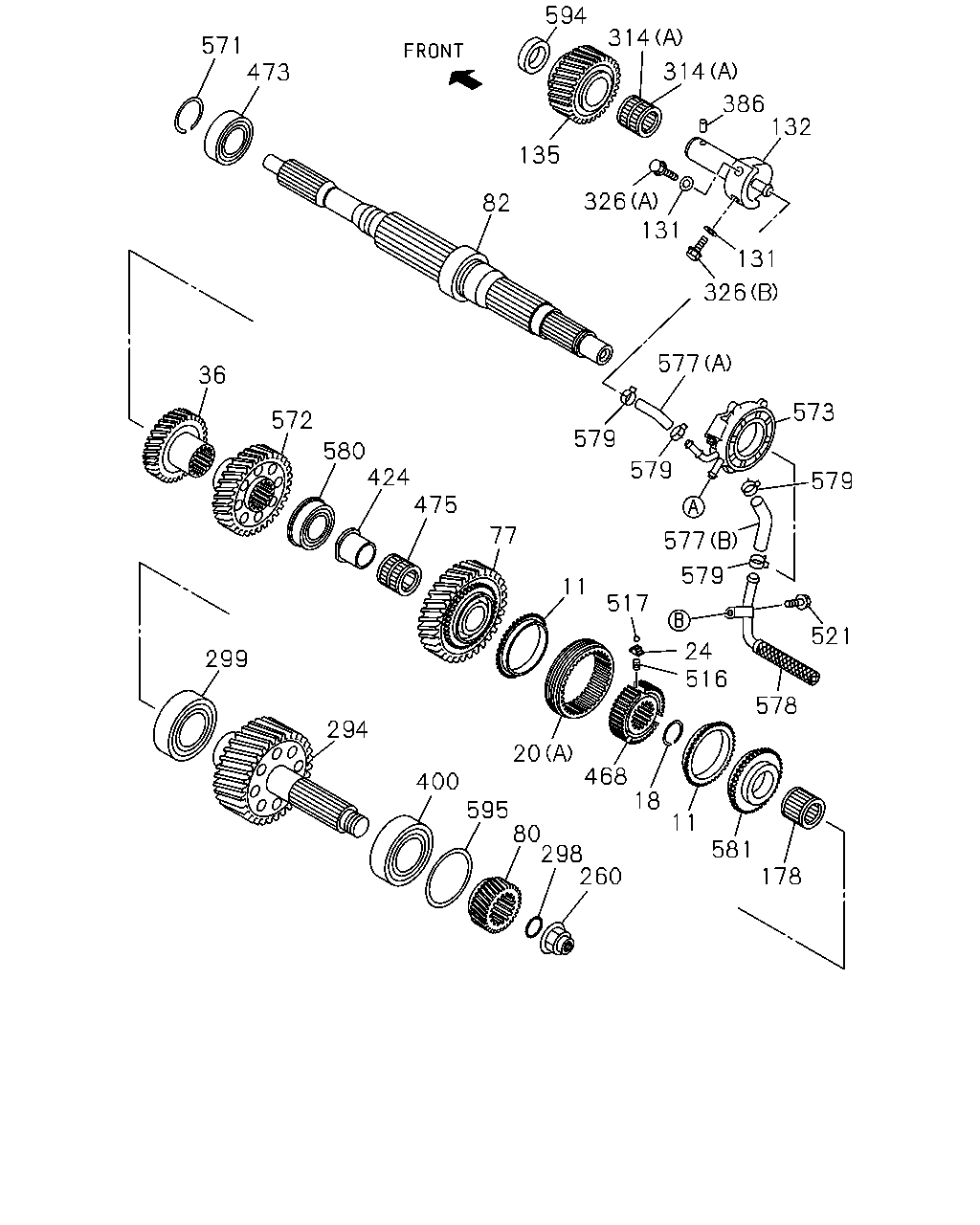

571 473 594 314 314 132 135 326 131 326 386 82 577 573 579 521 578 579 577 579 579 178 581 11 18 468 20 516 24 517 11 77 475 424 580 572 36 299 294 400 595 80 298 260 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1304-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1304-	●	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1304-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1304-1308		●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1304-	●	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1304-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1304-		●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1304-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1304-		●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1304-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	1304-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1304-1308		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1304-		●
132	SHAFT; REV	8-97252-655-0	01	1	1304-	●
132	SHAFT; REV	8-98009-372-0	01	1	1304-		●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1304-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1304-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1304-		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1304-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1304-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1304-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1304-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1304-		●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1304-		●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1304-	●
314	BEARING; NEEDLE,REV GEAR (A) KOYO	1-09811-017-0	02	1	1304-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1304-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1304-		●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1304-		●
386	PIN; REV SHAFT	9-08150-408-0	01	1	1304-		●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1304-		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1304-		●
468	HUB; CLU,5TH & 6TH	8-98075-734-0	01	1	1304-		●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1304-		●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1304-		●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1304-		●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1304-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1304-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1304-	●	●
521	BOLT M8X12 FLANGE THA	0-28050-812-0	01	1	1304-		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1304-		●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1304-		●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1304-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1304-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1304-		●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1304-		●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1304-		●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1304-		●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1304-		●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1304-		●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1304-		●

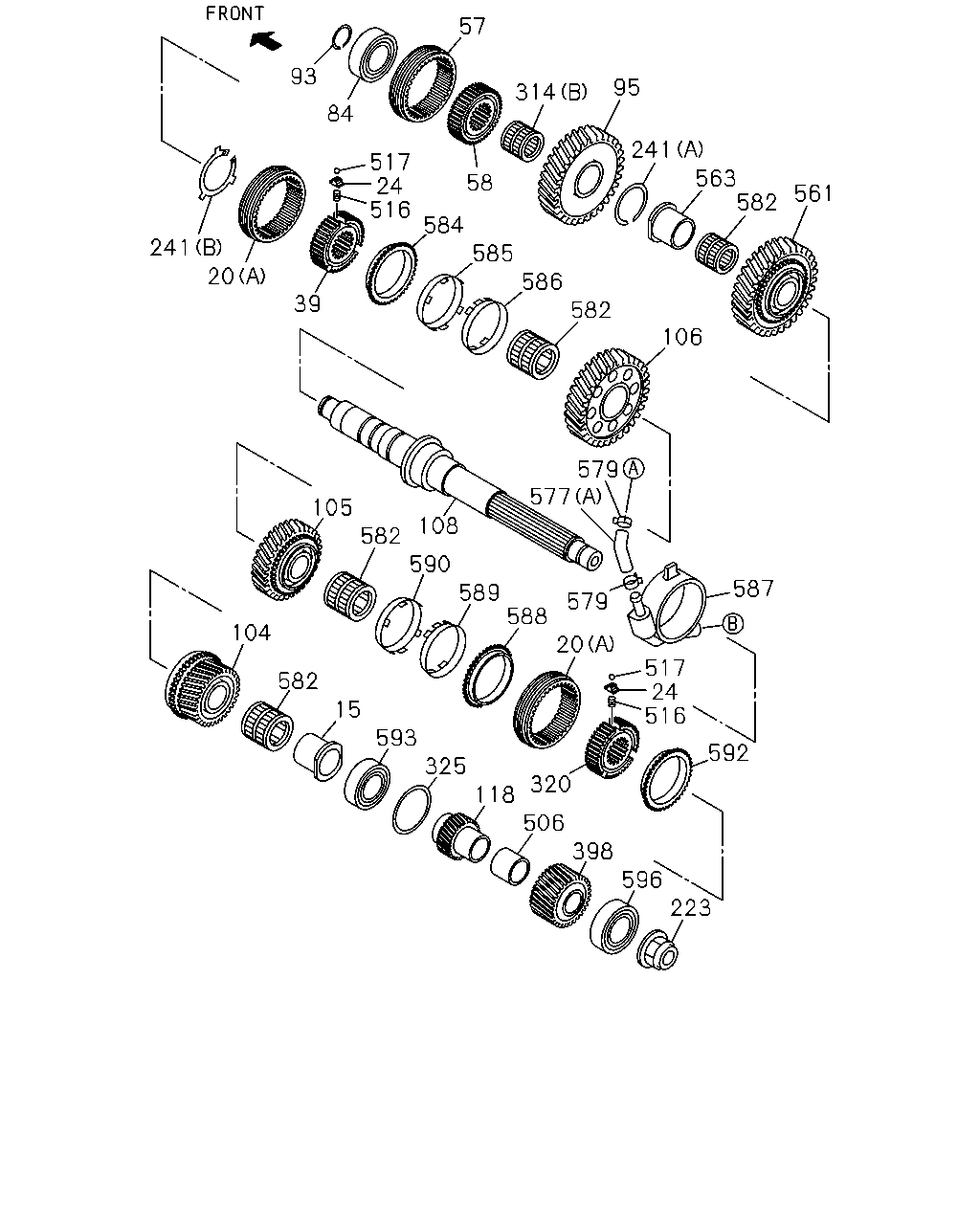

223 596 398 506 118 325 593 15 582 104 320 592 516 24 517 587 20 579 588 589 590 108 582 105 577 579 106 582 586 585 584 516 39 20 241 517 24 93 84 57 314 95 241 582 563 561 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1304-		●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1304-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1304-1308		●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1304-	●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1304-		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1304-		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1304-		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-0	01	1	1304-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1304-		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1304-		●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1304-		●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1304-		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1304-		●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1304-1308	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1304-		●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1304-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1304-		●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1304-		●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1304-		●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1304-		●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1304-	●
314	BEARING; NEEDLE,REV GEAR (A) KOYO	1-09811-017-0	02	1	1304-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1304-		●
320	HUB; CLU,4TH & 3RD	8-98075-733-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1304-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1304-		●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1304-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1304-		●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1304-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1304-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1304-	●	●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1304-		●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1304-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1304-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1304-		●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1304-		●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1304-		●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1304-1308		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-		●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1304-		●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1304-1308		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-		●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1304-		●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1304-1308		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-		●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1304-		●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1304-1308		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-		●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1304-		●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1304-		●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
