Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶

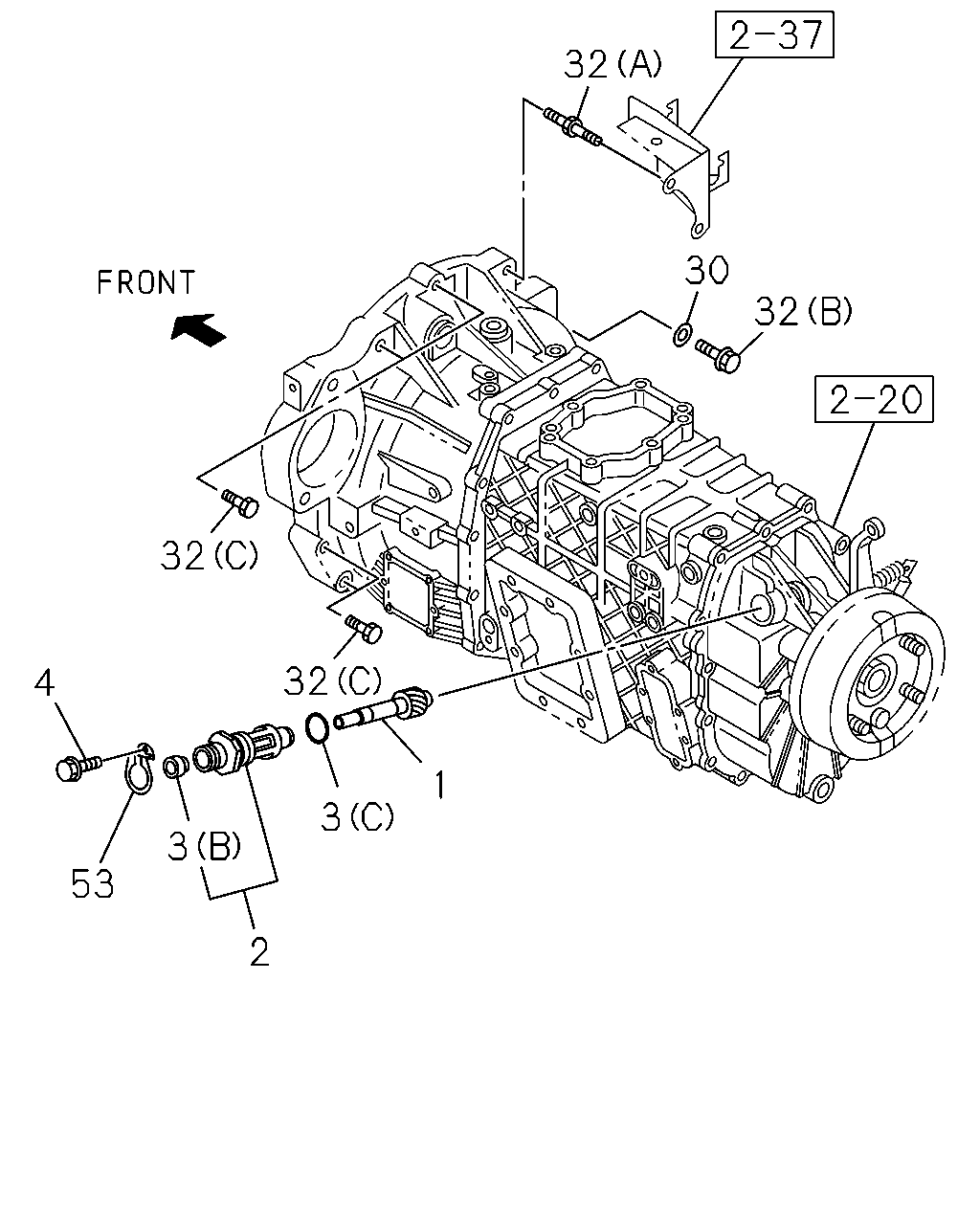

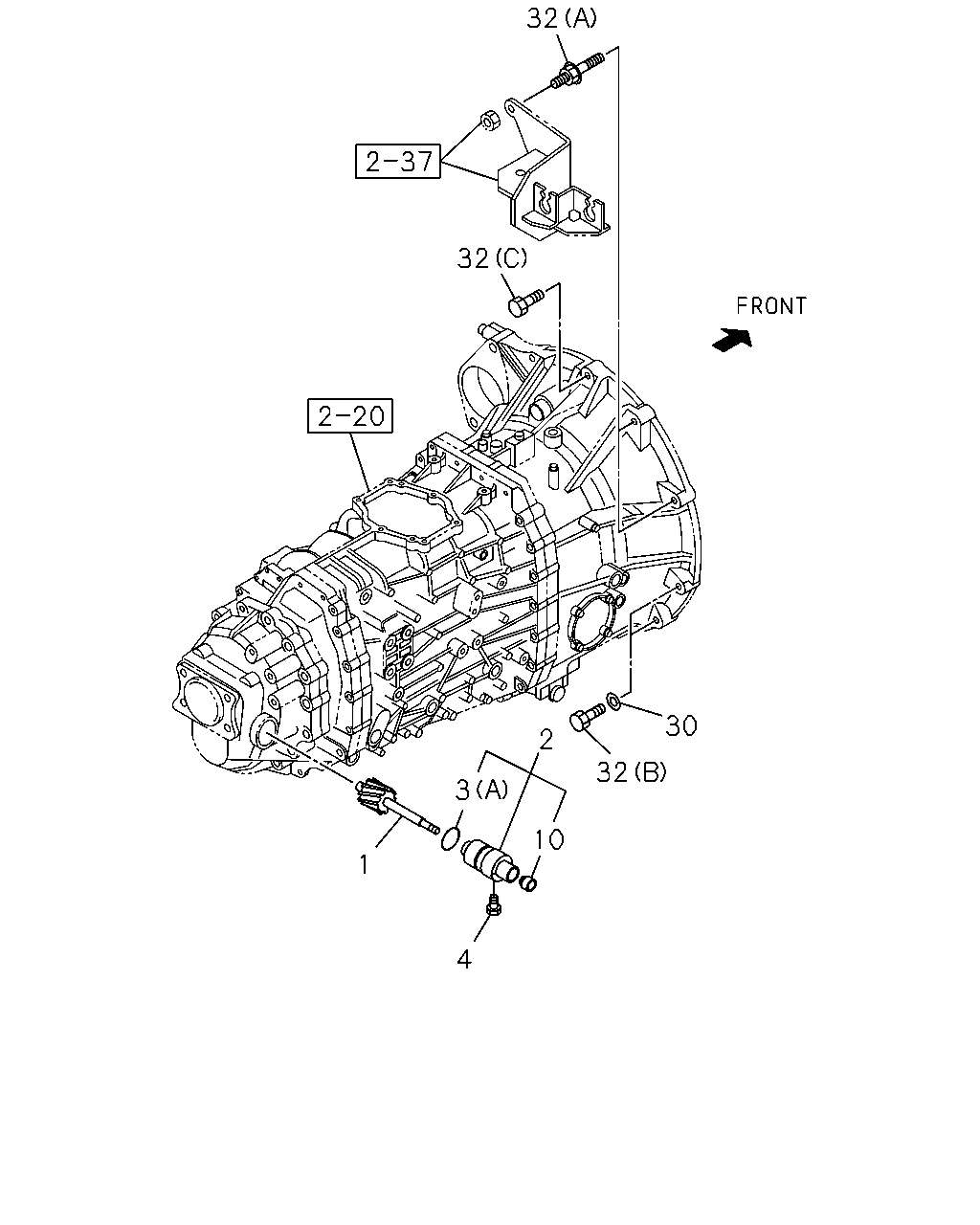

2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#121057) — 30 parça
Tümü
A - MZZ6W M/T
B - MZW6P M/T
◀
[225A] MZW (15 parça)
[225A] MZZ (15 parça)
▶
32
32
2
32
30
10
4
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=12
8-97253-563-1
01
1
1304-
●
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
1304-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15"
8-97253-125-0
01
1
1304-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
1304-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK
8-97131-328-1
01
1
1304-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (C)
9-09561-324-0
01
1
1304-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A)
1-09623-246-0
01
1
1304-
●
4
BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
●
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE THA
8-98014-141-0
01
1
1304-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1304-
●
30
WASHER; PL,TRANS
ID=11 OD=24
8-94152-902-0
02
1
1304-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE THA
0-28151-045-0
06
1
1304-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE
8-97365-449-0
02
1
1304-1306
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE THA
8-97948-217-0
02
1
1307-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75
8-98010-335-0
02
1
1304-
●
●
32
30
32
1
3
2
3
53
4
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=12
8-97253-563-1
01
1
1304-
●
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
1304-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15"
8-97253-125-0
01
1
1304-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
1304-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK
8-97131-328-1
01
1
1304-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (C)
9-09561-324-0
01
1
1304-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A)
1-09623-246-0
01
1
1304-
●
4
BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
●
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE THA
8-98014-141-0
01
1
1304-
●
30
WASHER; PL,TRANS
ID=11 OD=24
8-94152-902-0
02
1
1304-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE THA
0-28151-045-0
06
1
1304-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE
8-97365-449-0
02
1
1304-1306
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE THA
8-97948-217-0
02
1
1307-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75
8-98010-335-0
02
1
1304-
●
●
53
PLATE; LOCK,DRIVEN GEAR
8-98046-217-0
01
1
1304-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
