Sayfa 2-20 - Isuzu EPC

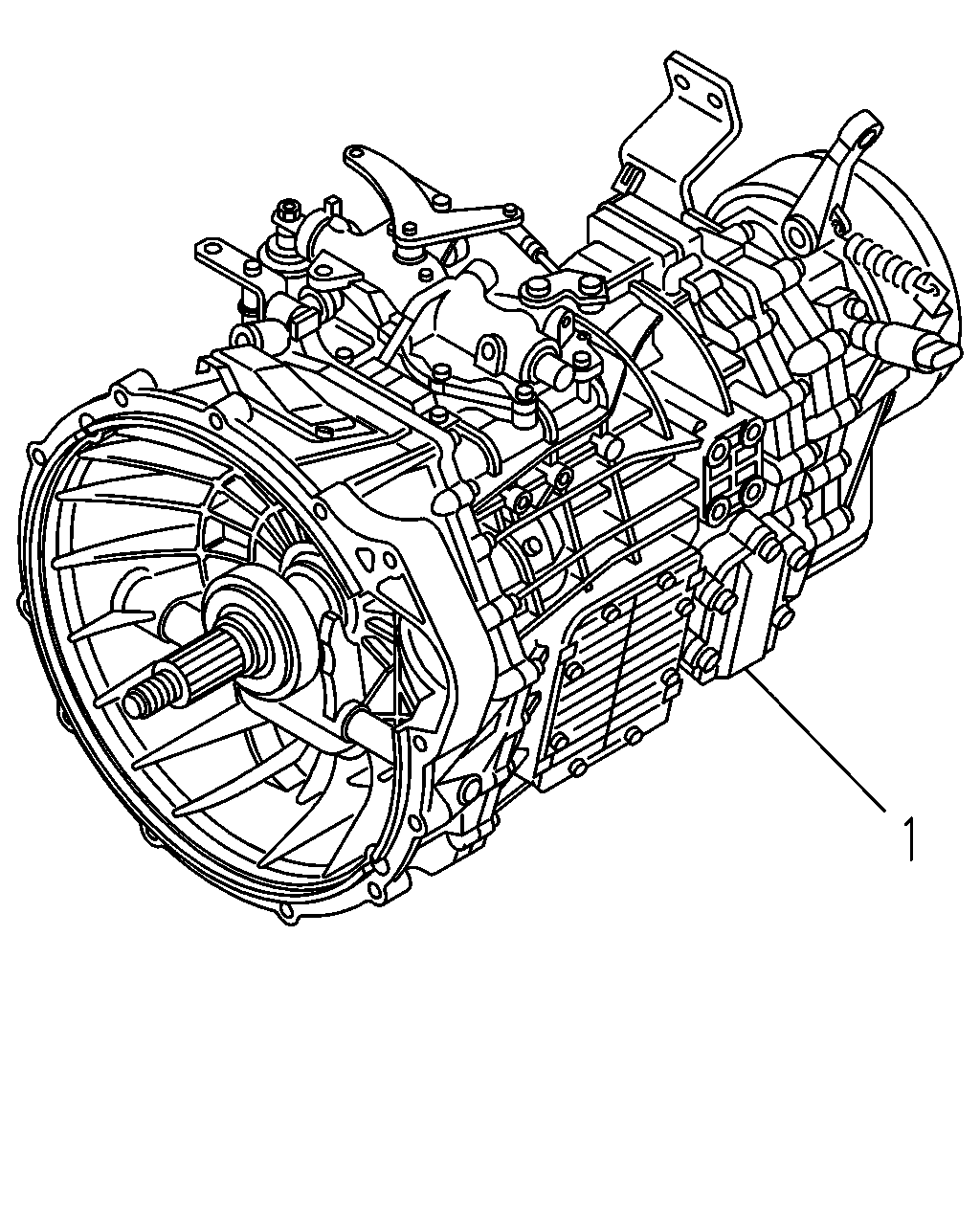

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1304-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1304-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1304-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1304-		●

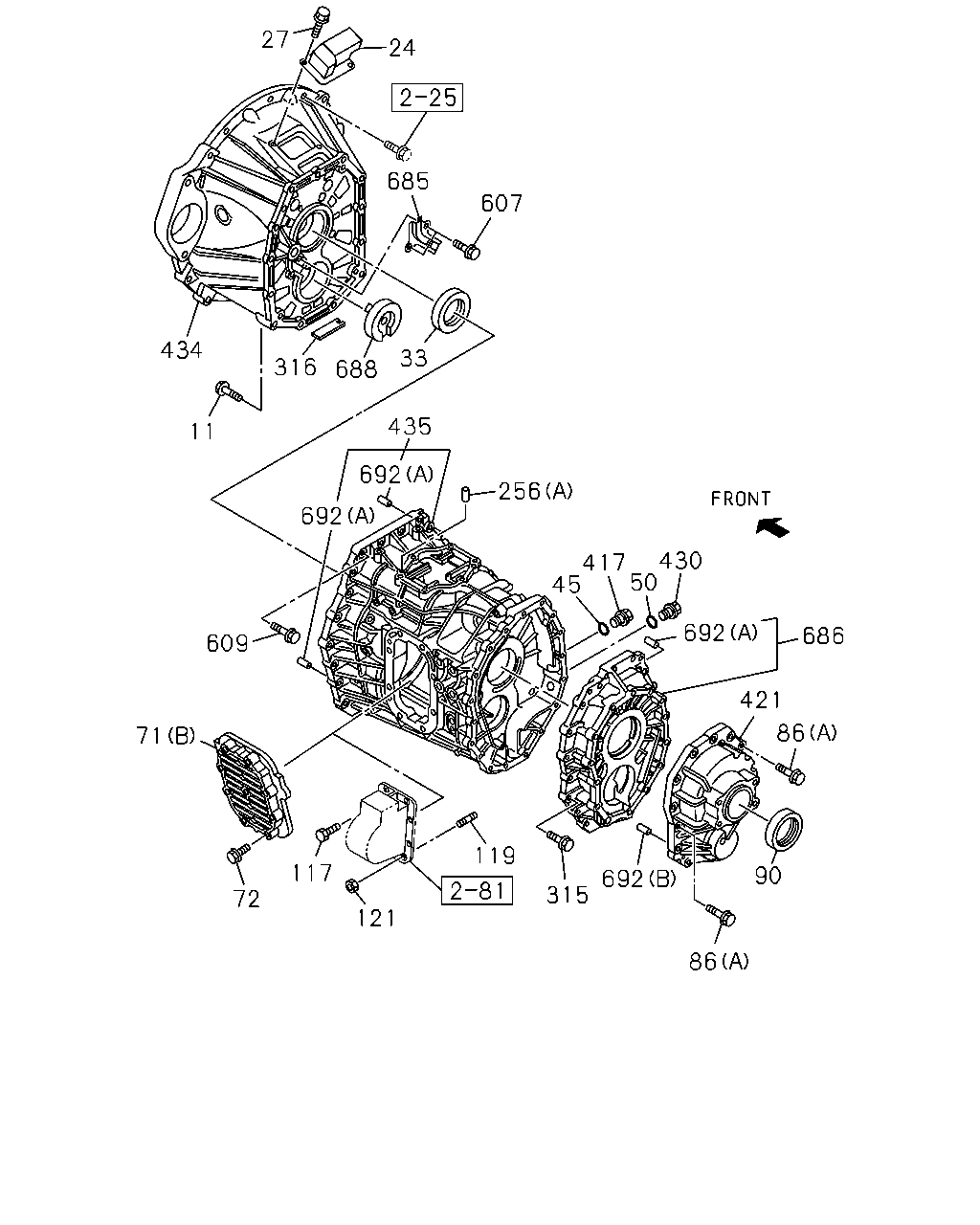

692 256 45 417 430 50 692 421 686 86 90 692 86 315 119 435 692 688 33 607 685 24 27 434 316 11 609 117 121 72 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	01	1	1304-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1304-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1304-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1304-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1304-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-97252-624-2	01	1	1304-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1304-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-0	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1304-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1304-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	0-28151-040-0	10	1	1304-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-97365-377-0	02	1	1304-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1304-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1304-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1304-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1304-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1304-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1304-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1304-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1304-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1304-		●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1304-	●
256	PIN; KNOCK (C) ID=6 L=12 THA	9-08160-612-0	02	1	1304-	●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1304-		●
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1304-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1304-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1304-	●	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1304-	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1304-		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1304-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
434	HOUSING; CLU	8-97382-931-1	01	1	1304-	●
434	HOUSING; CLU	8-98004-507-2	01	1	1304-		●
435	CASE; TRANS	8-97382-868-1	01	1	1304-	●
435	CASE; TRANS	8-98186-449-0	01	1	1304-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1304-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1304-	●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1304-		●
685	COVER; OIL PORT	8-98018-864-1	01	1	1304-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1304-		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1304-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1304-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1304-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

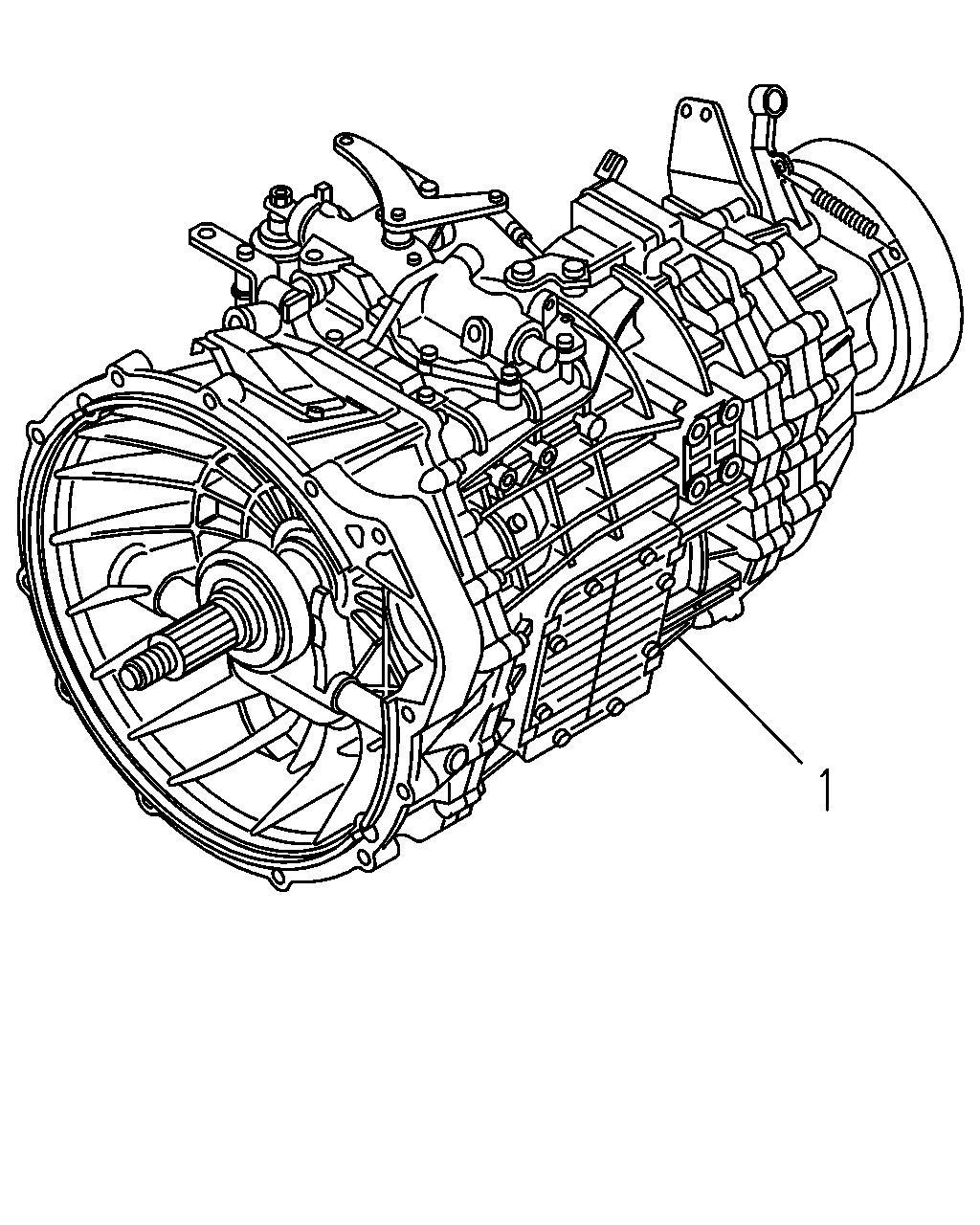

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1304-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1304-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1304-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1304-		●

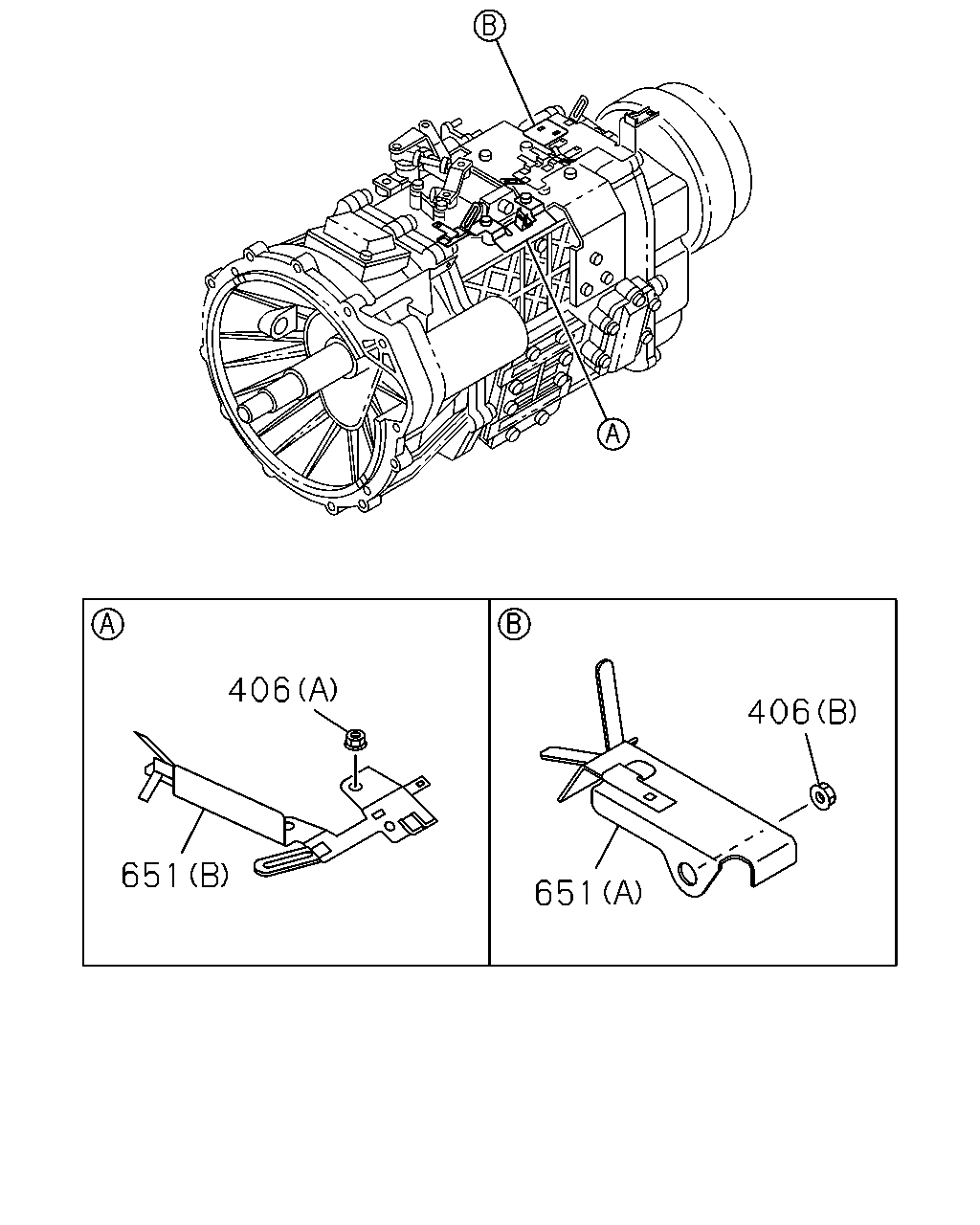

406 651 651 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
406	NUT; BRKT (B) M10 FLANGE THA	0-91180-210-0	01	1	1304-	●
406	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1304-	●	●
651	BRACKET; T/M HARNESS (A)	8-98044-568-1	01	1	1304-	●
651	BRACKET; T/M HARNESS (B)	8-97609-800-3	01	1	1304-	●	●

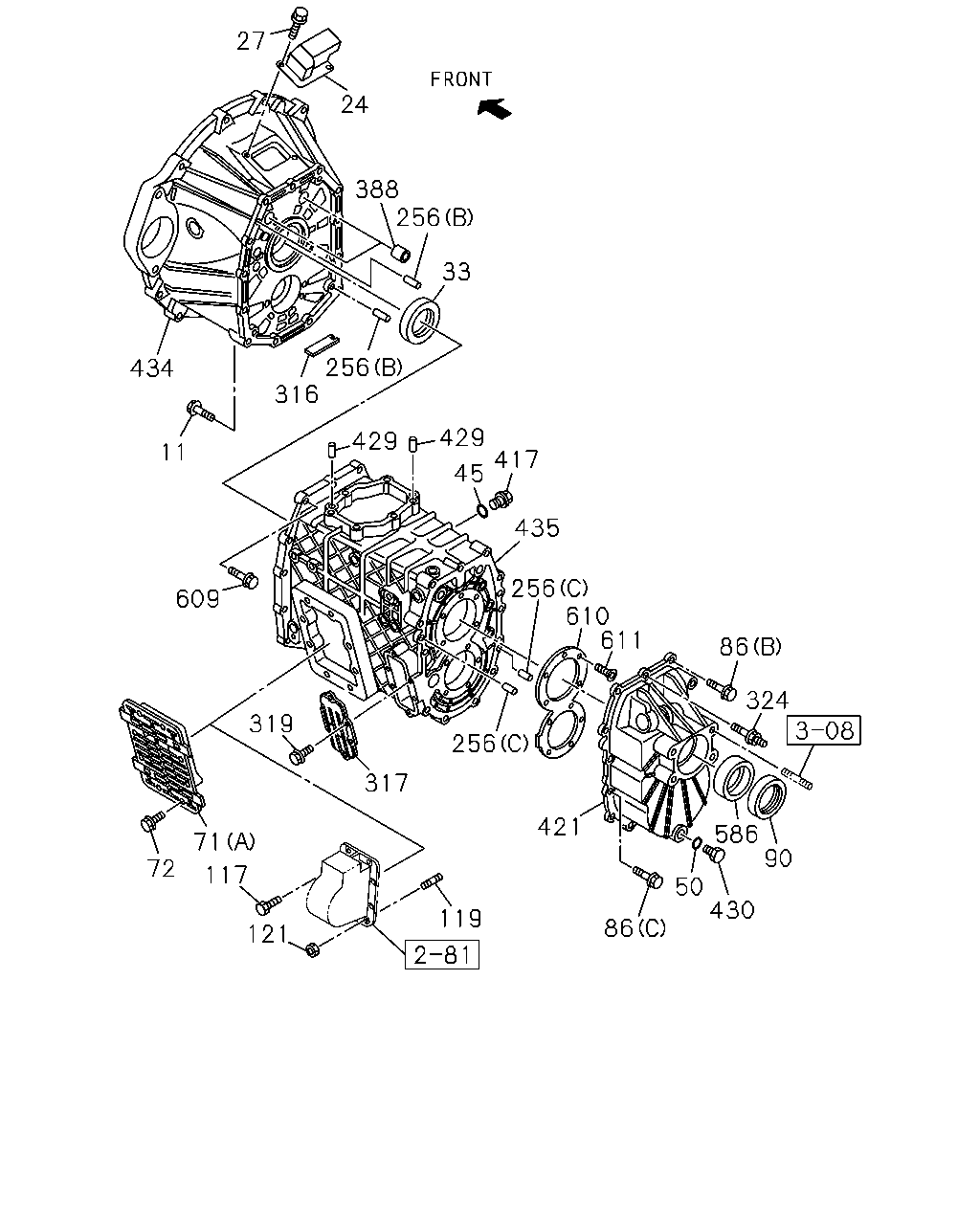

27 24 388 256 33 256 434 11 316 429 429 45 417 435 609 319 317 71 72 117 121 119 86 430 421 256 256 610 611 86 324 586 90 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	01	1	1304-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1304-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1304-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1304-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1304-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1304-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-97252-624-2	01	1	1304-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1304-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-0	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1304-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1304-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	0-28151-040-0	10	1	1304-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-97365-377-0	02	1	1304-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1304-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1304-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1304-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1304-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1304-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1304-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1304-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1304-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1304-		●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1304-	●
256	PIN; KNOCK (C) ID=6 L=12 THA	9-08160-612-0	02	1	1304-	●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1304-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1304-	●	●
317	COVER; CASE	8-97252-626-0	01	1	1304-	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1304-	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1304-	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1304-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1304-	●	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1304-	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1304-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1304-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1304-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
434	HOUSING; CLU	8-97382-931-1	01	1	1304-	●
434	HOUSING; CLU	8-98004-507-2	01	1	1304-		●
435	CASE; TRANS	8-97382-868-1	01	1	1304-	●
435	CASE; TRANS	8-98186-449-0	01	1	1304-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
586	BEARING; NEEDLE	8-97253-108-0	01	1	1304-	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1304-	●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1304-		●
610	RETAINER; BRG	8-97241-314-2	01	1	1304-	●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1304-	●
