2-07 — CLUTCH BOOSTER; MINIPACK (#121053) — 65 parça

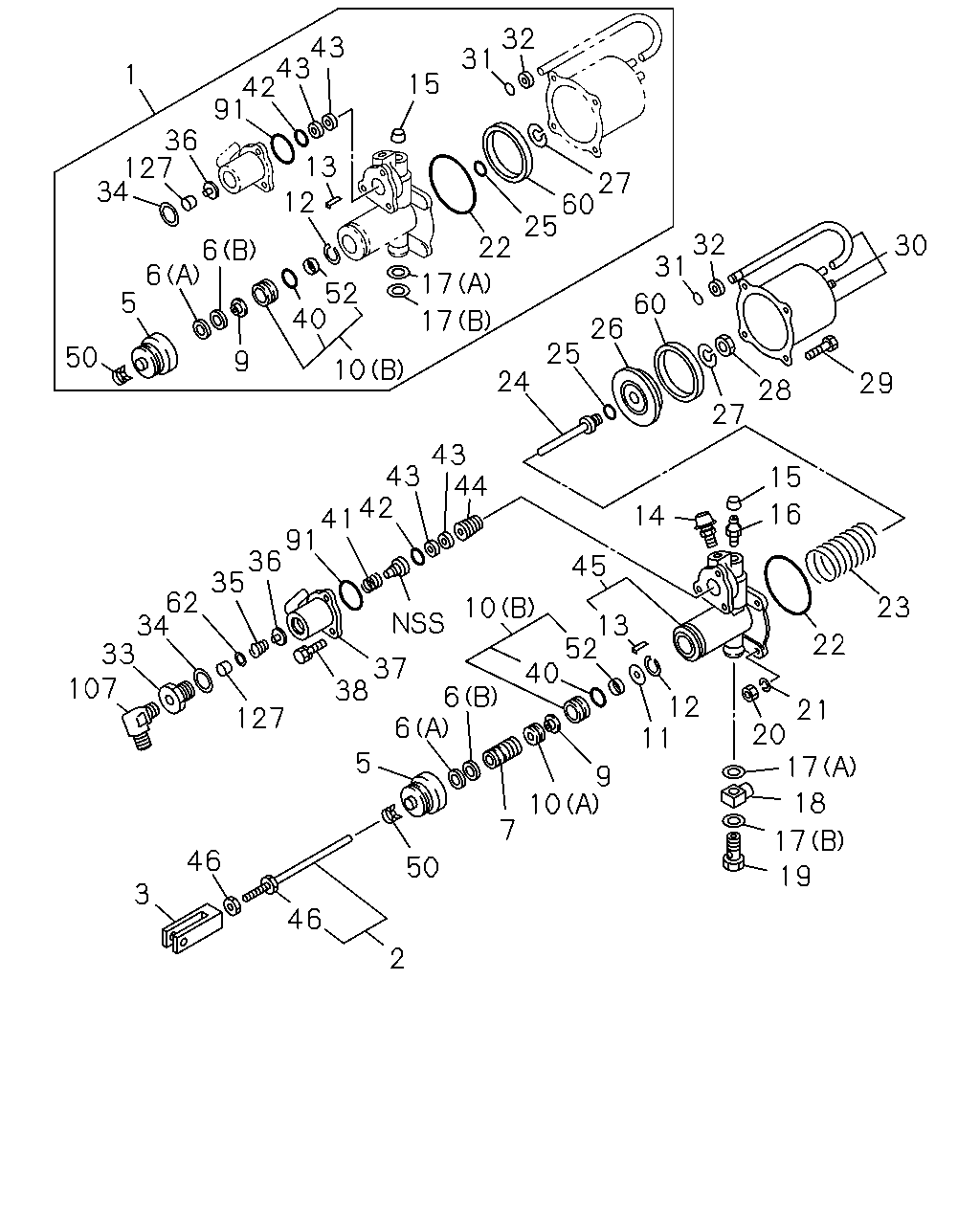

çizim 355800
1 43 43 42 91 32 31 15 13 12 6 6 5 50 9 40 52 17 22 25 60 27 17 10 34 127 36 32 31 60 26 25 24 43 43 42 44 41 91 36 35 62 34 33 107 127 38 37 10 14 15 16 29 30 28 27 45 13 12 11 10 9 6 6 5 46 3 46 2 50 7 19 17 17 20 21 22 23 52 40 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-605-0 01 1 1304- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-602-0 01 1 1304- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-251-0 01 1 1304- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1304- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1304- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1304- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-032-0 01 1 1304- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-033-0 01 1 1304- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1304- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1304- ●
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1304- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1304- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1304- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1304- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1304- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1304- ● ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 1304- ● ●
13 PIN; SPR 1-31829-109-0 01 1 1304- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1304- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1304- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1304- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1304- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1304- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1304- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1304- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1304- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1304- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1304- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1304- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1304- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1304- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1304- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1304- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1304- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1304- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1304- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1304- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1304- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 1304- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1304- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1304- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1304- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-146-0 01 1 1304- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1304- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1304-1412 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1304- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1304- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1304- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-507-0 01 1 1304- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1304- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1304- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-051-0 01 1 1304- ●
45 PLATE; END,CLU BOOSTER 1-31811-144-0 01 1 1304- ●
45 PLATE; END,CLU BOOSTER 1-31811-142-0 01 1 1304- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 1304- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1304- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-599-0 01 1 1304-1412 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1304-1412 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1501- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1304-1412 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1304- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1304- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1304- ● ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 1304- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 1304- ● ●
