1-31 — AIR DUCT (#121042) — 58 parça

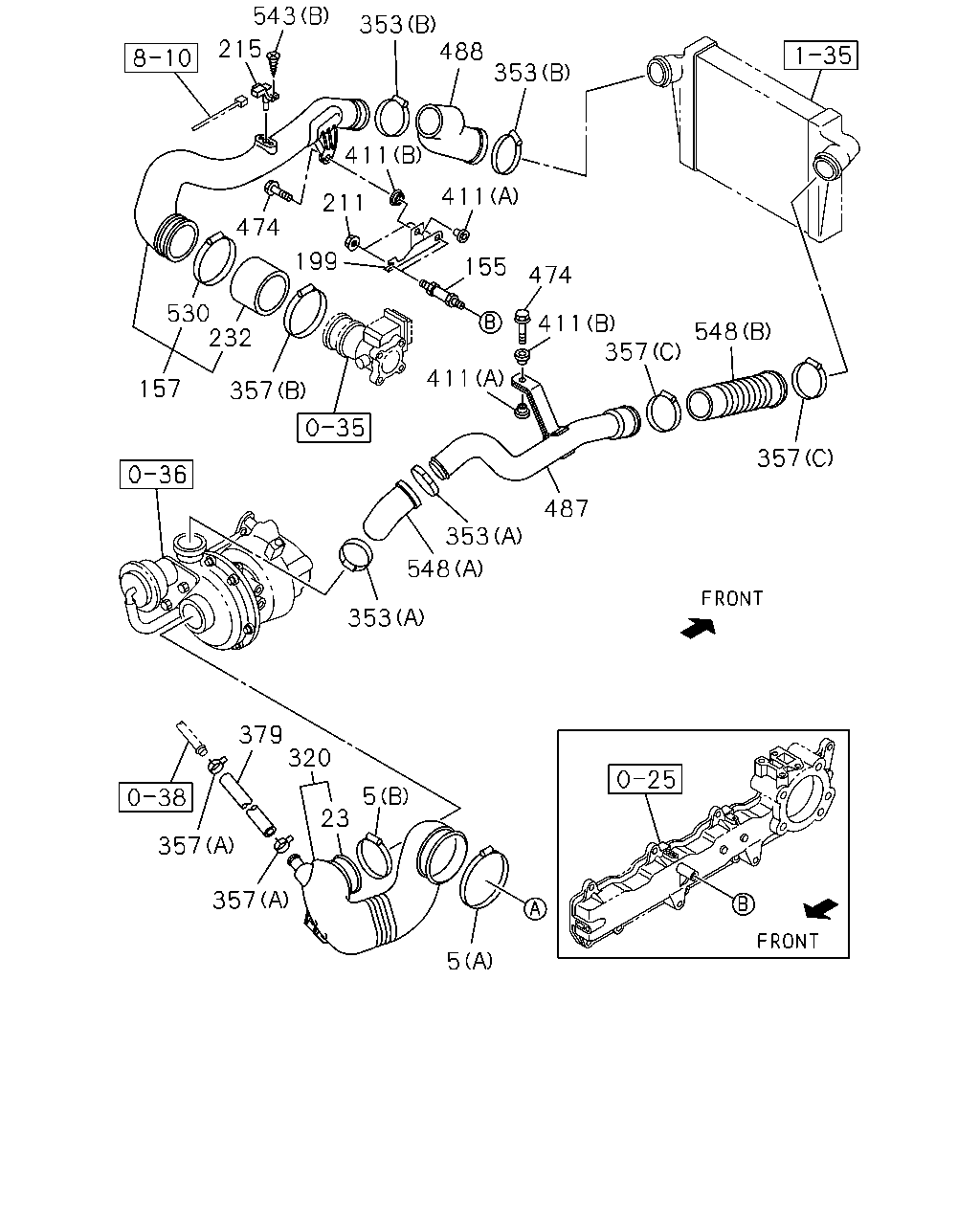

çizim 356099
357 357 548 411 474 155 411 487 353 548 353 5 5 23 320 379 357 357 157 357 232 530 474 211 411 199 411 353 543 215 488 353
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1304- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1304- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1304- ● ●
157 PIPE; AIR 8-98010-719-3 01 1 1304- ● ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1304- ● ●
211 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1304- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 1304- ● ●
232 HOSE; CONN 8-98067-929-0 01 1 1304- ● ●
320 HOSE; CONN,ACL 8-98073-539-3 01 1 1304- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1304- ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1304- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1304- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1304- ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1304- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1304- ● ●
411 RUBBER; CUSHION
(A) 		8-94395-766-0 02 1 1304- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1304- ● ●
474 BOLT; PIPE
M8X40 FLANGE THA 		0-28650-840-0 02 1 1304- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-98073-592-0 01 1 1304-1306 ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-97948-213-0 01 1 1307- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1304- ● ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1304- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1304- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1304- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1304- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-971-1 01 1 1304- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-972-1 01 1 1304- ● ●

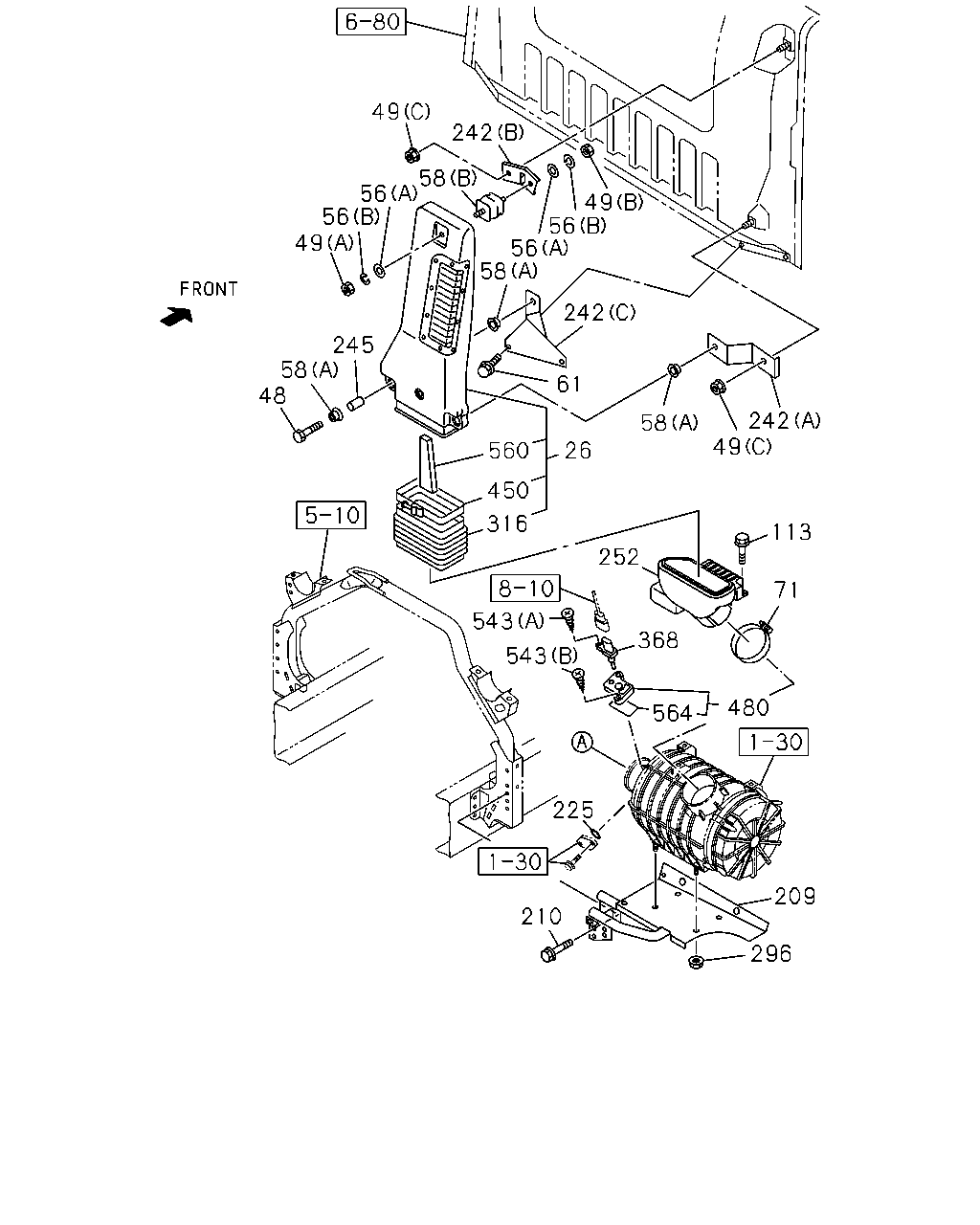

çizim 358922
113 71 480 564 368 252 543 543 225 210 209 296 316 450 560 26 58 242 49 61 242 58 56 56 49 242 49 58 56 56 49 245 58 48
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1304- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1304- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1304- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1304- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1304- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1304- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1304- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1304- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1304- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1304- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1304- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1304- ● ●
209 BRACKET; ACL 8-98010-343-4 01 1 1304- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1304- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1304- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1304- ● ●
252 DUCT; AIR INT 8-98095-778-0 01 1 1304- ● ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1304- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1304- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1304- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1304- ● ●
480 ADAPTER 8-98086-417-0 01 1 1304- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1304- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1304- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1304- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1304- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1304- ● ●
