Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#121039) — 43 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
◀

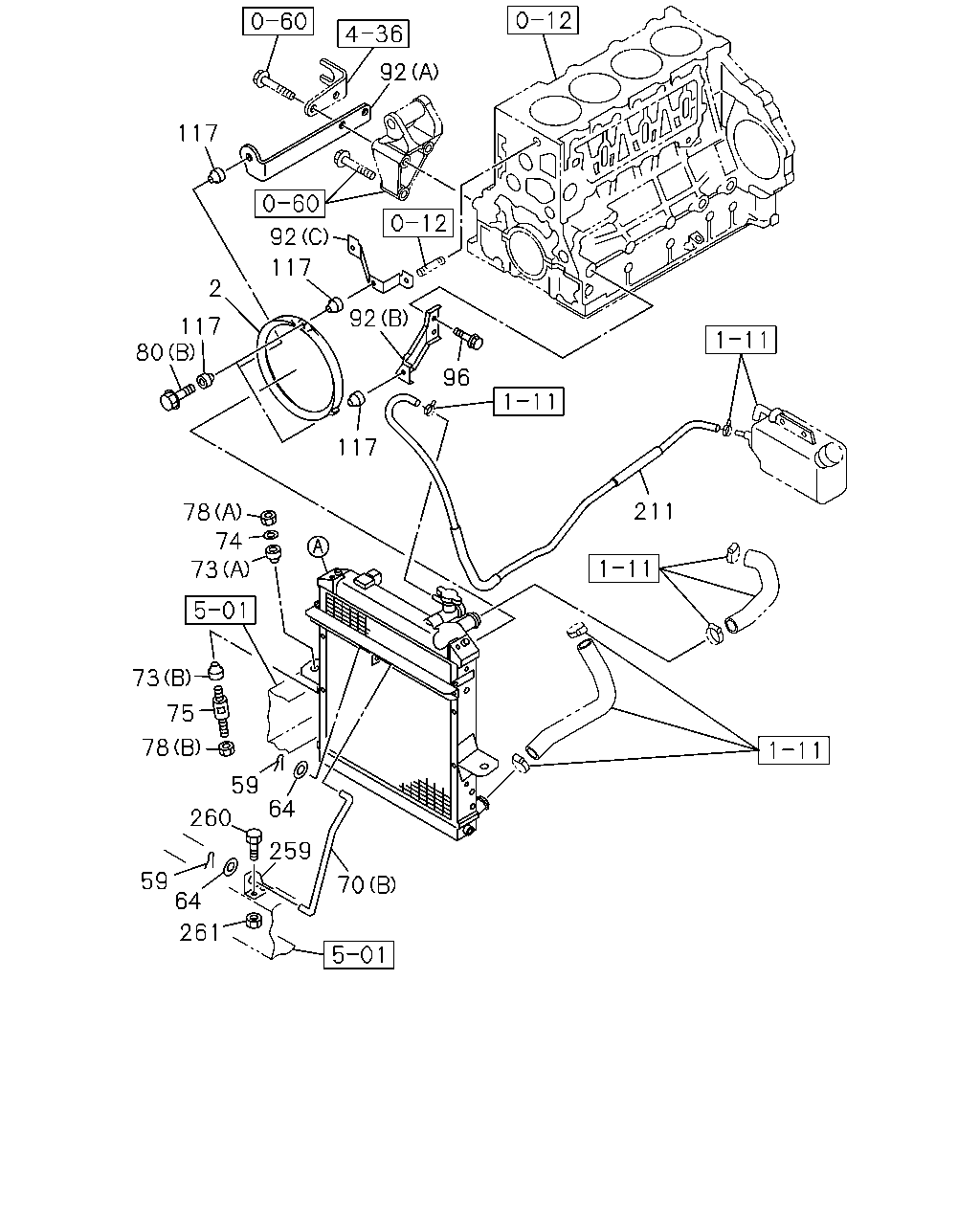

[110A] NO.1 (23 parça)
[110A] NO.2 (20 parça)
▶
92
117
92
92
96
117
78
74
73
117
2
80
117
211
70
259
64
59
78
75
73
59
260
64
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
8-97350-995-0
01
1
1304-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1304-
●
●
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1304-
●
●
70
STAY; RAD
(B)
8-98010-657-0
01
1
1304-
●
●
70
STAY; RAD
(A) THA
8-98018-941-0
01
1
1304-
●
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1304-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1304-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-2
02
1
1304-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1304-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE THA
0-91180-110-0
02
1
1304-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE THA
0-91180-212-0
02
1
1304-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1304-
●
●
80
BOLT; FAN GUIDE
(A) M6X16 THA
1-21559-481-0
04
1
1304-
●
●
92
BRACKET; FAN GUIDE
(A)
8-97350-997-0
01
1
1304-
●
●
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1304-
●
●
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1304-
●
●
96
BOLT; STAY FIX
M10X75 FLANGE
8-94399-669-1
02
1
1304-
●
●
96
BOLT; STAY FIX
M10X20 FLANGE THA
0-28151-020-0
02
1
1304-
●
●
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1304-
●
●
211
HOSE; RAD TO PIPE
8-98132-968-0
01
1
1304-
●
●
259
BRACKET; RAD STAY
8-98063-603-0
01
1
1304-
●
●
260
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
●
●
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
●
●

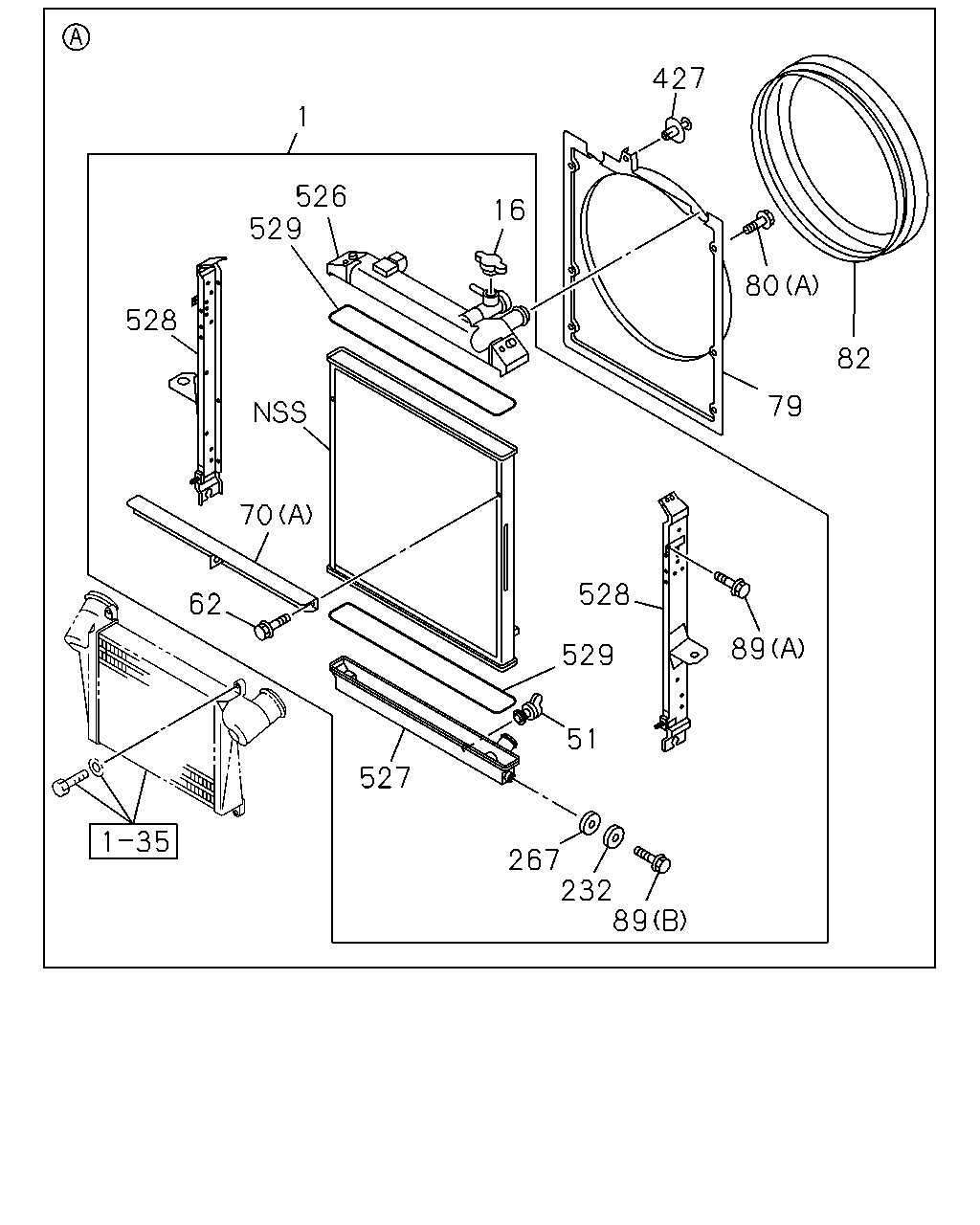

1
526
529
528
70
62
527
51
267
232
89
529
528
89
79
82
80
427
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
THA
8-98139-320-0
01
1
1304-
●
●
16
CAP; RAD
THA
8-97239-187-0
01
1
1304-
●
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1304-
●
●
62
BOLT; STAY
M8X12 FLANGE THA
0-28050-812-0
02
1
1304-
●
●
70
STAY; RAD
(B)
8-98010-657-0
01
1
1304-
●
●
70
STAY; RAD
(A) THA
8-98018-941-0
01
1
1304-
●
●
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1304-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1304-
●
●
80
BOLT; FAN GUIDE
(A) M6X16 THA
1-21559-481-0
04
1
1304-
●
●
82
COVER; FAN,RAD
8-98006-478-0
01
1
1304-
●
●
89
BOLT
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
1304-
●
●
89
BOLT
(B) M8X25 THA
1-21469-153-0
02
1
1304-
●
●
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
02
1
1304-
●
●
267
RUBBER; CUSHION
THA
1-21467-023-0
02
1
1304-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1304-
●
●
526
TANK; UPR,RADIATOR CORE
THA
8-98010-271-2
01
1
1304-
●
●
527
TANK; LWR,RADIATOR CORE
THA
8-98032-433-1
01
1
1304-
●
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98010-290-1
01
1
1304-
●
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98010-291-1
01
1
1304-
●
●
529
GASKET; CORE,RADIATOR
THA
8-98032-435-0
02
1
1304-
●
●
