0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#121033) — 53 parça

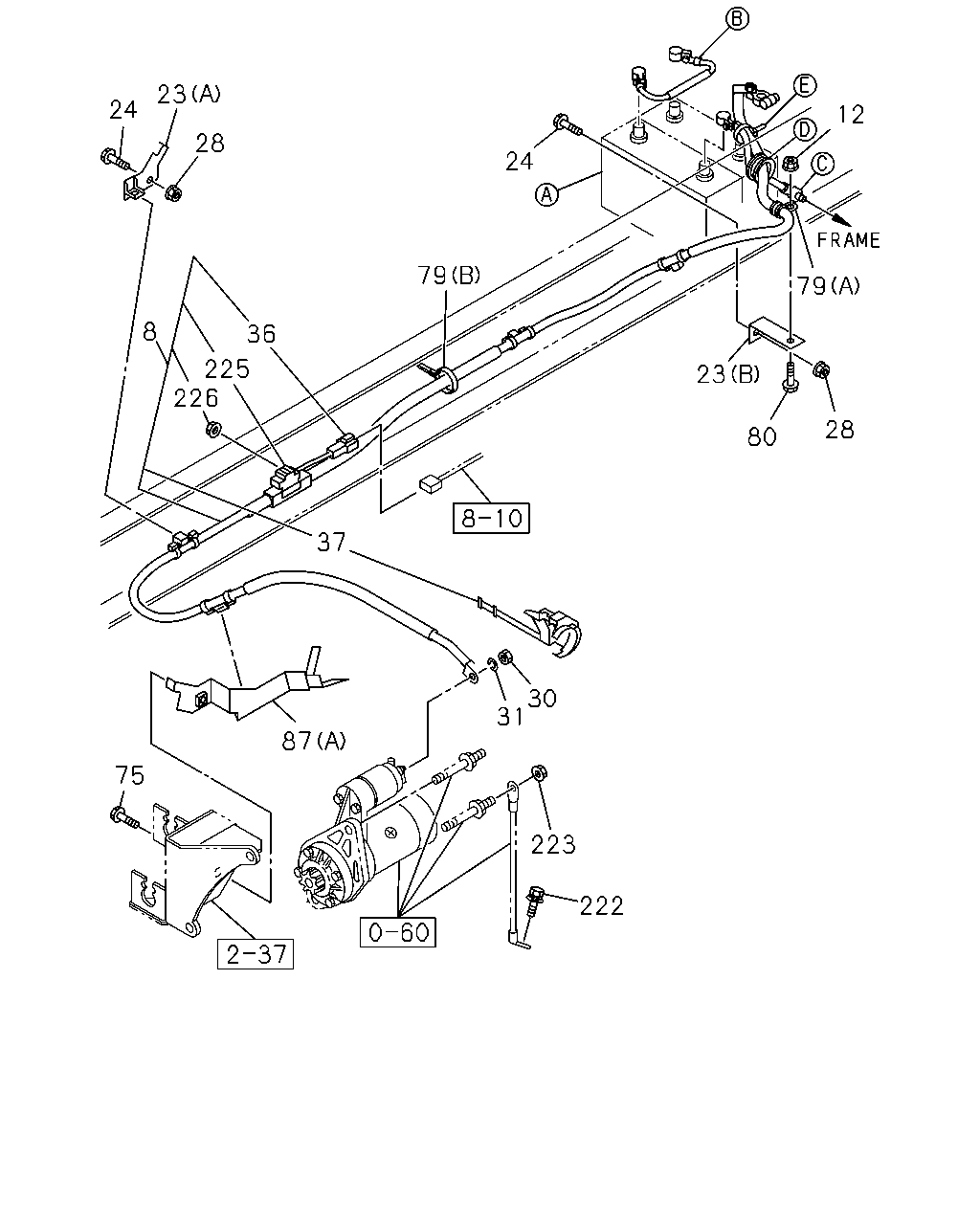

222 223 31 30 87 75 37 226 225 36 8 28 23 24 12 23 28 80 24 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA	8-97925-479-0	01	1	1304-
8	CABLE; BATTERY,STARTER 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97925-480-0	01	1	1304-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97925-251-0	01	1	1304-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97925-252-0	01	1	1304-
12	NUT; BATTERY CABLE CLIP MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1304-
12	NUT; BATTERY CABLE CLIP MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	02	1	1304-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98047-277-1	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME MZW6P M/T<RSZ> (B) L=95	1-82699-085-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> (C)	8-98077-904-1	01	1	1304-
24	BOLT; BRKT TO FRAME M10X30 FLANGE THA	0-28651-030-0	01	1	1304-
24	BOLT; BRKT TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
24	BOLT; BRKT TO FRAME MZW6P M/T<RSZ> M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
28	NUT; BRKT TO FRAME M10 FLANGE THA	0-91180-210-0	01	1	1304-
28	NUT; BRKT TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	01	1	1304-
28	NUT; BRKT TO FRAME MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1304-
30	NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1304-
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2	0-91510-508-0	01	1	1304-
36	FUSIBLE LINK; BATTERY THA	8-97615-498-1	01	1	1304-
37	CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1304-
75	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
79	CLIP; BATTERY CABLE MZW6P M/T<RSZ> (A) ID=21 L=24	8-98019-191-0	01	1	1304-
79	CLIP; BATTERY CABLE MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=20 L=50	9-09917-430-0	01	1	1304-
79	CLIP; BATTERY CABLE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) ID=21 L=24	8-98019-191-0	02	1	1304-
80	BOLT; BATTERY CABLE CLIP MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
80	BOLT; BATTERY CABLE CLIP MZW6P M/T<RSZ> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
87	BRACKET; HARNESS MZW6P M/T<RSZ> (B)	8-98126-428-0	01	1	1304-
87	BRACKET; HARNESS 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> (A)	8-98171-733-0	01	1	1304-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1304-
223	NUT; EARTH CABLE M10 FLANGE THA	0-91180-210-0	01	1	1304-
225	BLOCK; TERMINAL THA	8-98029-689-0	01	1	1304-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1304-

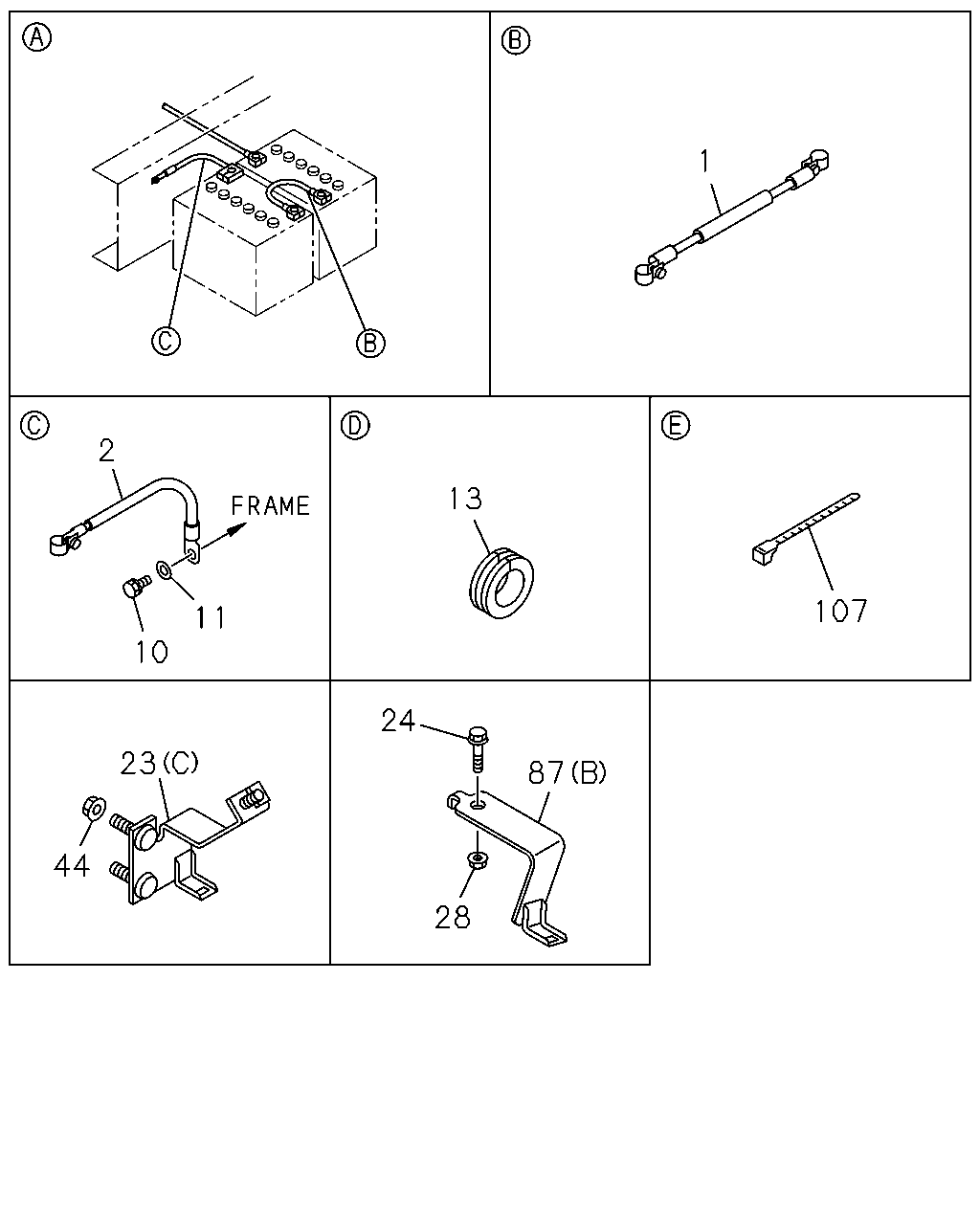

107 87 24 28 44 23 11 10 2 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280 THA	8-97922-383-0	01	1	1304-
2	CABLE; BATTERY MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=335 THA	8-97924-725-0	01	1	1304-
2	CABLE; BATTERY MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=240 THA	8-97924-520-0	01	1	1304-
2	CABLE; BATTERY MZW6P M/T<RSZ> L=240 THA	8-97924-520-0	01	1	1304-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1304-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1304-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=18	1-09891-003-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98047-277-1	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95	1-82699-085-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME MZW6P M/T<RSZ> (B) L=95	1-82699-085-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> (C)	8-98077-904-1	01	1	1304-
24	BOLT; BRKT TO FRAME M10X30 FLANGE THA	0-28651-030-0	01	1	1304-
24	BOLT; BRKT TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
24	BOLT; BRKT TO FRAME MZW6P M/T<RSZ> M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
28	NUT; BRKT TO FRAME M10 FLANGE THA	0-91180-210-0	01	1	1304-
28	NUT; BRKT TO FRAME MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA	0-91180-108-0	01	1	1304-
28	NUT; BRKT TO FRAME MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1304-
44	NUT; BRKT 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> M10 FLANGE THA	0-91180-210-0	02	1	1304-
87	BRACKET; HARNESS MZW6P M/T<RSZ> (B)	8-98126-428-0	01	1	1304-
87	BRACKET; HARNESS 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> (A)	8-98171-733-0	01	1	1304-
107	CLIP; BAND L=140 THA	8-97920-656-0	01	1	1304-
