Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#12102) — 47 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

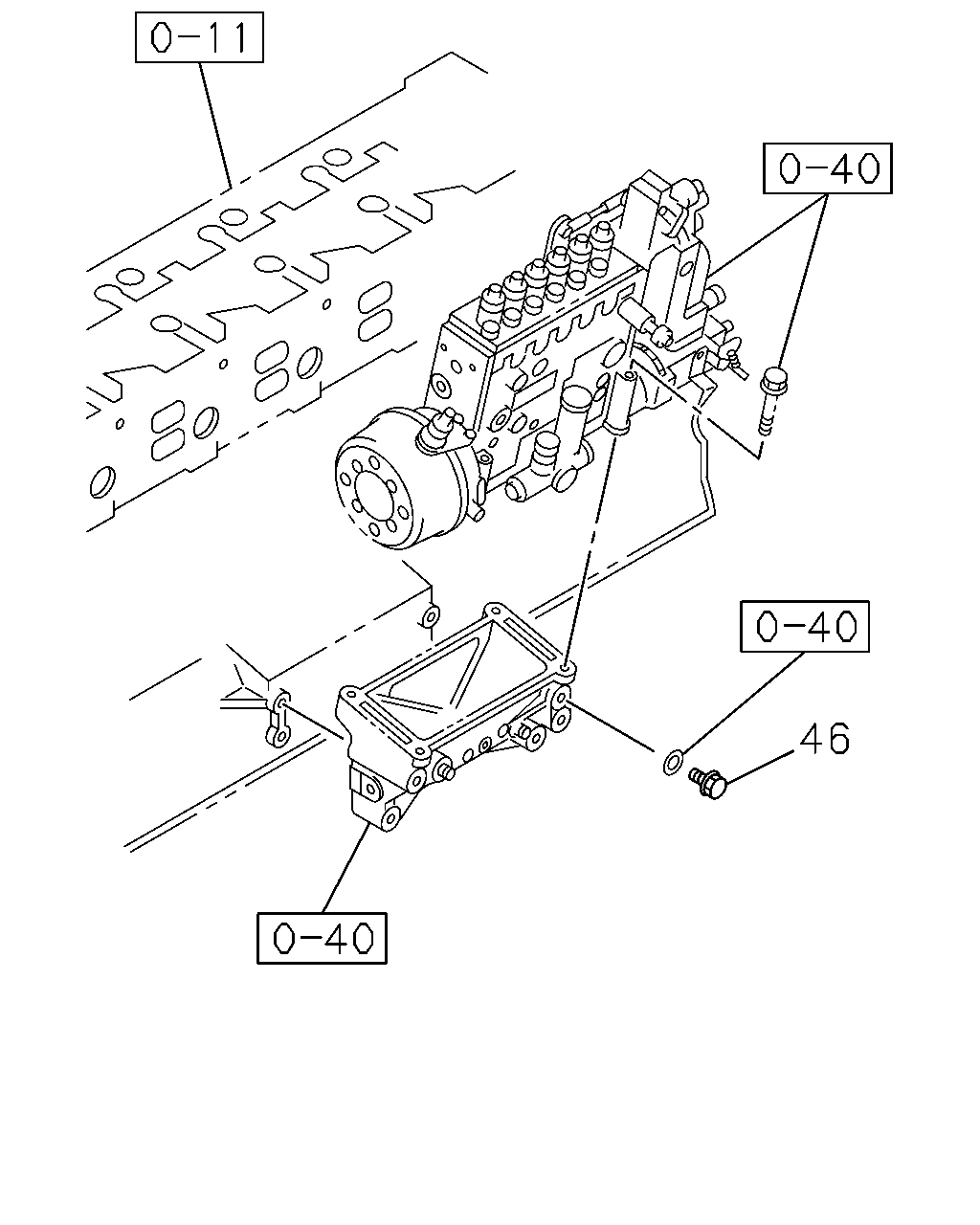

	46	PLUG EXC. ELECTRONIC GOV RED3(KG5) M14X9	9-99202-314-0	01	1	0105-0805	●
	46	PLUG EXC. ELECTRONIC GOV RED3(KG5) M14X9	8-98042-944-0	01	1	0806-	●

216 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

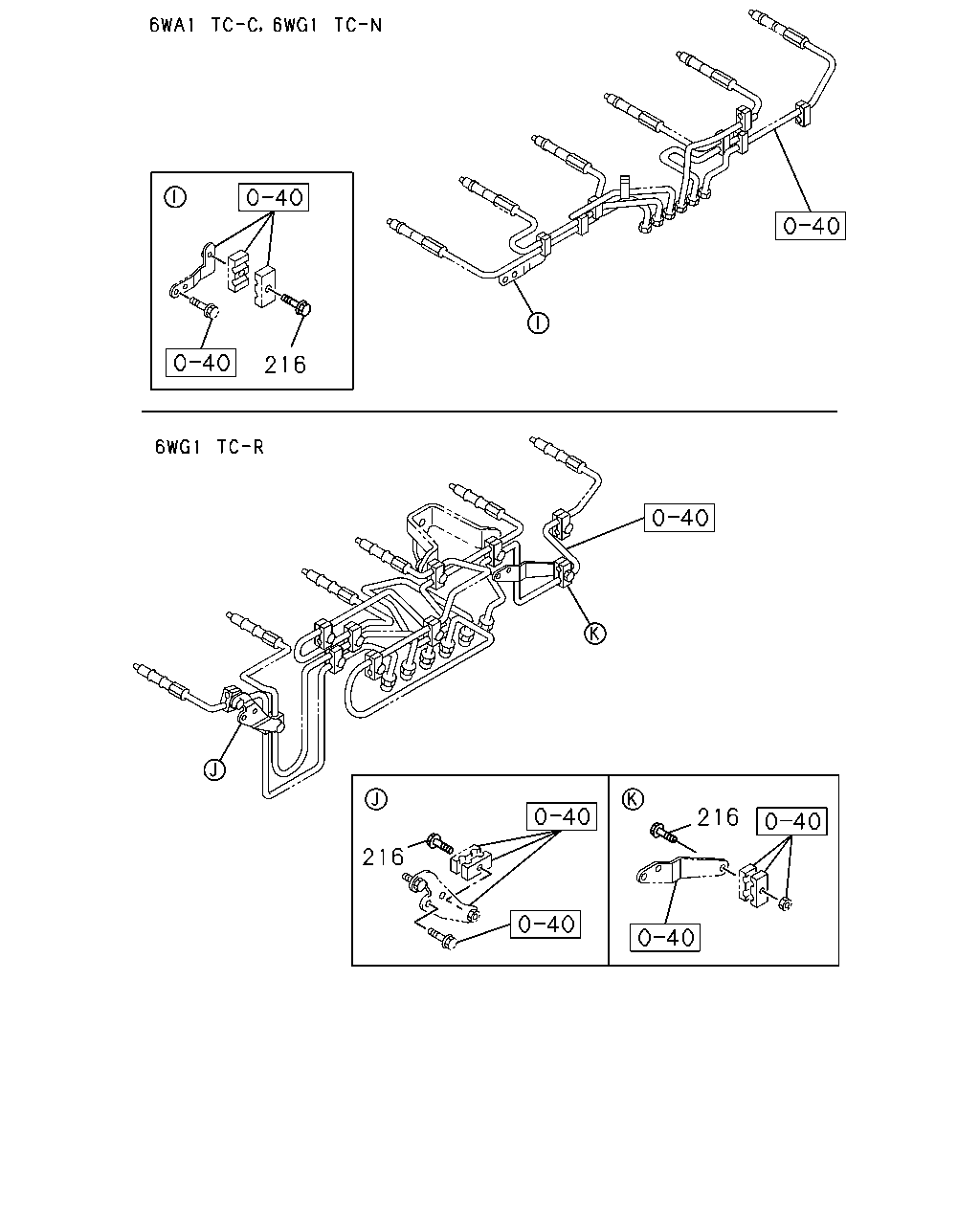

216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	02	1	0105-0512			●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-			●

119 115 108 110 112 115 219 110 190 119 126 107 126 126 125 152 125 131 125 92 125 92 152 92 152 148 125 126 148 126 126 125 148 131 131 121 207 92 125 148 126 119 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

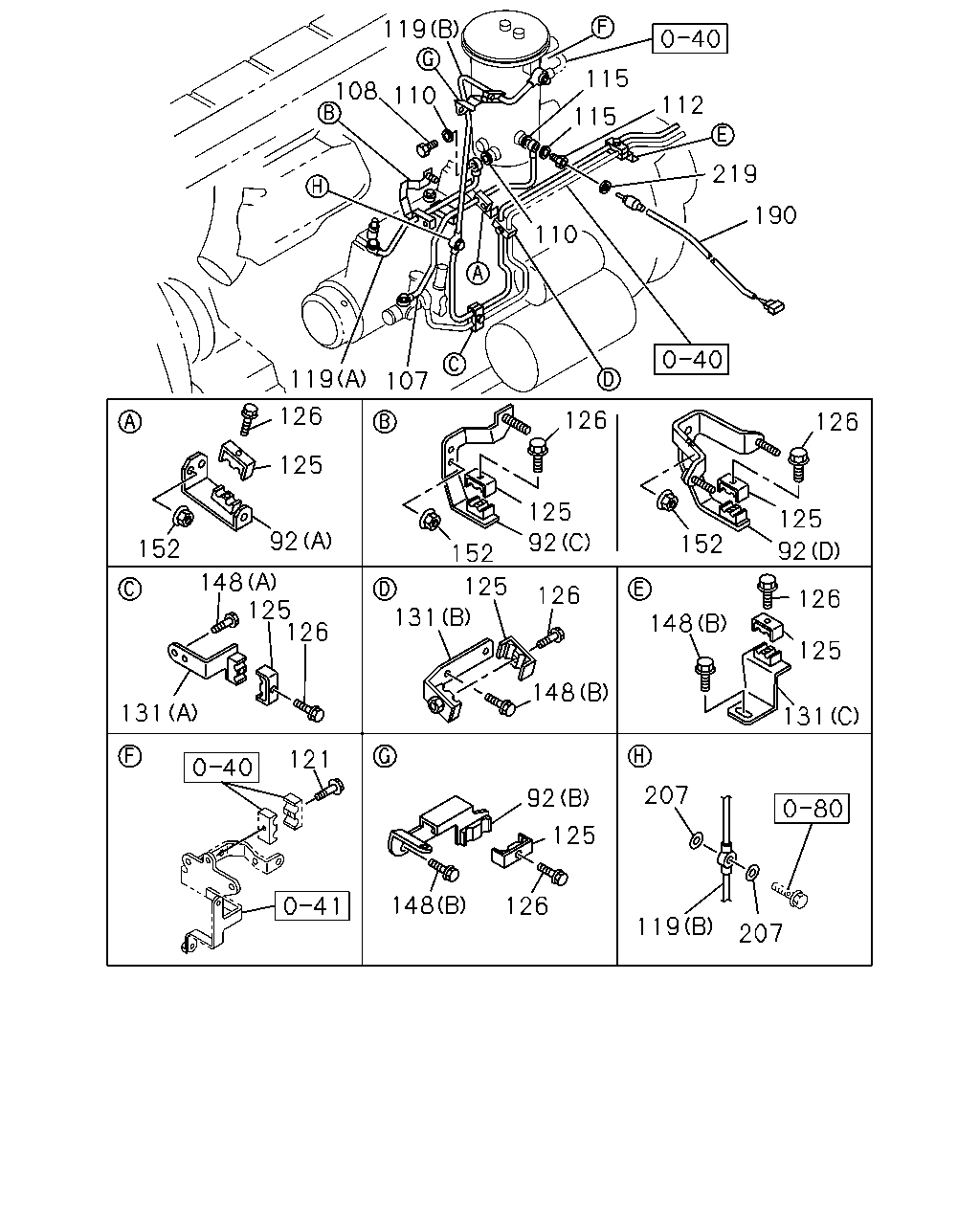

92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-592-0	01	1	0105-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0105-	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-1312	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
112	BOLT; JOINT,FUEL FILTER EXC. ELECTRONIC GOV RED3(KG5) M14X27 FLANGE	1-09675-086-0	01	1	0401-	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0105-0312	●	●	●
112	BOLT; JOINT,FUEL FILTER ELECTRONIC GOV RED3(KG5)	1-09675-156-1	01	1	0401-	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0401-		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0105-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-402-0	01	1	0105-			●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0105-0512	●	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-	●	●	●
125	CLIP; FUEL PIPE ID=9 & 9 L=25	8-94393-280-3	06	1	0105-	●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0105-0512	●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-	●	●	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	0105-	●	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	0105-	●	●	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	0105-	●	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0105-0512	●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-	●	●	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0105-0312	●	●	●
190	SENSOR; FUEL TEMP ELECTRONIC GOV RED3(KG5)	1-81535-036-7	01	1	0401-	●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0401-		●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-1312	●	●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0105-0312	●	●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ELECTRONIC GOV RED3(KG5) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0401-1312	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0401-1312		●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ELECTRONIC GOV RED3(KG5) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
