◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11476 - FRR THAILAND EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#121011) — 26 parça

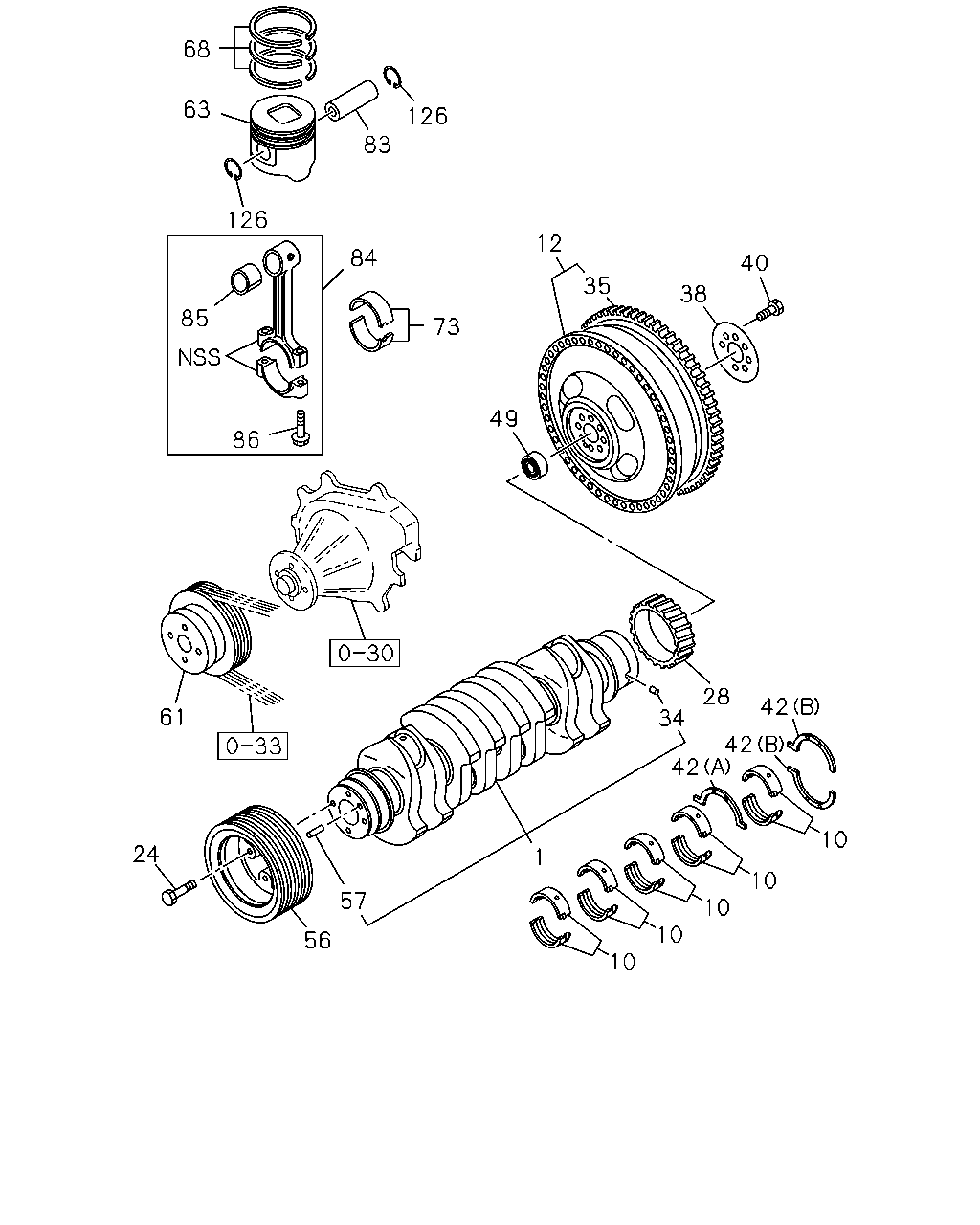

çizim 355152
68 63 126 85 86 84 73 12 83 126 35 49 38 40 24 56 10 10 10 10 42 34 42 28 42 10 57 61 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-98029-270-0 01 1 1304- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1304- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1304- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1304- ● ●
12 FLYWHEEL 8-98056-355-2 01 1 1304- ● ●
24 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 1304- ● ●
28 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 1304- ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 1304- ● ●
35 GEAR; RING
Z=143 		8-97375-675-1 01 1 1304- ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1304- ● ●
40 BOLT; FLYWHEEL
M16X51 		8-94334-870-1 08 1 1304- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 1304- ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1304- ● ●
49 BEARING; PILOT 8-97258-239-0 01 1 1304- ● ●
56 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-98004-024-3 01 1 1304- ● ●
57 PIN; PULLEY
OD=8 L=20 		9-08150-820-0 02 1 1304- ● ●
61 PULLEY; FAN DRIVE
1-GROOVE 		8-98003-384-1 01 1 1304- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98041-141-2 04 1 1304- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA 		8-98040-125-0 04 1 1304- ● ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98055-479-0 04 1 1304- ● ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-98055-480-0 04 1 1304- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-98018-863-1 04 1 1304- ● ●
84 ROD ASM; CONN 8-98018-425-2 04 1 1304- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 04 1 1304- ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1304- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 		8-98006-828-0 08 1 1304- ● ●
