0-35 — ENGINE CONTROL VALVE AND LEVER (#12095) — 32 parça
çizim 138617
52 45 51
BalonParca AdiParca NoAdetTipApplied Date A B C
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=9 L=20 		9-09524-835-0 01 1 0105-0306 ● ● ●
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 01 1 0307-0606 ● ● ●
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		0-95235-035-0 01 1 0607- ● ● ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-0904 ● ● ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=2535 		1-73907-594-4 01 1 0105- ● ● ●

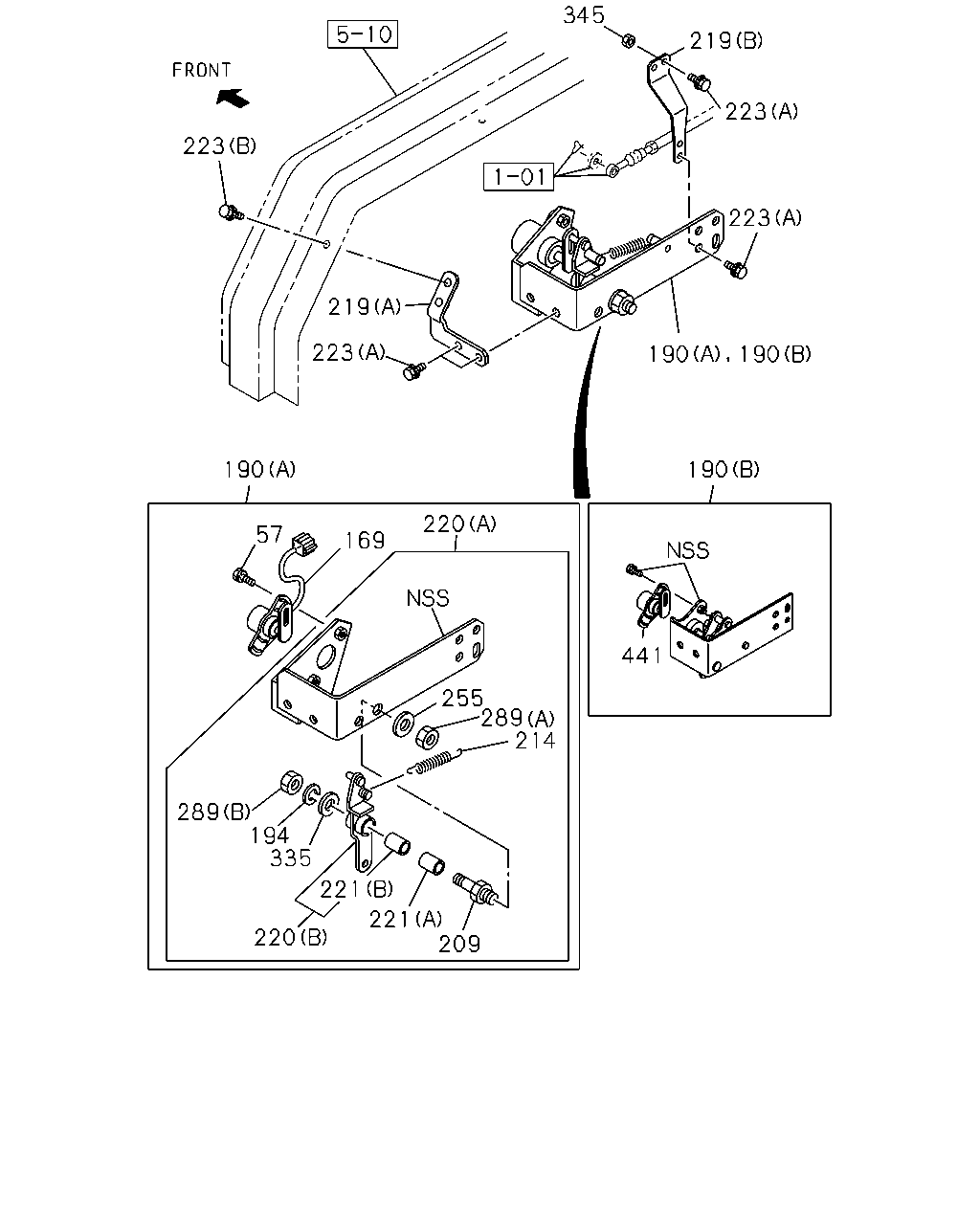

çizim 138678
345 219 223 223 223 219 223 190 190 190 190 220 57 169 441 255 214 289 194 335 221 221 209 220 289
BalonParca AdiParca NoAdetTipApplied Date A B C
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0105-0206 ● ● ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0105-0206 ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-504-0 01 1 0105-0206 ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-97219-466-4 01 1 0207- ● ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 0105-0206 ● ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 0105-0206 ● ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 0105-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-511-0 01 1 0105-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-580-0 01 1 0207- ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-512-0 01 1 0105-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-582-0 01 1 0207- ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 0105-0206 ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 0105-0206 ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 0105-0206 ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 0105-0206 ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE 		0-28680-820-0 06 1 0105-0512 ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 0105-0206 ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 0105-0206 ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 0105-0206 ● ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 0105-0206 ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0207- ● ● ●
