Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10879 - EXZ LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#12093) — 43 parça
Tümü
A - 6WA1 TC-C
B - 6WG1 TC-N
C - 6WG1 TC-R
◀

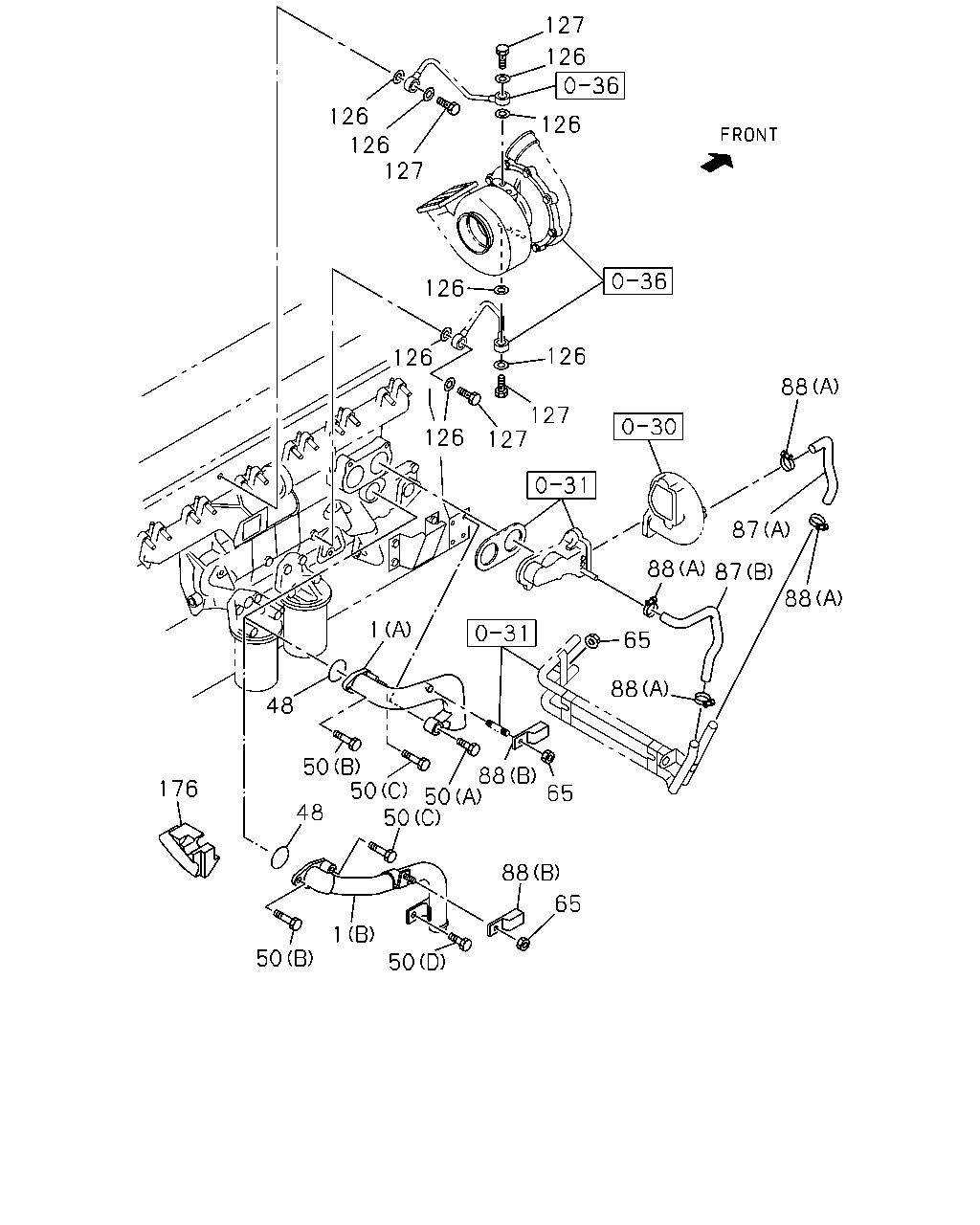

[032A] PIPE AND HOSE;FIXING (24 parça)
[032A] PIPE;WATER OUTLET AND WATER CHARGE (19 parça)
▶
127
126
126
126
126
127
126
126
126
88
127
127
126
87
88
87
88
1
65
88
48
88
50
50
50
50
176
65
48
88
65
1
50
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PIPE; WATER PUMP,INL
(A)
1-13711-718-0
01
1
0105-0106
●
●
●
1
PIPE; WATER PUMP,INL
(A)
1-13711-611-2
01
1
0107-0512
●
●
●
1
PIPE; WATER PUMP,INL
(B)
8-97606-255-2
01
1
0601-
●
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-406-0
01
1
0105-
●
●
●
50
BOLT; WATER PIPE INL
(B) M10X30 FLANGE
0-28181-030-0
01
1
0105-0512
●
●
●
50
BOLT; WATER PIPE INL
(B) M10X30 FLANGE
0-28151-030-0
01
1
0601-
●
●
●
50
BOLT; WATER PIPE INL
(C) M10X80 FLANGE
0-28181-080-0
01
1
0105-0512
●
●
●
50
BOLT; WATER PIPE INL
(C) M10X80 FLANGE
0-28151-080-0
01
1
0601-
●
●
●
50
BOLT; WATER PIPE INL
(A) M14X50 FLANGE
0-28981-450-0
01
1
0105-0512
●
●
●
50
BOLT; WATER PIPE INL
(D) M14X25 FLANGE
0-28981-425-0
01
1
0601-0601
●
●
●
50
BOLT; WATER PIPE INL
(D) M14X25 FLANGE
0-28951-425-0
01
1
0601-
●
●
●
65
NUT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE
0-91150-110-0
02
1
0105-0602
●
●
●
65
NUT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE
0-91180-110-0
02
1
0603-
●
●
●
87
HOSE; RUBBER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83565-572-0
01
1
0105-
●
●
●
87
HOSE; RUBBER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83565-577-0
01
1
0105-
●
●
●
88
CLIP; HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20
1-09707-084-1
04
1
0105-
●
●
●
88
CLIP; HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
9-09915-663-0
01
1
0105-1206
●
●
●
88
CLIP; HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98166-024-0
01
1
1207-
●
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
04
1
0704-1312
●
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
●
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25
1-09630-141-0
08
1
0105-0703
●
●
●
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25
1-09630-141-0
04
1
0704-
●
●
●
127
BOLT; EYE
M14X27 EYE-BOLT
1-09675-193-0
04
1
0105-
●
●
●
176
INSULATOR; WATER PIPE
1-19389-189-1
01
1
0105-
●
●
95
95
95
110
109
110
110
104
59
56
112
105
105
105
112
91
91
90
90
91
91
91
90
91
91
89
90
92
91
89
90
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
56
PIPE; WATER OUTLET
1-13721-763-0
01
1
0105-0108
●
●
●
56
PIPE; WATER OUTLET
1-13721-587-1
01
1
0109-
●
●
●
59
CLIP; HARNESS,WATER OUTLET PIPE
ID=11 L=20
9-09525-035-0
02
1
0105-0606
●
●
●
59
CLIP; HARNESS,WATER OUTLET PIPE
ID=11 L=20
0-95235-035-0
02
1
0607-
●
●
●
89
PIPE; WATER,AIR CMPR,IN
(A)
1-13711-687-0
01
1
0105-
●
●
●
89
PIPE; WATER,AIR CMPR,IN
(B)
1-13711-689-0
01
1
0105-
●
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
06
1
0105-
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
12
1
0105-
●
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13711-691-0
01
1
0105-
●
●
●
95
BOLT; CLIP
M6X16 FLANGE
0-28080-616-0
03
1
0105-0512
●
●
●
95
BOLT; CLIP
M6X16 FLANGE
0-28050-616-0
03
1
0601-
●
●
●
104
PIPE; WATER CHARGE
1-13721-617-0
01
1
0105-
●
104
PIPE; WATER CHARGE
1-13721-647-0
01
1
0105-
●
●
105
NUT; PIPE
M10 FLANGE
0-91150-210-0
03
1
0105-0602
●
●
●
105
NUT; PIPE
M10 FLANGE
0-91180-210-0
03
1
0603-
●
●
●
109
PIPE; AIR,LEAK,THERMOSTAT HSG
1-13721-971-0
01
1
0105-
●
109
PIPE; AIR,LEAK,THERMOSTAT HSG
1-13721-648-0
01
1
0105-
●
●
110
CLIP; AIR PIPE
ID=9.7 L=20
1-09700-878-1
03
1
0105-
●
●
●
112
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25
1-09630-141-0
02
1
0105-
●
●
●
