0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#1209) — 60 parça

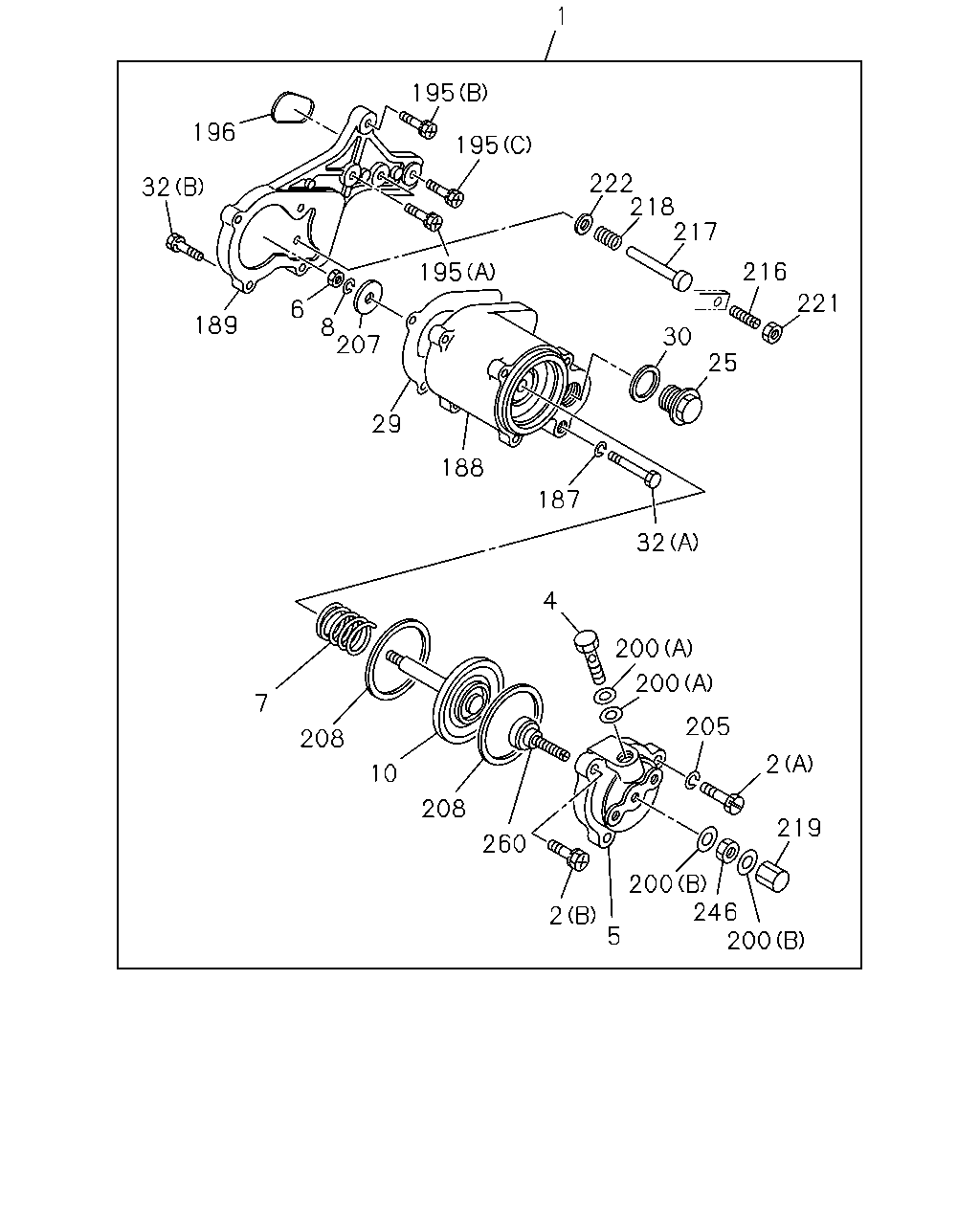

çizim 27974
1 195 196 195 222 218 217 32 216 195 221 6 189 8 207 30 25 29 188 187 32 4 200 200 7 205 208 2 10 208 219 260 200 246 200 2 5
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 1-15602-290-0 		1-15728-088-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: A = 1-15602-290-0 		1-15779-202-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B), M6X20 ASM PART: A = 1-15602-290-0 		9-81325-187-0 01 1 -
4 BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-15729-325-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 1-15602-290-0 		1-15721-303-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-15729-249-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-15729-267-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ID=6.1 ASM PART: A = 1-15602-290-0 		9-09150-506-0 01 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 1-15602-290-0 		1-15712-004-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-15729-254-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		8-97085-018-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		9-19139-024-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(A) ASM PART: A = 1-15602-290-0 		1-15729-251-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(B) ASM PART: A = 1-15602-290-0 		9-88410-094-0 03 1 -
187 WASHER; LK,BOOST COMPENSATOR FIX
ASM PART: A = 1-15602-290-0 		8-94128-928-0 01 1 -
188 HOUSING; BOOST COMPENSATOR,INJ PUMP
ASM PART: A = 1-15602-290-0 		1-15721-302-0 01 1 -
189 SPACER; BOOST COMPENSATOR HSG
ASM PART: A = 1-15602-290-0 		1-15779-218-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(A), M6X25 ASM PART: A = 1-15602-290-0 		1-15729-242-0 02 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(B), M8X30 ASM PART: A = 1-15602-290-0 		1-15729-243-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(C) ASM PART: A = 1-15602-290-0 		9-88410-094-0 01 1 -
196 GASKET; SPACER,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		8-94424-220-0 01 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(A) ASM PART: A = 1-15602-290-0 		1-15639-009-0 02 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(B) ASM PART: A = 1-15602-290-0 		5-15729-099-0 02 1 -
205 WASHER; LK,COVER FIX,BOOST COMPENSATOR
ID=6.1 ASM PART: A = 1-15602-290-0 		9-09150-506-0 02 1 -
207 DISC; DIAPH,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-15729-248-0 01 1 -
208 GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-15779-129-0 02 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		8-94171-179-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=125.0 ASM PART: A = 1-15602-290-0 		1-15729-245-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=127.5 ASM PART: A = 1-15602-290-0 		8-94172-282-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=128.0 ASM PART: A = 1-15602-290-0 		8-94172-283-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=127.0 ASM PART: A = 1-15602-290-0 		8-94172-284-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=126.0 ASM PART: A = 1-15602-290-0 		8-94172-285-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=129.0 ASM PART: A = 1-15602-290-0 		8-94172-286-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=128.5 ASM PART: A = 1-15602-290-0 		8-94172-287-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=125.5 ASM PART: A = 1-15602-290-0 		8-94172-288-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=126.5 ASM PART: A = 1-15602-290-0 		8-94172-289-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=119.5 ASM PART: A = 1-15602-290-0 		8-94172-290-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=120.0 ASM PART: A = 1-15602-290-0 		8-94172-291-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=120.5 ASM PART: A = 1-15602-290-0 		8-94172-292-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=121.0 ASM PART: A = 1-15602-290-0 		8-94172-293-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=121.5 ASM PART: A = 1-15602-290-0 		8-94172-294-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=122.0 ASM PART: A = 1-15602-290-0 		8-94172-295-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=122.5 ASM PART: A = 1-15602-290-0 		8-94172-296-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=123.0 ASM PART: A = 1-15602-290-0 		8-94172-297-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=123.5 ASM PART: A = 1-15602-290-0 		8-94172-298-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=129.5 ASM PART: A = 1-15602-290-0 		8-94443-435-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=130.0 ASM PART: A = 1-15602-290-0 		8-94443-436-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=130.5 ASM PART: A = 1-15602-290-0 		8-94443-437-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=131.0 ASM PART: A = 1-15602-290-0 		8-94443-438-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=131.5 ASM PART: A = 1-15602-290-0 		8-94443-439-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=132.0 ASM PART: A = 1-15602-290-0 		8-94443-440-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=132.5 ASM PART: A = 1-15602-290-0 		8-94443-441-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=133.0 ASM PART: A = 1-15602-290-0 		8-94443-442-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=133.5 ASM PART: A = 1-15602-290-0 		8-94443-443-0 01 1 -
218 SPRING; PUSH ROD,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		8-94171-176-0 01 1 -
219 NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
CAP NUT ASM PART: A = 1-15602-290-0 		1-15729-093-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		9-88410-525-0 01 1 -
222 WASHER; PUSH ROD,BOOST COMPENSATOR
ASM PART: A = 1-15602-290-0 		1-83539-045-0 01 1 -
246 NUT; SET BOLT
ASM PART: A = 1-15602-290-0 		9-88410-525-0 01 1 -
260 SCREW; DIAPHRAGM
ASM PART: A = 1-15602-290-0 		1-15729-386-0 01 1 -
