Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10879 - EXZ LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

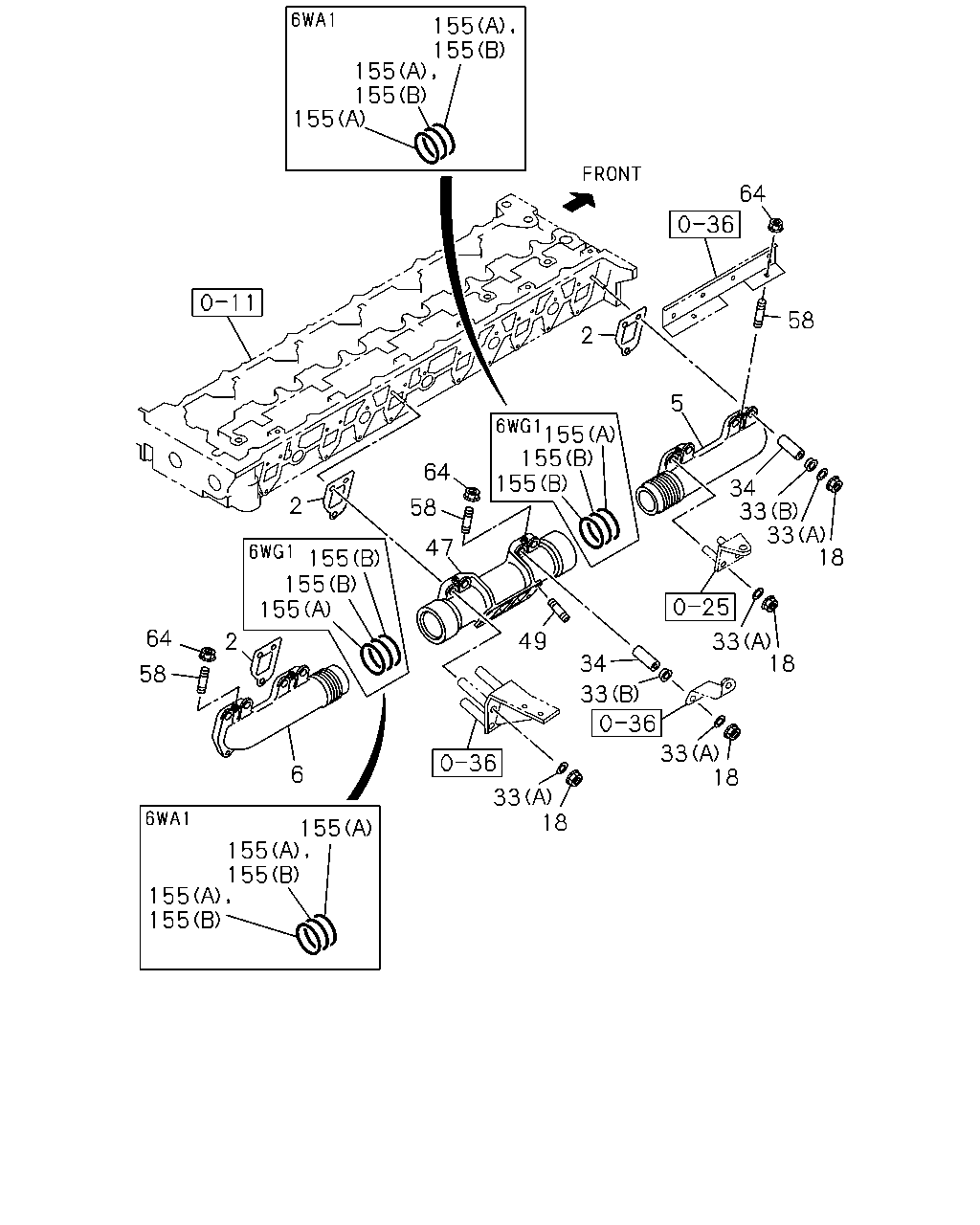

0-27 — EXHAUST MANIFOLD
(#12089) — 26 parça
Tümü
A - 6WA1 TC-C
B - 6WG1 TC-N
C - 6WG1 TC-R
155
155
155
155
155
64
58
2
5
155
155
155
64
34
33
33
2
58
18
155
155
155
47
64
49
2
33
18
34
58
33
33
18
6
33
18
155
155
155
155
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-3
06
1
0105-
●
●
●
5
MANIFOLD; EXH,FRT
1-14141-801-2
01
1
0105-
●
5
MANIFOLD; EXH,FRT
1-14141-999-0
01
1
0105-
●
●
6
MANIFOLD; EXH,RR
1-14141-803-2
01
1
0105-
●
6
MANIFOLD; EXH,RR
1-14142-001-0
01
1
0105-
●
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
0105-0602
●
●
●
18
NUT; EXH MANIF
M10 FLANGE
0-91180-210-0
18
1
0603-
●
●
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
18
1
0105-
●
●
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
13
1
0105-0301
●
●
●
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
13
1
0105-0301
●
●
●
34
COLLAR; DIST,EXH MANIF
L=47
1-14149-263-0
13
1
0302-
●
●
●
47
MANIFOLD; EXH,CENTER
1-14141-802-3
01
1
0105-
●
47
MANIFOLD; EXH,CENTER
1-14141-938-0
01
1
0105-
●
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
04
1
0105-
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
1-09302-167-1
04
1
0105-0408
●
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
04
1
0409-
●
●
58
STUD; HEAT PROTECTOR
M8X20 L=32
9-04110-820-0
06
1
0105-0604
●
●
●
58
STUD; HEAT PROTECTOR
M8X20 L=32
0-41010-820-0
06
1
0605-
●
●
●
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
05
1
0105-0110
●
●
●
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
03
1
0111-0602
●
●
●
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
04
1
0502-
●
155
RING; SEAL,EXH MANIF
(A)
1-14149-151-0
06
1
0105-0501
●
155
RING; SEAL,EXH MANIF
(A)
1-14149-151-0
02
1
0502-
●
155
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
0105-
●
●
155
RING; SEAL,EXH MANIF
(B)
9-14149-026-1
04
1
0105-
●
●
