0-25 — INLET MANIFOLD (#12088) — 185 parça

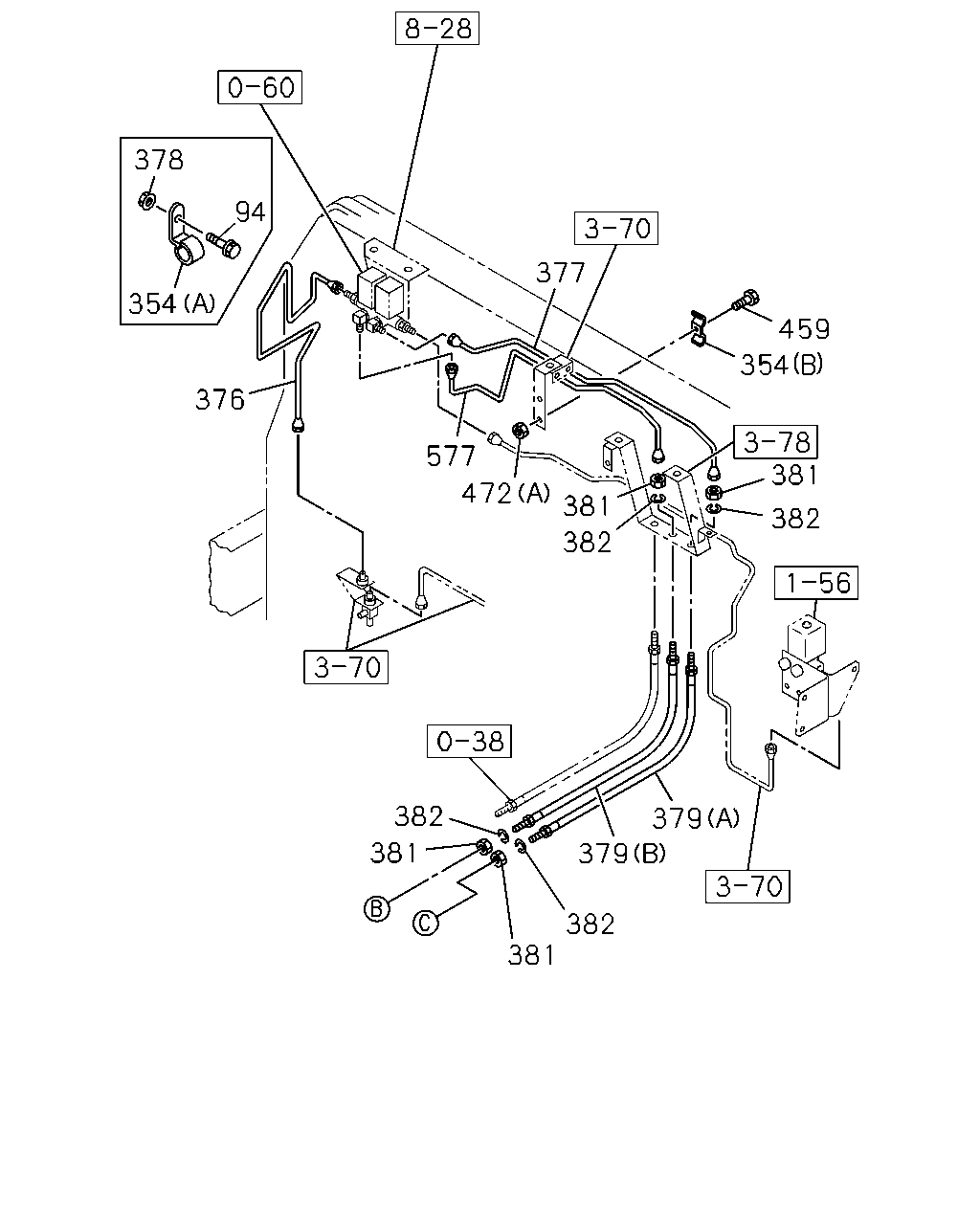

çizim 138661
378 94 377 354 459 354 376 381 577 472 381 382 382 382 381 379 379 382 381
BalonParca AdiParca NoAdetTipApplied Date A B C
94 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ● ●
94 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
354 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105- ● ● ●
354 CLIP; AIR PIPE
(C) 		1-09701-132-1 02 1 0105-1210 ● ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 02 1 1211- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV 1-49121-779-0 01 1 0105- ● ● ●
377 PIPE ASM; AIR MAG VLV
L=612 SERVICED BY L=650 		1-47428-810-0 01 1 0105- ● ●
378 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ●
378 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
379 HOSE; FLEX
(A) L=520 		1-09363-657-0 01 1 0105- ● ● ●
379 HOSE; FLEX
(B) L=360 		1-09363-658-0 01 1 0105- ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 0105- ● ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 0105- ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0105-0603 ● ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0105-0603 ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ● ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
472 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ●
472 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
472 NUT
(B) M6 FLANGE 		0-91150-106-0 01 1 0105-0602 ● ●
472 NUT
(B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
472 NUT
(C) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
472 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
472 NUT
(D) M8 		9-09110-408-0 01 1 0105-0512 ● ●
472 NUT
(D) M8 		0-91110-508-0 01 1 0601- ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
L=766 SERVICED BY L=800 		1-47428-812-0 01 1 0105- ● ● ●

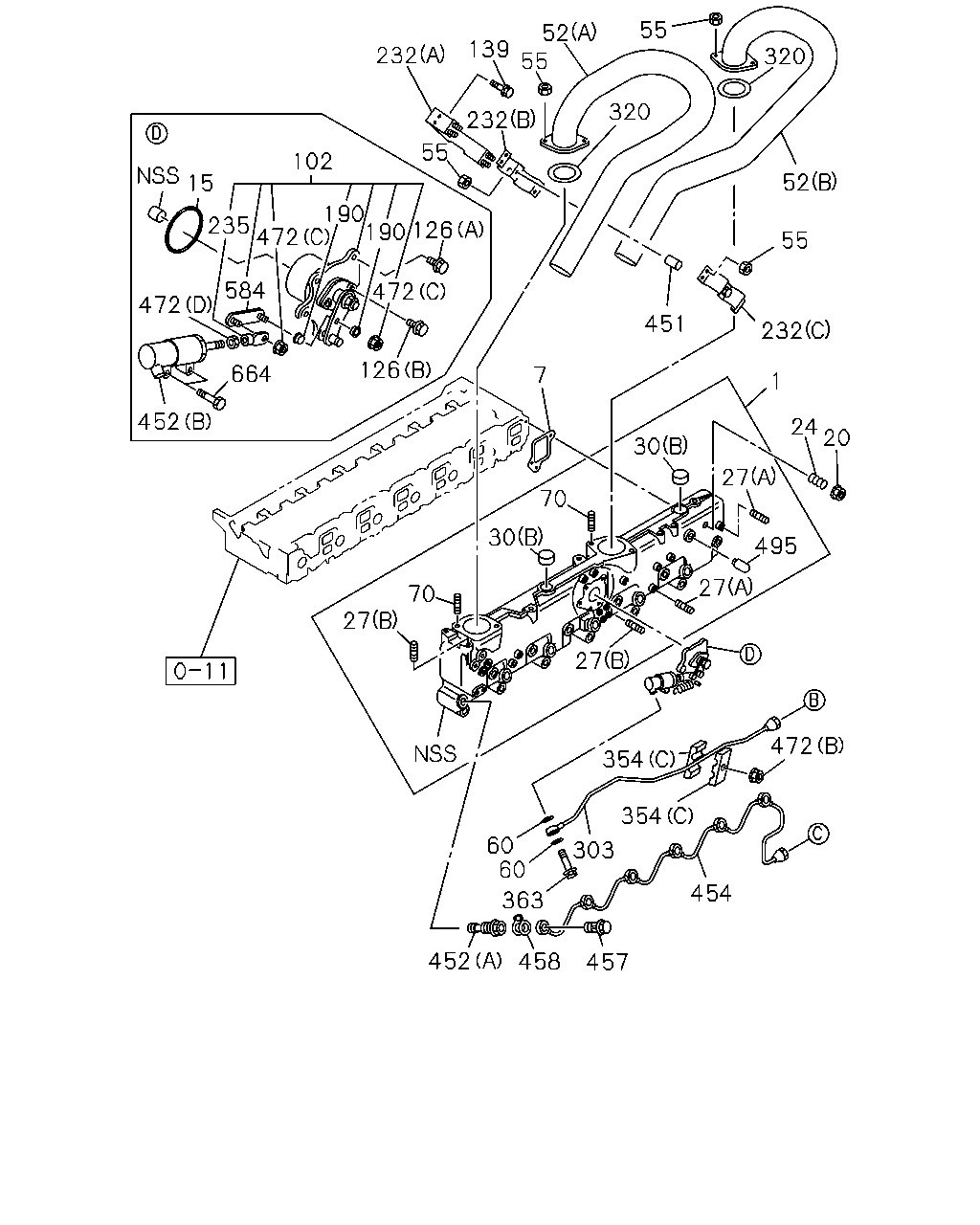

çizim 138677
55 52 55 139 232 320 320 232 55 102 15 52 190 235 190 126 472 55 584 472 472 451 232 126 664 7 1 452 24 20 30 27 70 27 30 495 27 70 27 472 354 354 60 60 303 454 363 452 458 457
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL
ELECTRONIC GOV RED3(KG5) 		1-14110-551-4 01 1 0105- ●
1 MANIFOLD; INL 1-14110-551-4 01 1 0105- ●
1 MANIFOLD; INL
EXC. ELECTRONIC GOV RED3(KG5) 		1-14110-579-2 01 1 0105- ●
1 MANIFOLD; INL 1-14110-581-1 01 1 0105- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 0105- ● ● ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 0105- ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0105-0602 ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0603- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0105- ● ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 0105-0604 ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		0-41010-630-0 08 1 0605- ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 0105-0604 ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		0-41010-816-0 06 1 0605- ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 09 1 0105-0604 ●
27 STUD; INL MANIF
(A) M6X30 L=38 		0-41010-630-0 09 1 0605- ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 04 1 0105-0604 ●
27 STUD; INL MANIF
(B) M8X16 L=28 		0-41010-816-0 04 1 0605- ●
27 STUD; INL MANIF
(B) M8X20 L=32 		9-04110-820-0 02 1 0105-0604 ●
27 STUD; INL MANIF
(B) M8X20 L=32 		0-41010-820-0 02 1 0605- ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 0105- ● ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 0105- ● ● ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 0105- ● ● ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 0105- ● ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 0105-0602 ● ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91180-110-0 09 1 0603- ● ● ●
60 GASKET; INL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0105- ● ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 0105- ● ● ●
102 VALVE ASM; INDUCTION CONT 1-14310-221-1 01 1 0105- ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0105-0512 ● ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ● ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512 ● ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 0105-0512 ● ● ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28151-020-0 05 1 0601- ● ● ●
190 COLLAR; INLET MANIFOLD 1-22199-138-0 02 1 0105- ● ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 0105- ● ● ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 0105- ● ● ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 0105- ● ● ●
235 JOINT; INL MANIF 1-22199-137-0 01 1 0105- ● ●
303 PIPE; AIR 1-19192-803-1 01 1 0105- ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 0105- ● ● ●
354 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105- ● ● ●
354 CLIP; AIR PIPE
(C) 		1-09701-132-1 02 1 0105-1210 ● ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 02 1 1211- ● ●
363 BOLT; EYE
M10X21 FLANGE 		8-94396-711-0 01 1 0105- ● ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 0105- ● ● ●
452 CYLINDER ASM; AIR
(A) 		1-14370-013-0 06 1 0105- ● ● ●
452 CYLINDER ASM; AIR
(B) 		1-22190-579-1 01 1 0105- ● ●
454 PIPE; AIR,IVES 1-19192-590-1 01 1 0105- ● ● ●
457 BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT 		1-09675-037-1 06 1 0105- ● ● ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-94395-214-0 06 1 0105-1312 ● ● ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-98246-930-0 06 1 1401- ● ● ●
472 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ●
472 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
472 NUT
(B) M6 FLANGE 		0-91150-106-0 01 1 0105-0602 ● ●
472 NUT
(B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
472 NUT
(C) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
472 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
472 NUT
(D) M8 		9-09110-408-0 01 1 0105-0512 ● ●
472 NUT
(D) M8 		0-91110-508-0 01 1 0601- ● ●
495 PIPE; BOOST SENSOR
ELECTRONIC GOV RED3(KG5) 		1-09669-073-0 01 1 0105- ●
495 PIPE; BOOST SENSOR 1-09669-073-0 01 1 0105- ● ●
584 LINK 1-22199-153-0 01 1 0105- ● ●
664 BOLT; AIR CYL
M8X35 FLANGE 		0-28080-835-0 02 1 0105-0512 ● ●
664 BOLT; AIR CYL
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●

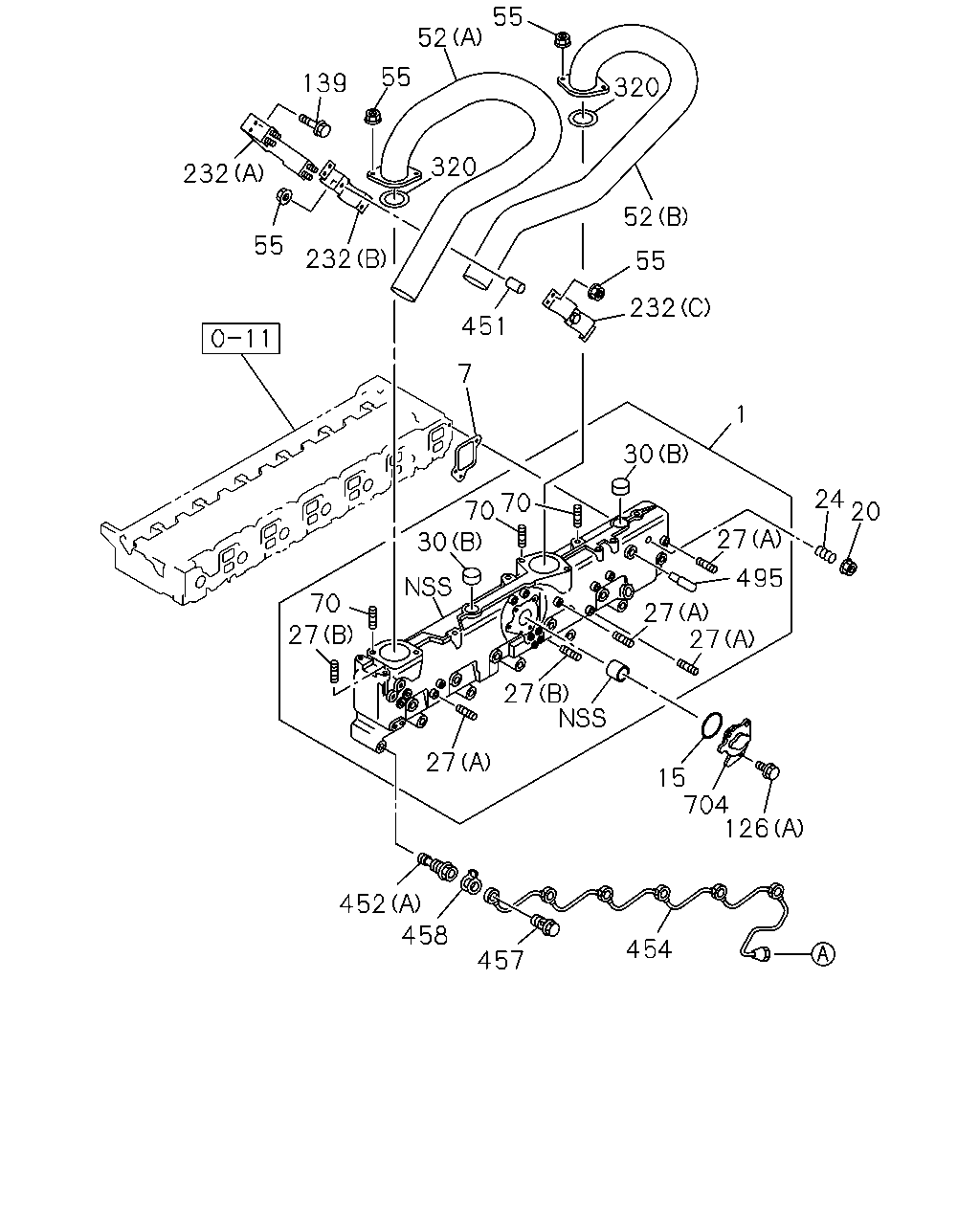

çizim 138685
55 52 55 139 320 320 232 52 55 232 55 232 451 7 1 30 24 20 70 70 30 27 495 27 27 70 27 27 27 15 704 126 452 458 454 457
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL
ELECTRONIC GOV RED3(KG5) 		1-14110-551-4 01 1 0105- ●
1 MANIFOLD; INL 1-14110-551-4 01 1 0105- ●
1 MANIFOLD; INL
EXC. ELECTRONIC GOV RED3(KG5) 		1-14110-579-2 01 1 0105- ●
1 MANIFOLD; INL 1-14110-581-1 01 1 0105- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 0105- ● ● ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 0105- ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0105-0602 ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0603- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0105- ● ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 0105-0604 ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		0-41010-630-0 08 1 0605- ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 0105-0604 ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		0-41010-816-0 06 1 0605- ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 09 1 0105-0604 ●
27 STUD; INL MANIF
(A) M6X30 L=38 		0-41010-630-0 09 1 0605- ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 04 1 0105-0604 ●
27 STUD; INL MANIF
(B) M8X16 L=28 		0-41010-816-0 04 1 0605- ●
27 STUD; INL MANIF
(B) M8X20 L=32 		9-04110-820-0 02 1 0105-0604 ●
27 STUD; INL MANIF
(B) M8X20 L=32 		0-41010-820-0 02 1 0605- ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 0105- ● ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 0105- ● ● ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 0105- ● ● ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 0105- ● ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 0105-0602 ● ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91180-110-0 09 1 0603- ● ● ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 0105- ● ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0105-0512 ● ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ● ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512 ● ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 0105-0512 ● ● ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28151-020-0 05 1 0601- ● ● ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 0105- ● ● ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 0105- ● ● ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 0105- ● ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 0105- ● ● ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 0105- ● ● ●
452 CYLINDER ASM; AIR
(A) 		1-14370-013-0 06 1 0105- ● ● ●
452 CYLINDER ASM; AIR
(B) 		1-22190-579-1 01 1 0105- ● ●
454 PIPE; AIR,IVES 1-19192-590-1 01 1 0105- ● ● ●
457 BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT 		1-09675-037-1 06 1 0105- ● ● ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-94395-214-0 06 1 0105-1312 ● ● ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-98246-930-0 06 1 1401- ● ● ●
495 PIPE; BOOST SENSOR
ELECTRONIC GOV RED3(KG5) 		1-09669-073-0 01 1 0105- ●
495 PIPE; BOOST SENSOR 1-09669-073-0 01 1 0105- ● ●
704 COVER 1-14134-193-0 01 1 0105- ●

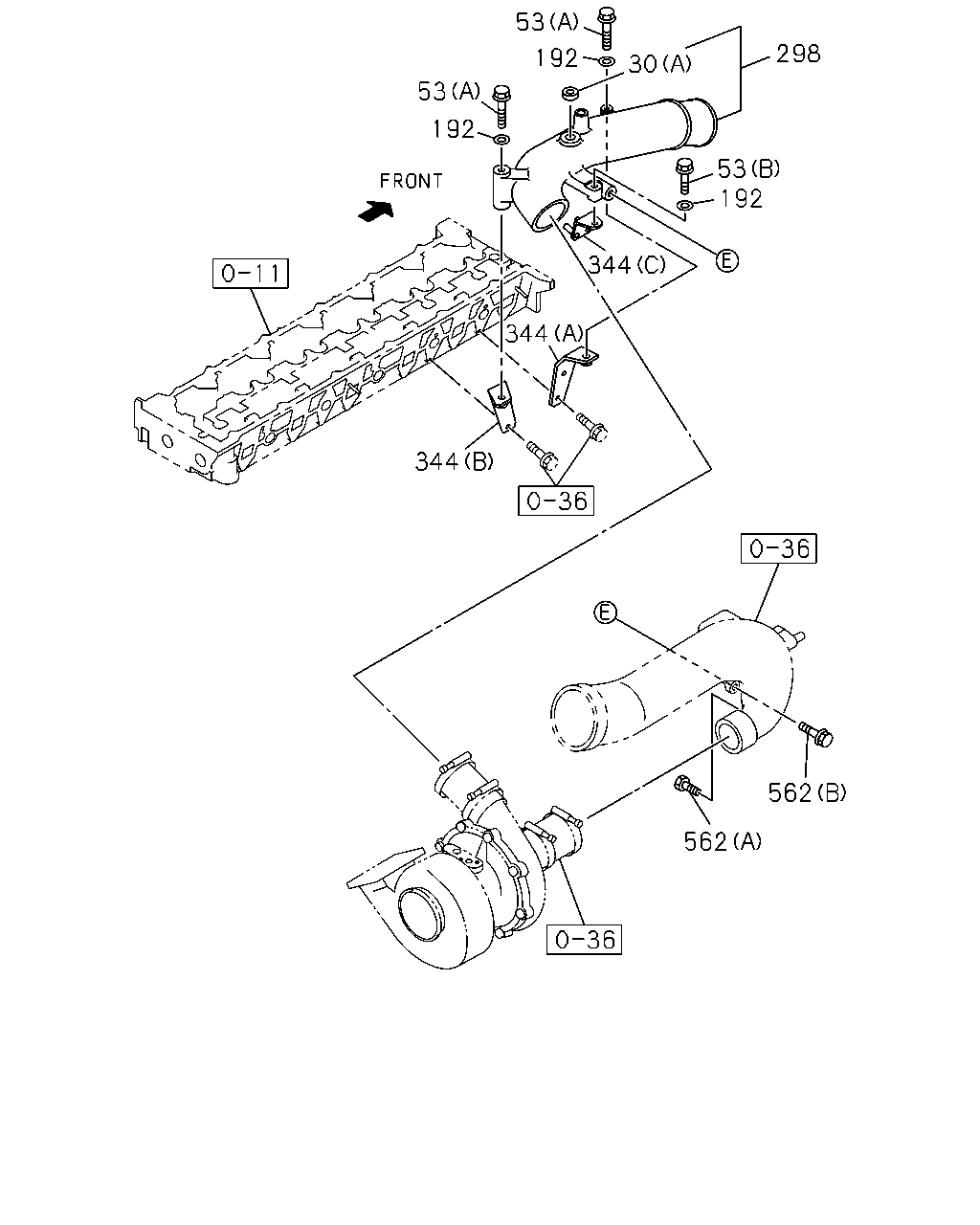

çizim 138729
53 298 192 30 53 192 53 192 344 344 344 562 562
BalonParca AdiParca NoAdetTipApplied Date A B C
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 0105- ● ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 0105- ● ● ●
53 BOLT; INL PIPE
(A) M10X100 FLANGE 		0-28181-000-0 02 1 0105-0512 ● ● ●
53 BOLT; INL PIPE
(A) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ● ●
53 BOLT; INL PIPE
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0105-0512 ● ● ●
53 BOLT; INL PIPE
(B) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ● ●
192 WASHER; PL,INL PIPE
ID=10.5 OD=22 		9-09160-610-0 03 1 0105-0605 ● ● ●
192 WASHER; PL,INL PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 03 1 0606- ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-485-2 01 1 0105- ● ● ●
344 BRACKET; INL PIPE
(A) 		1-14119-314-0 01 1 0105- ● ● ●
344 BRACKET; INL PIPE
(B) 		1-14119-324-0 01 1 0105- ● ● ●
344 BRACKET; INL PIPE
(C) 		1-14119-393-0 01 1 0105- ● ● ●
562 BOLT; INL DUCT
(A) M10X20 FLANGE 		0-28181-020-0 01 1 0105-0512 ● ● ●
562 BOLT; INL DUCT
(A) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ●
562 BOLT; INL DUCT
(B) M10X35 FLANGE 		0-28181-035-0 02 1 0105-0512 ● ● ●
562 BOLT; INL DUCT
(B) M10X35 FLANGE 		0-28151-035-0 02 1 0601- ● ● ●

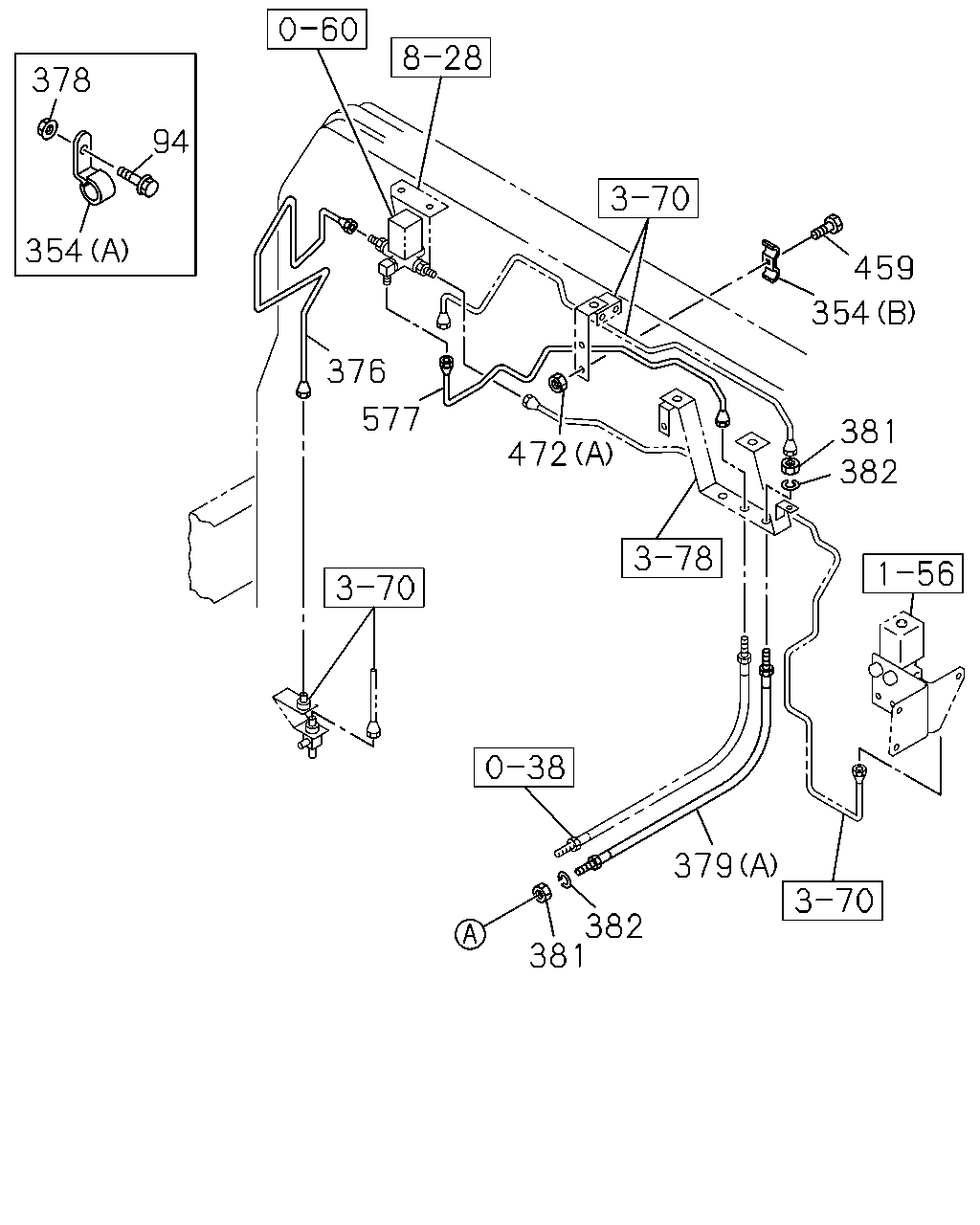

çizim 138731
378 94 354 459 354 376 577 381 382 472 379 382 381
BalonParca AdiParca NoAdetTipApplied Date A B C
94 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ● ●
94 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
354 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105- ● ● ●
354 CLIP; AIR PIPE
(C) 		1-09701-132-1 02 1 0105-1210 ● ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 02 1 1211- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV 1-49121-779-0 01 1 0105- ● ● ●
378 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ●
378 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
379 HOSE; FLEX
(A) L=520 		1-09363-657-0 01 1 0105- ● ● ●
379 HOSE; FLEX
(B) L=360 		1-09363-658-0 01 1 0105- ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 0105- ● ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 0105- ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0105-0603 ● ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0105-0603 ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ● ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
472 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ●
472 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
472 NUT
(B) M6 FLANGE 		0-91150-106-0 01 1 0105-0602 ● ●
472 NUT
(B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
472 NUT
(C) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
472 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
472 NUT
(D) M8 		9-09110-408-0 01 1 0105-0512 ● ●
472 NUT
(D) M8 		0-91110-508-0 01 1 0601- ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
L=766 SERVICED BY L=800 		1-47428-812-0 01 1 0105- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
