◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#12079) — 84 parça

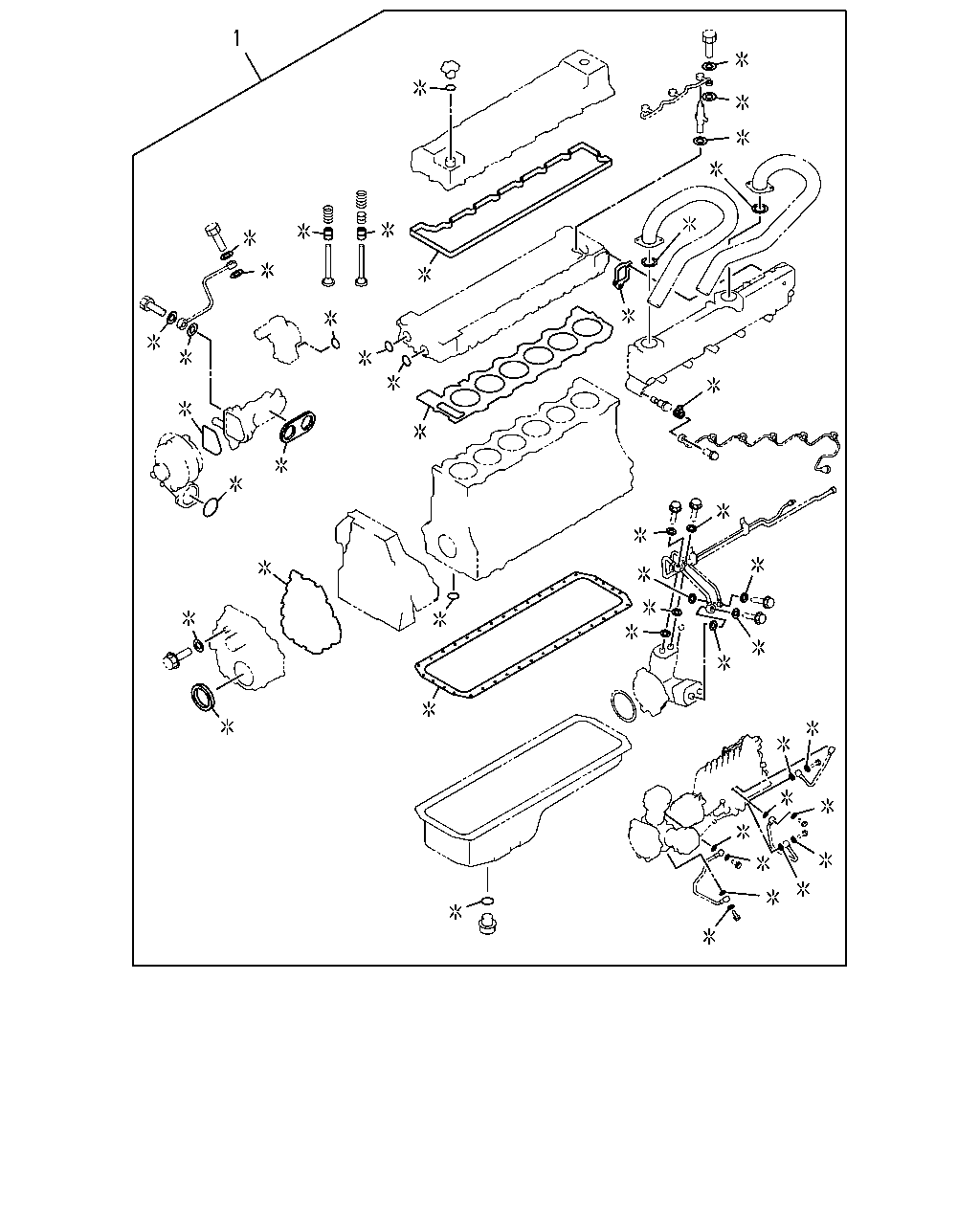

çizim 138618
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-143-0 01 1 0105-0106 ●
1 GASKET SET; ENG OVERHAUL 1-87812-214-0 01 1 0107-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-292-1 01 1 0204-0309 ●
1 GASKET SET; ENG OVERHAUL 1-87812-472-1 01 1 0310-0701 ●
1 GASKET SET; ENG OVERHAUL 1-87813-182-0 01 1 0702-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-228-4 01 1 0704-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-885-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-222-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-144-0 01 1 0105-0106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-216-0 01 1 0107-0206 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-323-0 01 1 0207-0309 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-473-1 01 1 0310-0701 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-183-0 01 1 0702-0703 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-229-3 01 1 0704-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-875-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-223-0 01 1 1401- ● ●

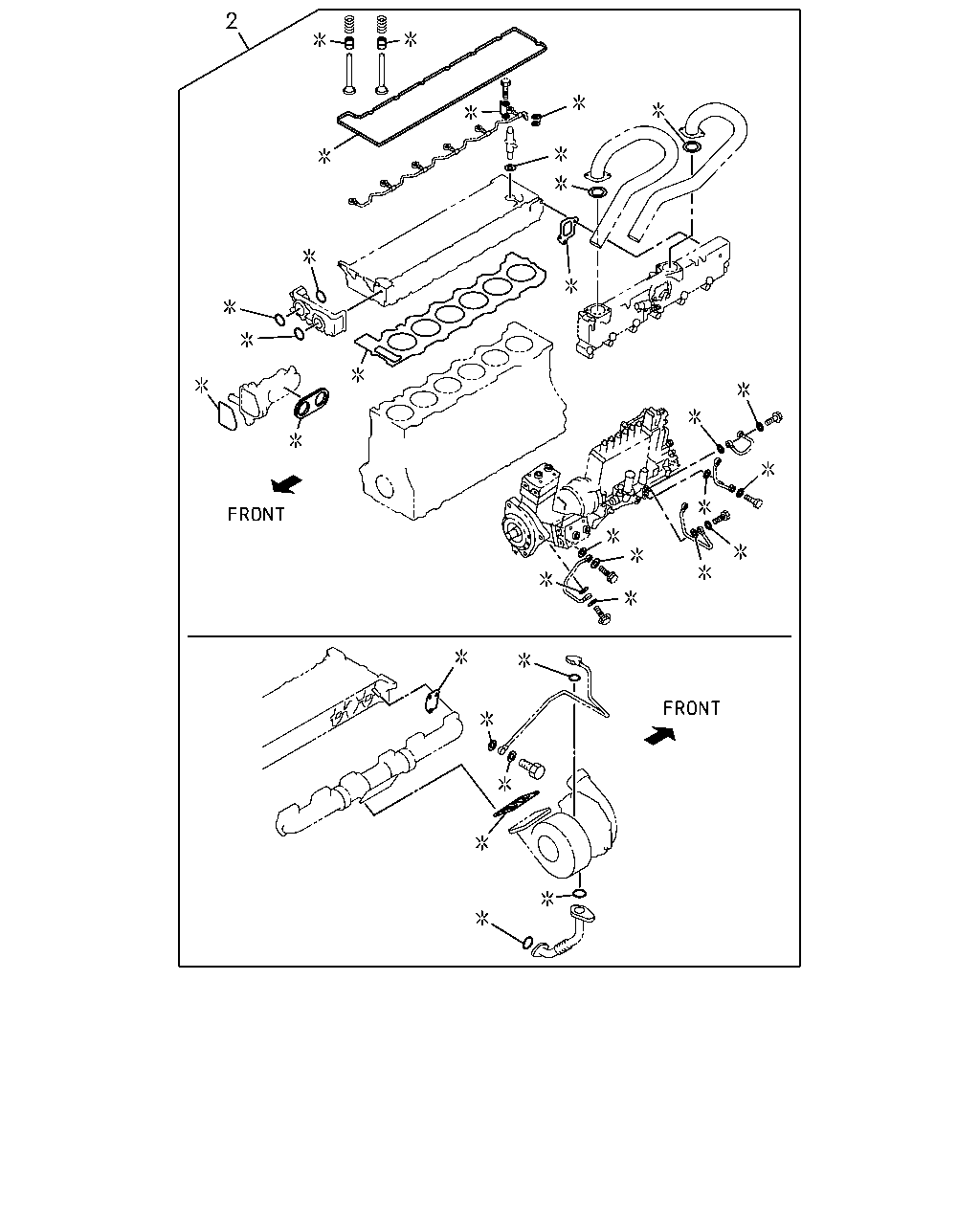

çizim 138652
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87812-118-0 01 1 0105-0106 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-217-0 01 1 0107-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-294-0 01 1 0204-0309 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-295-4 01 1 0310-1111 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-899-0 01 1 1112-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-224-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-120-0 01 1 0105-0106 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-219-5 01 1 0107-1111 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-900-0 01 1 1112-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-225-0 01 1 1401- ● ●

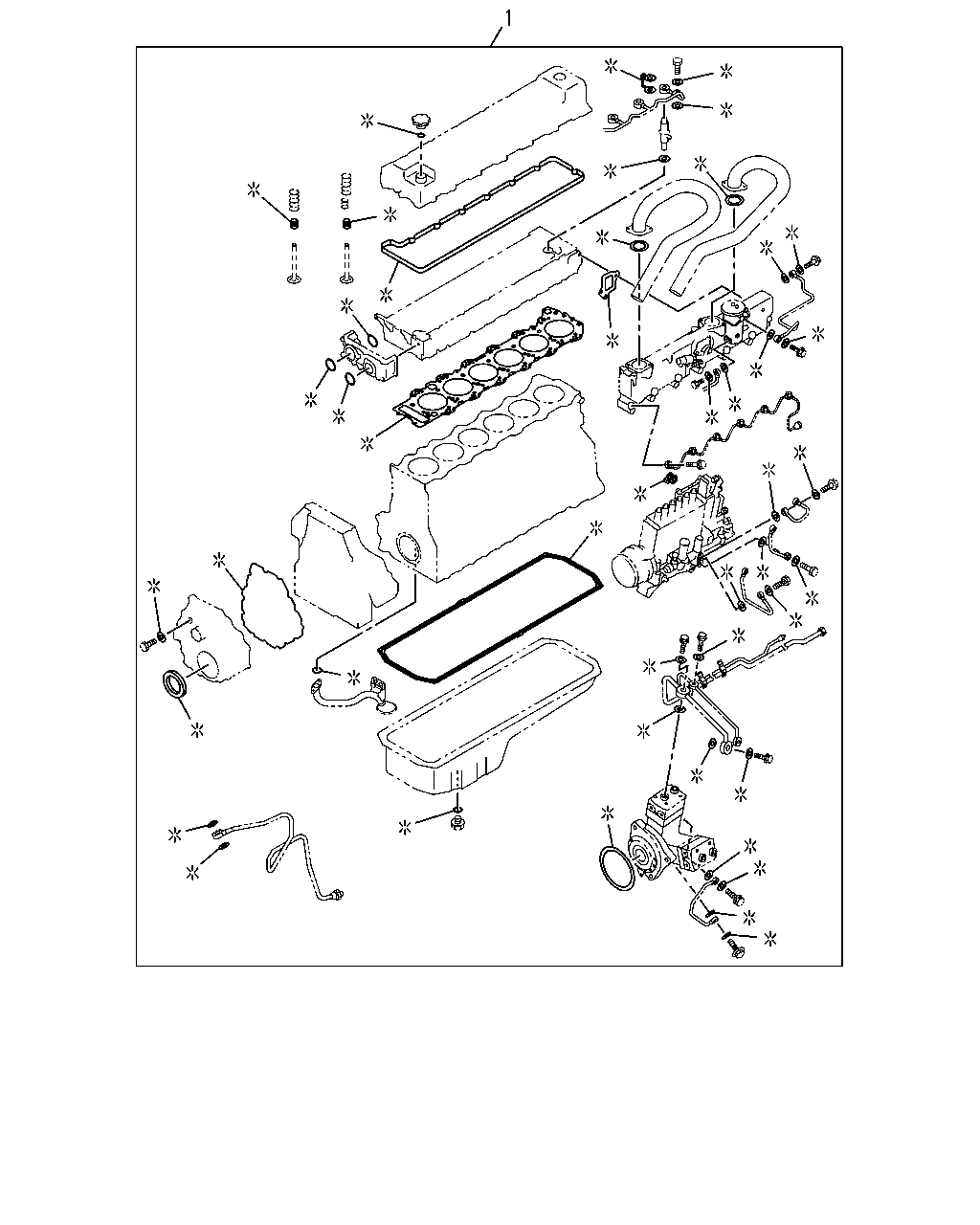

çizim 138653
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-143-0 01 1 0105-0106 ●
1 GASKET SET; ENG OVERHAUL 1-87812-214-0 01 1 0107-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-292-1 01 1 0204-0309 ●
1 GASKET SET; ENG OVERHAUL 1-87812-472-1 01 1 0310-0701 ●
1 GASKET SET; ENG OVERHAUL 1-87813-182-0 01 1 0702-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-228-4 01 1 0704-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-885-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-222-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-144-0 01 1 0105-0106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-216-0 01 1 0107-0206 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-323-0 01 1 0207-0309 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-473-1 01 1 0310-0701 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-183-0 01 1 0702-0703 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-229-3 01 1 0704-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-875-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-223-0 01 1 1401- ● ●

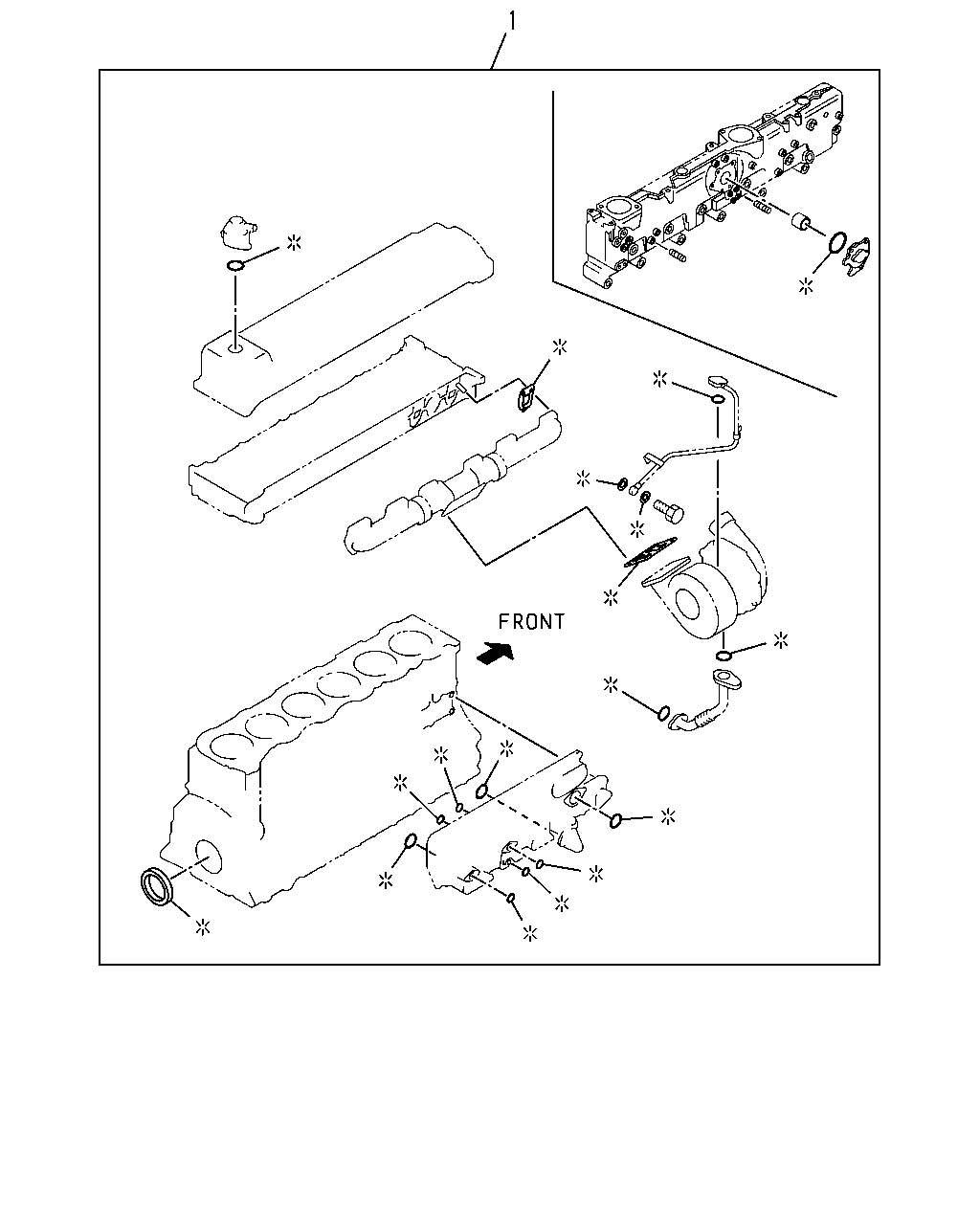

çizim 138656
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-143-0 01 1 0105-0106 ●
1 GASKET SET; ENG OVERHAUL 1-87812-214-0 01 1 0107-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-292-1 01 1 0204-0309 ●
1 GASKET SET; ENG OVERHAUL 1-87812-472-1 01 1 0310-0701 ●
1 GASKET SET; ENG OVERHAUL 1-87813-182-0 01 1 0702-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-228-4 01 1 0704-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-885-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-222-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-144-0 01 1 0105-0106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-216-0 01 1 0107-0206 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-323-0 01 1 0207-0309 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-473-1 01 1 0310-0701 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-183-0 01 1 0702-0703 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-229-3 01 1 0704-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-875-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-223-0 01 1 1401- ● ●

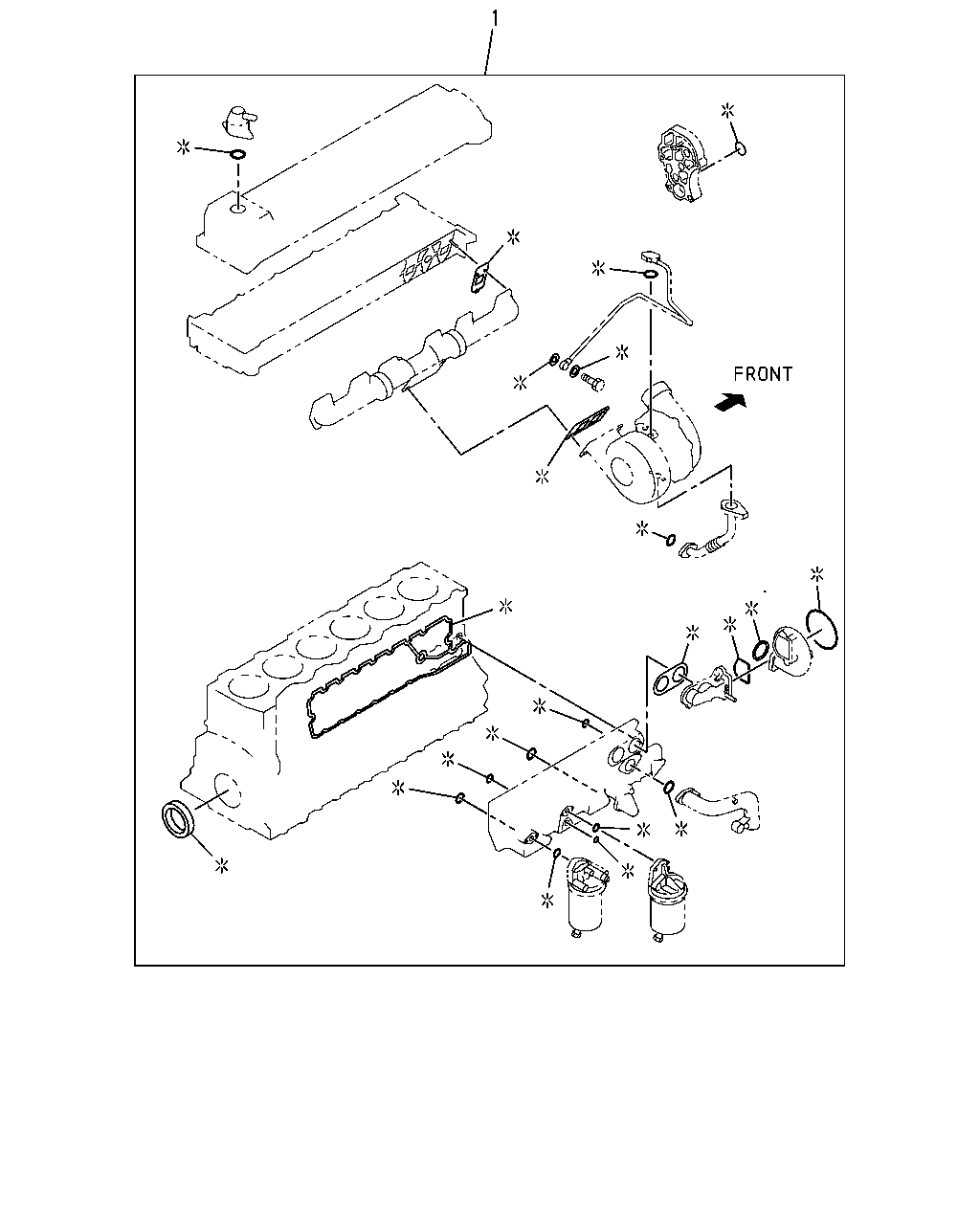

çizim 138663
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-143-0 01 1 0105-0106 ●
1 GASKET SET; ENG OVERHAUL 1-87812-214-0 01 1 0107-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-292-1 01 1 0204-0309 ●
1 GASKET SET; ENG OVERHAUL 1-87812-472-1 01 1 0310-0701 ●
1 GASKET SET; ENG OVERHAUL 1-87813-182-0 01 1 0702-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-228-4 01 1 0704-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-885-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-222-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-144-0 01 1 0105-0106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-216-0 01 1 0107-0206 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-323-0 01 1 0207-0309 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-473-1 01 1 0310-0701 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-183-0 01 1 0702-0703 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-229-3 01 1 0704-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-875-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-223-0 01 1 1401- ● ●

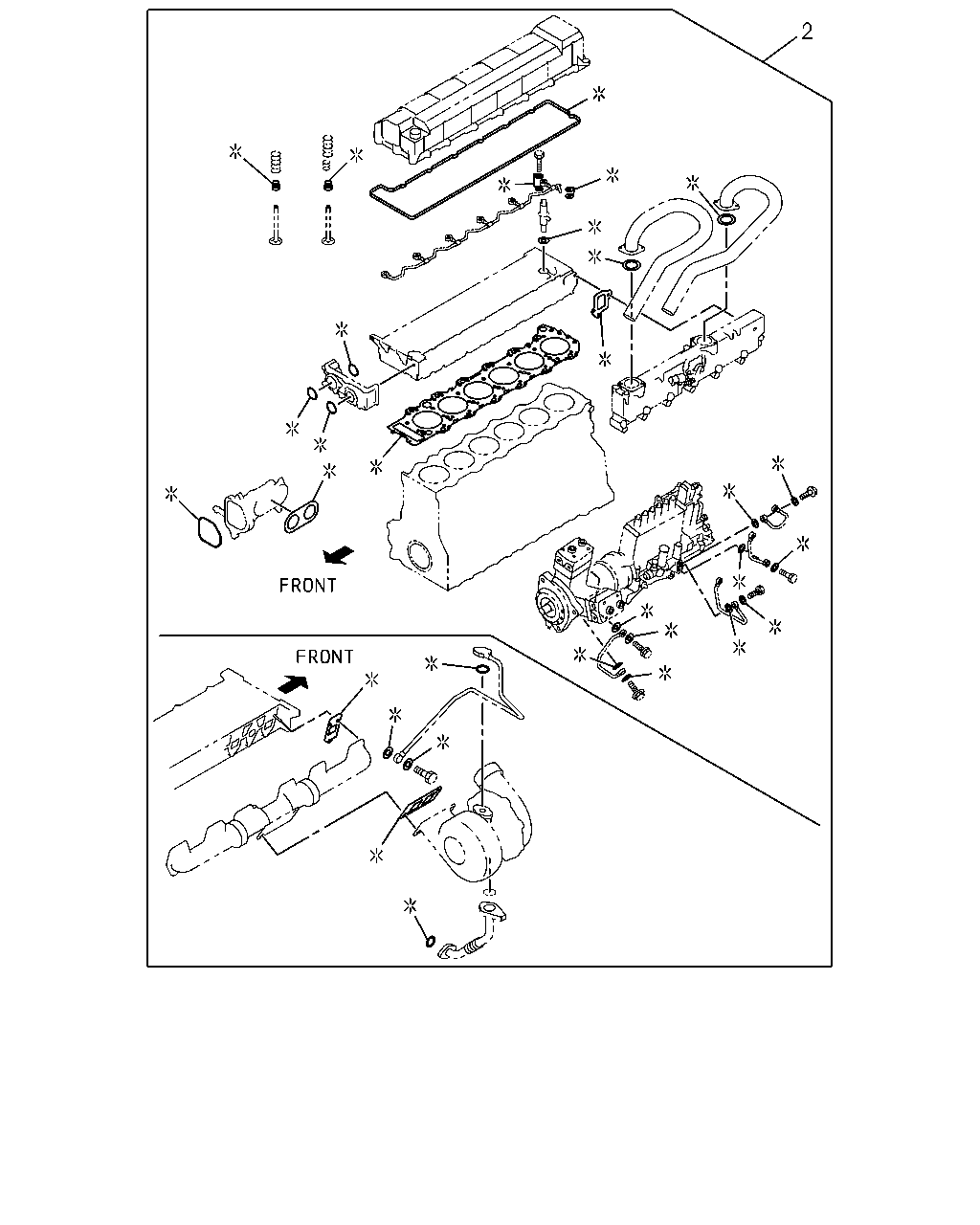

çizim 138670
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87812-118-0 01 1 0105-0106 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-217-0 01 1 0107-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-294-0 01 1 0204-0309 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-295-4 01 1 0310-1111 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-899-0 01 1 1112-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-224-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-120-0 01 1 0105-0106 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-219-5 01 1 0107-1111 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-900-0 01 1 1112-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-225-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
