9-01 — TOOLS (#12077) — 179 parça

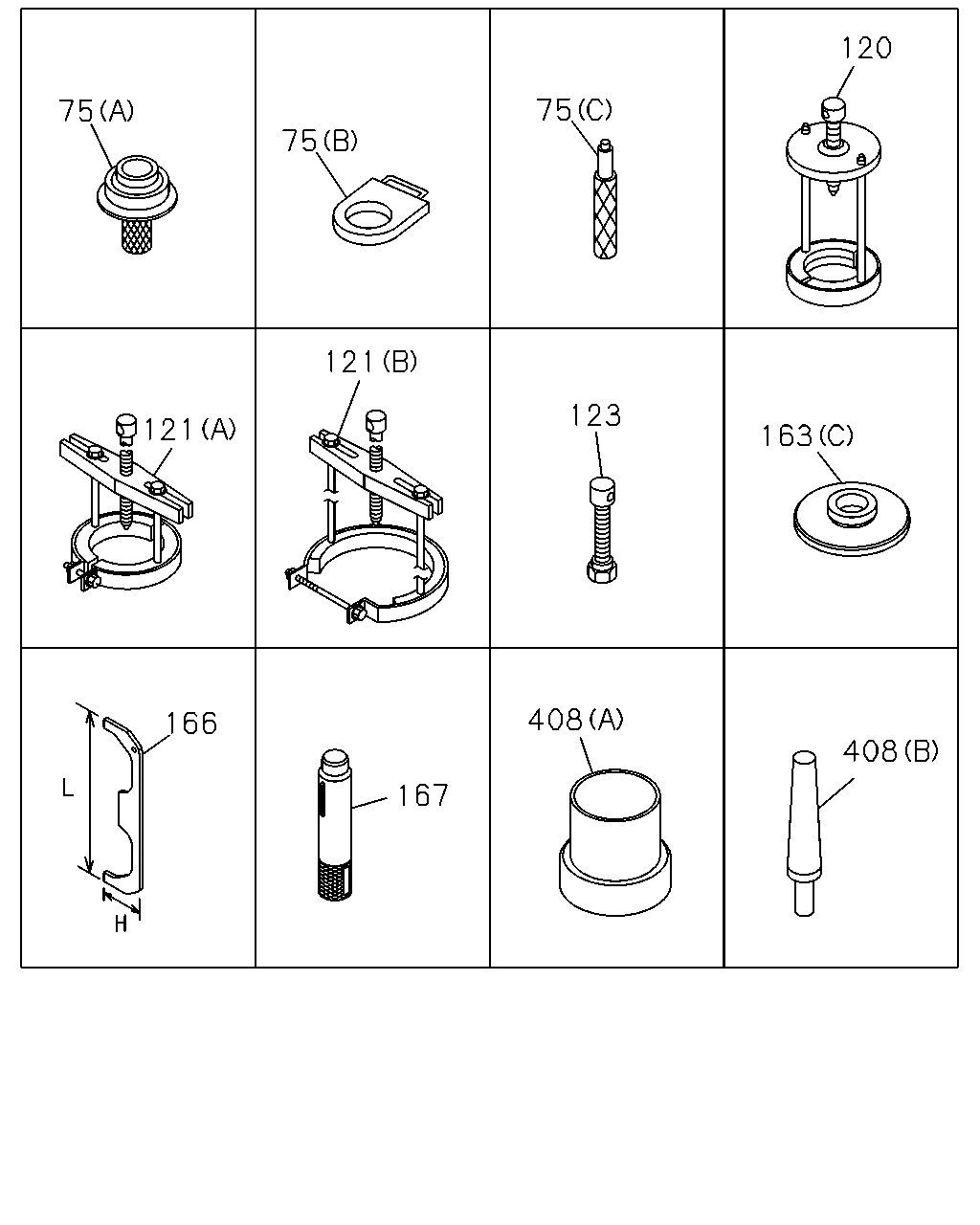

120 75 75 75 121 123 121 163 408 166 408 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (A)	1-85221-168-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (B)	1-85221-169-0	01	1	0107-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	0107-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (B)	1-85210-069-0	01	1	0107-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (A) OD=146	1-85210-074-0	01	1	0107-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	0107-
163	TOOL; SETTING ISUZU M/T<X9A> (C) OD=150	1-85221-167-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U) (S)	1-85221-249-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (D)	1-85221-193-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (E)	1-85221-194-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (F)	1-85221-229-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (G)	1-85221-230-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (H)	1-85221-231-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (J)	1-85221-233-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (K)	1-85221-234-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (L)	1-85221-235-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (M)	1-85221-236-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (N)	1-85221-237-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (O) MAIN SHAFT	1-85221-238-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (P)	1-85221-239-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (Q)	1-85221-240-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (R)	1-85221-241-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (T)	1-85221-243-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (U)	1-85221-244-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (V)	1-85221-245-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (W)	1-85221-246-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (A)	1-85221-247-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (B)	1-85221-248-0	01	1	0105-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	0105-
167	ALIGNER; CLU PILOT MJX16P M/T(Y3Z) L=300 OD=52.5	1-85253-025-0	01	1	0301-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0105-0212
167	ALIGNER; CLU PILOT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R),TRAN SMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLERRTLO149 18(Y4C) L=300 OD=41.1	1-85253-020-0	01	1	0301-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A)	1-85221-268-0	01	1	0107-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B)	1-85221-269-0	01	1	0107-

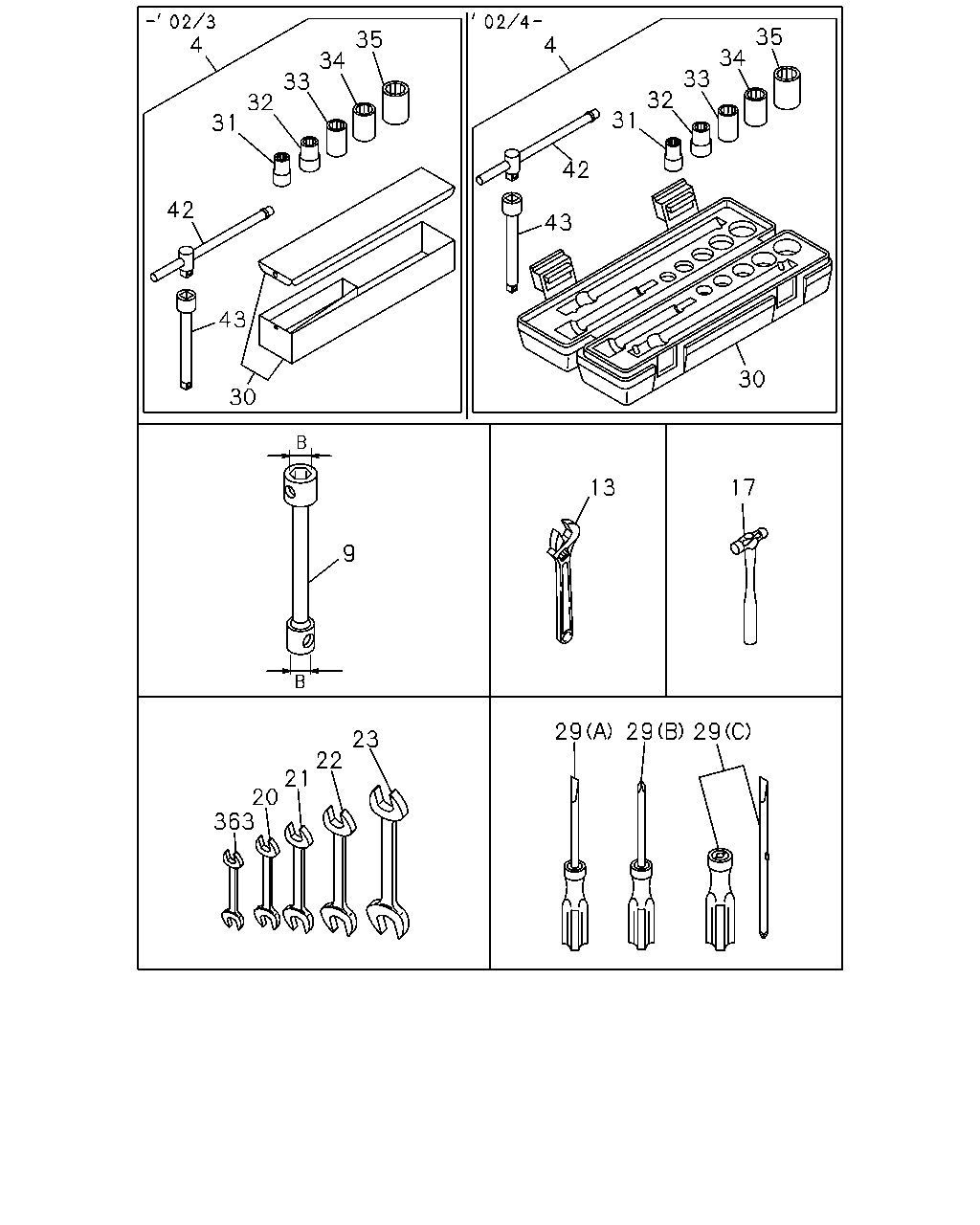

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	0105-0203
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0105-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0105-
17	HAMMER	9-85121-406-0	01	1	0105-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0105-0607
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0105-0607
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0105-0607
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0105-0607
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0105-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0105-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0105-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	0105-0203
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-
31	WRENCH; 12	9-09590-012-0	01	1	0105-0203
31	WRENCH; 12	1-85000-495-0	01	1	0204-
32	WRENCH; 14	9-09590-014-0	01	1	0105-0203
32	WRENCH; 14	1-85000-496-0	01	1	0204-
33	WRENCH; 17	9-09590-017-0	01	1	0105-0203
33	WRENCH; 17	1-85000-497-0	01	1	0204-
34	WRENCH; 19	9-09590-019-0	01	1	0105-0203
34	WRENCH; 19	1-85000-498-0	01	1	0204-
35	WRENCH; 22	9-09590-022-0	01	1	0105-0203
35	WRENCH; 22	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING	9-09590-512-0	01	1	0105-0203
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	0105-0203
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0105-0607
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	01	1	0608-

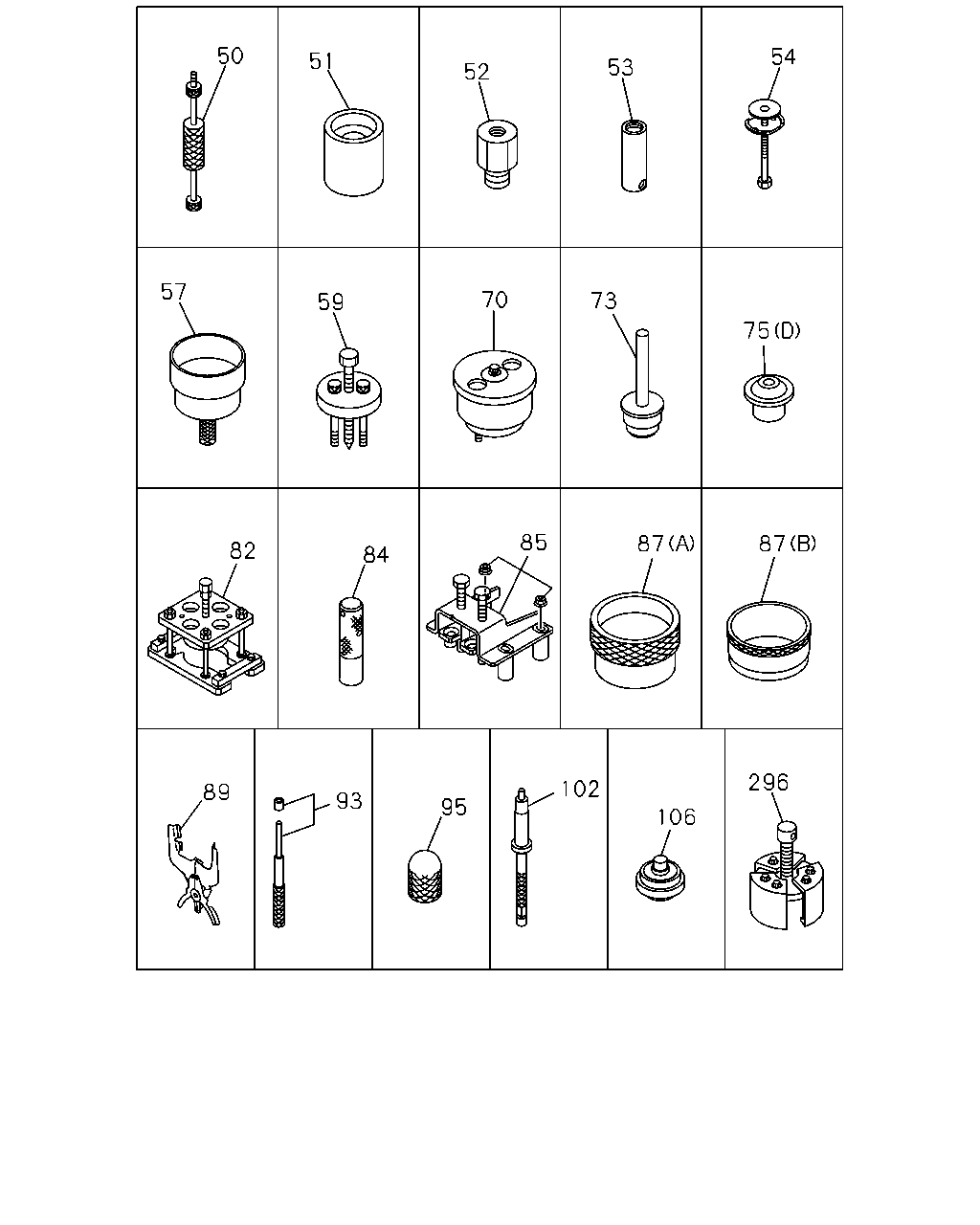

50 54 51 53 52 57 70 73 59 75 85 87 87 82 84 296 102 89 93 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	0105-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	0105-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	0105-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	0105-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	0105-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	0105-
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	0105-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	0105-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (A)	1-85221-168-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (B)	1-85221-169-0	01	1	0107-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	0105-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	0105-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	0105-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	0105-
87	TOOL; PISTON 6WA1 TC-C(55L) (A)	1-85220-046-0	01	1	0105-
87	TOOL; PISTON 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-85220-059-0	01	1	0105-
89	TOOL; PISTON RING 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L)	1-85221-025-0	01	1	0105-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0105-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	0105-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	0105-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0105-
296	REPLACER; SLINGER	1-85210-027-0	01	1	0105-

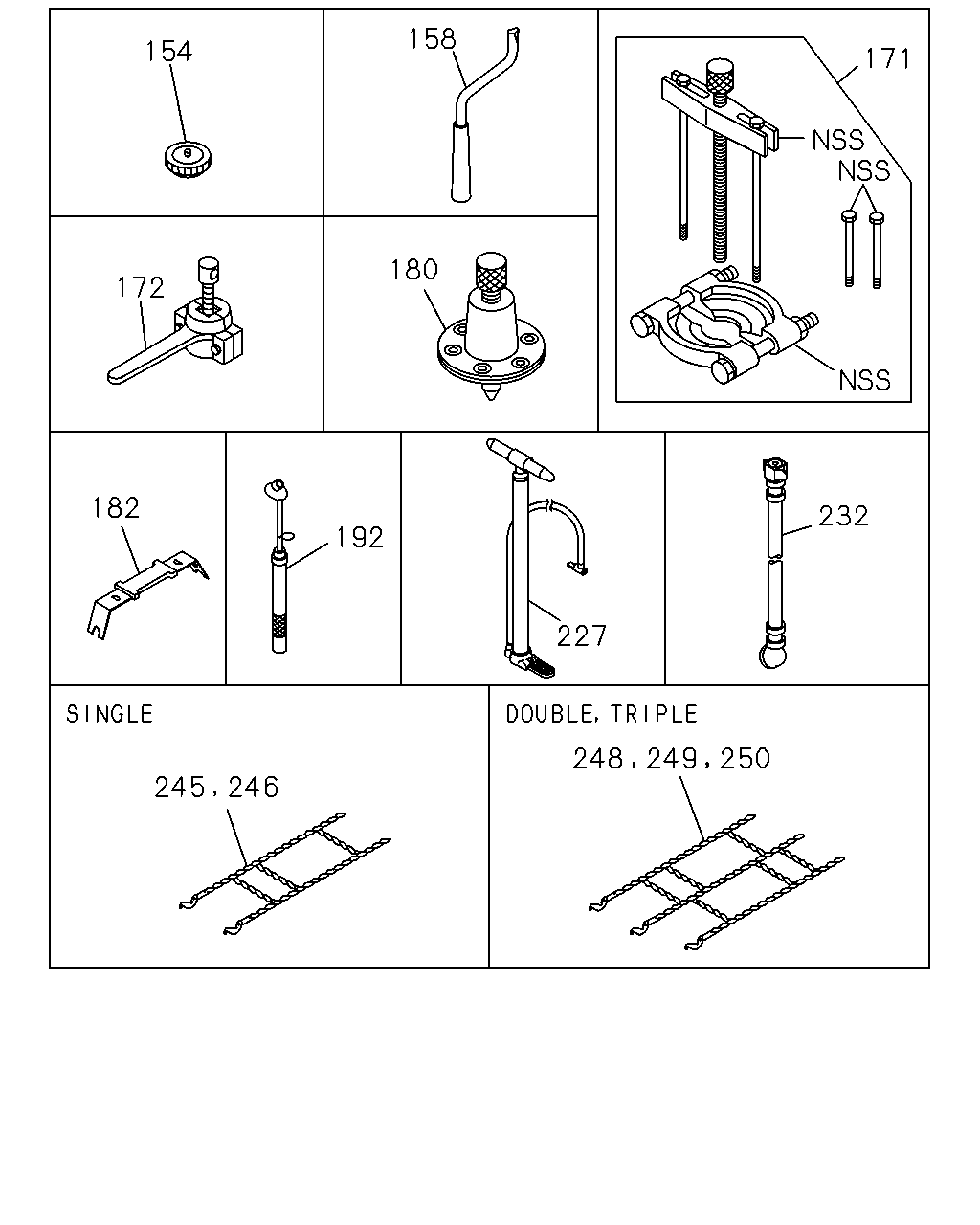

158 154 171 180 172 182 232 192 227 245 246 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0105-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0105-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0105-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0105-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0105-
182	REMOVER ASM	1-85239-008-0	01	1	0105-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0105-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0105-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0105-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0105-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0105-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0105-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0105-

125 1 124 127 129 128 130 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0105-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0105-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT REARWARD REAR L=400 B=105	9-85113-509-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT FORWARD REAR L=400 B=116	9-85113-524-0	01	1	0105-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0105-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0105-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0105-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0105-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0105-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0105-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0105-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0105-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0105-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0105-

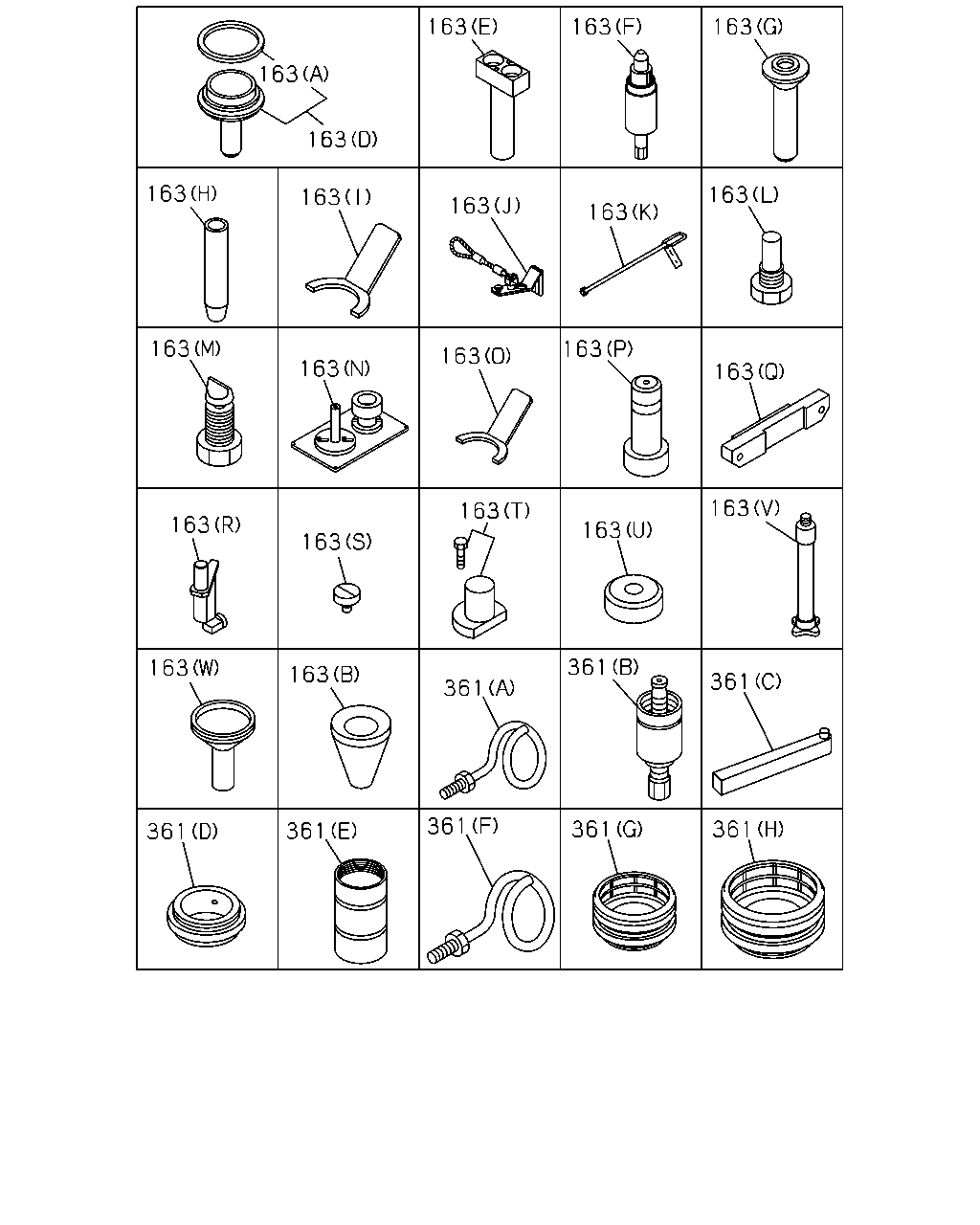

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 163 163 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
163	TOOL; SETTING ISUZU M/T<X9A> (C) OD=150	1-85221-167-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U) (S)	1-85221-249-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (D)	1-85221-193-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (E)	1-85221-194-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (F)	1-85221-229-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (G)	1-85221-230-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (H)	1-85221-231-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (J)	1-85221-233-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (K)	1-85221-234-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (L)	1-85221-235-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (M)	1-85221-236-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (N)	1-85221-237-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (O) MAIN SHAFT	1-85221-238-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (P)	1-85221-239-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (Q)	1-85221-240-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (R)	1-85221-241-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (T)	1-85221-243-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (U)	1-85221-244-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (V)	1-85221-245-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (W)	1-85221-246-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (A)	1-85221-247-0	01	1	0105-
163	TOOL; SETTING ZF M/T<X9E> (B)	1-85221-248-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (H) COUNTER BRG FRT	1-85219-023-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U) (H) COUNTER BRG FRT	1-85219-025-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (A) M10	1-85210-091-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (B)	1-85219-015-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (C)	1-85219-017-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (D) TOP BRG	1-85219-018-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (E)	1-85219-019-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (F) M12	1-85219-020-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (G) COUNTER BRG RR	1-85219-021-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (H) TOP BRG	1-85219-022-0	01	1	0105-
361	PULLER; TRANS ZF M/T<X9E> (H) TOP BRG MAIN SHAFT SIDE	1-85219-024-0	01	1	0105-

40 39 38 37 115 36 189 193 237 208 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0105-
37	WRENCH; 27	9-85111-375-0	01	1	0105-
38	WRENCH; 32	9-85111-358-0	01	1	0105-
39	WRENCH; 36	9-85111-374-0	01	1	0105-
40	WRENCH; 41	9-85111-356-0	01	1	0105-
115	PLIER	5-85171-001-0	01	1	0105-0212
115	PLIER	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0105-
193	JACK ASM 15TON	1-85510-019-1	01	1	0105-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0105-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-
230	PUMP; GREASE	1-85556-007-3	01	1	0105-
237	BAG; TOOL	8-97130-902-0	01	1	0105-
