Sayfa 8-73 - Isuzu EPC

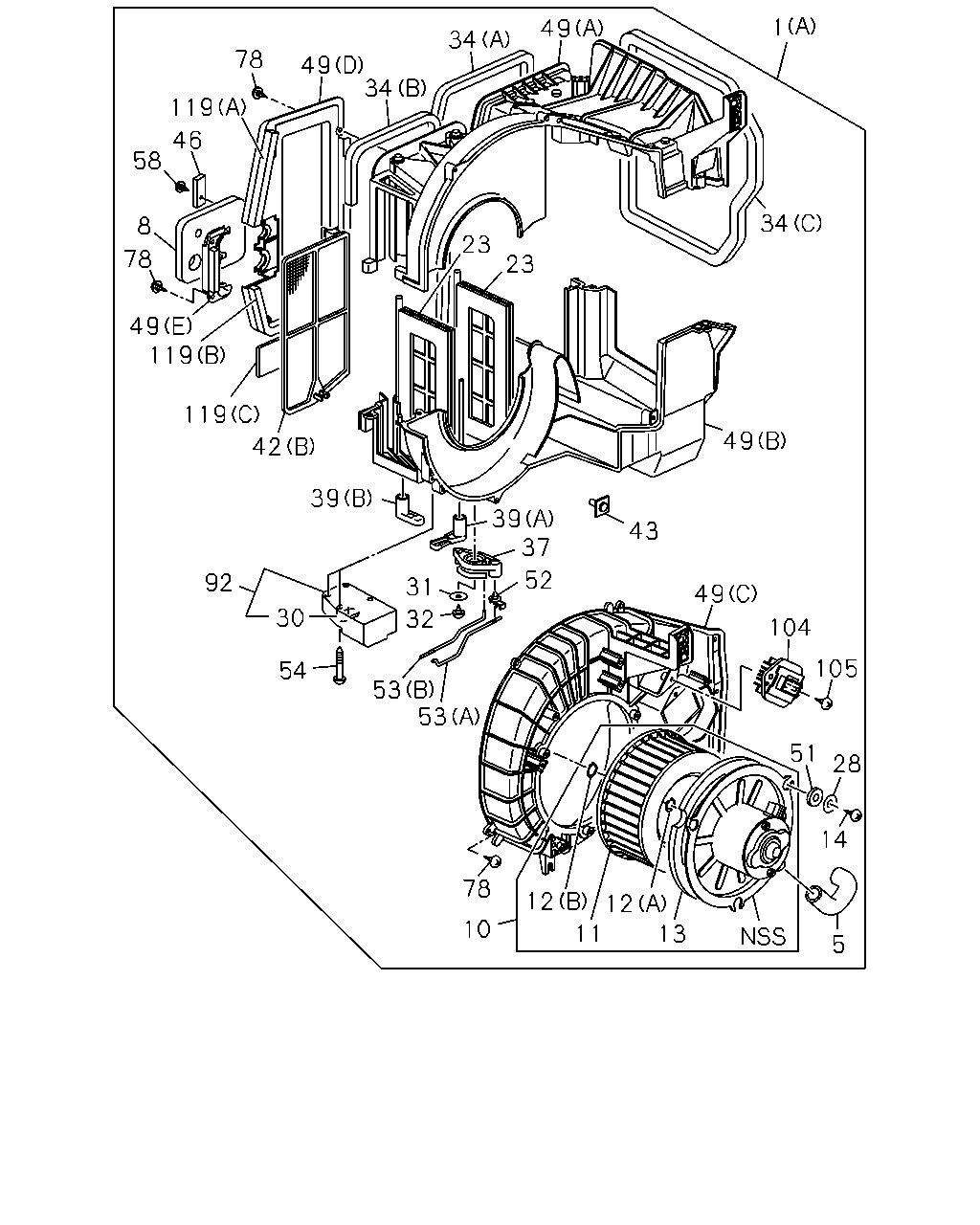

8-73 — BLOWER UNIT (#12072) — 181 parça

1 49 34 78 49 34 119 100 82 34 8 78 23 23 49 119 119 49 42 42 39 68 39 37 43 49 92 52 31 30 32 53 49 104 54 53 105 51 28 14 78 12 12 10 13 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-150-5	01	1	0105-
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83561-105-9	01	1	0105-0306
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-105-9	01	1	0307-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	0105-0306
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	0307-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	0105-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	0105-0306
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	0307-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-161-0	01	1	0105-0306
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	0307-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	0105-0306
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	0307-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	0105-0306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	0307-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	0105-0306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	0307-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	0105-0306
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	0307-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	0105-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	0105-0306
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	0307-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	0105-0306
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	0307-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	0105-0306
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	0307-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	0105-0306
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	0307-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	0105-0306
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	0307-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0105-
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	0105-0306
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	0307-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	0105-0306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	0307-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	0105-0306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	0307-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	0105-0306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	0307-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	0105-0306
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	0307-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	0105-0306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	0307-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	0105-0306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	0307-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	0105-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-3	01	1	0105-0306
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	0307-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	0105-0306
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	0307-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	0105-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	0105-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-1	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-1	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-352-5	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-352-5	01	1	0307-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	0105-0306
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	0307-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	02	1	0105-0306
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	0307-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	0105-0306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	0307-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	0105-0306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	0307-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0105-0306
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	0307-
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	0105-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	0105-0306
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	0307-
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	0105-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-1	01	1	0105-0306
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	0307-
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	0105-
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-092-0	01	1	0105-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	0105-0306
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83519-073-1	01	1	0307-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	0105-0306
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	0307-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	0105-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	0105-0306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	0307-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	0105-0306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	0307-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-839-0	02	1	0105-0306
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	0307-

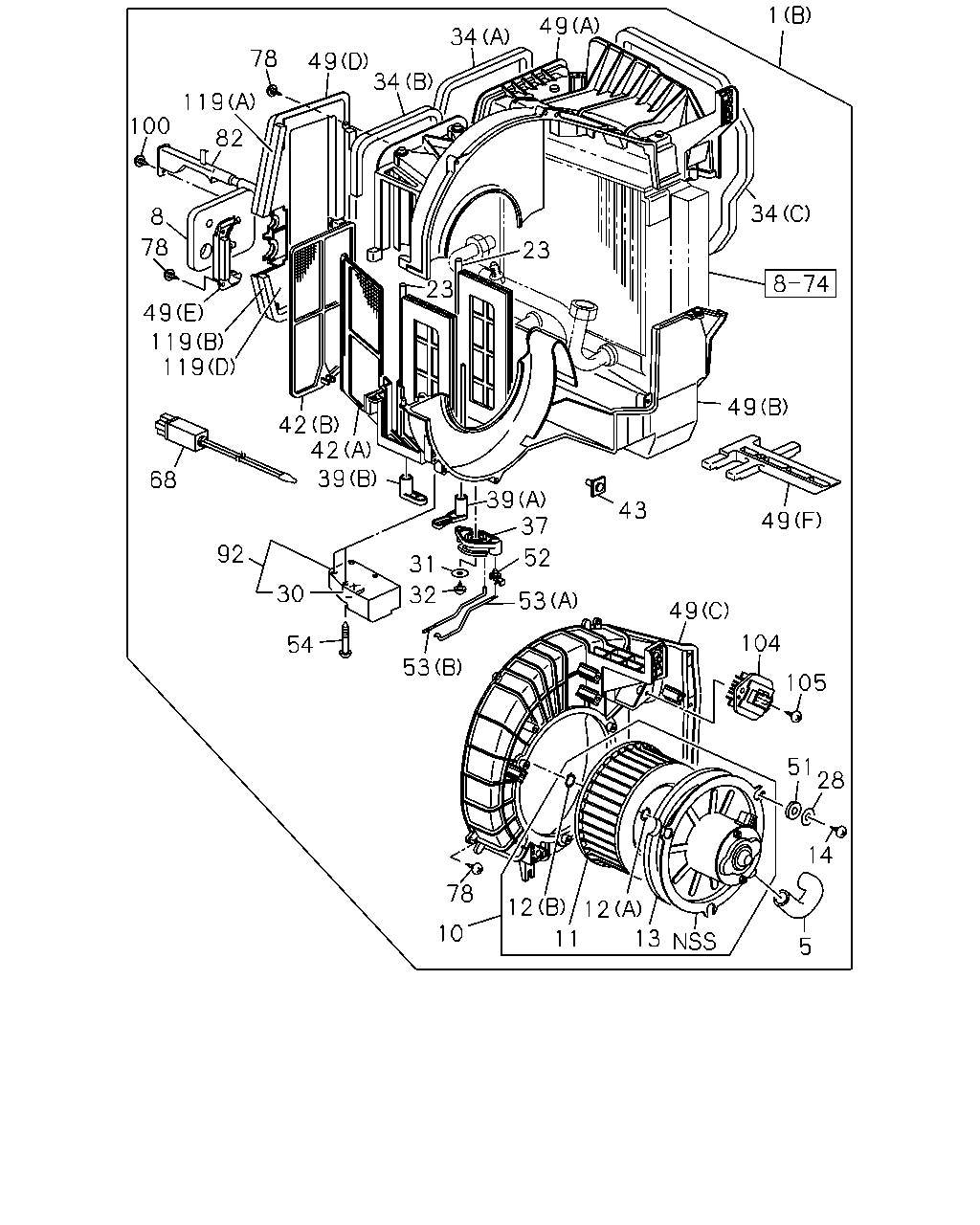

49 34 78 49 34 119 46 58 34 8 23 78 23 49 119 119 49 42 39 39 37 43 52 92 31 49 30 32 104 105 54 53 53 51 28 14 78 12 12 10 13 11 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-150-5	01	1	0105-
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83561-105-9	01	1	0105-0306
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-105-9	01	1	0307-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	0105-0306
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	0307-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	0105-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	0105-0306
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	0307-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-161-0	01	1	0105-0306
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	0307-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	0105-0306
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	0307-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	0105-0306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	0307-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	0105-0306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	0307-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	0105-0306
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	0307-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	0105-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	0105-0306
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	0307-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	0105-0306
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	0307-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	0105-0306
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	0307-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	0105-0306
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	0307-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	0105-0306
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	0307-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0105-
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	0105-0306
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	0307-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	0105-0306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	0307-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	0105-0306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	0307-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	0105-0306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	0307-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	0105-0306
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	0307-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	0105-0306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	0307-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	0105-0306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	0307-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	0105-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-3	01	1	0105-0306
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	0307-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	0105-0306
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	0307-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	0105-0306
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	0307-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	0105-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	0105-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-1	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-1	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	0307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-352-5	01	1	0105-0306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-352-5	01	1	0307-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	0105-0306
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	0307-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	02	1	0105-0306
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	0307-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	0105-0306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	0307-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	0105-0306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	0307-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0105-0306
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	0307-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	0105-0306
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	0307-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	0105-0306
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	0307-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-1	01	1	0105-0306
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	0307-
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-092-0	01	1	0105-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	0105-0306
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83519-073-1	01	1	0307-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	0105-0306
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	0307-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	0105-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	0105-0306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	0307-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	0105-0306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	0307-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-839-0	02	1	0105-0306
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	0307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
