8-60 — HEATER UNIT; FRONT (#12070) — 293 parça

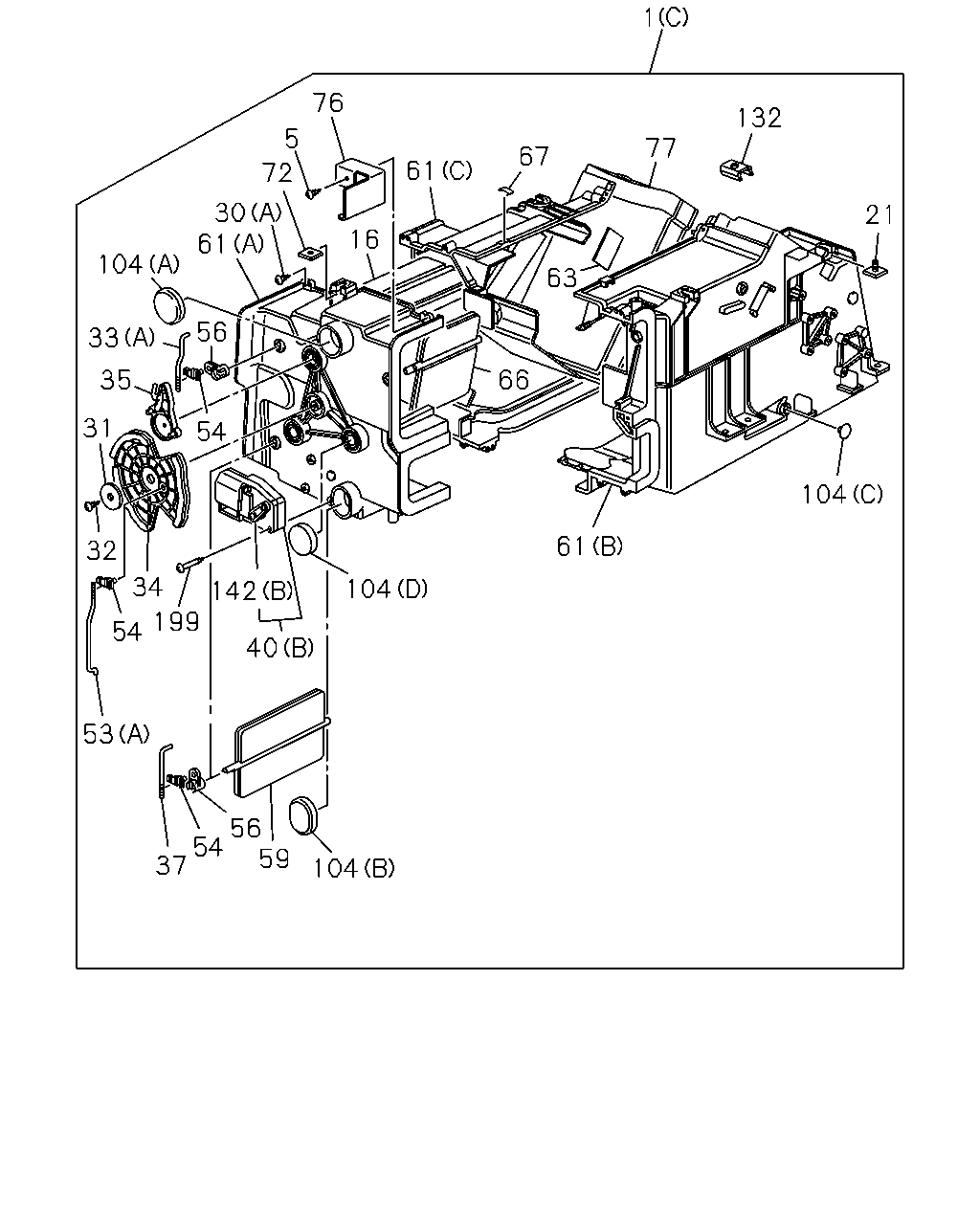

çizim 23562
76 132 5 77 67 61 72 30 61 21 16 104 63 56 33 35 66 31 54 104 61 32 34 104 142 199 54 40 53 56 54 59 37 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83511-134-6 01 1 0105-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0105-0108
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83511-139-2 01 1 0105-0306
5 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 0105-0306
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0105-0306
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 0307-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0105-0306
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 0307-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 12 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0109-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0105-0306
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 0307-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0105-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0109-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0105-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0105-0306
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 0307-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0105-0306
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 0307-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0105-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0105-0306
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0105-0306
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 0307-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83579-676-1 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0105-
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0105-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0105-0108
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0307-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0307-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0105-0306
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 0307-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0105-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0105-0306
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0105-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0105-0306
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0105-0306
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-323-5 01 1 0105-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83564-347-3 01 1 0105-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0105-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 0307-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0105-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0105-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0307-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0105-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0105-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0307-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0105-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0105-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-680-0 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0105-0108
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0105-0108
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0307-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0307-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0105-0306
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 0307-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0105-0306
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 0307-
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-194-0 01 1 0105-0306
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97102-661-0 01 1 0105-0306
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-617-0 01 1 0105-0306
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-618-0 01 1 0105-0306
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-94328-657-0 04 1 0105-0306
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-94387-703-0 01 1 0105-0306
132 BRACKET; HTR CORE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-195-0 01 1 0105-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-409-0 01 1 0105-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0105-
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0105-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0105-0108
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0307-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0307-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0105-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0105-0306

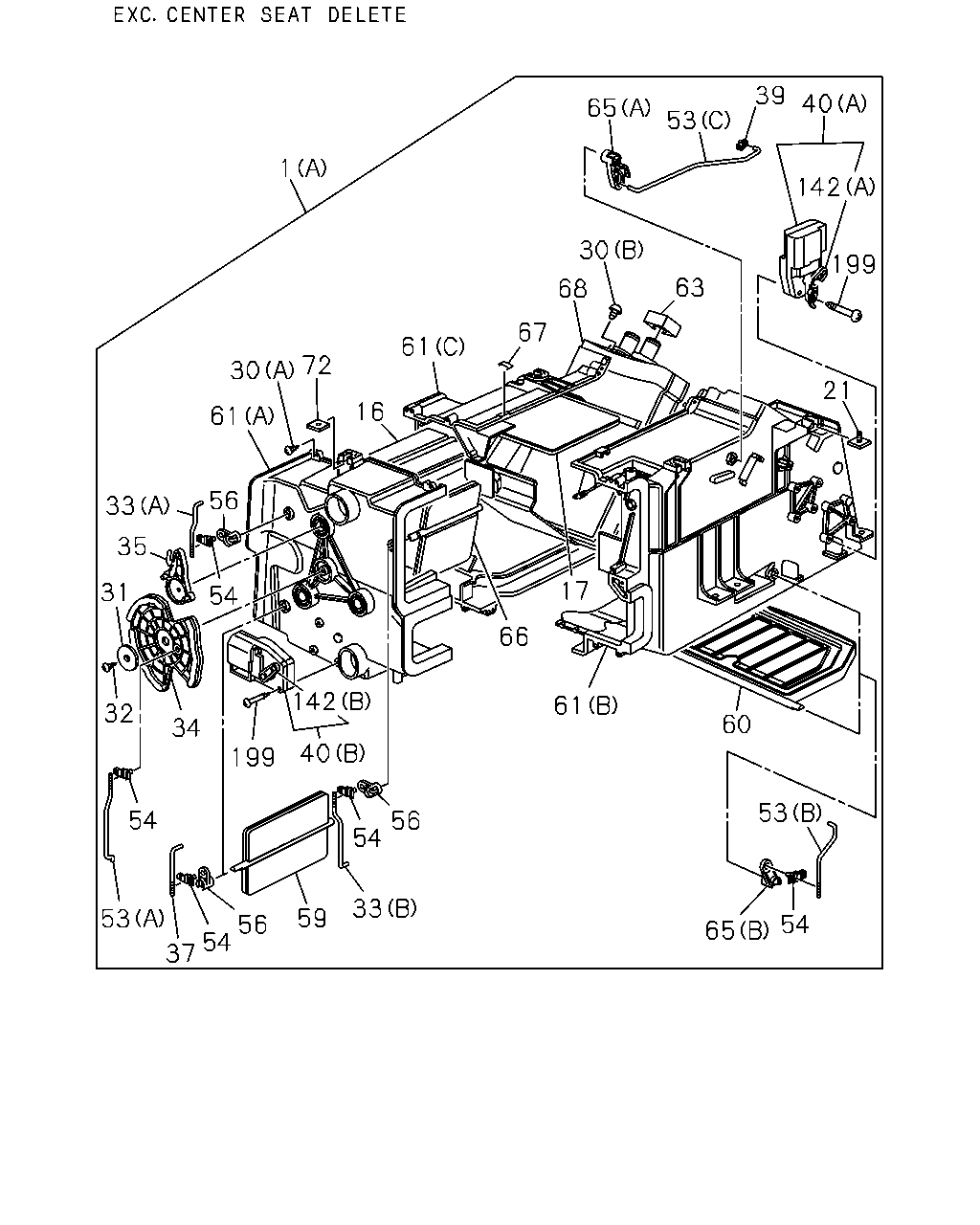

çizim 23563
39 40 65 53 1 142 30 199 63 68 67 61 72 30 21 16 61 56 33 35 17 31 54 66 142 61 32 60 34 40 199 53 54 56 54 33 59 53 54 56 54 37 65
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83511-134-6 01 1 0105-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0105-0108
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83511-139-2 01 1 0105-0306
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0105-0306
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 0307-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 0105-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0105-0306
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 0307-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 12 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0109-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0105-0306
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 0307-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0105-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0109-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0105-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0105-0306
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 0307-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0105-0306
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 0307-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0105-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0105-0306
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0105-0306
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 0307-
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83579-676-1 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0105-
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0105-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0105-0108
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0307-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0307-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0105-0306
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 0307-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0105-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0105-0306
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0105-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0105-0306
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0105-0306
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 0307-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 0105-0109
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 0110-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-323-5 01 1 0105-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83564-347-3 01 1 0105-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0105-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 0307-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0105-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0105-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0307-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0105-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0105-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0307-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0105-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0105-0306
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 0105-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-680-0 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0105-0108
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0105-0108
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0307-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0307-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0105-0306
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 0307-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0105-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0105-0306
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 0307-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-409-0 01 1 0105-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0105-
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0105-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0105-0108
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0307-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0307-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0105-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0105-0306

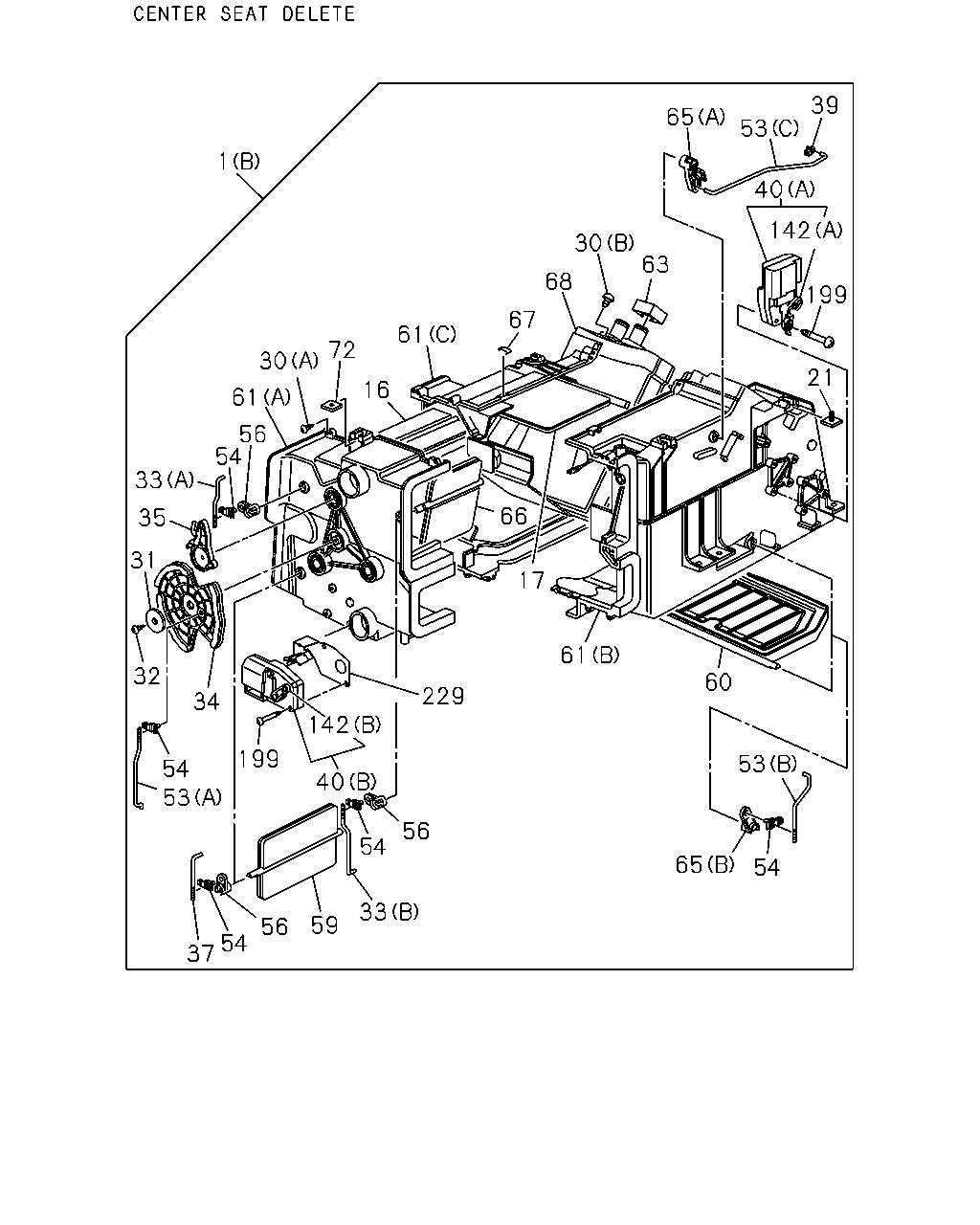

çizim 23564
39 65 53 1 40 142 30 63 68 199 67 61 72 30 21 16 61 56 54 33 66 35 31 17 61 32 60 229 34 142 199 53 54 53 40 56 54 65 54 33 59 56 54 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83511-134-6 01 1 0105-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0105-0108
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83511-139-2 01 1 0105-0306
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0105-0306
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 0307-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 0105-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0105-0306
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 0307-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 12 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0109-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0105-0306
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 0307-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0105-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0109-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0105-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0105-0306
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 0307-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0105-0306
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 0307-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0105-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0105-0306
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0105-0306
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 0307-
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83579-676-1 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0105-
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0105-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0105-0108
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0109-0306
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0307-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0307-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0105-0306
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 0307-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0105-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0105-0306
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0105-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0105-0306
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0105-0306
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 0307-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 0105-0109
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 0110-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-323-5 01 1 0105-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83564-347-3 01 1 0105-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0105-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 0307-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0105-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0105-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0307-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0105-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0105-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0109-0306
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0307-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0307-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0105-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0105-0306
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 0105-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-680-0 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0105-0108
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0105-0108
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0109-0306
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0307-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0307-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0105-0306
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 0307-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0105-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0105-0306
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 0307-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-409-0 01 1 0105-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0105-
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0105-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0105-0108
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0109-0306
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0307-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0307-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0105-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0105-0306
229 SWITCH ASM; MICRO,HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-786-2 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
