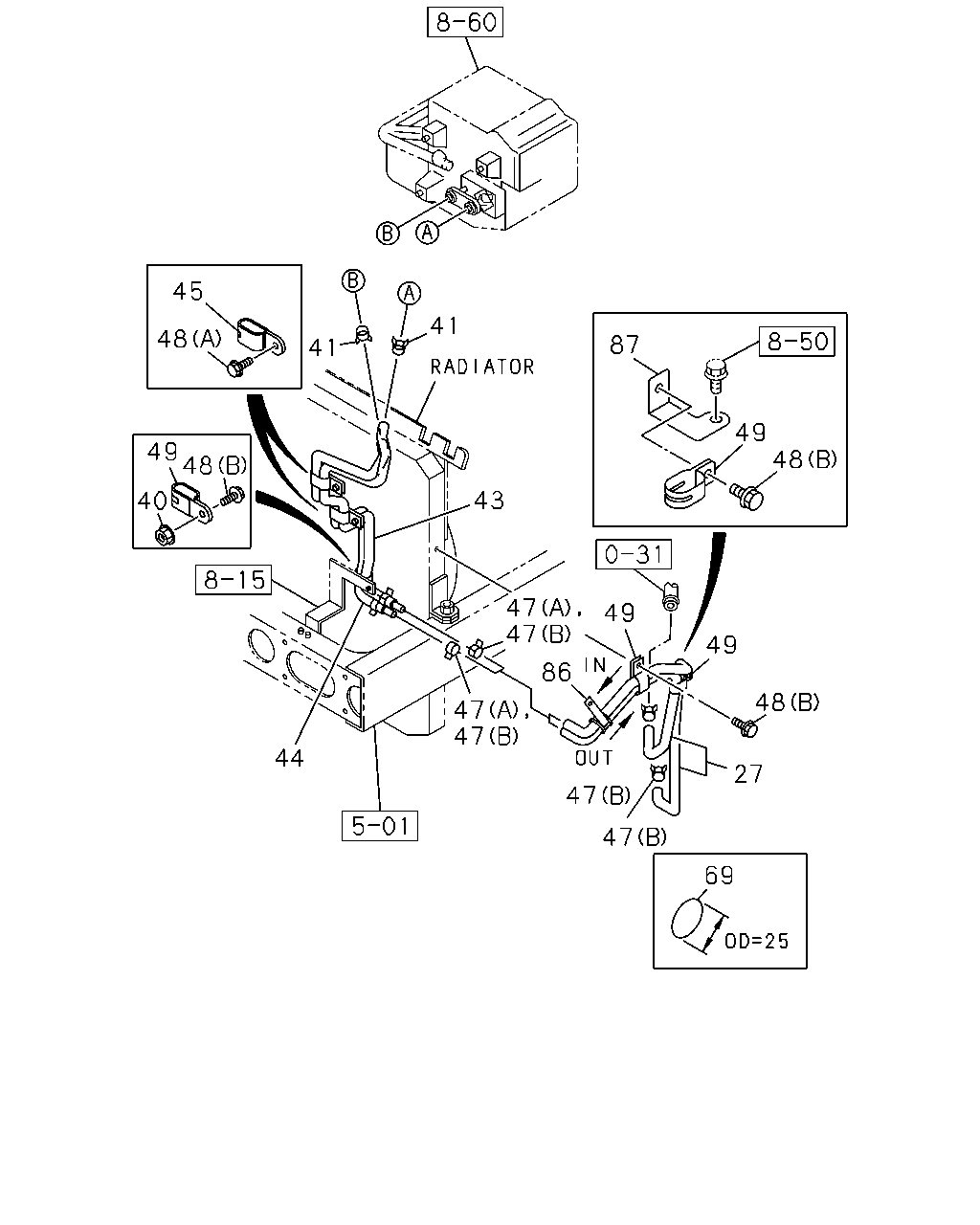

27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-618-1 |
01 |
1 |
0105- |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6WF1 TC-C(1B8)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-758-0 |
01 |
1 |
0105- |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0105-0602 |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
41 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
02 |
1 |
0105-0611 |
| |
41 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-97359-141-0 |
02 |
1 |
0612- |
| |
43 |
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-570-3 |
01 |
1 |
0105- |
| |
44 |
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-569-4 |
01 |
1 |
0105- |
| |
45 |
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-09701-238-0 |
02 |
1 |
0701- |
| |
45 |
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-09701-238-0 |
02 |
1 |
0105-0606 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
|
1-09707-181-0 |
02 |
1 |
0105-0108 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
ID=22
|
8-94382-401-0 |
02 |
1 |
0105-0108 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A),(B)
ID=22
|
8-94382-401-0 |
04 |
1 |
0109-0611 |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A),(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0612- |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0201-0512 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0105-0112 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0201-0512 |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
02 |
1 |
0105- |
| |
49 |
CLIP; WATER HOSE,HTR
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
0109-0109 |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
0105-0108 |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ELECTRONIC GOV RED4(Q4F)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0109-0109 |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
0109- |
| |
69 |
SEAL; RUBBER,HTR PIPE
HEATER VENTILATION AIR CONDITIONING DELETE(TFA)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
0105-0306 |
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ELECTRONIC GOV RED4(Q4F)
|
1-83573-076-0 |
01 |
1 |
0109-0109 |
| |
87 |
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-857-0 |
01 |
1 |
0105- |
