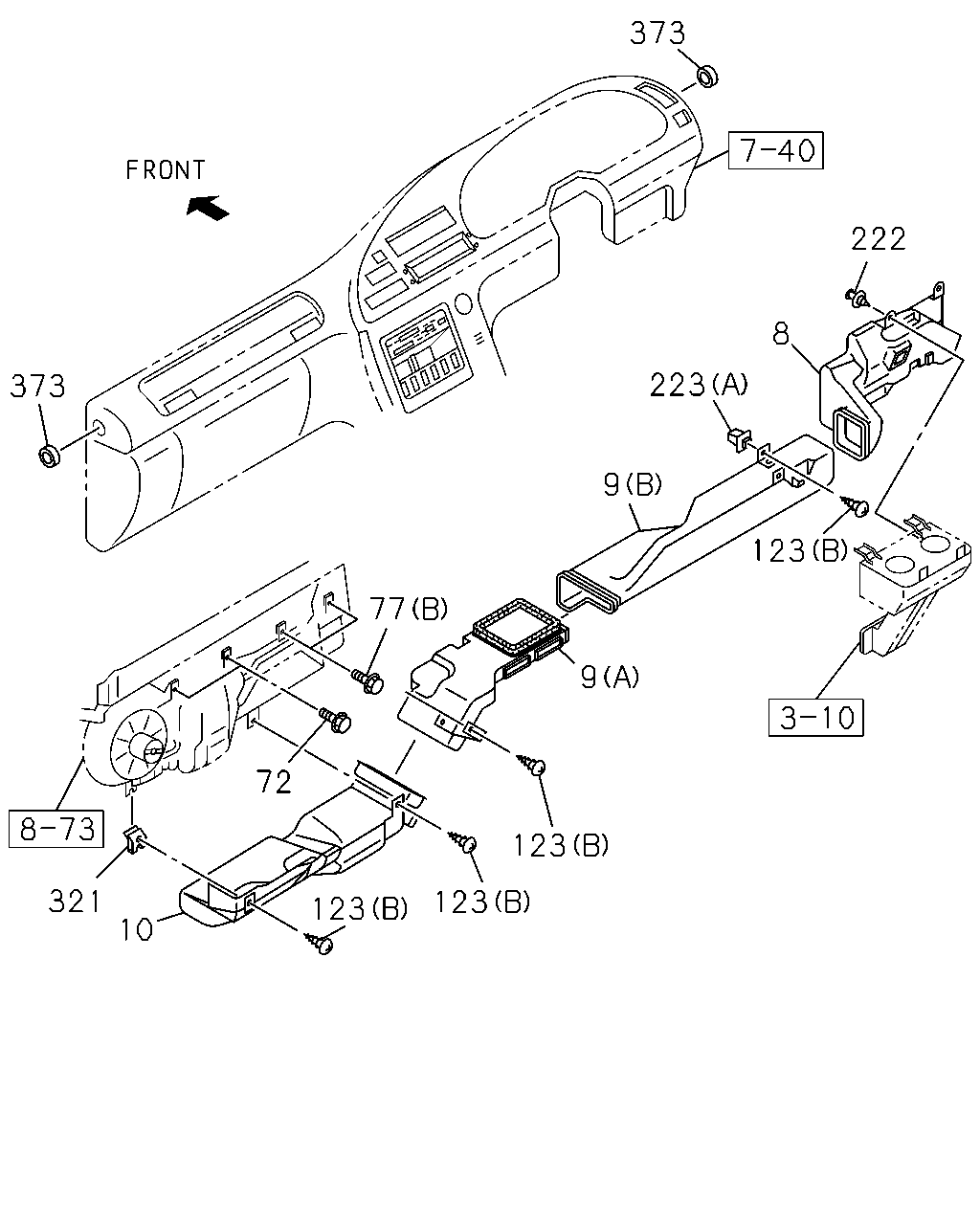

8-40 — HEATER SYSTEM (#12066) — 125 parça

379 222 8 223 9 123 9 123 123 123 10 321 72 77 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	0105-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-227-2	01	1	0105-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A)	1-76377-226-2	01	1	0105-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A)	1-76377-226-2	01	1	0105-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-210-1	01	1	0105-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-204-2	01	1	0105-
72	BOLT; BLOWER UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0306
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0307-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	0105-0306
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0307-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0306
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0307-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	0105-0206
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0207-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0105-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	0105-0306
123	SCREW; DUCT (B) M5X14	8-94279-325-0	08	1	0307-
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) D6X12.5	8-94146-425-0	02	1	0105-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0105-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0105-0306
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0307-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-150-0	01	1	0105-0409
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0410-
373	RUBBER; JOINT	1-76378-291-0	02	1	0105-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0105-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0105-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0105-

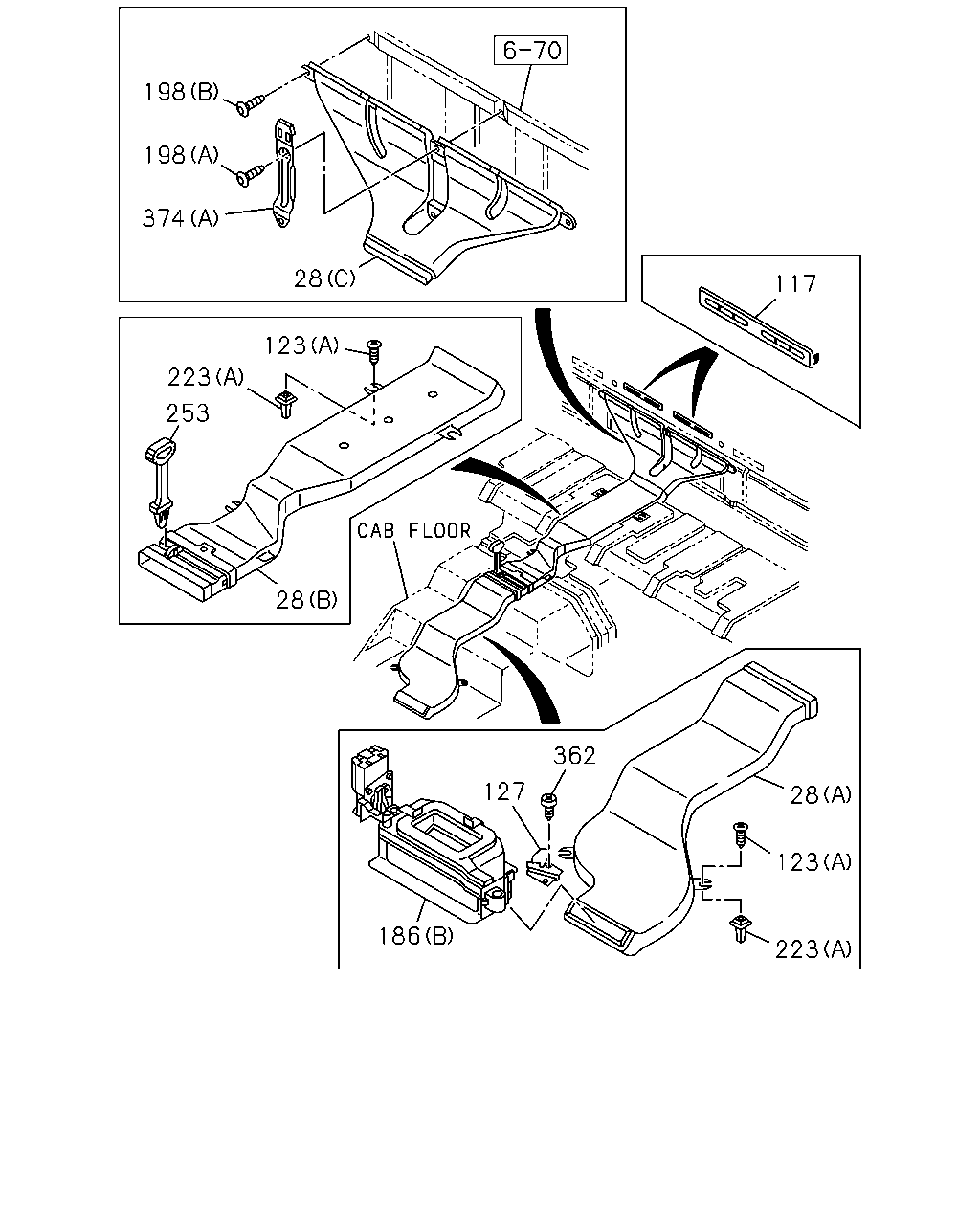

198 198 374 28 123 223 253 28 186 127 362 223 123 28 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-76377-180-2	01	1	0105-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (C)	1-76377-186-1	01	1	0105-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-203-0	01	1	0105-
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-188-5	01	1	0105-
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-187-5	01	1	0105-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	0105-0206
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0207-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0105-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	0105-0306
123	SCREW; DUCT (B) M5X14	8-94279-325-0	08	1	0307-
127	BRACKET; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76397-019-0	01	1	0105-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-83542-107-3	01	1	0105-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-155-9	01	1	0105-0306
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0307-0610
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-173-6	01	1	0105-0306
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0307-
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D6X23 DARK GRAY	1-09987-238-0	02	1	0105-0210
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D6X23 BLACK	1-09987-114-0	02	1	0211-
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	0105-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0105-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0105-0306
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0307-
253	KNOB; CONT LEVER CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-185-1	01	1	0105-
362	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) M5X14	8-94279-325-0	02	1	0105-
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-189-3	01	1	0105-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	0105-

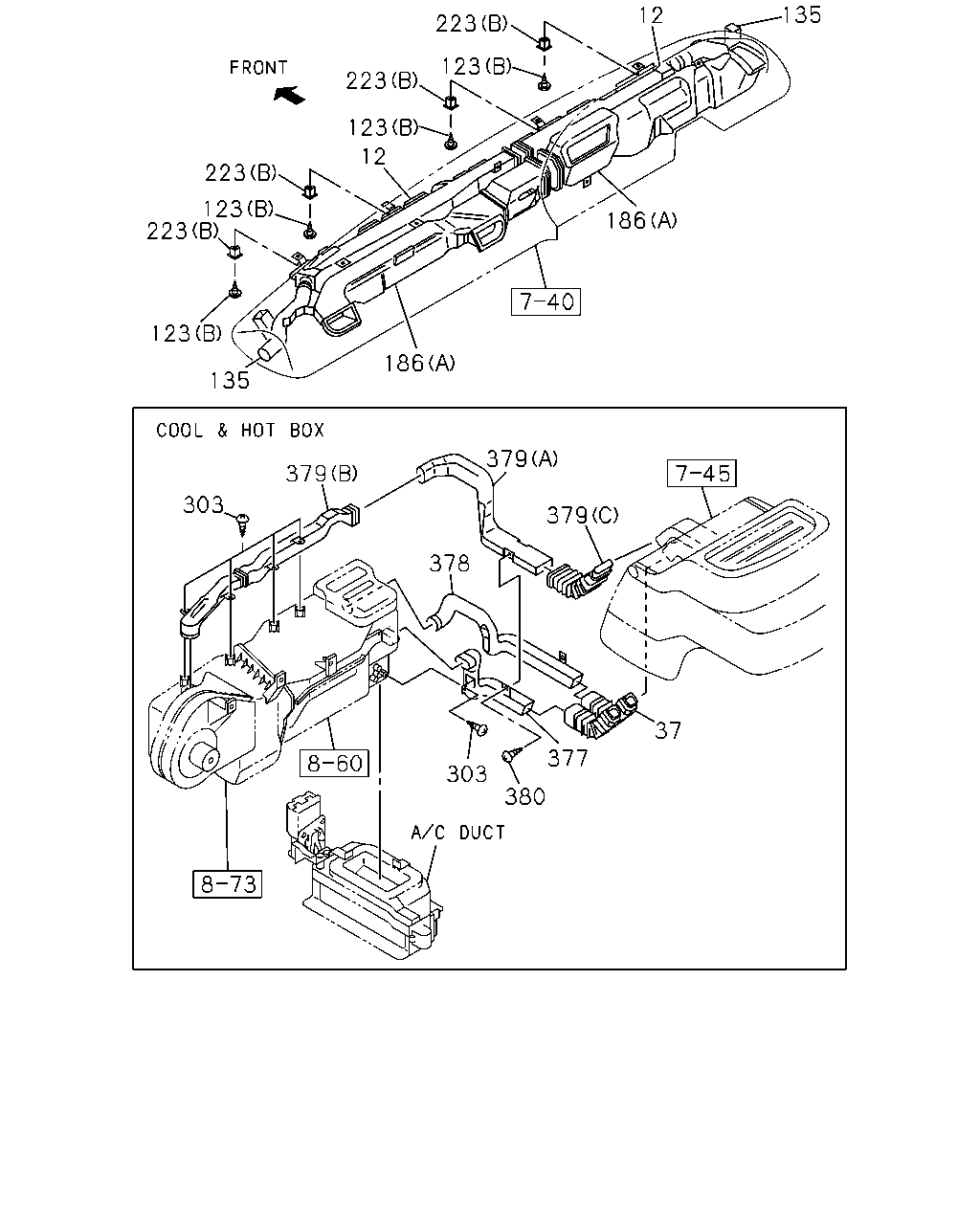

135 12 223 123 223 123 12 223 123 223 123 135 303 379 378 303 380 377 37 379 379 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-153-5	01	1	0105-0306
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0307-
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-172-6	01	1	0105-0306
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	0307-
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0105-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	0105-0206
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0207-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0105-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	0105-0306
123	SCREW; DUCT (B) M5X14	8-94279-325-0	08	1	0307-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-253-4	01	1	0105-0306
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0307-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-252-7	01	1	0105-0306
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0307-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-83542-107-3	01	1	0105-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-155-9	01	1	0105-0306
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0307-0610
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-173-6	01	1	0105-0306
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0307-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0105-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0105-0306
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0307-
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0105-
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0105-
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0105-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0105-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0105-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0105-
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0105-

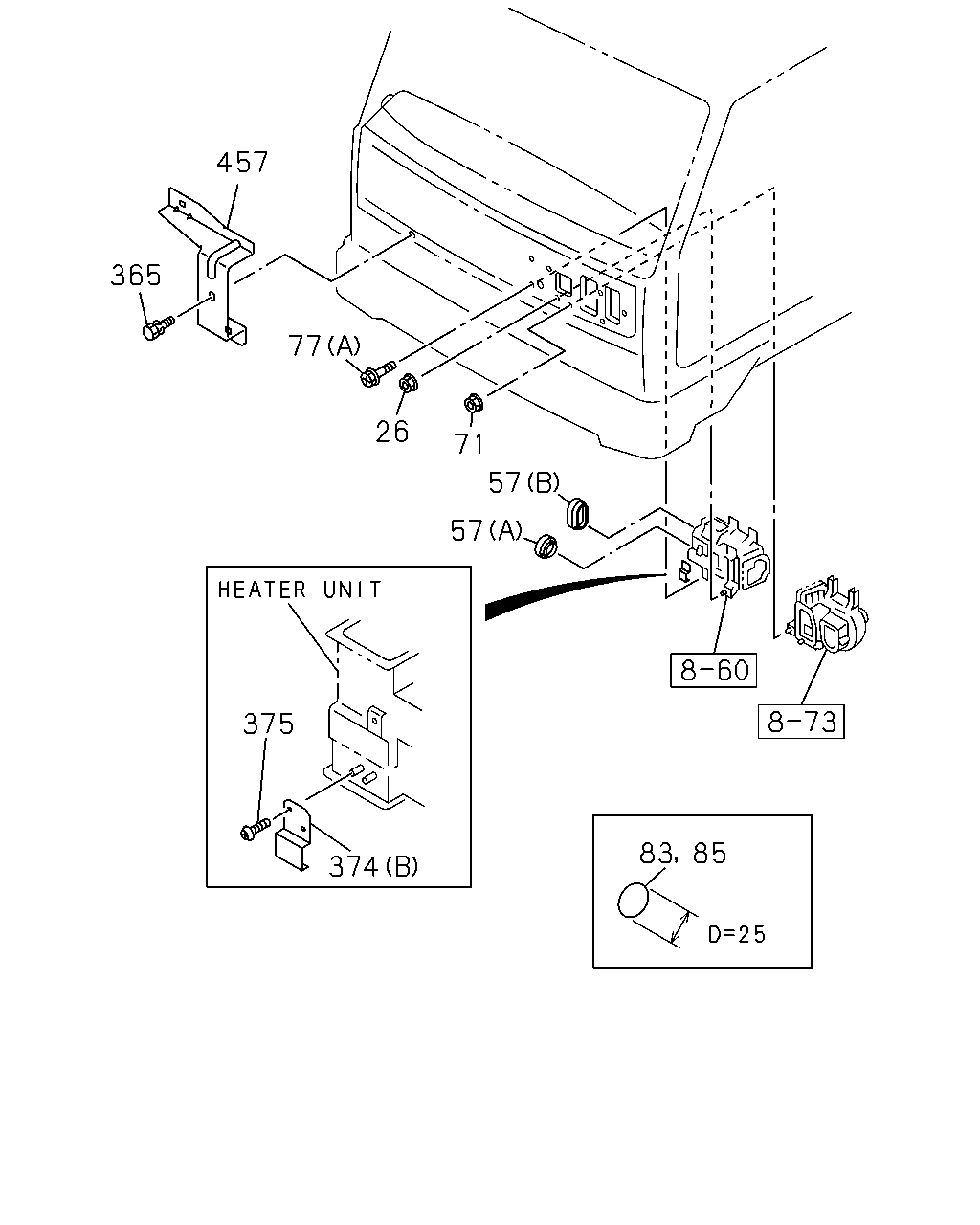

85 83 374 375 365 457 77 26 71 57 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-0306
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0307-
57	COVER; INL DUCT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	0205-0306
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. CENTER SEAT DELETE(SP9) (A)	1-83579-617-0	02	1	0105-0204
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A)	1-83579-617-0	02	1	0205-0411
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (A)	1-83579-617-0	02	1	0412-
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. CENTER SEAT DELETE(SP9) (B)	1-83579-618-0	01	1	0105-0204
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B)	1-83579-618-0	01	1	0205-0411
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (B)	1-83579-618-0	01	1	0412-
71	NUT; BLOWER UNIT TO DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-0306
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0307-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	0105-0306
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0307-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0306
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0307-
83	SEAL; COVER,HTR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	0105-0306
85	SEAL; HTR UNIT HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	0105-0306
365	BOLT; SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0105-
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-189-3	01	1	0105-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	0105-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0105-
457	BRACKET; SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-603-1	01	1	0105-

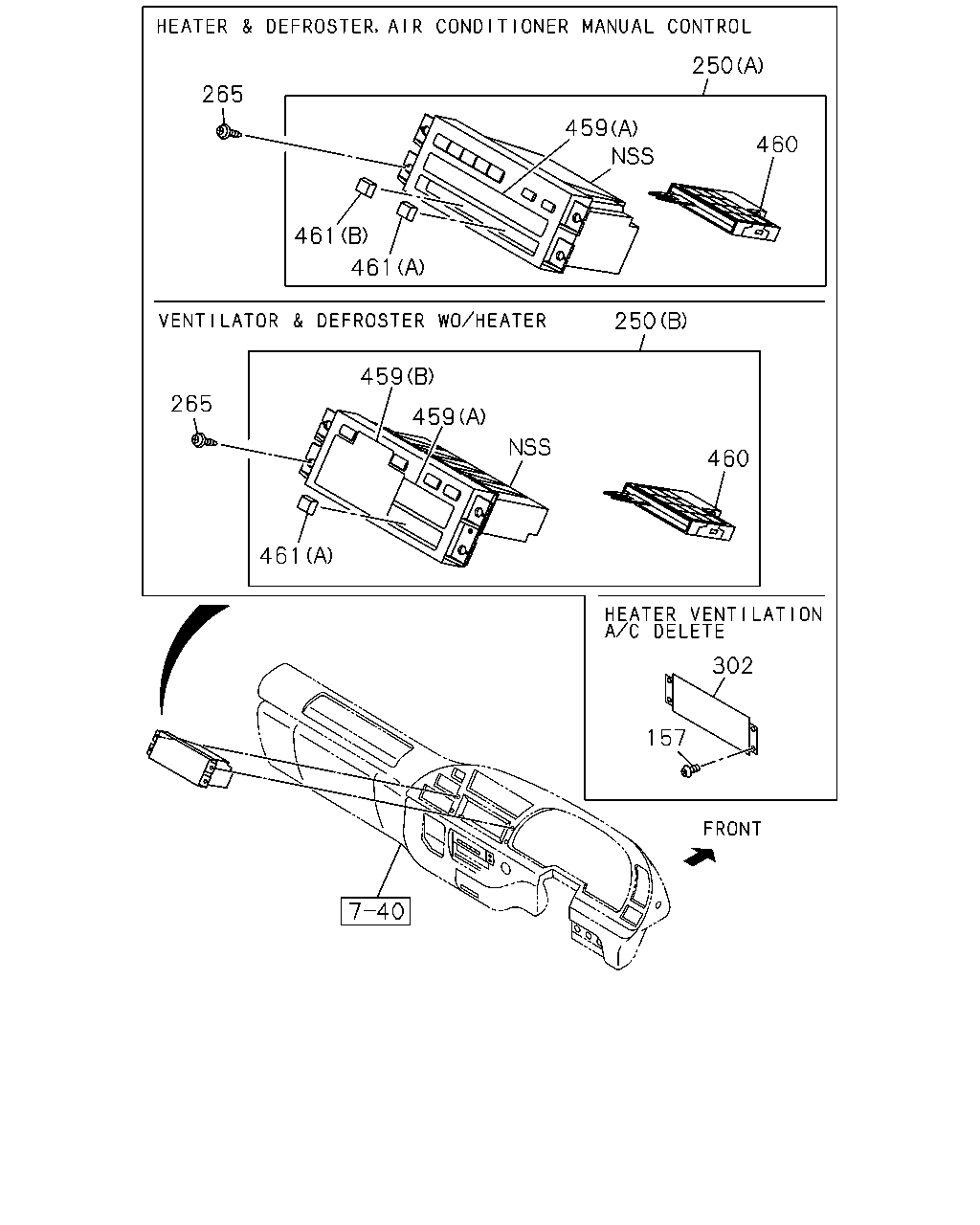

157 302 460 459 459 461 265 265 461 461 459 460 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0105-0306
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	0105-0609
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98034-326-0	01	1	0610-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	0105-0306
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0105-0306
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0307-0604
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-
302	COVER; AIR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-72438-140-1	01	1	0105-0306
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	0105-0306
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-013-0	01	1	0307-
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	0105-0306
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	0105-0306
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0307-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0105-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0105-0306
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0307-
