Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#12065) — 374 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-0604
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-

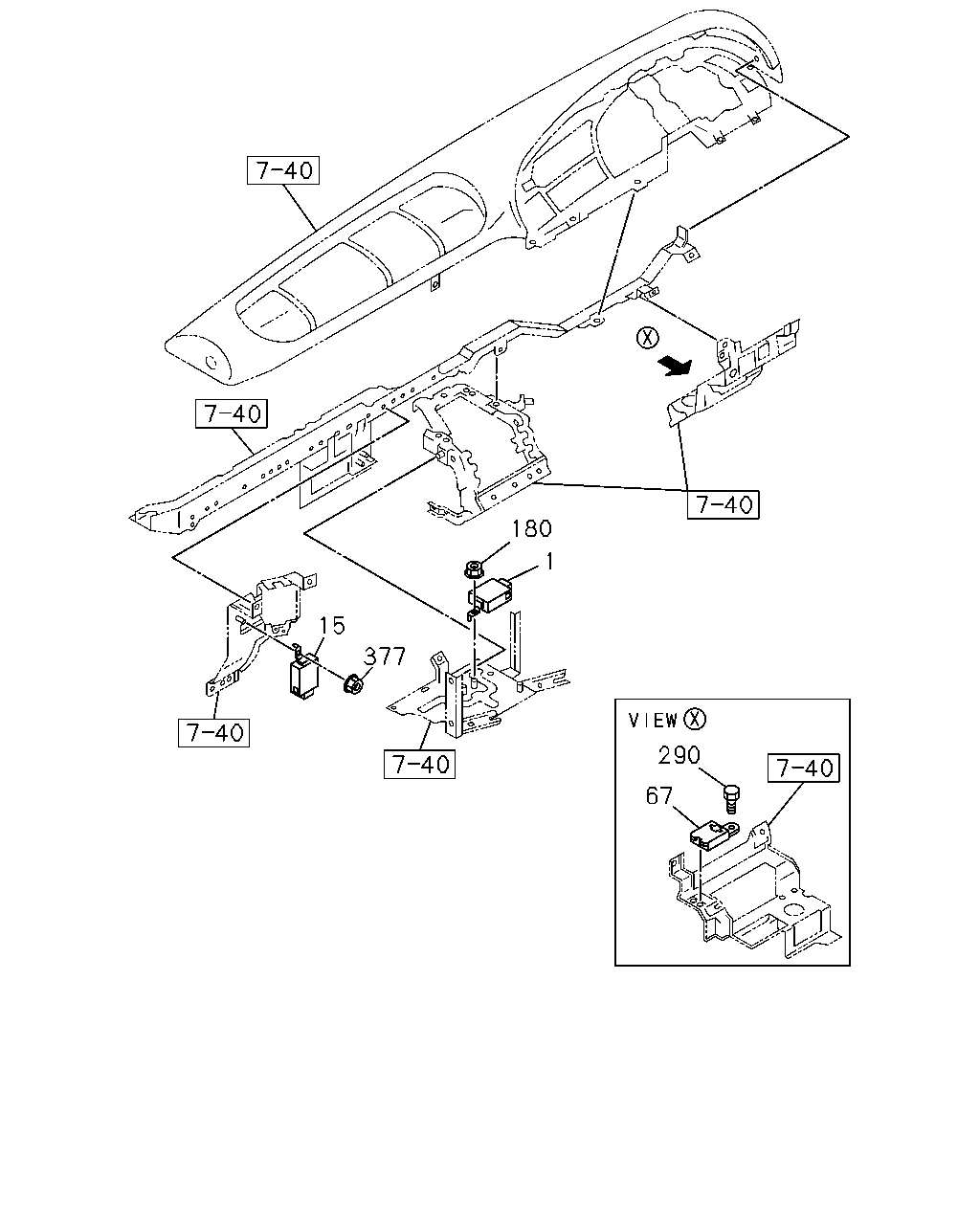

180 1 15 377 290 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT M6 FLANGE	0-91150-106-0	01	1	0105-0602
290	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-

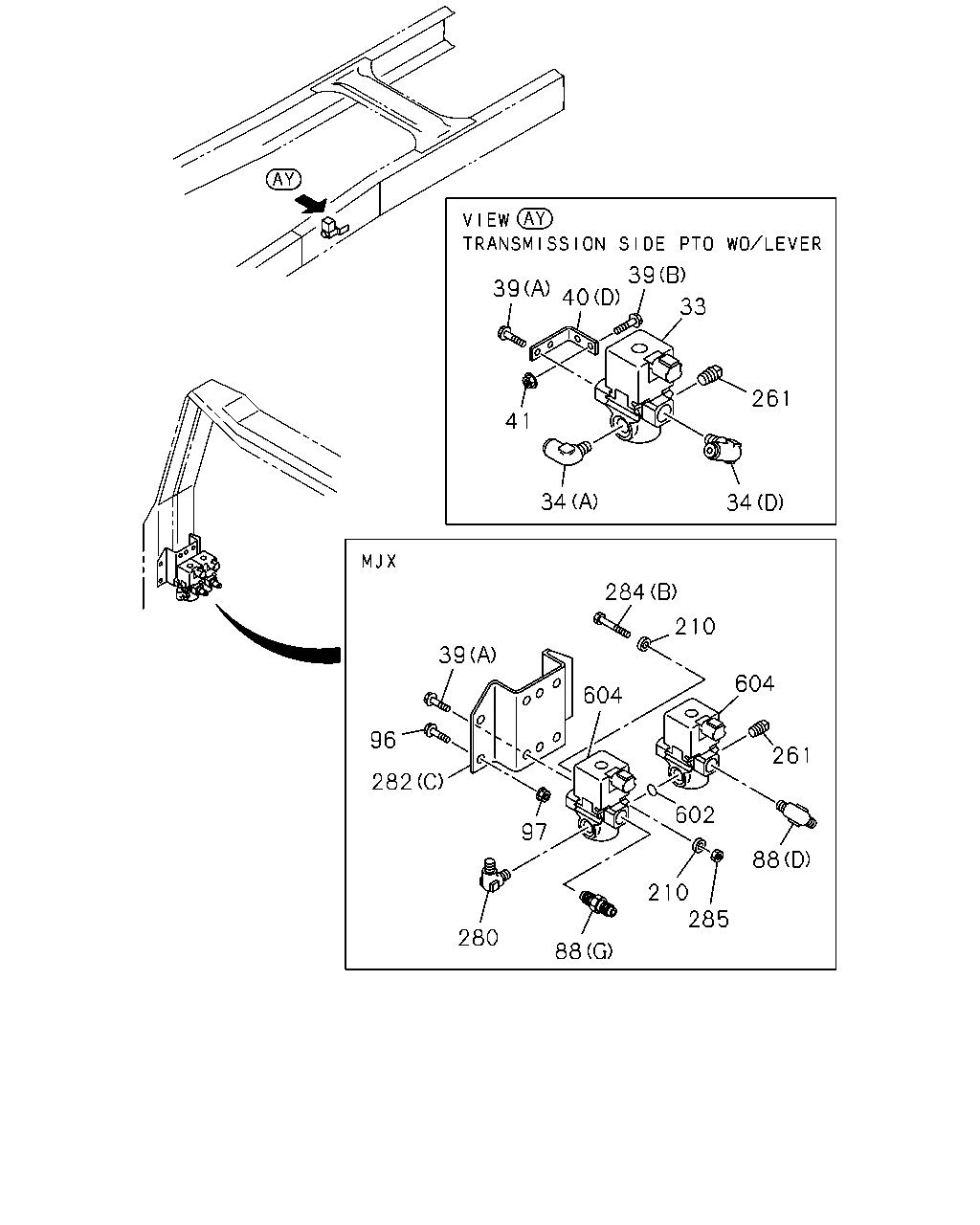

39 40 39 33 261 34 34 41 39 96 282 280 88 97 210 285 88 602 261 604 604 210 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-09661-065-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09661-065-0	01	1	0105-0105
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV ZF M/T<X9E> (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0107-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28680-820-0	04	1	0107-0108
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	02	1	0601-
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	04	1	0107-0108
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0109-0602
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0603-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0105-0106
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
280	CONNECTOR; IN,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0105-0106
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0105-0106
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	0107-

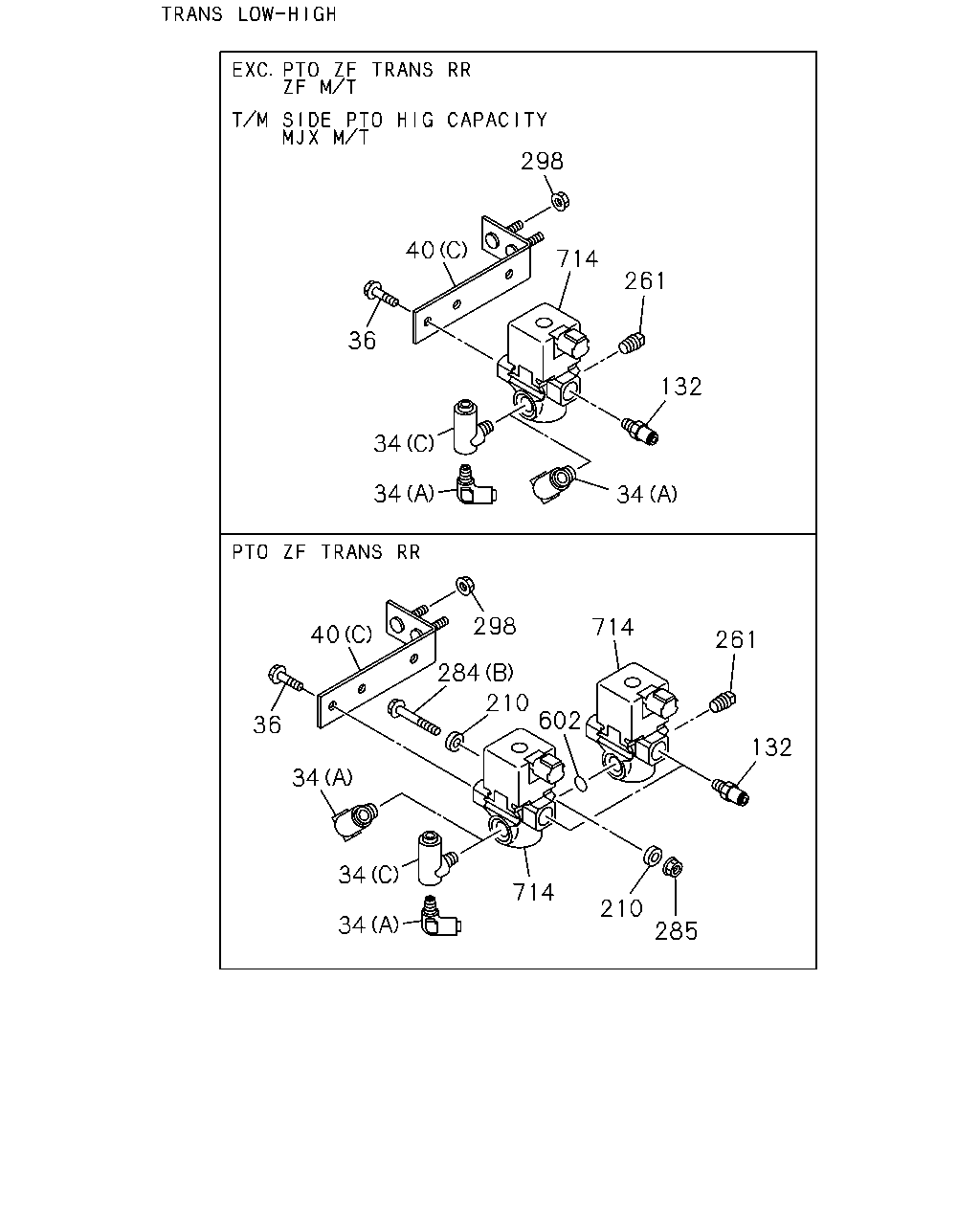

298 40 36 34 34 40 36 34 34 34 714 210 285 132 261 714 602 210 284 298 34 132 261 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-09661-065-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09661-065-0	01	1	0105-0105
36	BOLT; MAG VLV,PTO CONT ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	02	1	0105-0106
36	BOLT; MAG VLV,PTO CONT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
36	BOLT; MAG VLV,PTO CONT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	0601-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28650-820-0	02	1	0601-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV ZF M/T<X9E> (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
132	CONNECTOR; OUTLET,MAG VLV PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0105-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-0106
132	CONNECTOR; OUTLET,MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0105-0106
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0105-0106
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
298	NUT; MAG VLV ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0105-0106
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	02	1	0107-0602
298	NUT; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	02	1	0107-0602
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	02	1	0603-
298	NUT; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0603-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0105-0106
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH PTO ZF TRANS RR(BDM)	1-82563-871-2	02	1	0105-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM)	1-82563-871-1	01	1	0105-0106
714	VALVE; MAG,TRANS,LOW TO HIGH MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	0107-

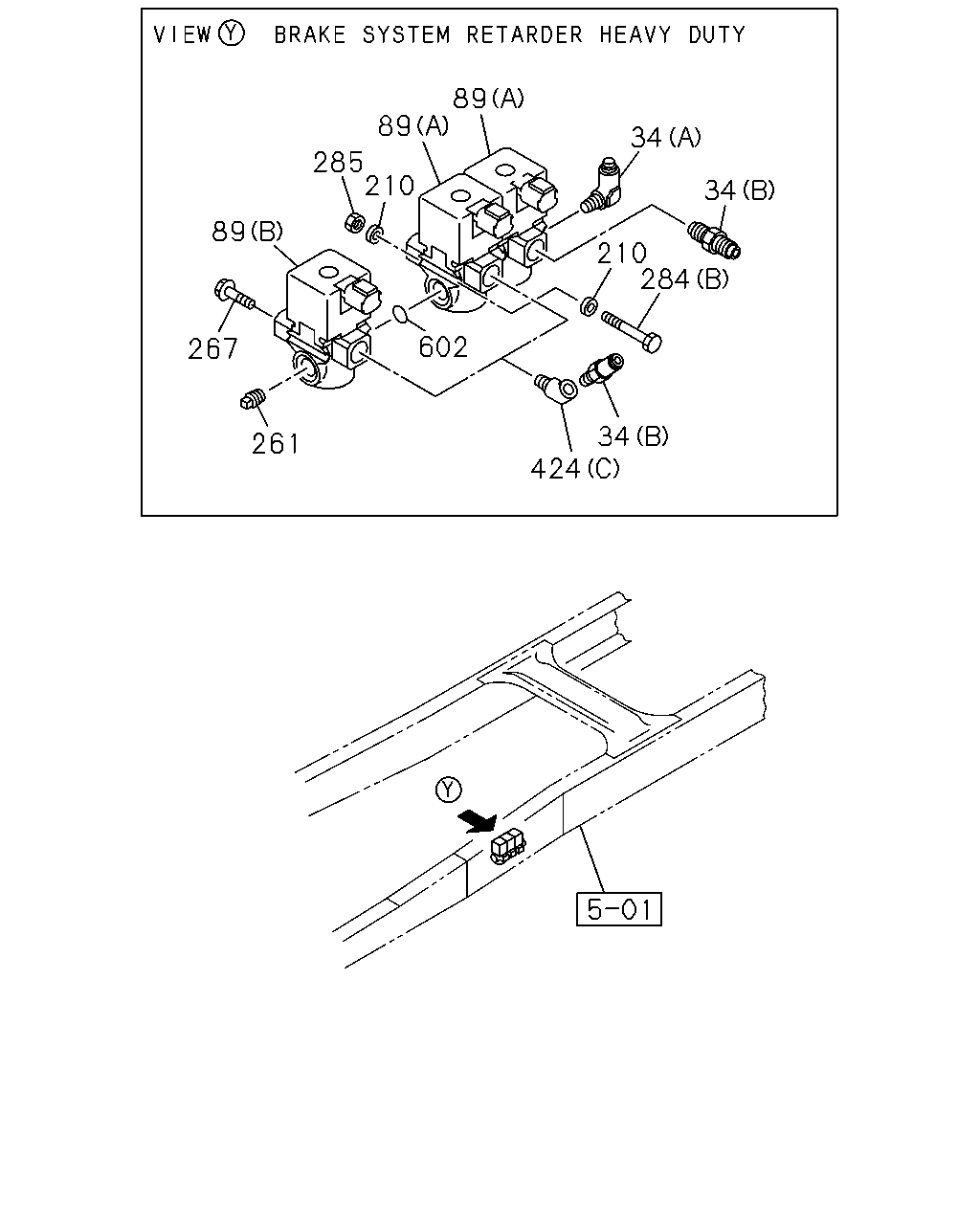

89 89 285 210 89 267 261 602 424 34 284 210 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-09661-065-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09661-065-0	01	1	0105-0105
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0105-0106
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0105-0106
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
424	ADAPTER FULL FLOATING CAB(W16) (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B)	1-09661-310-0	01	1	0105-0311
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0105-0106
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-

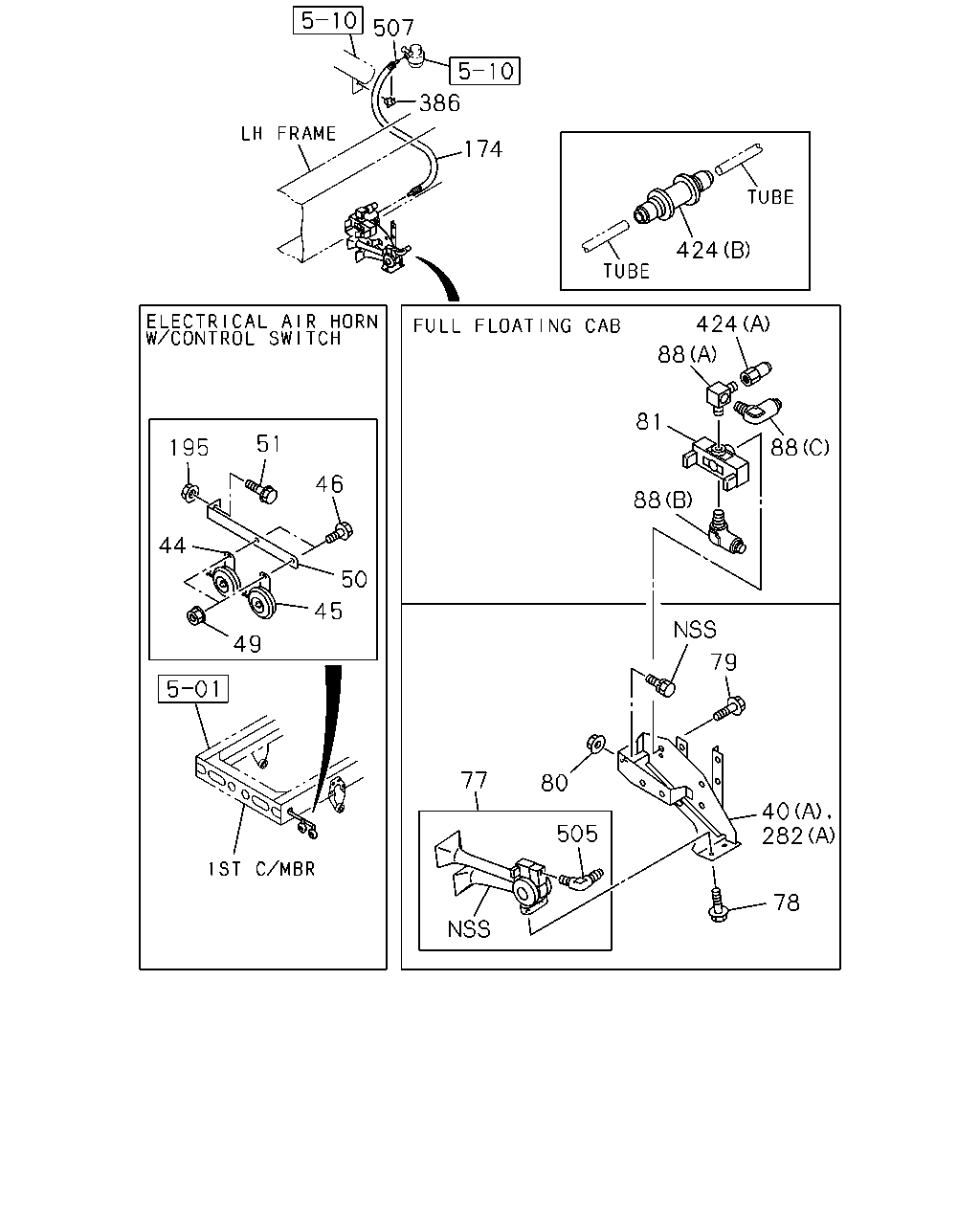

78 282 40 505 80 77 49 45 50 44 195 51 46 507 386 174 424 424 88 81 88 88 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV ZF M/T<X9E> (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	0105-
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	0105-
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	0105-0602
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-53458-901-0	01	1	0105-
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28680-830-0	03	1	0105-0106
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28650-830-0	01	1	0601-
77	HORN ASM	1-83430-041-1	01	1	0105-0209
77	HORN ASM	1-83430-039-3	01	1	0210-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X12 FLANGE	0-28050-812-0	01	1	0601-
80	NUT; MAG VLV M12 FLANGE	0-91150-212-0	04	1	0105-0602
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	04	1	0603-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
174	COVER FULL FLOATING CAB(W16) L=700 SERVICED BY L=800	1-83129-031-1	01	1	0105-
195	NUT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	03	1	0105-0106
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B)	1-09661-310-0	01	1	0105-0311
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0212
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-

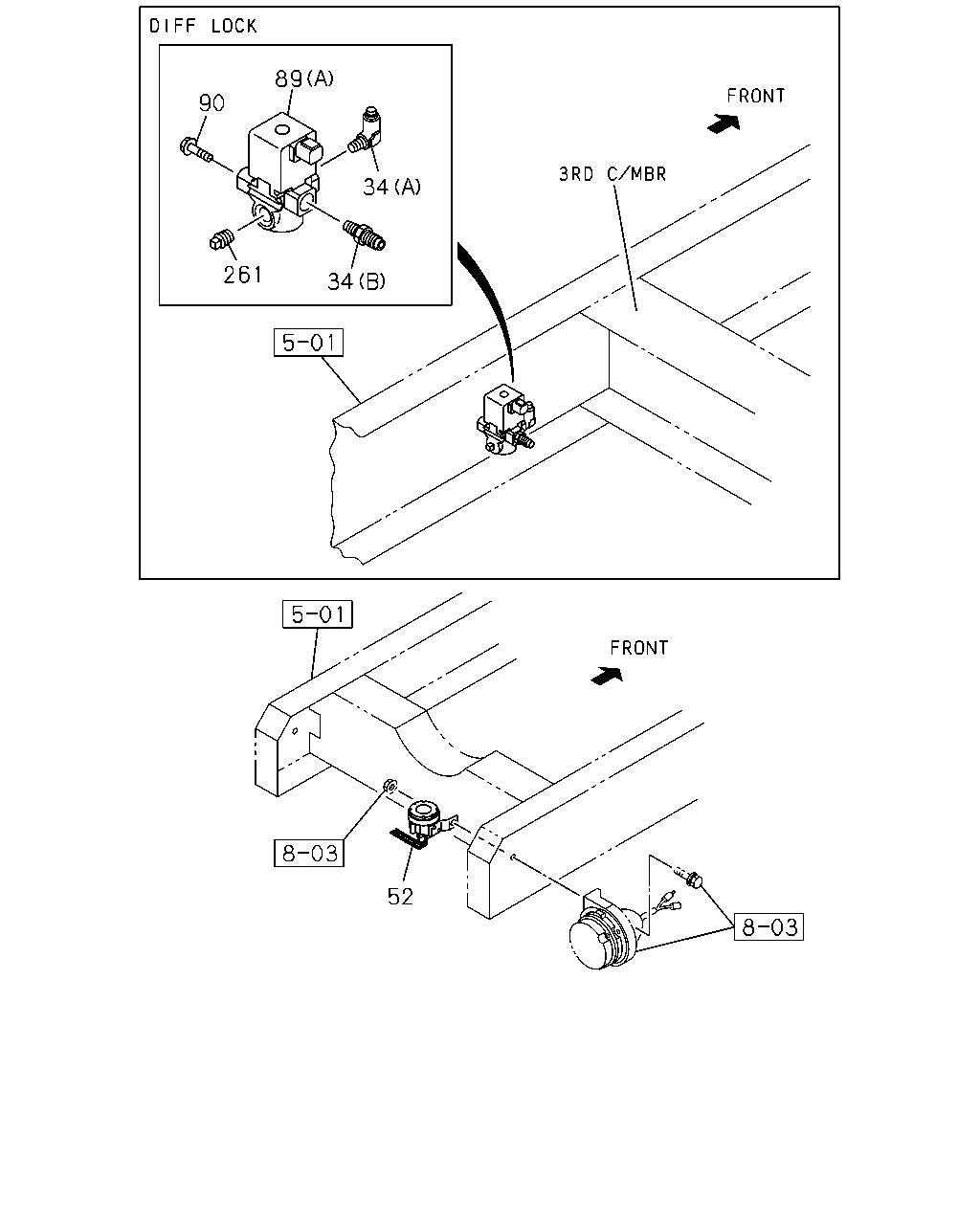

89 90 261 34 34 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-09661-065-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09661-065-0	01	1	0105-0105
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-1	01	1	0105-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	8-98069-867-0	01	1	0701-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-

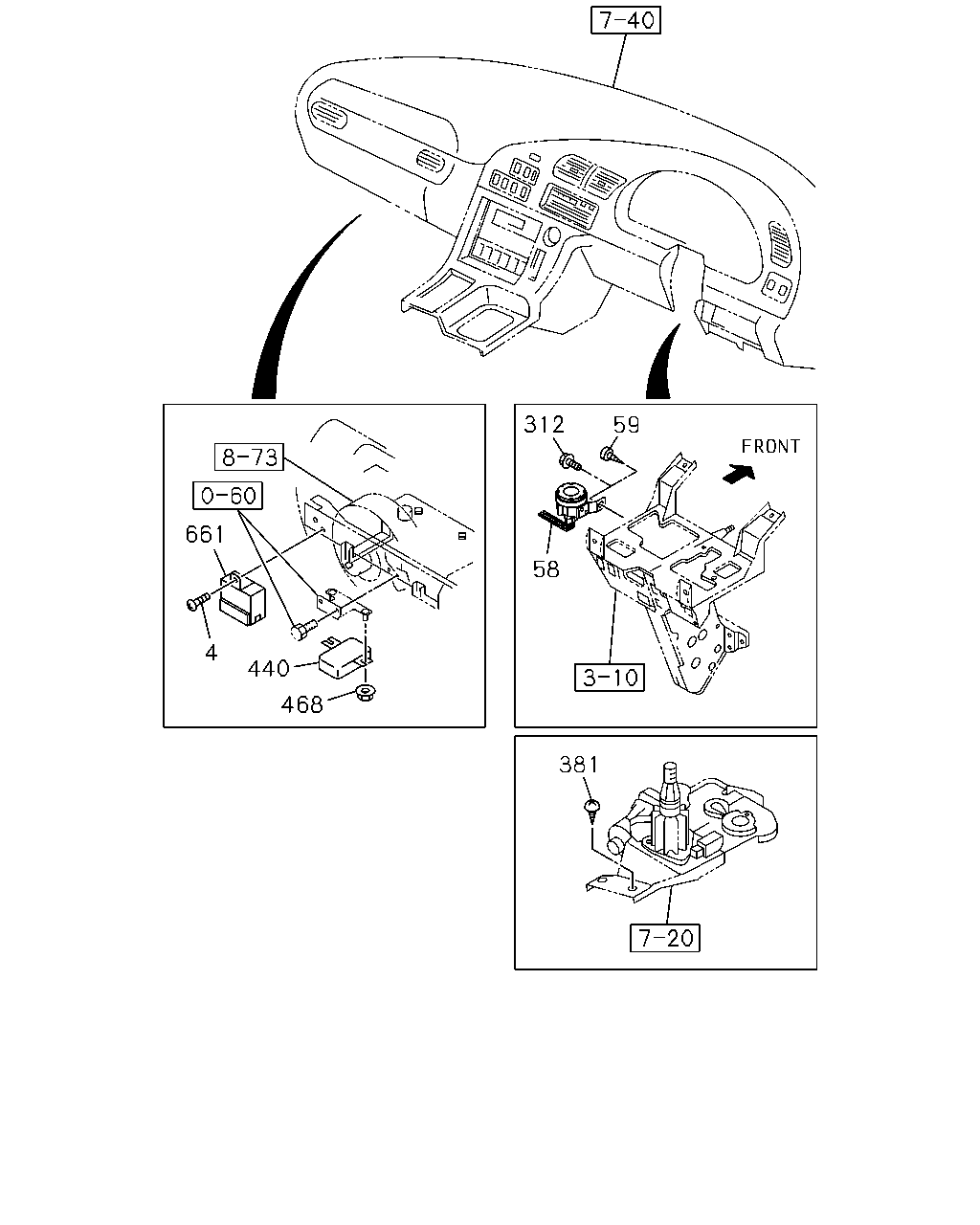

661 4 440 468 381 58 312 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0105-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0306-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0305
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	0105-0210
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0105-
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	02	1	0105-0301
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0302-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0105-

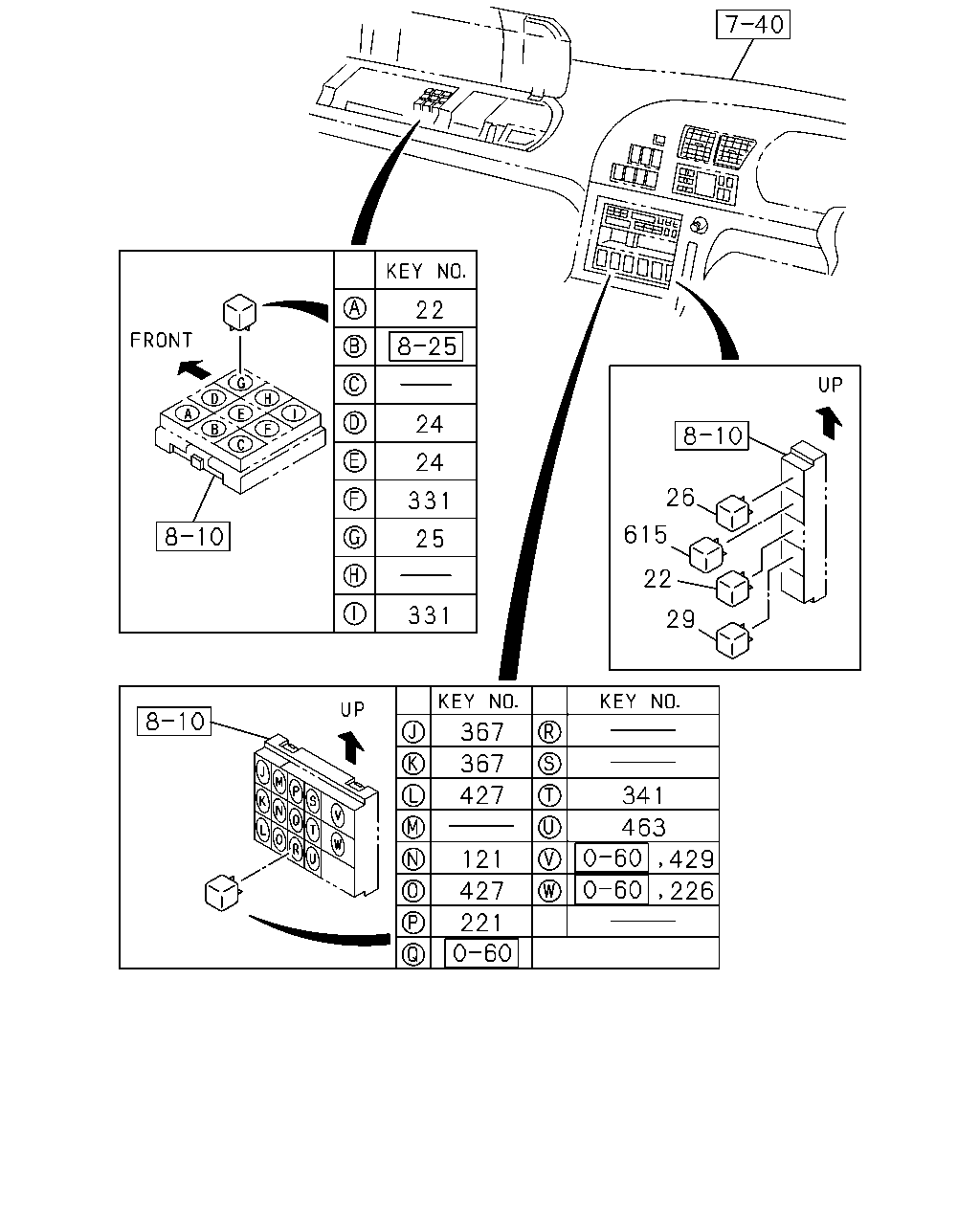

22 24 24 331 25 331 367 367 427 121 427 221 226 429 463 341 29 22 615 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
221	RELAY; AUTO CRUISE AUTO CRUISE WO/RESUME<NKB> 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
463	RELAY; ABS SIGNAL ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

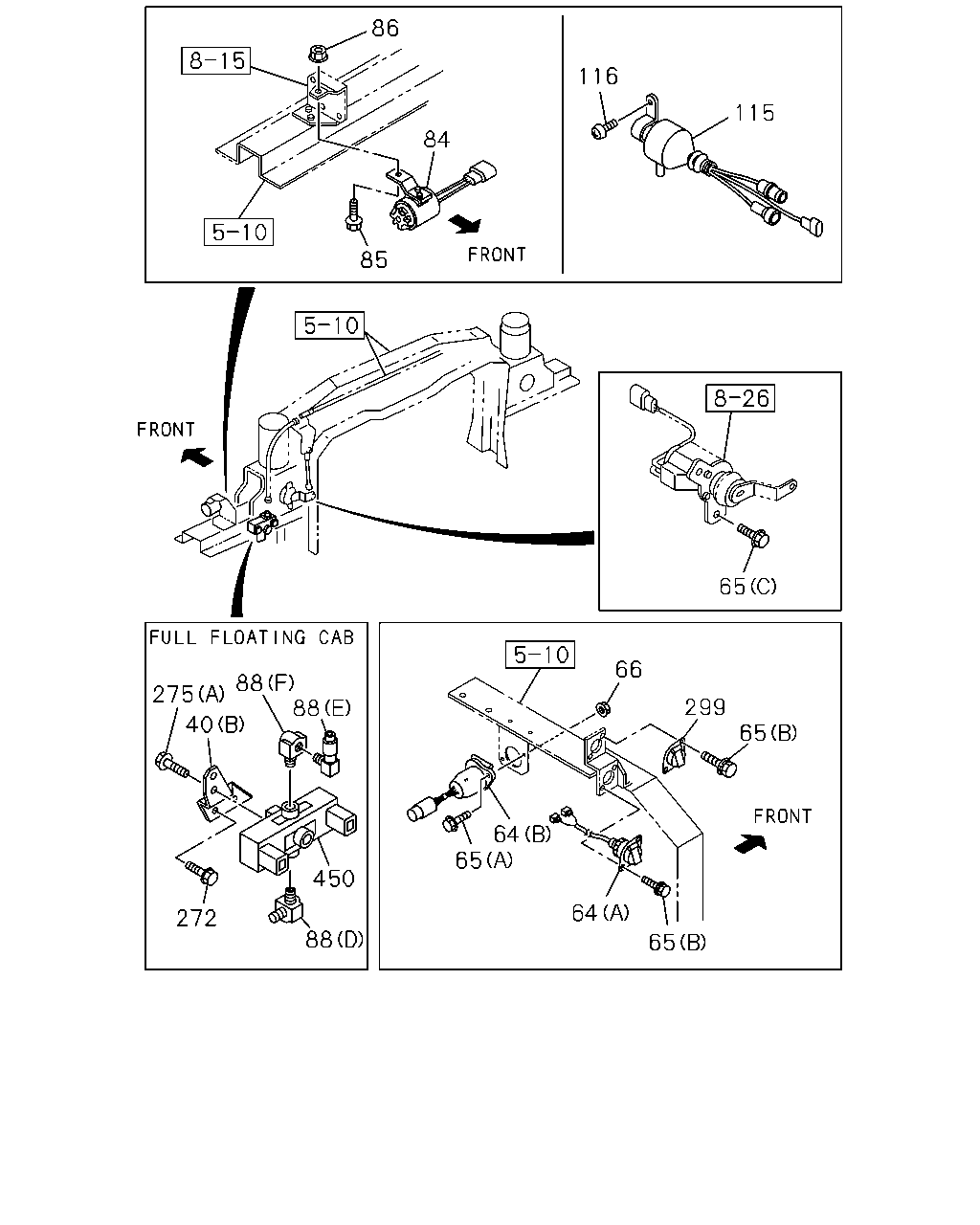

86 84 85 116 115 65 66 299 65 65 64 64 65 88 272 450 88 88 40 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV ZF M/T<X9E> (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0105-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=940	1-82698-297-0	01	1	0105-
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0105-0504
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (C) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (C) M6X16 FLANGE	0-28050-616-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0605-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-866-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-1	01	1	0105-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-

275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0105-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0105-0602
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91180-210-0	01	1	0603-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0105-0602
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
