8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#12063) — 86 parça

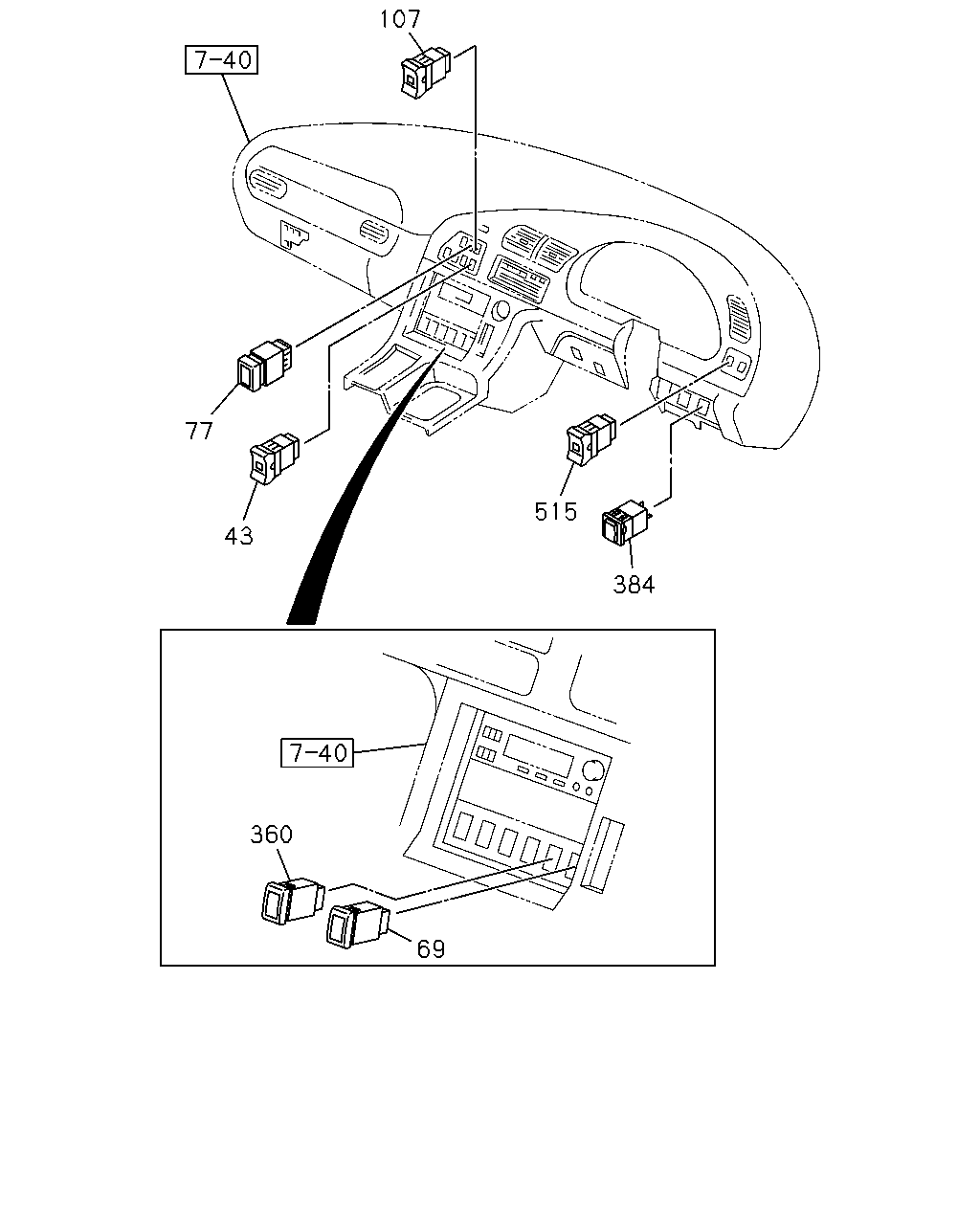

107 77 43 360 69 384 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	SWITCH; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-82350-332-0	01	1	0105-
69	SWITCH; AUTO CRUISE AUTO CRUISE WO/RESUME<NKB>	1-82340-412-2	01	1	0105-
77	SWITCH; PTO PTO ZF TRANS RR(BDM)	1-82340-413-0	01	1	0105-0106
77	SWITCH; PTO PTO CONTROL OPERATION CAB BACK<TBZ>	1-82340-413-0	01	1	0105-0106
77	SWITCH; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82340-413-0	01	1	0107-
77	SWITCH; PTO PTO CONTROL OPERATION CAB BACK<TBZ>	1-82340-413-0	01	1	0107-
107	SWITCH; REMOTE CONT,MIRROR MIR STAY O/S W/REMOTE<TBA>	1-82350-233-0	01	1	0105-
360	SWITCH ASM; DIFF LK	1-82340-677-0	01	1	0105-
384	SWITCH; IDLING CONT,ELEC ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82350-213-1	01	1	0105-
515	SWITCH; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82350-230-0	01	1	0105-

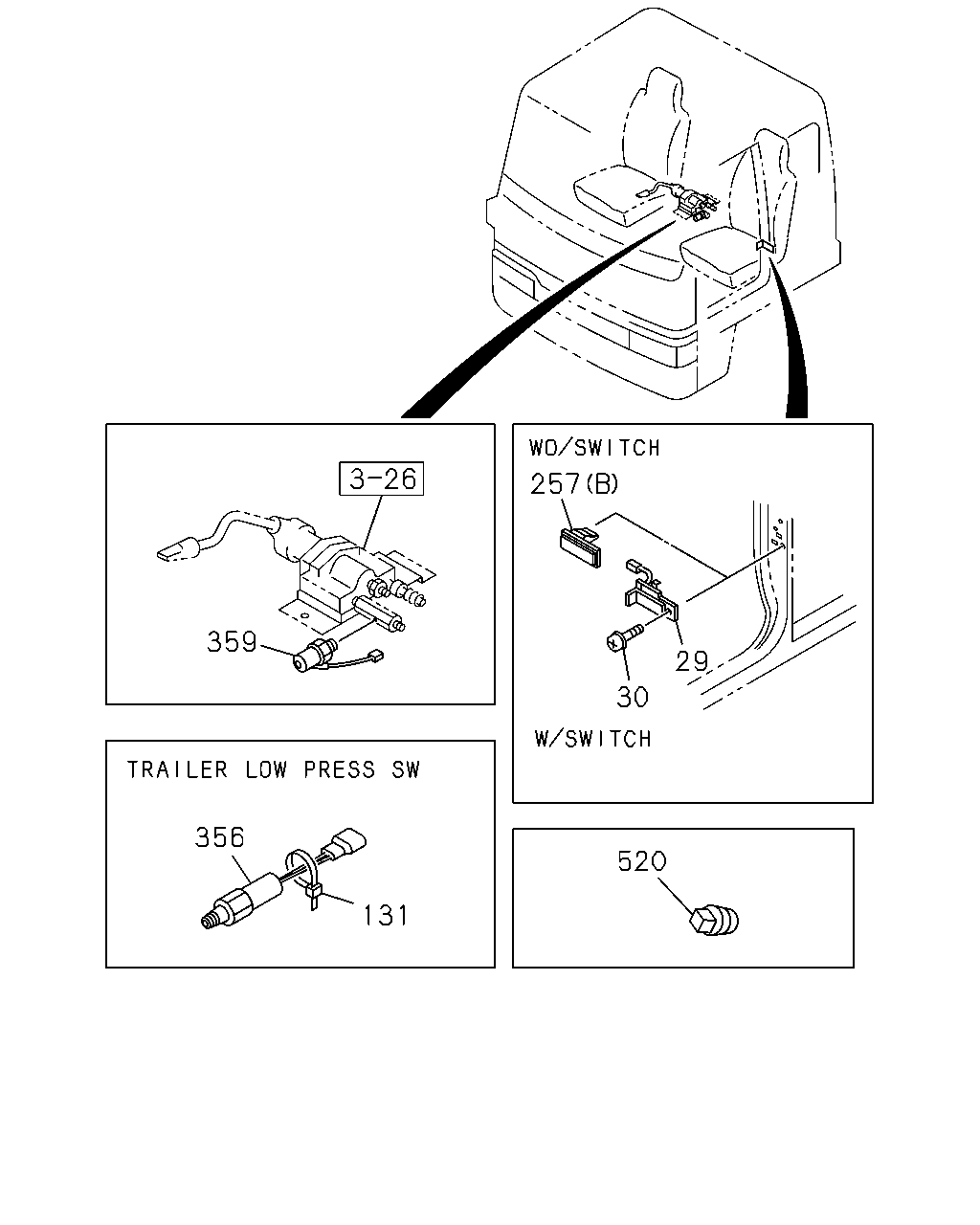

257 29 30 359 356 131 520

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR LAMP-ROOM OPERATION W/CONSOLE<C93>	8-97855-032-3	02	1	0105-
29	SWITCH; DOOR EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	8-97855-032-3	01	1	0105-
30	SCREW; DOOR SW LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11	1-09981-536-1	02	1	0105-
30	SCREW; DOOR SW EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11	1-09981-536-1	01	1	0105-
131	CLIP; BAND PARKING BRAKE VALVE LEVER TYPE<W48> L=180	1-09707-162-1	01	1	0105-0105
131	CLIP; BAND NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=180	1-09707-162-1	01	1	0105-
257	COVER; HOLE,SW AUTO CAB TILT<WV2> (A)	1-82389-008-0	01	1	0105-
257	COVER; HOLE,SW EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	8-94229-914-1	01	1	0105-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (C)	1-82389-012-2	01	1	0105-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (C)	1-82389-011-2	01	1	0105-
356	SWITCH; TRAILER,LOW PRESS PARKING BRAKE VALVE LEVER TYPE<W48>	1-48340-057-0	01	1	0105-0105
356	SWITCH; TRAILER,LOW PRESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48340-057-1	01	1	0105-0312
356	SWITCH; TRAILER,LOW PRESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48340-068-0	01	1	0401-
359	SWITCH; TRAILER BRAKE GREEN	1-82410-176-0	01	1	0105-0508
359	SWITCH; TRAILER BRAKE TRAILER BRAKE HAND CONTROL<NLG> GREEN	1-82410-176-1	01	1	0509-
520	PLUG; CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	0106-

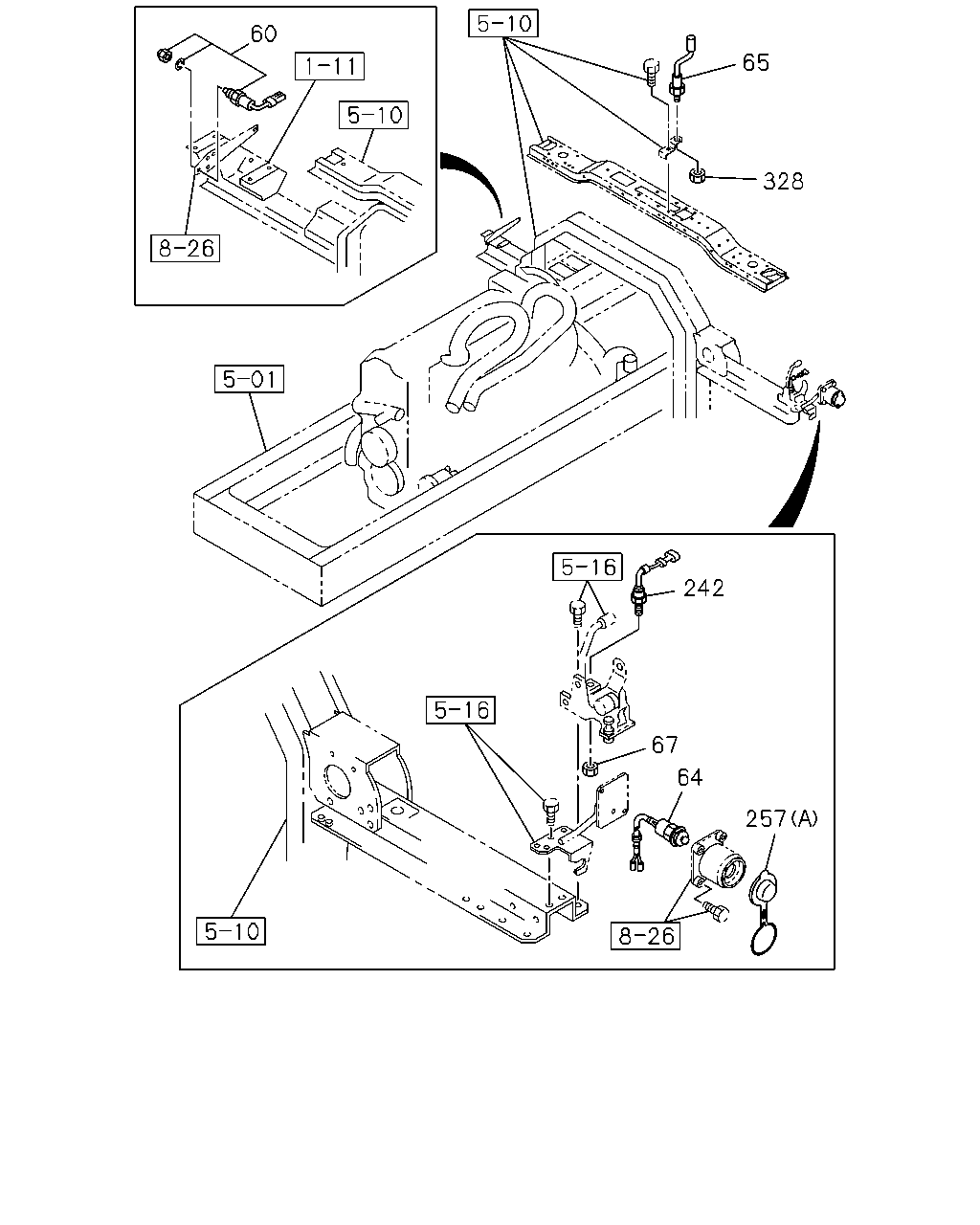

60 65 328 242 67 64 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	0105-
64	SWITCH; CAB TILT MAIN AUTO CAB TILT<WV2>	1-82380-108-0	01	1	0105-
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0105-
67	NUT; SW,CAB TILT AUTO CAB TILT<WV2> M16 H=18.5	1-09409-013-0	01	1	0105-
242	SWITCH AUTO CAB TILT<WV2> STAMP NO	1-82380-126-0	01	1	0105-
257	COVER; HOLE,SW AUTO CAB TILT<WV2> (A)	1-82389-008-0	01	1	0105-
257	COVER; HOLE,SW EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	8-94229-914-1	01	1	0105-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (C)	1-82389-012-2	01	1	0105-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (C)	1-82389-011-2	01	1	0105-
328	NUT; SW M16	9-99110-416-0	01	1	0105-0512
328	NUT; SW M16	0-91110-516-0	01	1	0601-

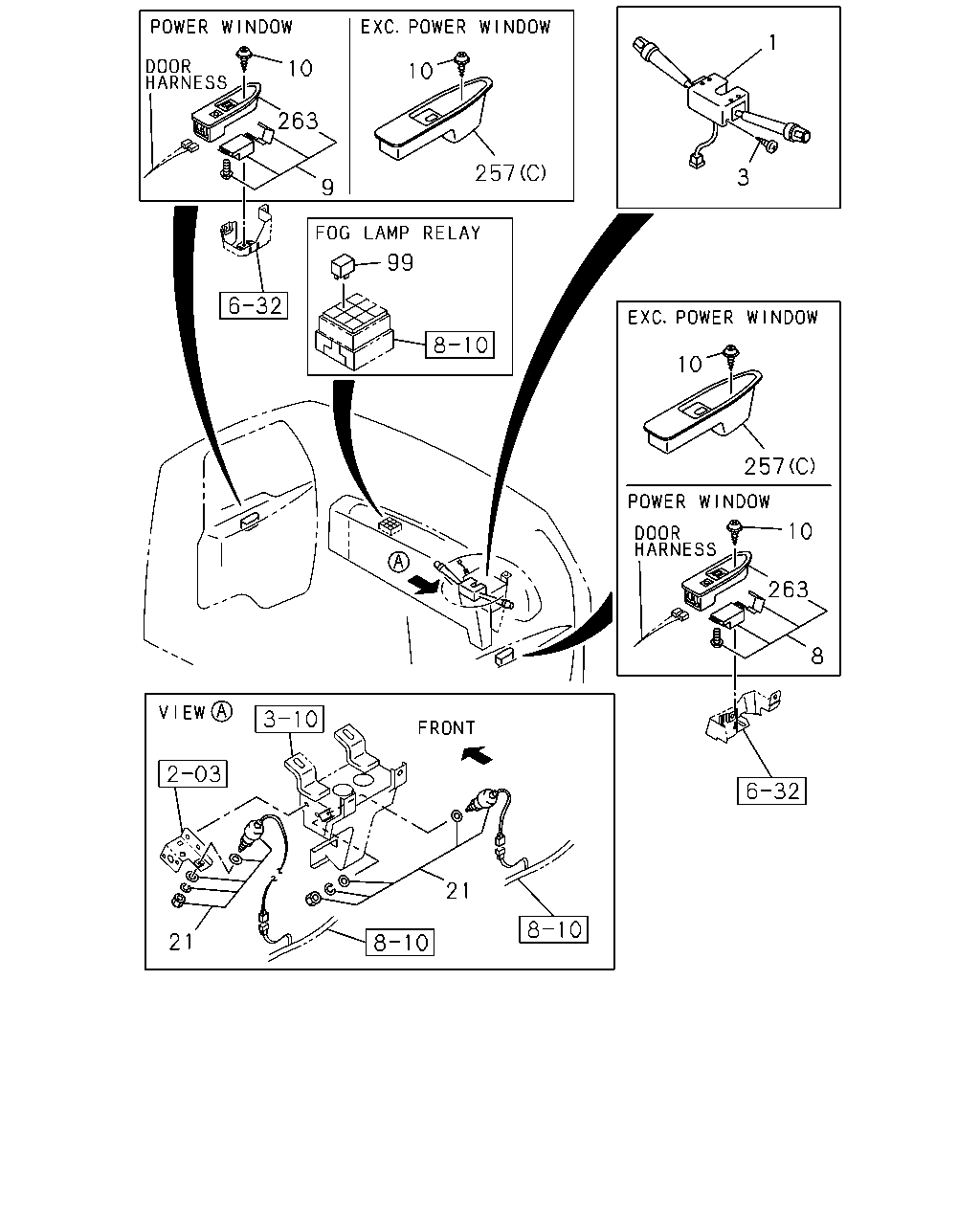

10 263 9 10 257 1 3 99 10 257 10 263 8 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB AUTO CRUISE WO/RESUME<NKB> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-669-0	01	1	0105-0312
1	SWITCH; COMB AUTO CRUISE WO/RESUME<NKB> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-729-0	01	1	0401-
1	SWITCH; COMB AUTO CRUISE WO/RESUME<NKB> NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-660-0	01	1	0105-0312
1	SWITCH; COMB AUTO CRUISE WO/RESUME<NKB> NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-727-0	01	1	0401-
1	SWITCH; COMB EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-619-0	01	1	0105-0312
1	SWITCH; COMB EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-715-0	01	1	0401-
1	SWITCH; COMB BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5)	1-82360-610-0	01	1	0105-0312
1	SWITCH; COMB BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5)	1-82360-713-0	01	1	0401-
1	SWITCH; COMB NEW ZEALAND EQUIPMENT(PK5) EXC. AUTO CRUISE WO/RESUME<NKB>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-658-0	01	1	0105-0312
1	SWITCH; COMB NEW ZEALAND EQUIPMENT(PK5) EXC. AUTO CRUISE WO/RESUME<NKB>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-726-0	01	1	0401-
1	SWITCH; COMB NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. AUTO CRUISE WO/RESUME<NKB>	1-82360-668-0	01	1	0105-0312
1	SWITCH; COMB NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. AUTO CRUISE WO/RESUME<NKB>	1-82360-728-0	01	1	0401-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0105-0604
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER SIDE	1-82380-155-3	01	1	0105-
9	SWITCH; POWER WINDOW POWER WINDOW<A30> PASSENGER SIDE	1-82380-154-3	01	1	0105-
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-0604
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-
21	SWITCH; CLU	1-82380-114-3	01	1	0105-0106
21	SWITCH; CLU ZF M/T<X9E>	1-82380-114-3	01	1	0105-0106
21	SWITCH; CLU	1-82380-114-3	01	1	0107-
21	SWITCH; CLU TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-82380-114-3	01	1	0107-
99	RELAY; FOG LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
257	COVER; HOLE,SW AUTO CAB TILT<WV2> (A)	1-82389-008-0	01	1	0105-
257	COVER; HOLE,SW EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	8-94229-914-1	01	1	0105-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (C)	1-82389-012-2	01	1	0105-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (C)	1-82389-011-2	01	1	0105-
263	COVER; SW POWER WINDOW<A30> DRIVER SIDE	1-82385-005-2	01	1	0105-
263	COVER; SW POWER WINDOW<A30> PASSENGER SIDE	1-82385-006-3	01	1	0105-

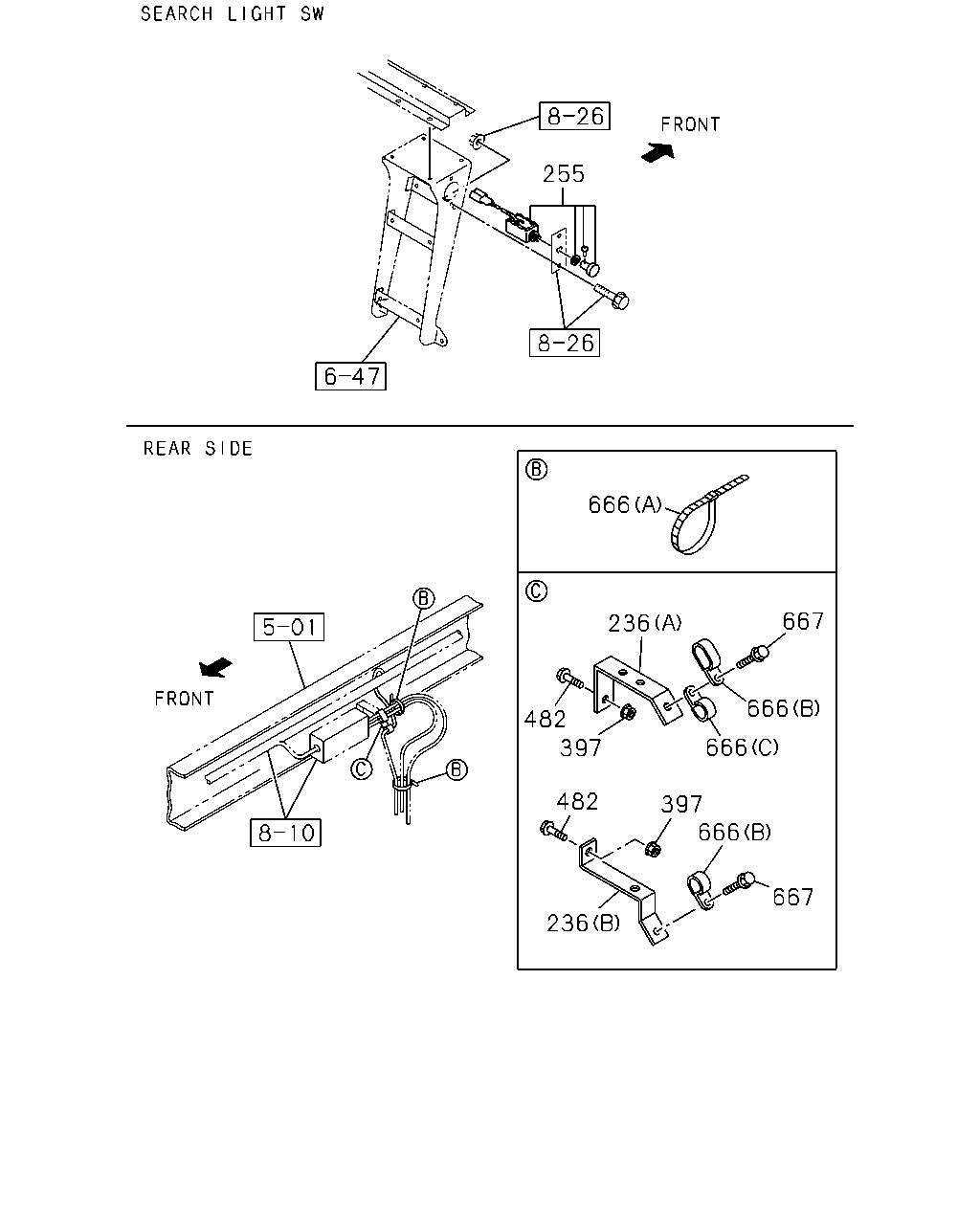

255 666 667 236 666 666 397 666 667 236 482 397 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
236	BRACKET; AXLE HARNESS,RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=120 H=35	1-82698-088-0	02	1	0105-0105
236	BRACKET; AXLE HARNESS,RR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-258-0	01	1	0105-
236	BRACKET; AXLE HARNESS,RR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82699-996-0	02	1	0105-0105
255	SWITCH; SEARCH LIGHT INSPECTION LAMP<T95>	1-82340-360-1	01	1	0105-
397	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	04	1	0105-0105
397	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	01	1	0105-0602
397	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0603-
482	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	04	1	0105-0105
482	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
482	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	01	1	0601-
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=140	5-09707-031-1	04	1	0105-
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16	9-09525-025-0	02	1	0105-0606
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16	0-95235-025-0	02	1	0607-
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=24	9-09525-045-0	01	1	0105-0606
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=24	0-95235-045-0	01	1	0607-
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	9-09525-025-0	01	1	0105-0606
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	0-95235-025-0	01	1	0607-
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	02	1	0601-
