8-21 — METER ASM (#12062) — 74 parça

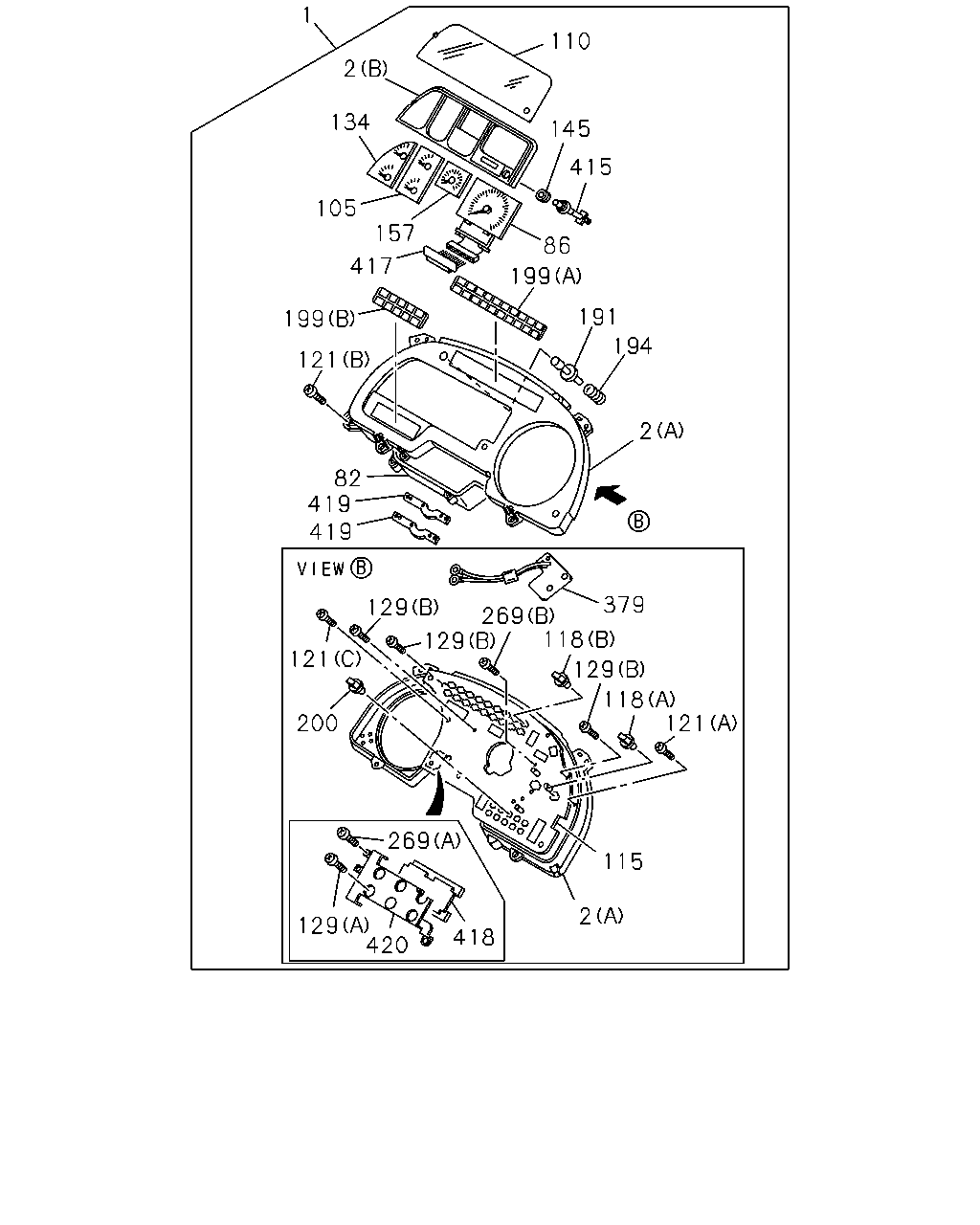

110 145 415 86 199 191 194 2 379 118 129 118 121 115 2 418 420 129 269 129 129 200 269 121 419 419 82 121 199 417 157 105 134 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L)	1-83115-842-3	01	1	0105-
1	METER COMPL; CLUSTER 6WF1 TC-C(1B8)	1-83115-855-3	01	1	0105-
2	PANEL; CLUSTER (A)	1-83119-644-0	01	1	0105-
2	PANEL; CLUSTER (B)	1-83119-652-0	01	1	0105-
82	CASE ASM; CLUSTER METER	1-83119-653-0	01	1	0105-
86	TACHOMETER; CLUSTER METER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L)	1-83120-879-0	01	1	0105-
86	TACHOMETER; CLUSTER METER 6WF1 TC-C(1B8)	1-83120-921-0	01	1	0105-
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-281-0	01	1	0105-
110	GLASS; CLUSTER METER	1-83119-646-0	01	1	0105-
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-438-0	01	1	0105-
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	0105-
118	BULB; CLUSTER METER (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	27	1	0105-
121	SCREW; PANEL FIX,CLUSTER METER (C) M3 TAPPING	1-83119-084-0	01	1	0105-
121	SCREW; PANEL FIX,CLUSTER METER (B) M4 TAPPING	1-83119-442-0	05	1	0105-
121	SCREW; PANEL FIX,CLUSTER METER (A) M3 TAPPING	1-83119-676-0	02	1	0105-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (B) M3 TAPPING	1-83119-657-0	09	1	0105-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (A) M3 TAPPING	1-83119-675-0	06	1	0105-
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-283-0	01	1	0105-
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER	1-83119-680-0	01	1	0105-
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-235-0	01	1	0105-0109
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-261-0	01	1	0110-
191	KNOB; BULB CHECK	1-83119-672-0	01	1	0105-
194	SPRING; BULB CHECK KNOB	1-83119-673-0	01	1	0105-
199	LENS; WARNING LAMP (A)	1-83119-795-1	01	1	0105-
199	LENS; WARNING LAMP (B)	1-83119-796-0	01	1	0105-
200	BULB; WARNING LAMP ANTILOCK BRAKE SYSTEM(BFA) 24V 1.8W BROWN SOCKET	1-82194-062-0	01	1	0105-0105
200	BULB; WARNING LAMP AUTO CRUISE WO/RESUME<NKB> 24V 1.8W BROWN SOCKET	1-82194-062-0	01	1	0106-
269	SCREW; METER CLUSTER (A) M3	1-83119-273-0	02	1	0105-
269	SCREW; METER CLUSTER (B) M3 TAPPING	1-83119-677-0	05	1	0105-
379	CIRCUIT; DROP	1-83189-369-0	01	1	0105-
415	KNOB; TRIP,METER	1-83119-674-0	01	1	0105-
417	DISPLAY; ODO & TRIP,METER	1-83119-671-0	01	1	0105-
418	CIRCUIT; CONTROL,METER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L)	1-83189-399-0	01	1	0105-
418	CIRCUIT; CONTROL,METER 6WF1 TC-C(1B8)	1-83189-442-0	01	1	0105-
419	SPACER; CIRCUIT,METER	1-83119-678-0	02	1	0105-
420	HEAT SINK; METER	1-83119-679-0	01	1	0105-

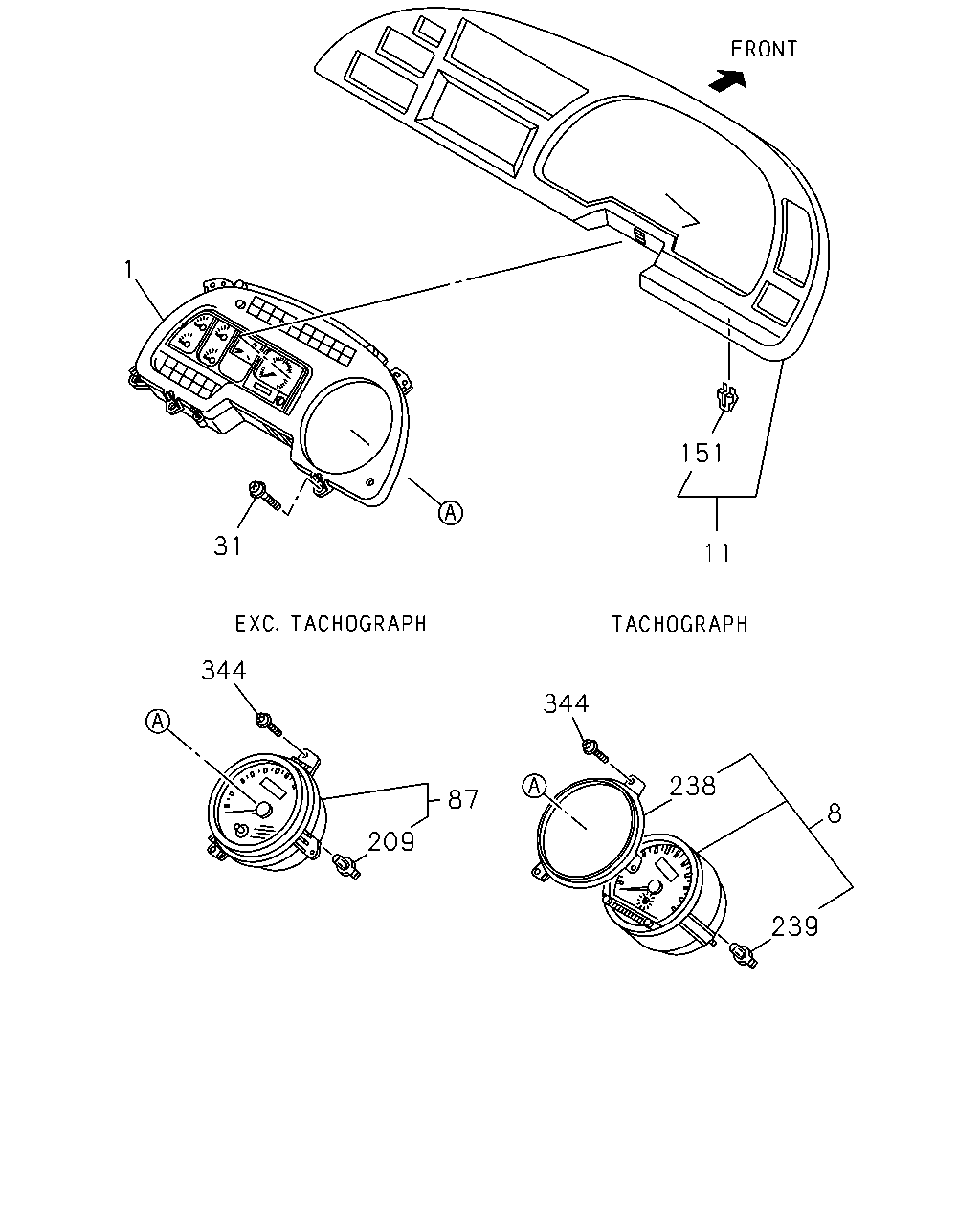

1 31 344 209 87 239 8 238 344 11 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L)	1-83115-842-3	01	1	0105-
1	METER COMPL; CLUSTER 6WF1 TC-C(1B8)	1-83115-855-3	01	1	0105-
8	TACHOGRAPH; CLUSTER METER ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-859-0	01	1	0105-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>	1-83120-858-0	01	1	0105-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-847-0	01	1	0105-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	1-83120-849-0	01	1	0105-
11	CLUSTER ASM; METER METER PANEL GRAIN OF WOOD<NAY>	1-72418-014-9	01	1	0105-
11	CLUSTER ASM; METER EXC. METER PANEL GRAIN OF WOOD<NAY>	1-72418-012-9	01	1	0105-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0105-0604
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	0605-
87	SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-844-0	01	1	0105-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	0105-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	0105-
238	PANEL; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83129-311-0	01	1	0105-
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W	5-82194-034-0	03	1	0105-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W	1-82194-101-0	03	1	0105-
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0105-0604
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	0605-

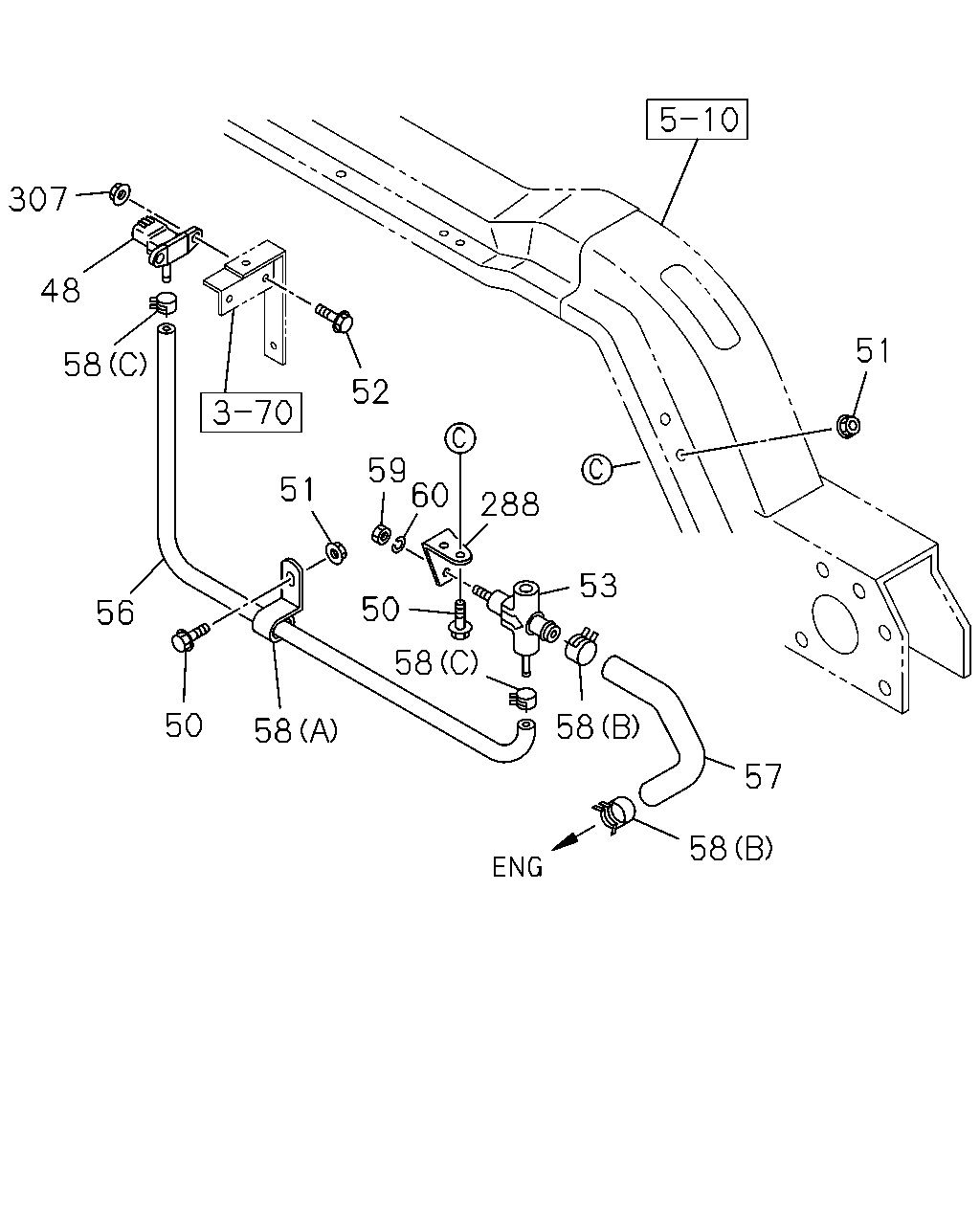

51 57 58 58 53 288 60 58 50 58 50 56 51 59 52 58 48 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SENSOR; BOOST ELECTRONIC GOV RED3(KG5)	1-80220-018-0	01	1	0105-
50	BOLT; FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
50	BOLT; FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	03	1	0601-
51	NUT; FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	03	1	0105-0602
51	NUT; FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	03	1	0603-
52	BOLT; SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28680-616-0	02	1	0105-0512
52	BOLT; SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28650-616-0	02	1	0601-
53	UNION; BOOST UNIT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-09661-017-0	01	1	0105-
56	HOSE; NIPPLE TO SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000	0-04740-300-0	01	1	0105-
57	HOSE; BOOST 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-83159-017-0	01	1	0105-
58	CLIP; HOSE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
58	CLIP; HOSE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) (B) ID=20.8	8-94125-862-1	02	1	0105-
58	CLIP; HOSE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) (C) ID=7.8	8-94246-958-0	02	1	0105-
59	NUT; UNION 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M10	9-09111-410-0	01	1	0105-0512
59	NUT; UNION 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M10	0-91111-510-0	01	1	0601-
60	WASHER; LK,UNION 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	0105-0603
60	WASHER; LK,UNION 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) ID=10.2	0-91510-510-0	01	1	0604-
288	BRACKET 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-47477-469-0	01	1	0105-
307	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M6	9-09110-406-0	02	1	0105-0512
307	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) M6	0-91110-506-0	02	1	0601-
