◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#12060) — 808 parça

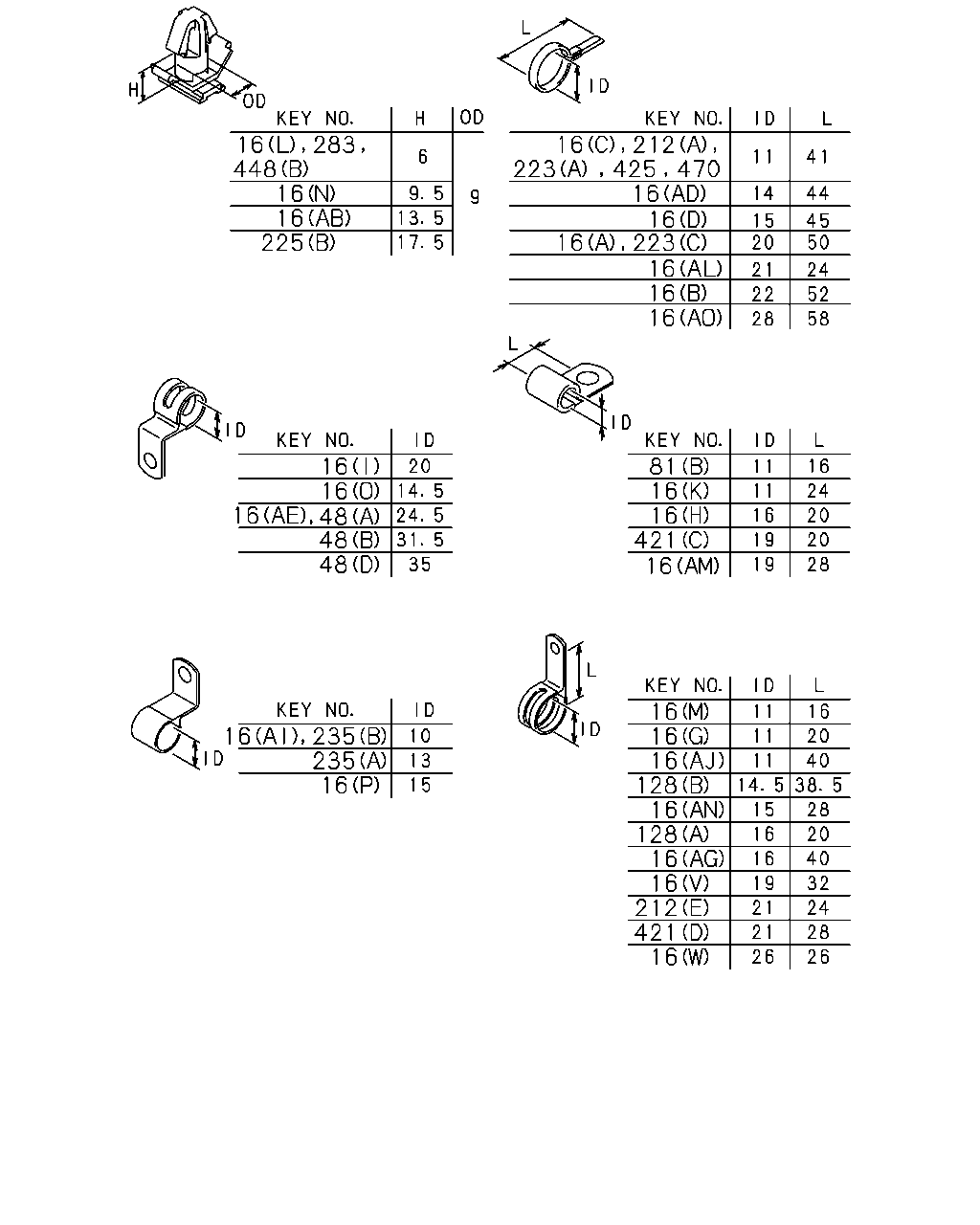

çizim 23073
16 283 448 16 16 225 16 16 16 48 48 48 16 235 235 16 16 421 212 16 16 128 16 128 16 16 16 16 421 16 16 81 16 16 16 223 16 16 16 223 425 470 212 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(AO) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AK) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 09 1 0107-0112
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 03 1 0201-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (AD) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=41 		1-09700-403-0 05 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0108
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
(R) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(S) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(V) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(AL) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(W) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(X) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(Y) L=500 		1-09707-082-1 01 1 0105-
16 CLIP; HARNESS
(Z) L=180 		1-09707-162-1 11 1 0105-
16 CLIP; HARNESS
(AA) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(AA) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (L) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
(AB) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (AH) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0105-0106
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(AC) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(M) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
16 CLIP; HARNESS
(M) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 01 1 0105-0107
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (G) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
(G) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (G) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (H) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (H) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (H) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4(Q4F) (AD) ID=14 L=44 		9-09917-427-0 05 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Z) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=15 L=45 		1-09700-402-0 01 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=175 		1-09707-176-1 01 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=140 		5-09707-031-1 06 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=140 		5-09707-031-1 07 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		9-09525-035-0 02 1 0105-0205
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		9-09525-535-0 02 1 0105-0205
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
FULLER M/T<X9B> (H) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
FULLER M/T<X9B> (H) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24 		9-09525-045-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
FULLER M/T<X9B> (L) OD=9 H=6 		1-09709-178-0 02 1 0105-
16 CLIP; HARNESS
FULLER M/T<X9B> (AH) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (AF) L=36 		8-94224-891-1 01 1 0105-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) L=250 		5-09707-030-1 01 1 0107-0111
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 01 1 0112-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) L=250 		5-09707-030-1 01 1 0112-0205
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
PTO CONTROL OPERATION CAB BACK<TBZ> (C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (N) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (P) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (AM) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (AM) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (O) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0108
16 CLIP; HARNESS
ZF M/T<X9E> (O) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (A) ID=20 L=50 		9-09917-430-0 12 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 09 1 0105-0112
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (A) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 10 1 0105-0112
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 10 1 0105-0112
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (L) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=20 		9-09525-032-0 01 1 0105-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=20 		0-95235-032-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(D) RUBBER COATING ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0105-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 11 1 0105-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 11 1 0505-
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (D) VINYL COATING ID=35 H=45 L=33 		1-09701-047-0 02 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-0105
212 CLIP; HORN HARNESS
(B) L=300 		1-09707-001-1 01 1 0105-0105
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-0111
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0112-
212 CLIP; HORN HARNESS
(D) L=140 		5-09707-031-1 01 1 0105-0105
212 CLIP; HORN HARNESS
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (D) L=140 		5-09707-031-1 01 1 0105-0105
212 CLIP; HORN HARNESS
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (D) L=140 		5-09707-031-1 01 1 0105-0111
212 CLIP; HORN HARNESS
(E) ID=21 L=24 		8-94176-807-1 01 1 0105-0105
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 12 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0105-
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=17.5 		1-09709-181-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,ELEC OUTLET12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-0306
425 CLIP; MODULATOR
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=41 		1-09700-403-0 06 1 0201-
425 CLIP; MODULATOR
WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=41 		1-09700-403-0 07 1 0201-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-

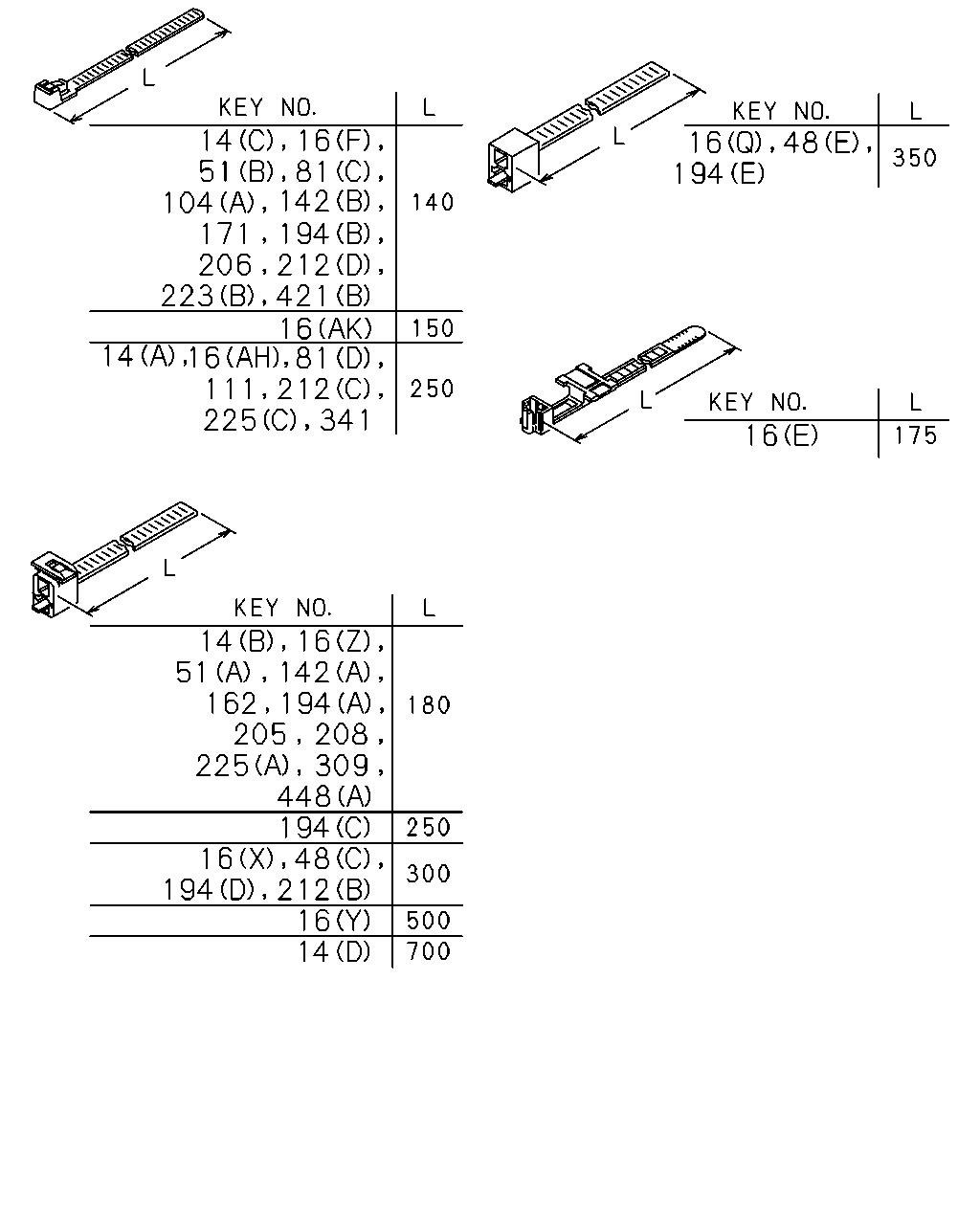

çizim 23074
14 16 81 51 104 142 171 194 206 212 223 421 16 14 16 81 111 212 225 341 14 16 142 51 162 194 205 208 309 225 448 194 16 48 194 212 16 14 16 16 48 194
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 02 1 0105-
14 CLIP; BAND,HARNESS
(D) L=700 		1-09707-190-0 01 1 0105-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250 		5-09707-030-1 02 1 0105-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0105-0404
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
MJX16P M/T(Y3Z) (C) L=140 		5-09707-031-1 02 1 0107-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(AO) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AK) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 09 1 0107-0112
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 03 1 0201-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (AD) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=41 		1-09700-403-0 05 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0108
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
(R) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(S) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(V) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(AL) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(W) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(X) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(Y) L=500 		1-09707-082-1 01 1 0105-
16 CLIP; HARNESS
(Z) L=180 		1-09707-162-1 11 1 0105-
16 CLIP; HARNESS
(AA) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(AA) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (L) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
(AB) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (AH) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0105-0106
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(AC) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(M) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
16 CLIP; HARNESS
(M) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 01 1 0105-0107
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (G) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
(G) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (G) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (H) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (H) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (H) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4(Q4F) (AD) ID=14 L=44 		9-09917-427-0 05 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Z) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=15 L=45 		1-09700-402-0 01 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=175 		1-09707-176-1 01 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=140 		5-09707-031-1 06 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=140 		5-09707-031-1 07 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		9-09525-035-0 02 1 0105-0205
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		9-09525-535-0 02 1 0105-0205
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
FULLER M/T<X9B> (H) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
FULLER M/T<X9B> (H) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24 		9-09525-045-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
FULLER M/T<X9B> (L) OD=9 H=6 		1-09709-178-0 02 1 0105-
16 CLIP; HARNESS
FULLER M/T<X9B> (AH) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (AF) L=36 		8-94224-891-1 01 1 0105-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) L=250 		5-09707-030-1 01 1 0107-0111
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 01 1 0112-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) L=250 		5-09707-030-1 01 1 0112-0205
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
PTO CONTROL OPERATION CAB BACK<TBZ> (C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (N) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (P) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (AM) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (AM) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (O) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0108
16 CLIP; HARNESS
ZF M/T<X9E> (O) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (A) ID=20 L=50 		9-09917-430-0 12 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 09 1 0105-0112
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (A) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 10 1 0105-0112
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 10 1 0105-0112
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (L) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=20 		9-09525-032-0 01 1 0105-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=20 		0-95235-032-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(D) RUBBER COATING ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0105-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 11 1 0105-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 11 1 0505-
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (D) VINYL COATING ID=35 H=45 L=33 		1-09701-047-0 02 1 0105-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0105-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0105-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8),6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0105-
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L),6WG1 TC-C(72L) (A) L=180 		1-09707-162-1 02 1 0105-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 06 1 0105-
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (A) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
6WA1 TC-C(55L) EXC. RLD GOVERNOR(SD7),EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(D) L=300 		1-09707-001-1 01 1 0107-0504
194 CLIP; BAND
(E) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0107-
194 CLIP; BAND
(C) L=250 		1-09707-126-0 02 1 0105-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 03 1 0105-0106
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 0107-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0106
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0106
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0107-0112
194 CLIP; BAND
ELECTRONIC GOV RED4(Q4F) (B) L=140 		5-09707-031-1 01 1 0201-0305
194 CLIP; BAND
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=140 		5-09707-031-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-0105
212 CLIP; HORN HARNESS
(B) L=300 		1-09707-001-1 01 1 0105-0105
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-0111
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0112-
212 CLIP; HORN HARNESS
(D) L=140 		5-09707-031-1 01 1 0105-0105
212 CLIP; HORN HARNESS
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (D) L=140 		5-09707-031-1 01 1 0105-0105
212 CLIP; HORN HARNESS
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (D) L=140 		5-09707-031-1 01 1 0105-0111
212 CLIP; HORN HARNESS
(E) ID=21 L=24 		8-94176-807-1 01 1 0105-0105
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 12 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0105-
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=17.5 		1-09709-181-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 02 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,ELEC OUTLET12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-0306
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
çizim 24051
38 150 239 38 88 150 38 242 38 38 313 38 38 313 38 242 313 38 139 38 139 313 38 38 242 358 133 516 133 423 294 219 219 294 340 524 515 64 133 255 119
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (C) M8X20 FLANGE 		0-28680-820-0 03 1 0206-0512
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (C) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0205
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (C) M8X20 FLANGE 		0-28680-820-0 05 1 0206-0512
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (C) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0108
38 BOLT; CLIP,HARNESS
(L) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(L) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0112
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 06 1 0201-0205
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0206-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 10 1 0105-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 10 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0403
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0105-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0205
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0205
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0211
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0211
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0211
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (J) M10X20 FLANGE 		0-28781-020-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (J) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0205
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0205
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0205
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0211
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0211
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0403
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0403
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
150 BOLT; CLIP
(A) M8X12 W/LK WASHER 		0-50040-812-0 01 1 0105-0512
150 BOLT; CLIP
(A) M8X12 W/LK WASHER 		0-50540-812-0 01 1 0601-
150 BOLT; CLIP
6WF1 TC-C(1B8) (B) M6X12 FLANGE 		0-28080-612-0 01 1 0105-0512
150 BOLT; CLIP
6WF1 TC-C(1B8) (B) M6X12 FLANGE 		0-28050-612-0 01 1 0601-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602
219 NUT
ISUZU M/T<X9A>,ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
ISUZU M/T<X9A>,ZF M/T<X9E> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0107-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0206-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 12 1 0603-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 03 1 0105-0602
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0205
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91150-108-0 02 1 0206-0602
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0602
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
EXC. FULLER M/T<X9B> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0512
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
EXC. FULLER M/T<X9B> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0107-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0105-
515 NUT; BRKT
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M10 		9-09110-510-0 02 1 0105-0512
515 NUT; BRKT
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M10 		0-91110-510-0 02 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 80995
462 168 168 16 104 104 148 81 16 16 16 16 116 421 16 16 16 321
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(AO) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AK) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 09 1 0107-0112
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 03 1 0201-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (AD) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=41 		1-09700-403-0 05 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0108
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
(R) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(S) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(AE) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(V) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(AL) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(W) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(X) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(Y) L=500 		1-09707-082-1 01 1 0105-
16 CLIP; HARNESS
(Z) L=180 		1-09707-162-1 11 1 0105-
16 CLIP; HARNESS
(AA) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(AA) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (L) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
(AB) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (AH) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0105-0106
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (F) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(AC) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(M) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
16 CLIP; HARNESS
(M) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 01 1 0105-0107
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (G) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
(G) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (G) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (H) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (H) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (H) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (H) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(AN) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4(Q4F) (AD) ID=14 L=44 		9-09917-427-0 05 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Z) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=15 L=45 		1-09700-402-0 01 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=175 		1-09707-176-1 01 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=140 		5-09707-031-1 06 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) L=140 		5-09707-031-1 07 1 0105-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		9-09525-035-0 02 1 0105-0205
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		9-09525-535-0 02 1 0105-0205
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
FULLER M/T<X9B> (H) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
FULLER M/T<X9B> (H) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24 		9-09525-045-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
FULLER M/T<X9B> (L) OD=9 H=6 		1-09709-178-0 02 1 0105-
16 CLIP; HARNESS
FULLER M/T<X9B> (AH) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (AF) L=36 		8-94224-891-1 01 1 0105-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AI) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) L=250 		5-09707-030-1 01 1 0107-0111
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 01 1 0112-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) L=250 		5-09707-030-1 01 1 0112-0205
16 CLIP; HARNESS
(AH) L=250 		5-09707-030-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
PTO CONTROL OPERATION CAB BACK<TBZ> (C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (N) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (P) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (AM) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (AM) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (O) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0108
16 CLIP; HARNESS
ZF M/T<X9E> (O) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (A) ID=20 L=50 		9-09917-430-0 12 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 09 1 0105-0112
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (A) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50 		9-09917-430-0 10 1 0105-0112
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=41 		1-09700-403-0 10 1 0105-0112
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (L) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=20 		9-09525-032-0 01 1 0105-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=20 		0-95235-032-0 01 1 0607-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 0201-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
321 CLIP; HARNESS LOW PRESS SW
ID=13-18 L=14.5 		1-09709-290-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,ELEC OUTLET12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-0306
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301-
çizim 81399
211 211 312 312 312 312 312 312 312 312 312 312 324 324 334 334 342 342 375
BalonParca AdiParca NoAdetTipApplied Date
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47476-393-0 02 1 0105-0105
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=117 		1-47478-116-0 02 1 0105-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (J) 		1-47479-849-0 01 1 0306-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (B) 		1-82698-358-0 01 1 0306-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (I) L=80 H=20 		1-82699-304-0 01 1 0106-
312 BRACKET; CLIP HARNESS
(H) 		1-82698-382-0 01 1 0107-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-47477-902-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (G) 		1-82699-425-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(E) L=90 B=25 		1-47476-630-0 01 1 0105-0211
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
EXC. FULLER M/T<X9B> (B) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 02 1 0106-0305
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (B) 		1-82698-358-0 02 1 0306-
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (B) 		1-82698-358-0 02 1 0306-
312 BRACKET; CLIP HARNESS
(C) 		1-82699-199-0 01 1 0105-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-82699-239-0 01 1 0105-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=110 		1-82699-589-0 01 1 0105-0105
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82698-258-0 01 1 0105-
334 BRACKET
(A) 		1-53458-362-0 01 1 0105-
334 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-53458-709-1 01 1 0105-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
çizim 81438
185 224 1 224 1 5 178 503 510 530 178 178 178 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0105-0112
1 SLEEVE; RUBBER
ELECTRONIC GOV RED4(Q4F) (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0201-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50 		5-09360-835-0 01 1 0105-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-0403
5 GUIDE; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> L=360 		1-82699-476-1 01 1 0404-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=360 		1-82699-476-1 01 1 0404-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105-
178 GROMMET; HARNESS
(F) ID=39 OD=45 T=19 		1-09332-077-0 01 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0105-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 03 1 0105-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0105-
178 GROMMET; HARNESS
(G) 		1-82699-891-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0105-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=12 		9-09956-725-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0105-0106
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> EXC. ELECTRONIC GOV RED4(Q4F) 180X40 		1-72498-019-0 01 1 0105-
530 SEAL; HARNESS
ELECTRONIC GOV RED4(Q4F) 180X40 		1-72498-019-0 06 1 0105-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105-
530 SEAL; HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> 180X40 		1-72498-019-0 03 1 0105-
530 SEAL; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 180X40 		1-72498-019-0 04 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
