8-01 — LAMP; FRONT AND FRONT SIDE (#12056) — 142 parça

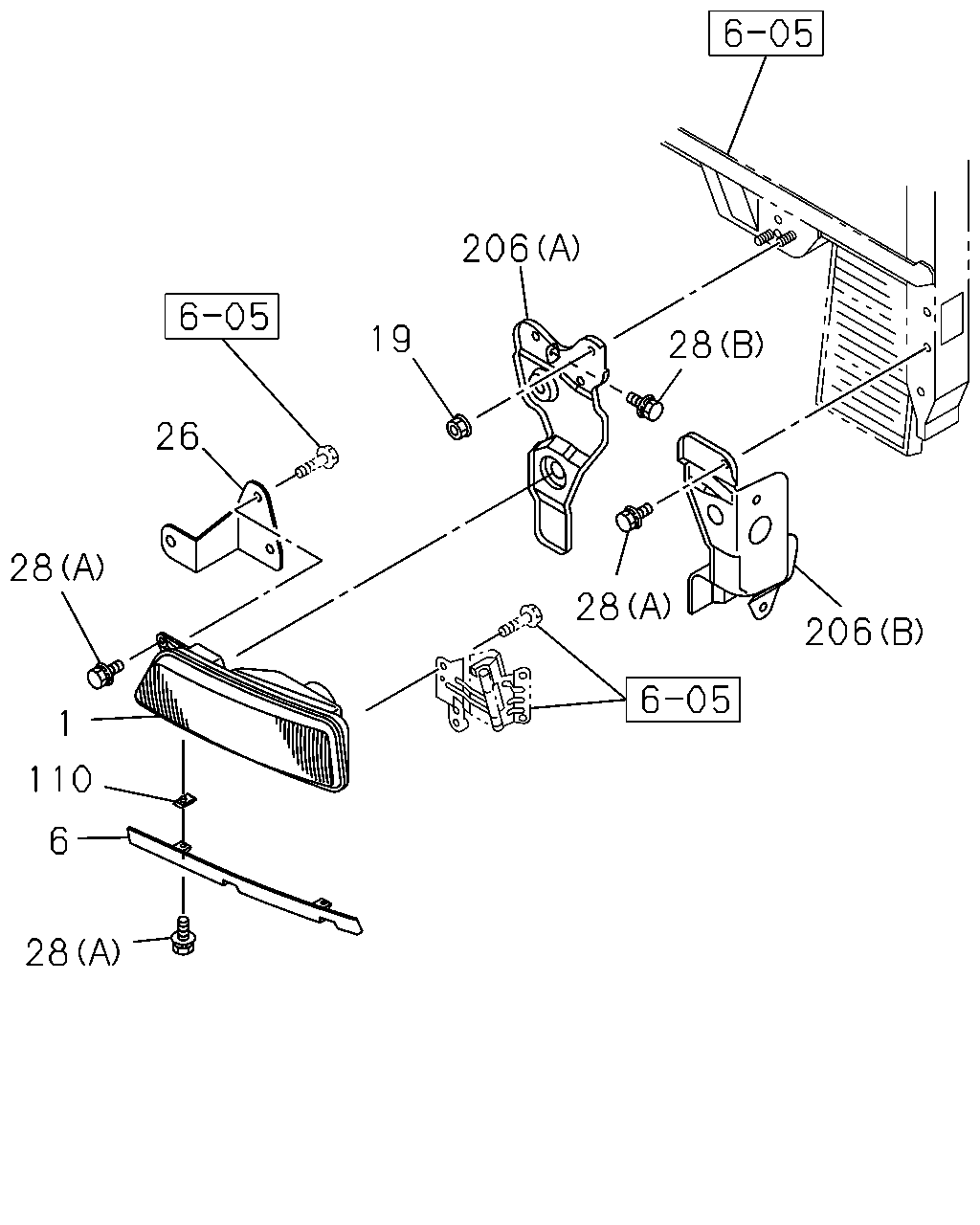

çizim 23072
206 28 206 28 19 26 28 1 110 6 28
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-414-1 01 1 0510-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-413-1 01 1 0510-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0105-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (E) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-1 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-

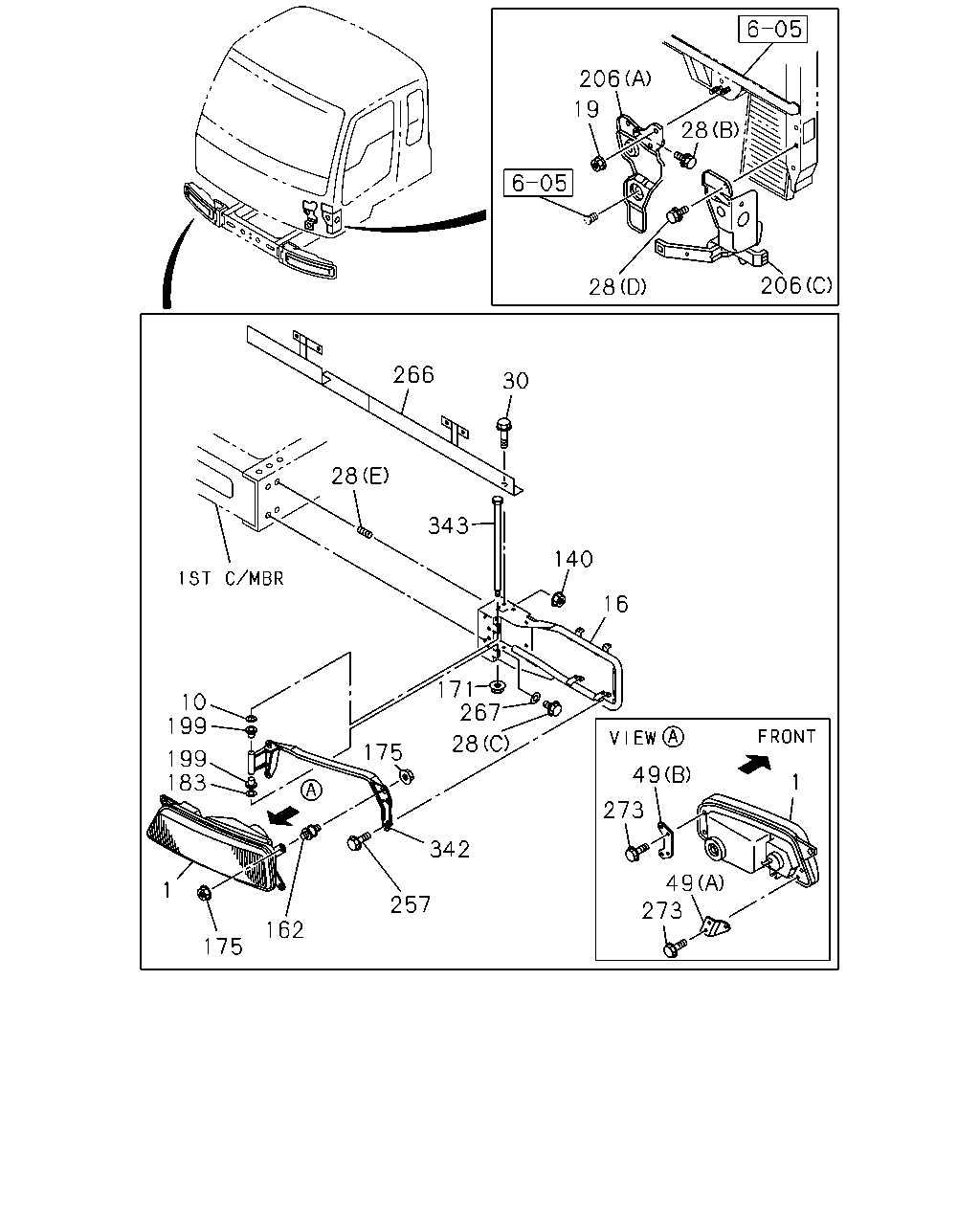

çizim 78672
206 19 28 28 206 30 266 28 343 140 16 49 273 49 1 273 342 257 162 175 1 183 199 199 10 175 28 267 171
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-414-1 01 1 0510-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-413-1 01 1 0510-
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 		9-09160-508-0 02 1 0105-0605
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-120-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-119-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-155-2 02 1 0207-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (E) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
30 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512
30 BOLT; STAY
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-100-0 02 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-102-0 01 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-101-0 01 1 0105-
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91150-210-0 02 1 0105-0602
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 02 1 0603-
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 0105-
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91150-106-0 02 1 0105-0602
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 02 1 0603-
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0105-0602
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 0603-
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> ID=8.5 		9-09855-333-0 02 1 0105-
199 BUSHING
BUMPER W/HEADLAMPS<SLB> 		5-15549-001-1 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28080-820-0 04 1 0105-0512
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28050-820-0 04 1 0601-
266 STAY; BRKT,HEADLAMP 1-82117-137-1 01 1 0105-0510
266 STAY; BRKT,HEADLAMP 1-82117-187-0 01 1 0511-
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22 		9-09164-610-0 04 1 0207-0605
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28680-616-0 08 1 0105-0512
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28650-616-0 08 1 0601-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-087-2 01 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-088-2 01 1 0105-
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> 		1-82119-096-1 02 1 0105-

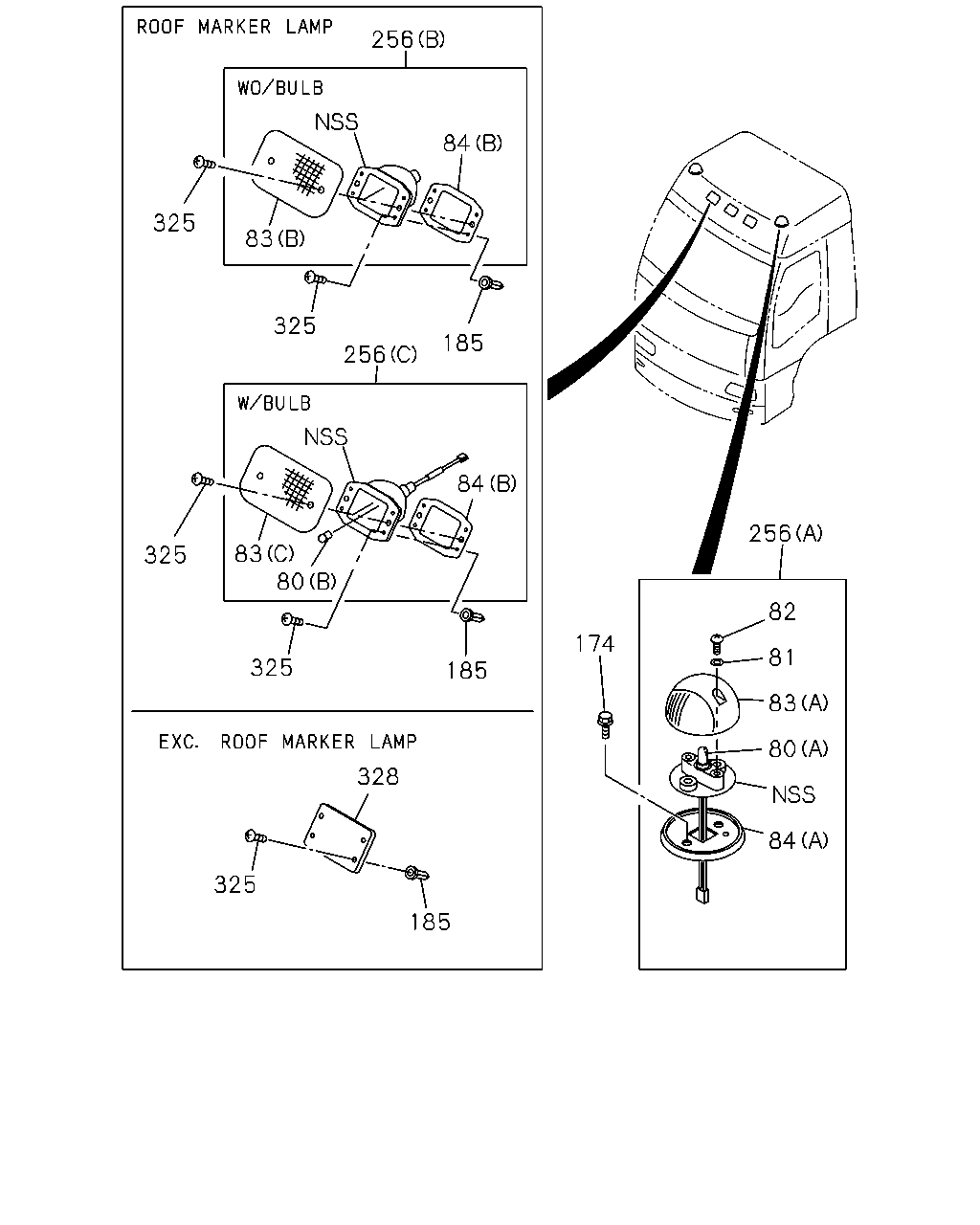

çizim 78673
256 84 325 83 325 256 185 84 325 83 80 325 185 328 325 185 84 80 83 81 82 174 256
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 5W 		8-94135-397-0 02 1 0105-
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 24V 12W 		9-82691-302-0 02 1 0105-
81 SEAT; SCREW
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-012-0 04 1 0105-
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-011-0 04 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-321-0 03 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82215-048-0 02 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) 		1-86830-320-0 02 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) 		1-86830-321-0 01 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) 		1-82215-068-0 02 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) 		1-82215-069-0 01 1 0105-
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-288-0 02 1 0105-
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0105-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0105-
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0105-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-82210-230-0 03 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-129-0 02 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) 		1-82210-229-0 02 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) 		1-82210-230-0 01 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) 		1-86830-131-0 01 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) 		1-86830-170-0 02 1 0105-
325 SCREW; SPD INDICATOR LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING 		9-07066-514-0 12 1 0105-0603
325 SCREW; SPD INDICATOR LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING 		0-71040-514-0 12 1 0604-
328 COVER; LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> 		1-76217-122-1 03 1 0105-

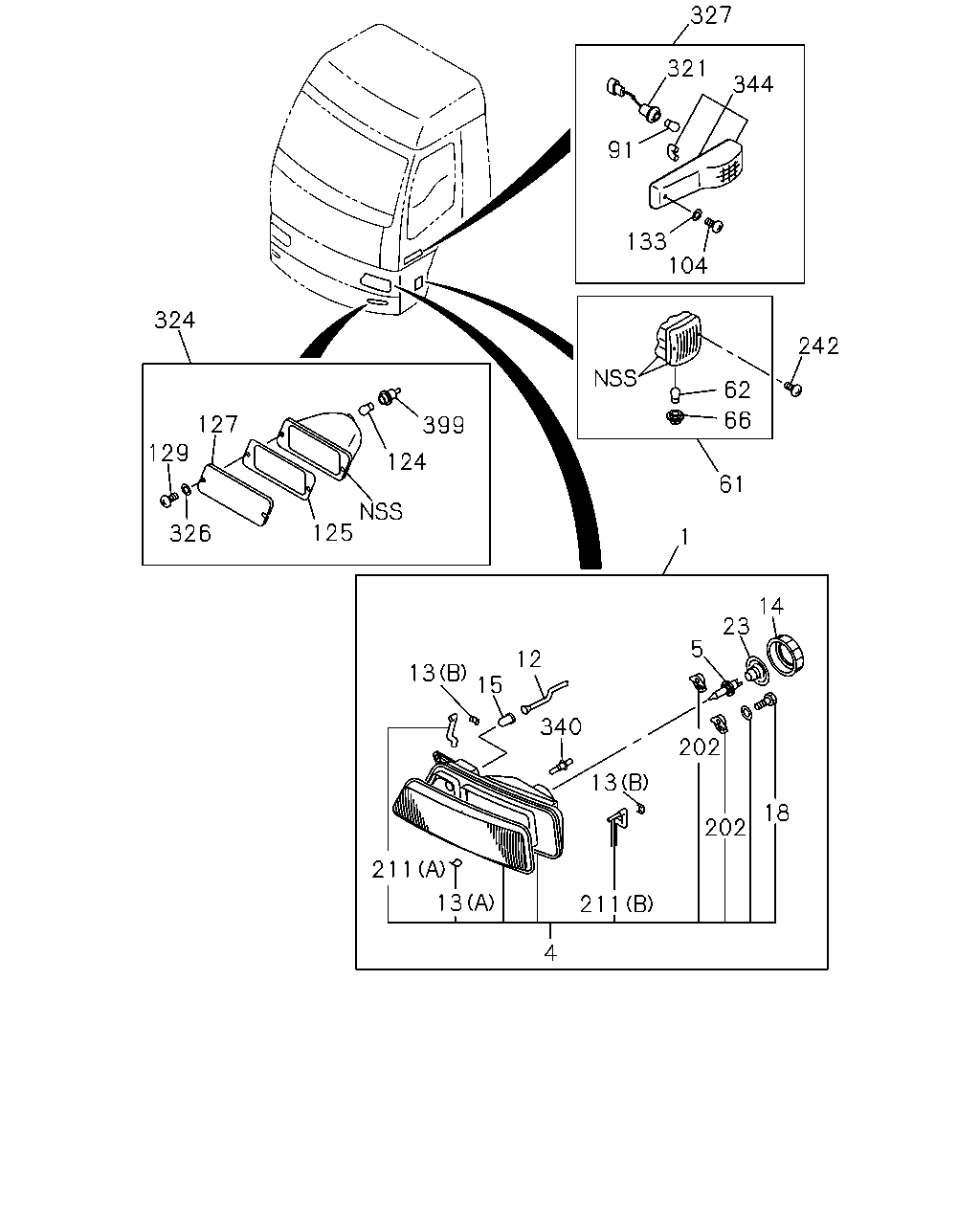

çizim 79863
327 321 344 91 133 104 242 62 66 61 1 14 23 5 202 202 18 211 13 4 13 211 13 15 340 12 125 326 129 127 324 124 399
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-414-1 01 1 0510-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-413-1 01 1 0510-
4 HEADLAMP UNIT
24V 75/70W 		1-82119-129-0 01 1 0105-
4 HEADLAMP UNIT
24V 75/70W 		1-82119-128-0 01 1 0105-
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0105-
12 HARNESS; HEADLAMP 1-82118-012-0 02 1 0105-
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0105-
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0105-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0105-
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0105-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0105-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-188-2 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0105-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0105-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0105-
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0105-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0105-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0105-
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0105-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0105-0206
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0105-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0105-0207
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0105-
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0105-
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0105-
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0105-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0105-
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0105-
