Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#12053) — 288 parça

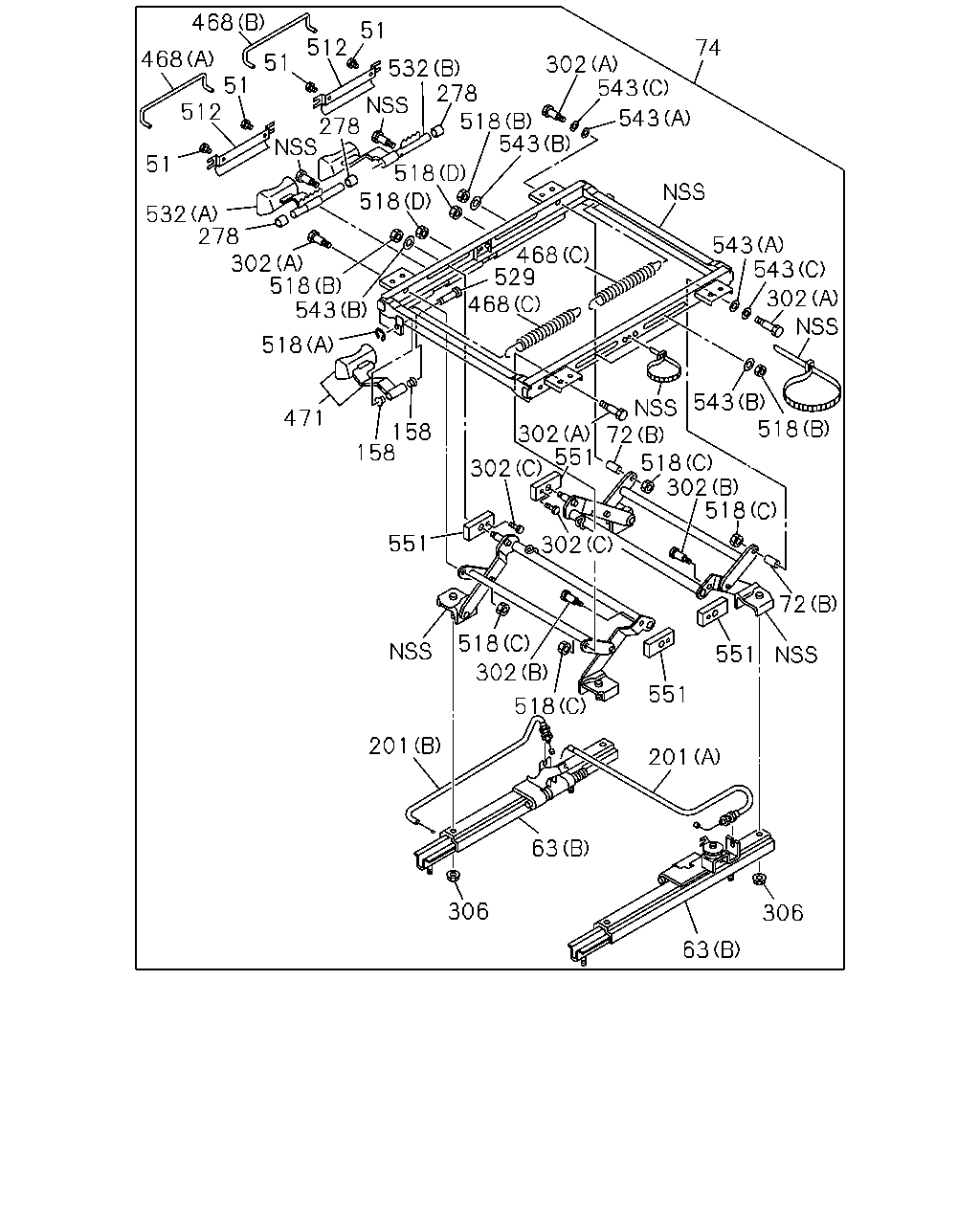

468 468 512 51 51 512 51 532 278 518 543 302 543 543 74 543 543 302 543 518 72 551 551 201 306 63 63 306 201 518 302 518 302 518 302 518 72 551 302 302 551 158 158 471 518 543 468 529 468 518 518 278 518 302 278 532 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-325-1	04	1	0105-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75517-953-0	01	1	0105-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-199-1	01	1	0105-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-323-0	01	1	0105-
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) HIGHT CONTROL	1-75518-334-1	02	1	0105-
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DRIVER	1-75517-911-0	02	1	0105-0105
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DRIVER	1-75517-911-0	02	1	0105-0105
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) DRIVER	1-75517-911-0	02	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-959-1	01	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-330-1	01	1	0105-
158	BUSHING; LINK ARM EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-209-0	02	1	0105-
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) L=667	1-75518-288-0	01	1	0105-
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) L=605	1-75518-289-1	01	1	0105-
278	COLLAR; FRT SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-244-0	03	1	0105-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-266-2	02	1	0105-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-270-1	04	1	0105-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-336-1	02	1	0105-
306	NUT; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	06	1	0105-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0105-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0105-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0105-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
471	LEVER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-291-0	01	1	0105-
512	COVER; LEVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-243-1	02	1	0105-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-263-0	01	1	0105-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8	1-75518-264-0	04	1	0105-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE	8-94152-886-0	04	1	0105-
529	PIN; LINK EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-262-0	01	1	0105-
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-203-0	01	1	0105-
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-204-1	01	1	0105-
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-335-0	02	1	0105-
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-337-0	02	1	0105-0406
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) ID=6.4	9-09160-506-0	04	1	0105-
551	SLIDER; HEIGHT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-265-0	04	1	0105-

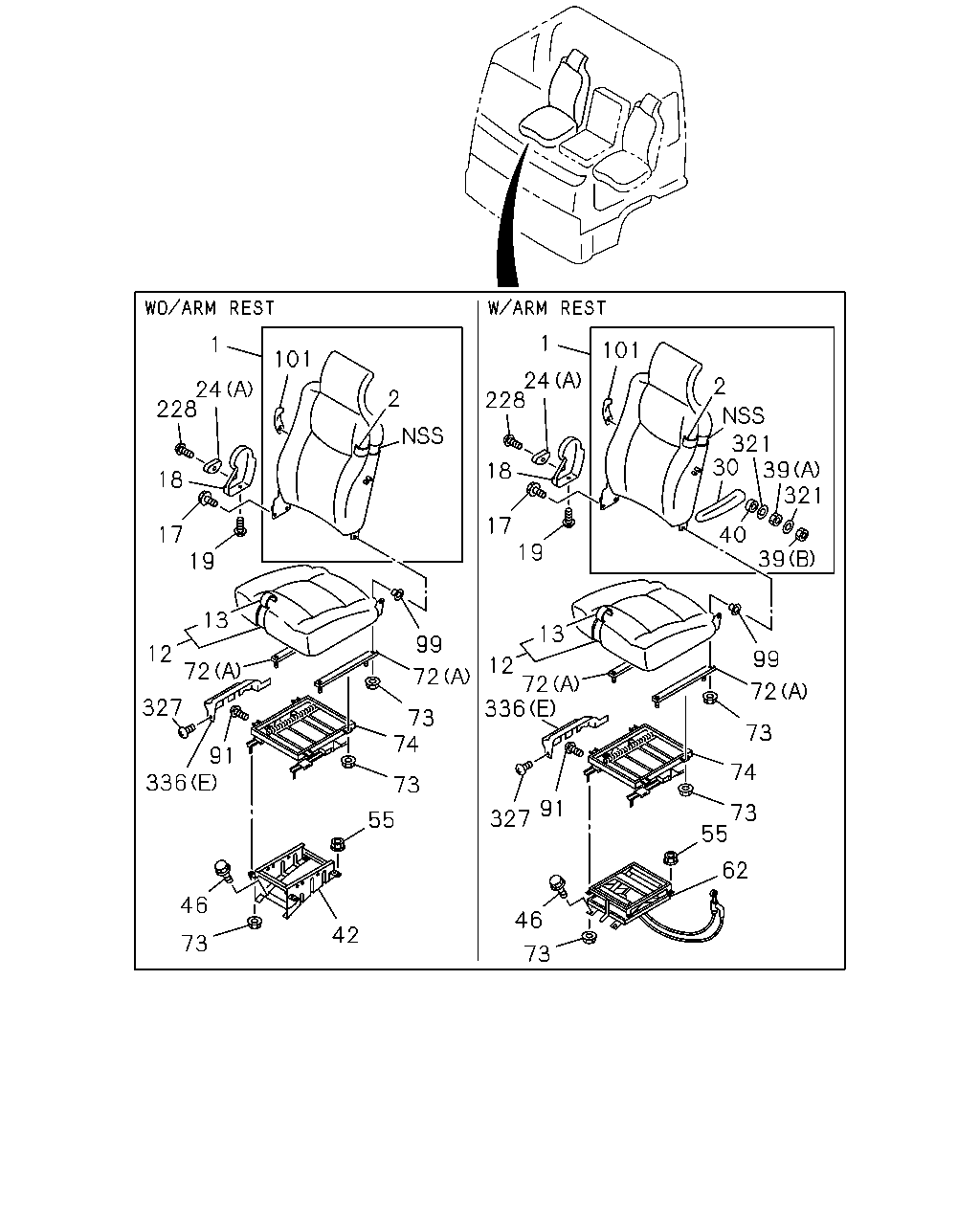

1 24 228 101 2 1 101 2 321 39 321 30 40 39 99 72 73 74 73 55 62 73 46 327 91 336 72 12 13 19 17 18 228 24 18 17 19 13 12 72 327 91 336 46 73 42 55 73 74 73 72 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75027-941-0	01	1	0105-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75207-293-3	01	1	0105-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-294-3	01	1	0105-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-292-4	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75117-965-0	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75127-118-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-119-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-045-1	01	1	0105-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75027-939-0	01	1	0105-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75207-154-2	01	1	0105-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75207-153-2	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75117-964-0	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75127-102-1	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75127-101-1	01	1	0105-
17	BOLT; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SEAT M8X20	8-97255-906-0	02	1	0105-
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SEAT DARK GRAY	8-97867-020-0	01	1	0105-
19	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) DRIVER DARK GRAY	8-97867-021-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) PASSENGER	1-75418-059-0	01	1	0105-0105
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-121-1	01	1	0105-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER M8	1-75147-657-0	01	1	0105-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DRIVER M10	9-09110-410-0	01	1	0105-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	8-94285-921-0	02	1	0105-
42	STAND; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0105-
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-75537-262-6	01	1	0105-
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) HIGHT CONTROL	1-75518-334-1	02	1	0105-
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DRIVER	1-75517-911-0	02	1	0105-0105
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DRIVER	1-75517-911-0	02	1	0105-0105
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) DRIVER	1-75517-911-0	02	1	0106-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	12	1	0105-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	08	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-959-1	01	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-330-1	01	1	0105-
91	SCREW; SEAT ADJ COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-
99	BUSHING; SEAT BACK EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	8-97854-087-0	01	1	0105-
101	LEVER ASM; LUMBAR EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SEAT	5-75190-138-0	01	1	0105-
228	SCREW; KNOB EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0105-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0105-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0302
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	01	1	0105-
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0303-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0303-
327	CLIP; COVER	1-09987-273-0	02	1	0303-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-75518-316-0	01	1	0105-
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-75518-303-0	01	1	0105-

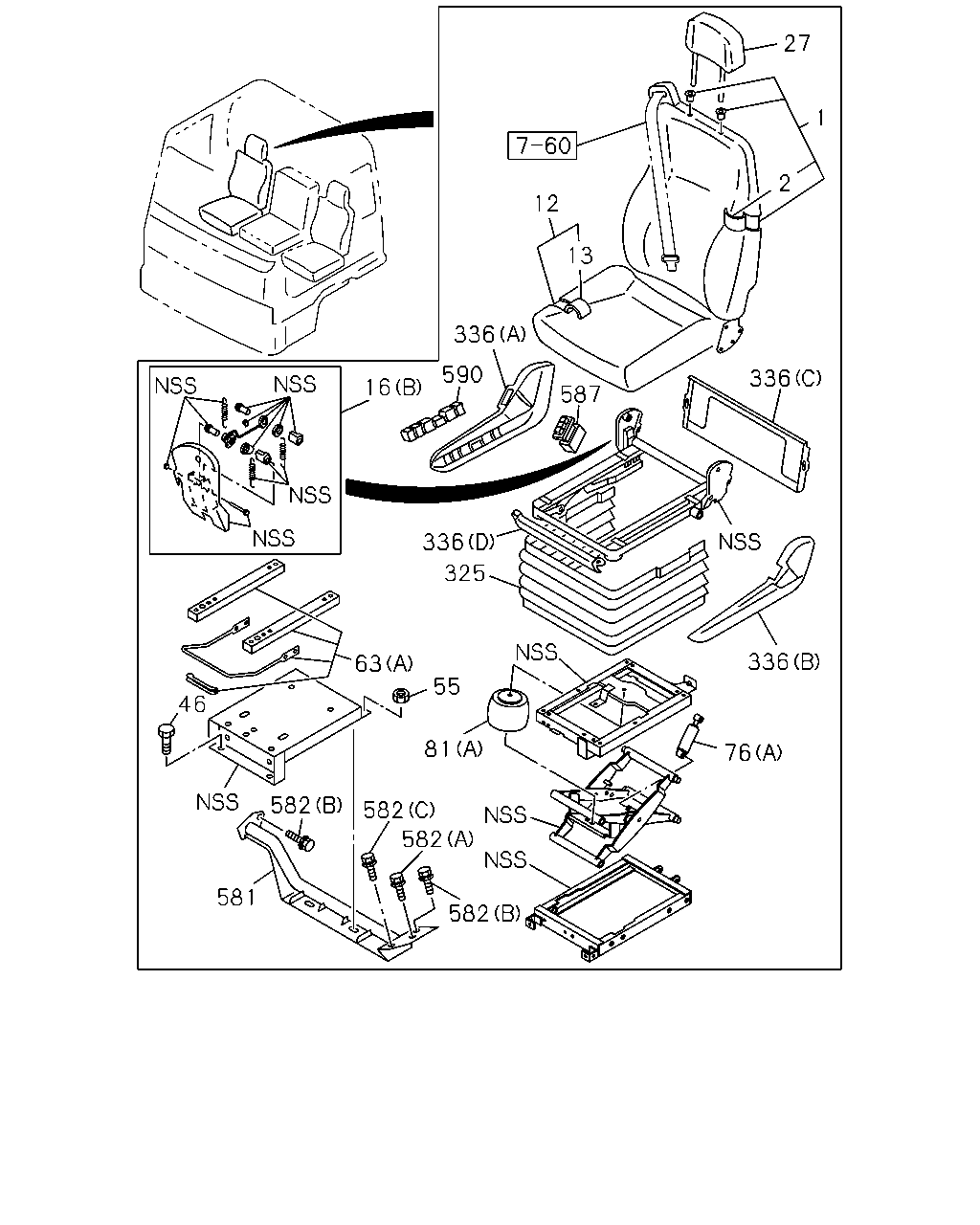

27 1 2 12 13 336 587 336 336 76 81 582 590 16 336 325 55 63 46 582 581 582 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75027-941-0	01	1	0105-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75207-293-3	01	1	0105-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-294-3	01	1	0105-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-292-4	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75117-965-0	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75127-118-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-119-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-045-1	01	1	0105-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75027-939-0	01	1	0105-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75207-154-2	01	1	0105-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75207-153-2	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75117-964-0	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DRIVER	1-75127-102-1	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75127-101-1	01	1	0105-
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A) CENTER SEAT	1-75418-062-1	01	1	0105-
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B) DRIVER SEAT	1-75417-602-0	01	1	0105-
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-75657-029-0	01	1	0105-
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75517-953-0	01	1	0105-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-199-1	01	1	0105-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-323-0	01	1	0105-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-276-0	01	1	0105-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0105-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-275-0	01	1	0105-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	0105-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SEAT	1-75537-274-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0105-
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-75518-316-0	01	1	0105-
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-75518-303-0	01	1	0105-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER	1-73907-605-2	01	1	0105-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DRIVER	1-09980-619-1	02	1	0105-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A) DRIVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C) DRIVER M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0105-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SEAT	1-75197-007-0	01	1	0105-
590	KNOB KIT; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-600-0	01	1	0105-

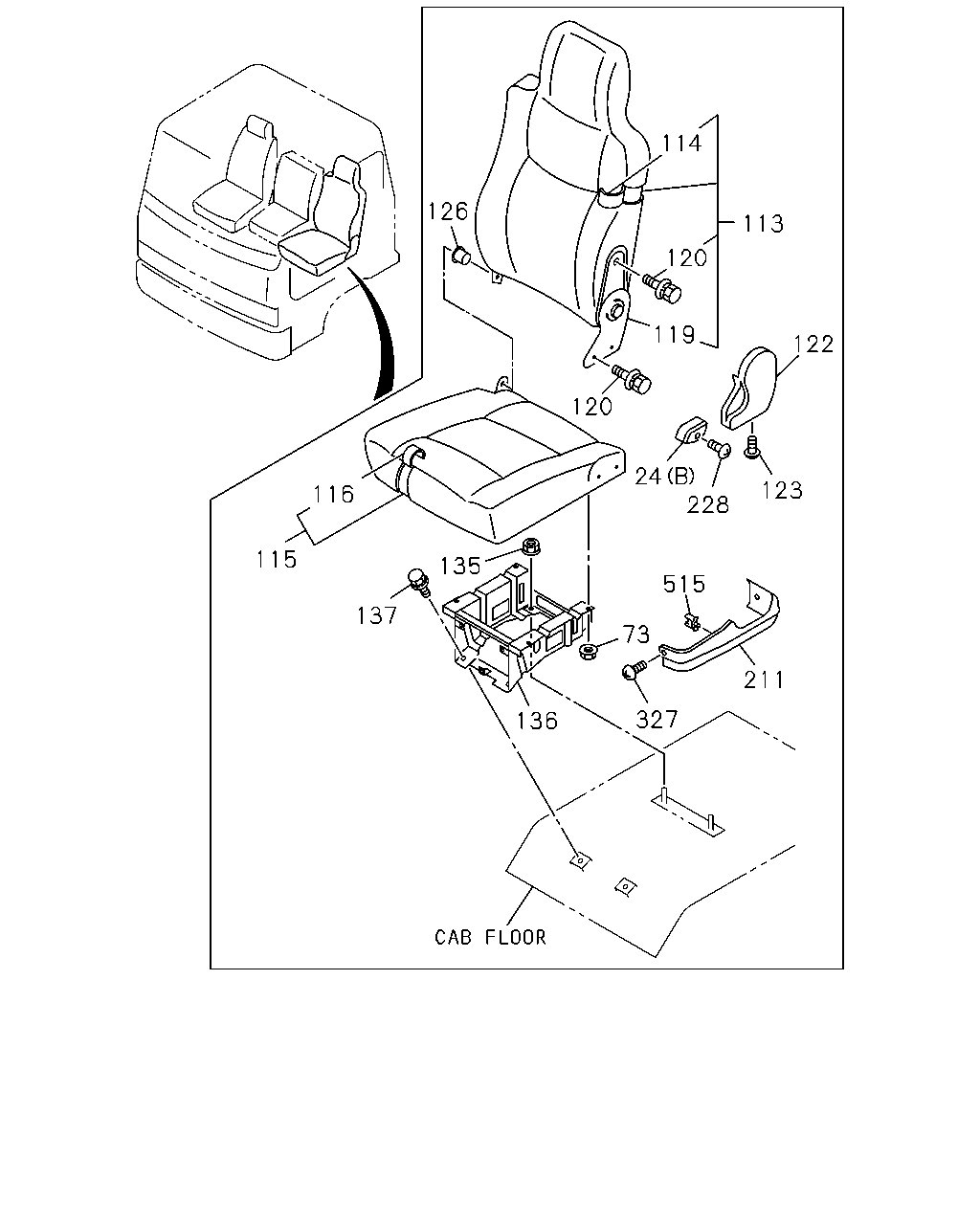

126 116 115 137 135 136 327 73 211 515 123 228 24 120 119 122 120 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) PASSENGER DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) DRIVER DARK GRAY	8-97867-021-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) PASSENGER	1-75418-059-0	01	1	0105-0105
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	12	1	0105-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	08	1	0105-
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75026-796-0	01	1	0105-0105
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75208-191-4	01	1	0106-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75207-302-4	01	1	0105-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER	1-75026-735-0	01	1	0105-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER	1-75208-074-3	01	1	0106-
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75207-228-0	01	1	0105-0105
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75207-549-1	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER	1-75116-592-1	01	1	0105-
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75116-709-2	01	1	0105-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75127-126-1	01	1	0105-
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER	1-75127-059-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75026-784-2	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-299-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-215-2	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-691-2	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-123-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-093-1	01	1	0105-
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-597-0	01	1	0105-
120	BOLT; RECLINING ADJ DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT M8X20	8-97255-906-0	02	1	0105-
120	BOLT; RECLINING ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER SEAT M8X20	8-97255-906-0	02	1	0105-
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT M8X20	8-97255-906-0	04	1	0105-
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0105-0105
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0105-0105
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0106-
122	COVER; ADJ,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER SEAT DARK GRAY	8-97859-018-0	01	1	0106-
122	COVER; ADJ,RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER SEAT	1-75418-050-0	01	1	0105-0105
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT	1-75417-598-0	01	1	0105-
123	SCREW; COVER,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
123	SCREW; COVER,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) PASSENGER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) PASSENGER SEAT M6X12	9-03490-612-0	01	1	0105-
126	BUSHING; HINGE,RECLINING PASSENGER SEAT	8-97854-087-0	01	1	0105-
135	NUT; SEAT STAND PASSENGER SEAT M10 FLANGE	1-09984-153-0	02	1	0105-
136	STAND; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75558-550-4	01	1	0105-0105
136	STAND; PASSENGER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75558-602-0	01	1	0105-0105
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0106-
137	BOLT; STAND PASSENGER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-
211	COVER; FRT SEAT PASSENGER	1-72538-274-0	01	1	0105-
228	SCREW; KNOB EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0302
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	01	1	0105-
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0303-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0303-
327	CLIP; COVER	1-09987-273-0	02	1	0303-
515	CLIP; PIPE PASSENGER BLACK	8-94227-248-1	01	1	0105-

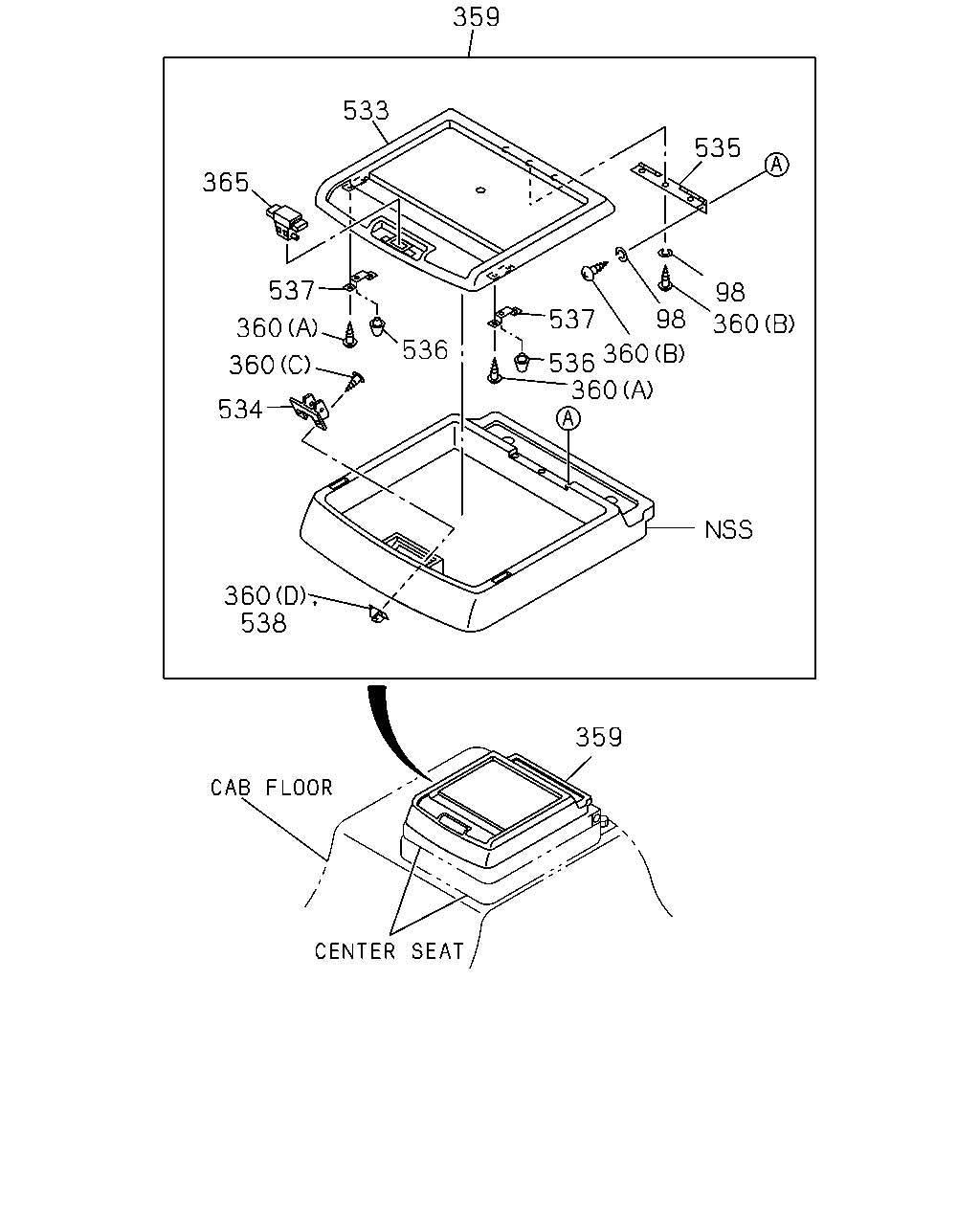

359 538 360 534 360 360 537 365 533 359 535 98 360 98 360 537 536 536 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0105-0211
98	WASHER; HINGE EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310
98	WASHER; HINGE DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0105-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0105-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0105-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0105-
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-0	01	1	0105-
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0105-
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0105-
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0105-
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0105-
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-

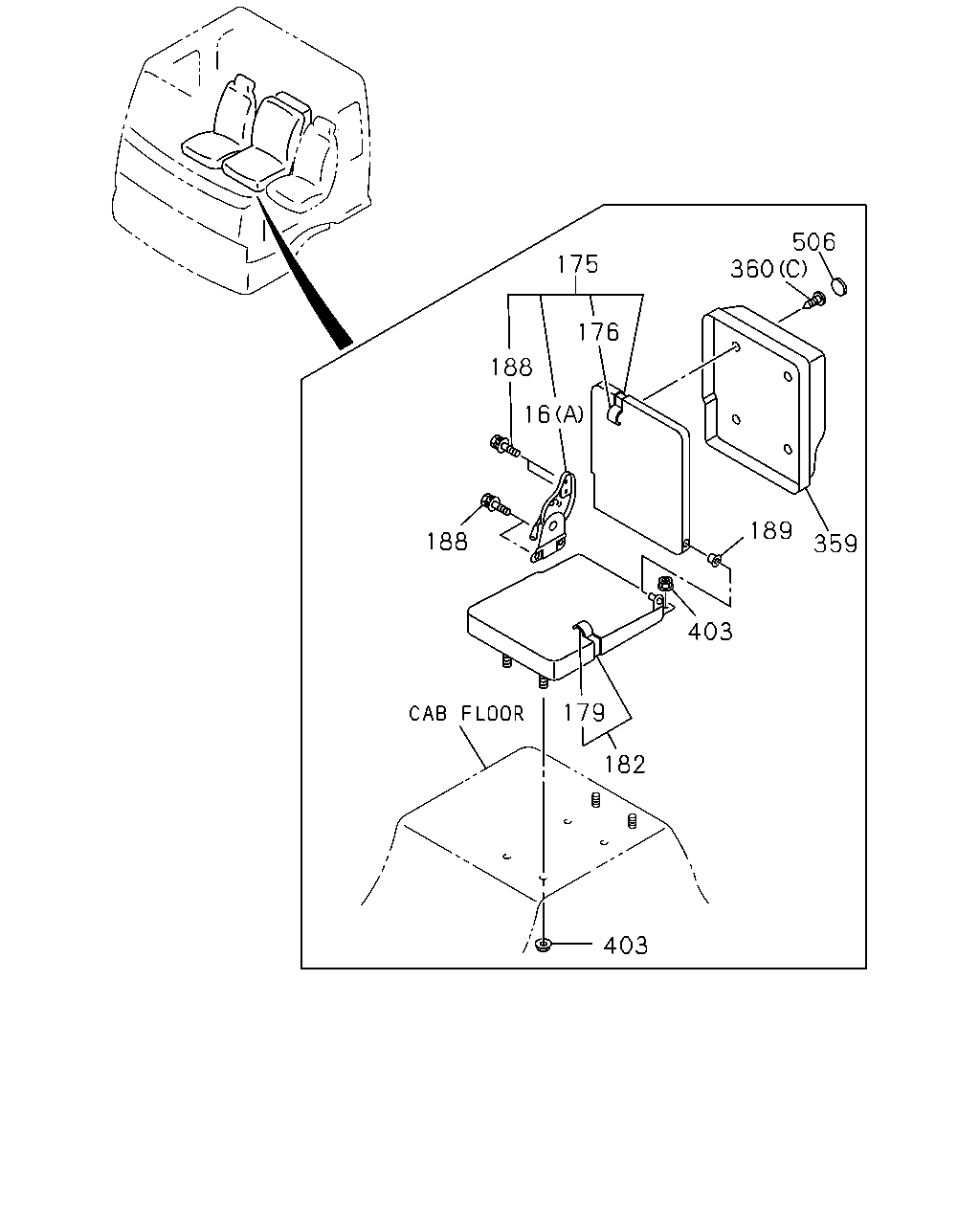

175 176 188 16 188 179 182 403 403 189 359 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A) CENTER SEAT	1-75418-062-1	01	1	0105-
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B) DRIVER SEAT	1-75417-602-0	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-857-3	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75026-855-0	01	1	0105-0406
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75026-856-2	01	1	0407-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-258-2	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-711-2	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75116-651-0	01	1	0105-0406
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75116-710-1	01	1	0407-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-078-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-694-2	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75116-696-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-128-1	01	1	0105-
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-843-3	01	1	0105-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75026-845-2	01	1	0105-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-306-2	01	1	0105-
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0105-
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0105-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0105-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0105-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0105-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-504-1	04	1	0105-0206
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0207-0312
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-2	04	1	0105-

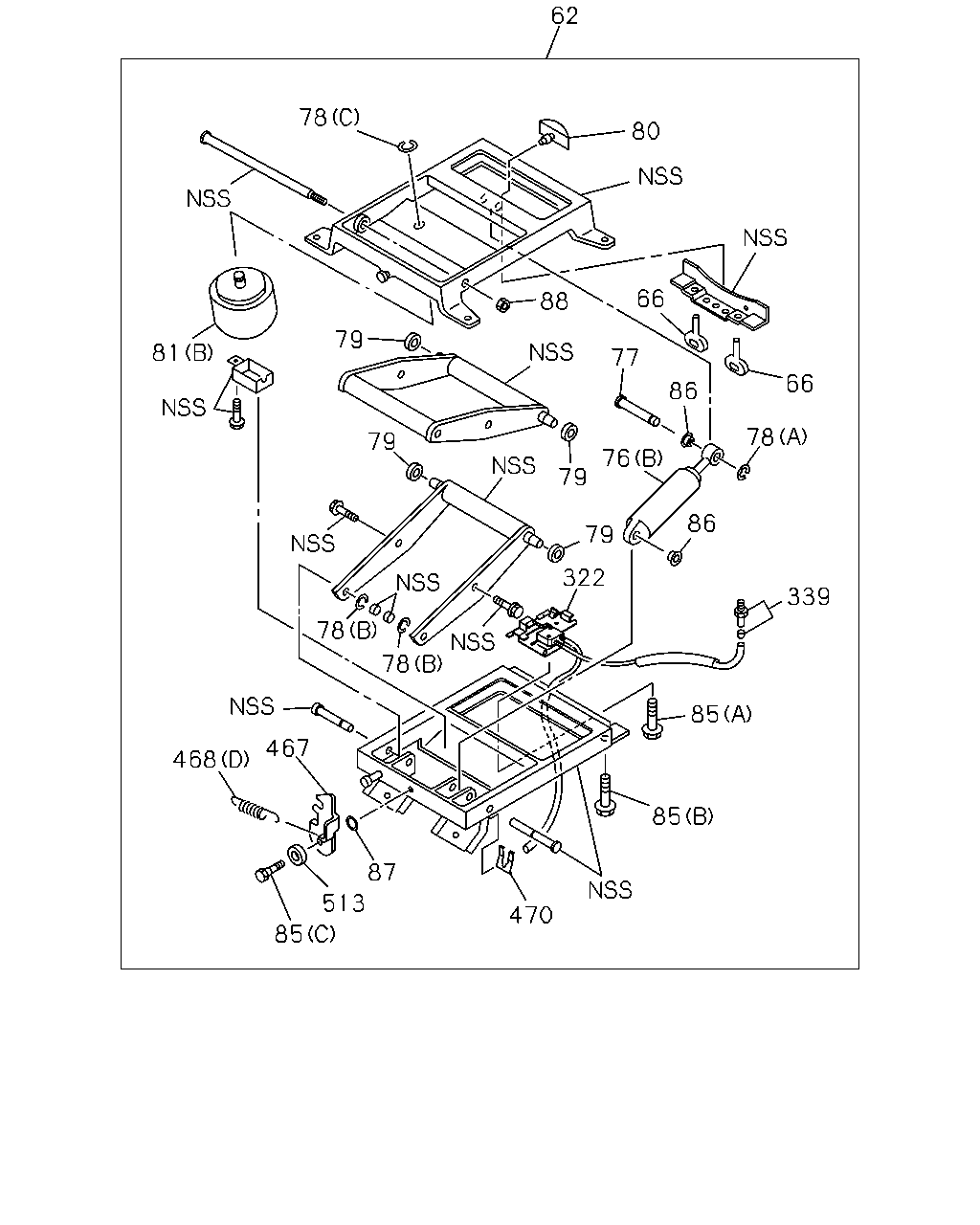

62 80 66 88 77 86 66 78 76 86 339 85 85 470 87 513 85 468 467 78 78 322 79 79 79 79 81 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-75537-262-6	01	1	0105-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-276-0	01	1	0105-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0105-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0406
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0105-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-275-0	01	1	0105-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0105-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0105-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0105-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0105-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0105-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0105-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
