7-43 — SUN VISOR AND ASSIST GRIP (#12051) — 127 parça

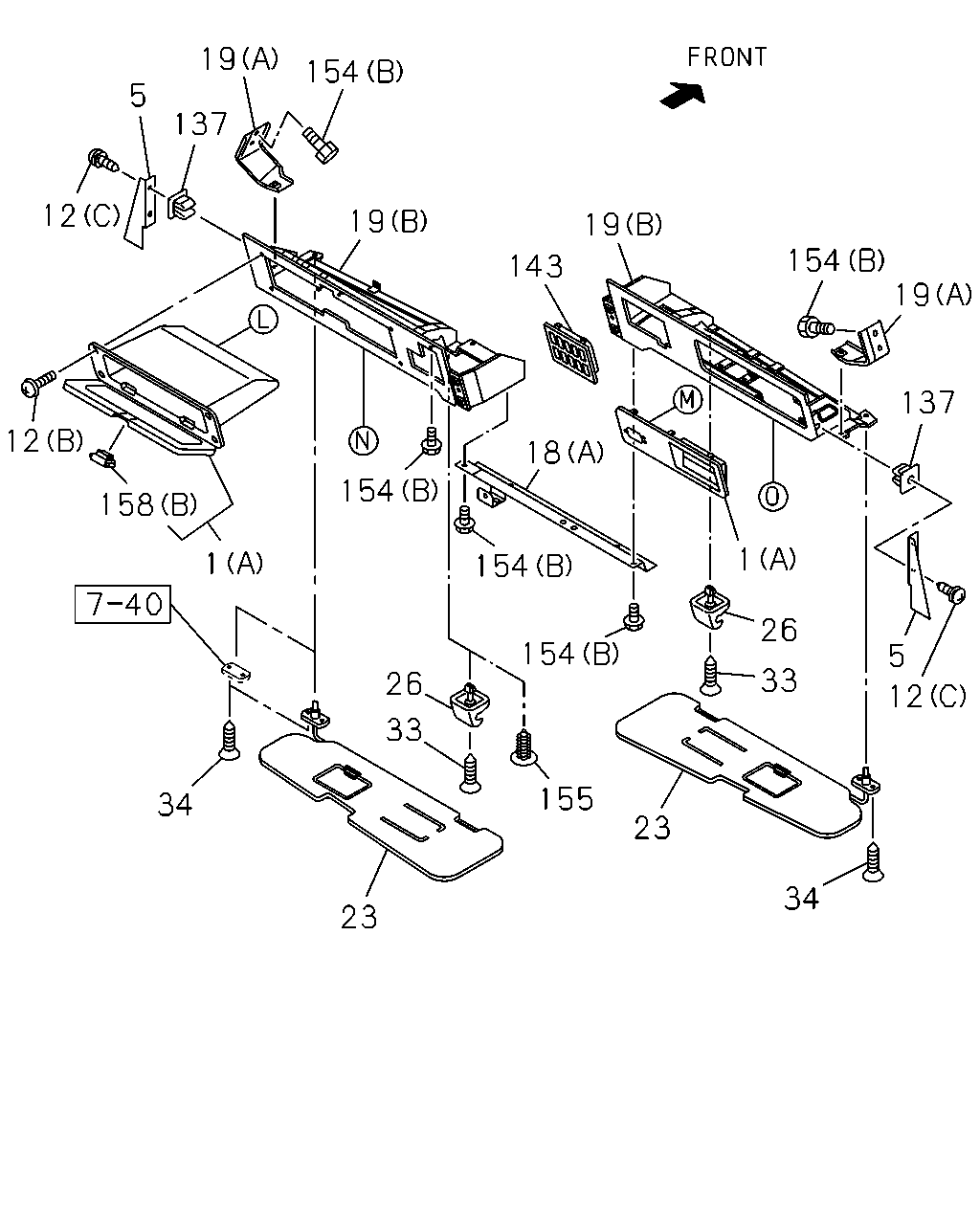

19 5 137 12 19 12 158 154 1 34 23 33 26 155 154 154 18 143 19 154 19 137 1 26 33 5 12 34 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-
23	SUN VISOR	1-73138-156-1	01	1	0105-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-
143	BEZEL	1-72447-768-2	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0105-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-

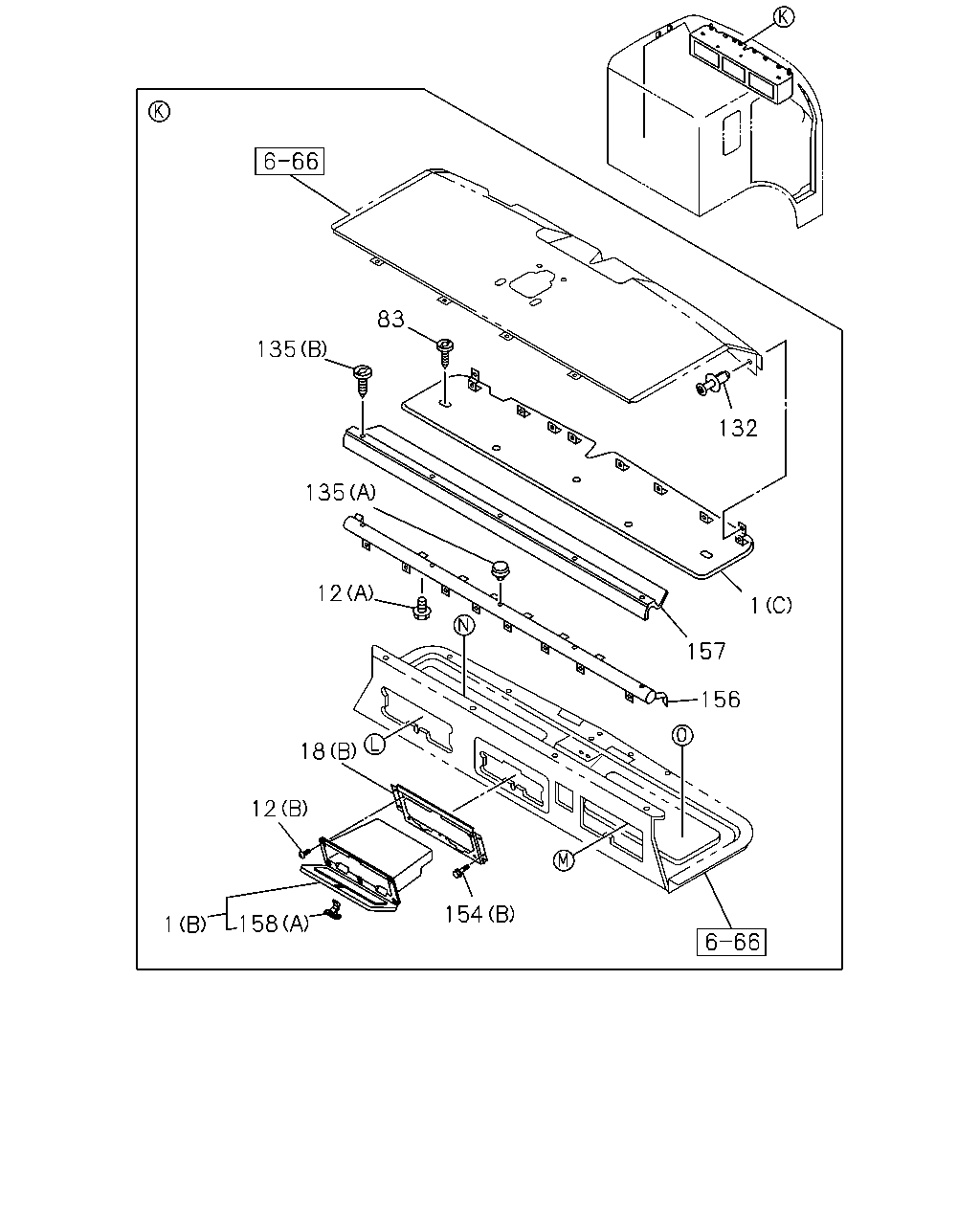

83 135 135 12 18 12 1 158 154 156 157 1 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-4	01	1	0105-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-

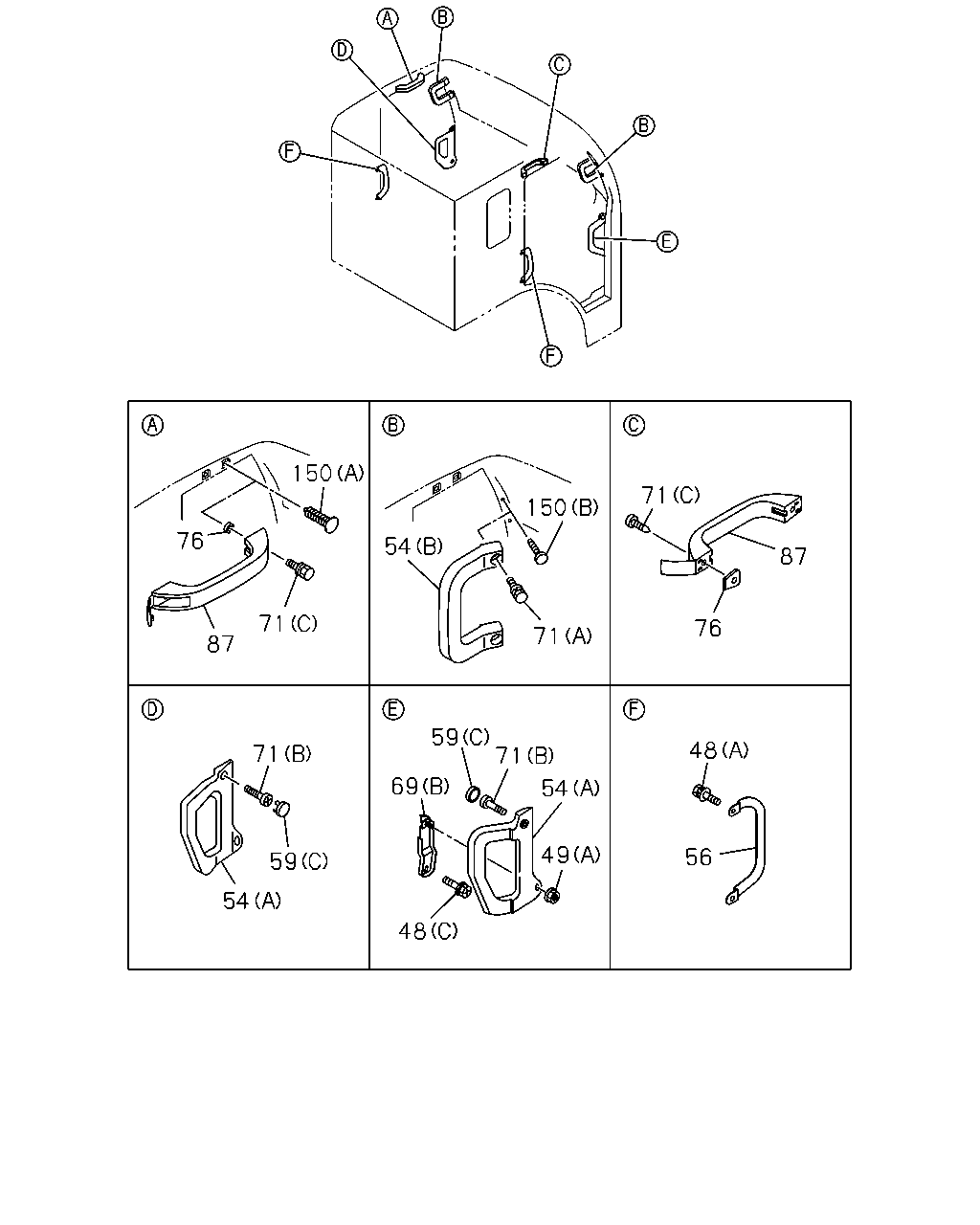

150 76 71 87 71 59 54 48 69 59 71 54 49 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	0105-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0105-
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0105-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-185-1	01	1	0105-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0105-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0105-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0105-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F>	1-73618-180-0	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-

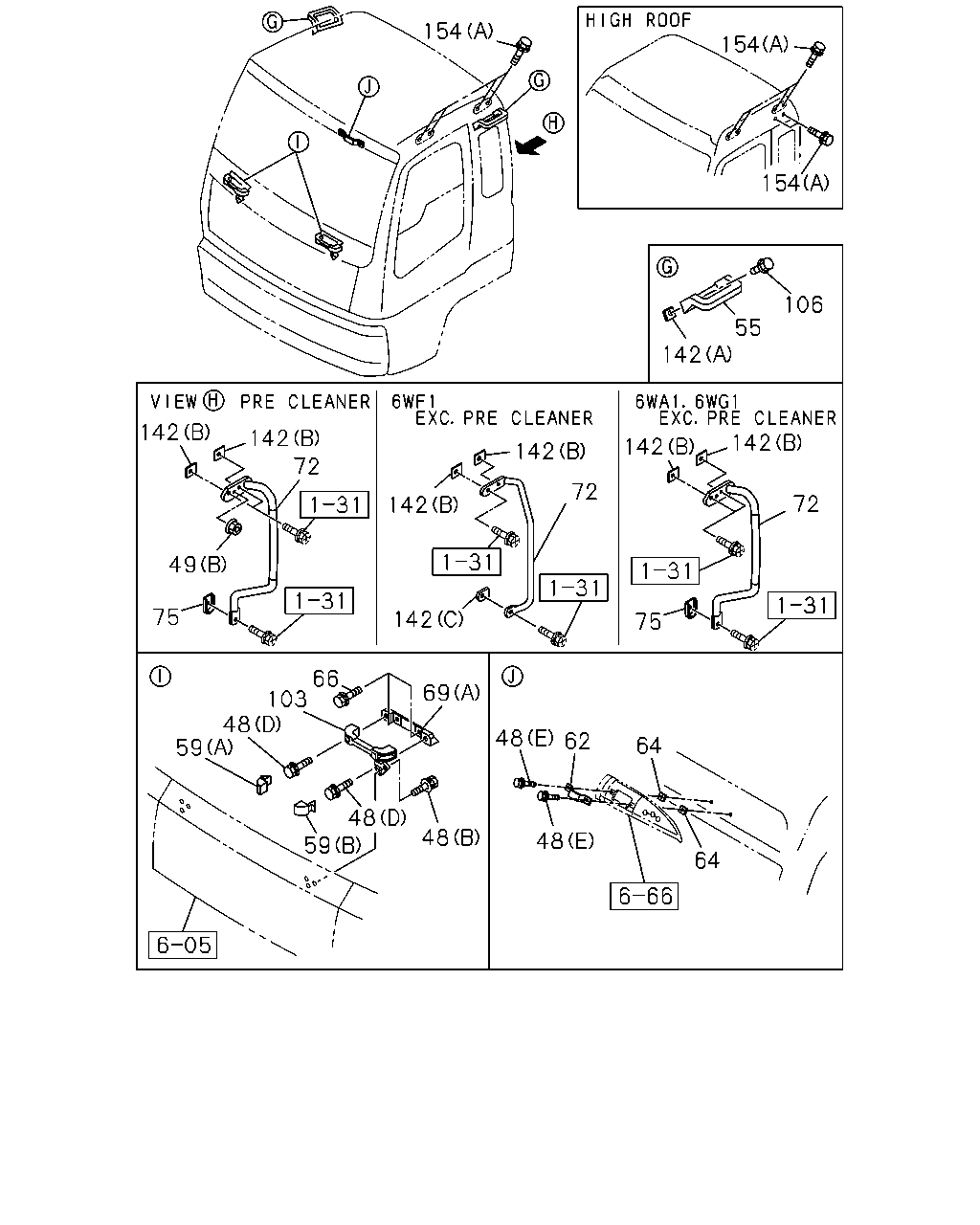

154 154 154 106 55 142 142 142 142 72 72 75 142 142 72 142 142 49 75 66 103 48 59 59 48 69 48 48 62 64 64 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	0105-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0105-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0105-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0105-
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	0105-
72	GRIP; ASSIST,CAB ENTRY,BACK 6WF1 TC-C(1B8) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-608-1	01	1	0105-
75	SHEET; ASSIST GRIP,CAB ENTRY 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71997-548-0	01	1	0105-
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
142	SEAL; ASSIST GRIP 6WF1 TC-C(1B8) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
