◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#12049) — 135 parça

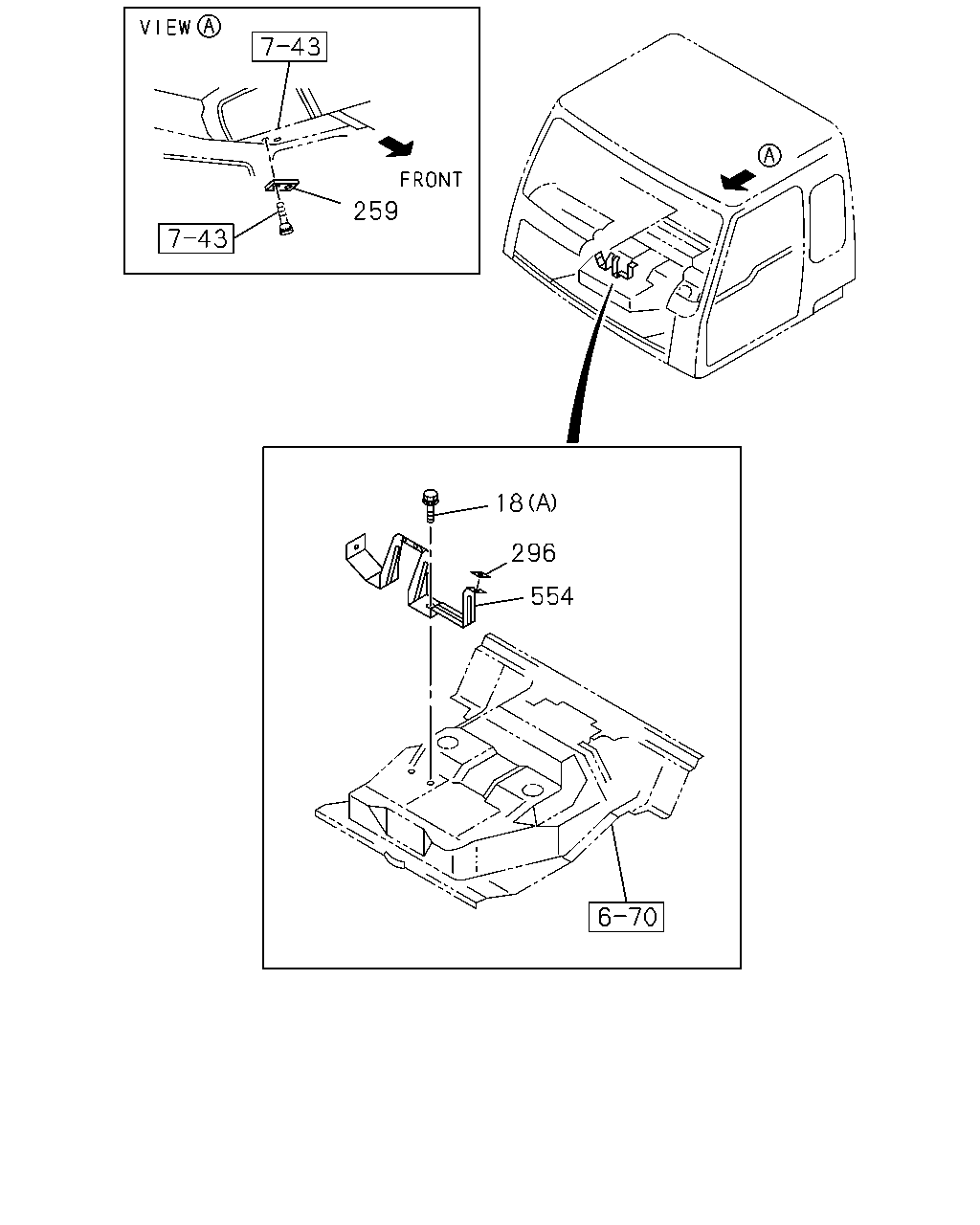

çizim 21163
259 18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
18 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
18 BOLT; BRKT
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0105-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0105-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0105-

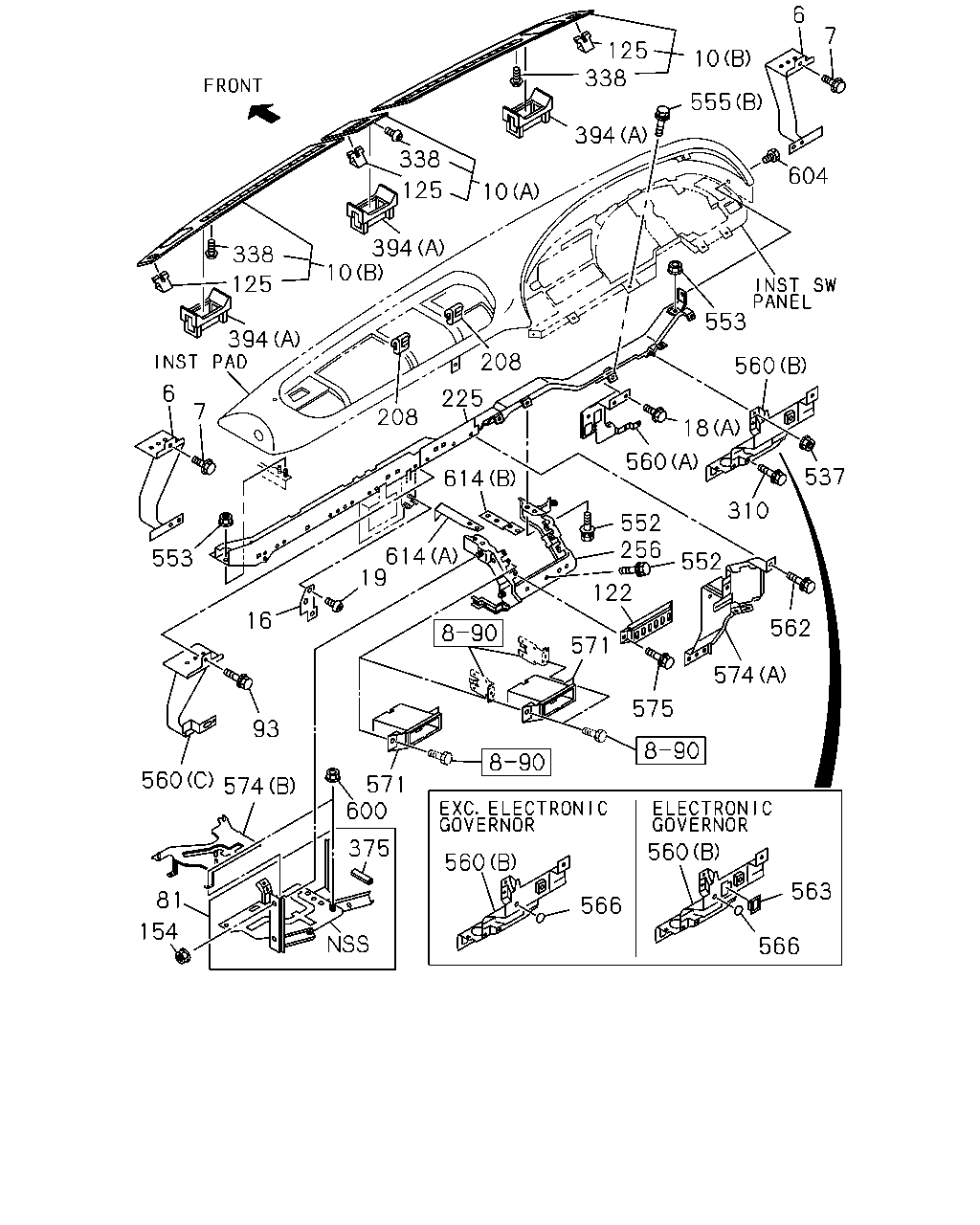

çizim 21256
125 10 6 7 604 555 338 394 338 10 125 394 10 338 125 394 6 7 553 16 19 614 614 208 225 208 553 560 18 537 310 560 552 256 552 562 574 122 571 575 560 563 566 566 560 375 600 571 93 574 560 81 154
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 0105-0306
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 0105-0306
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-0306
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-592-1 01 1 0105-0306
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0105-0306
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0105-0306
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-540-6 01 1 0105-0306
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0307-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0105-0306
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0307-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0105-0306
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-6 01 1 0307-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0105-0306
16 BRACKET; INST PNL 1-73908-023-2 01 1 0307-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
18 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
18 BOLT; BRKT
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0105-0306
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0307-
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0105-0110
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0306
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0309
125 CLIP; INST PANEL 8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105-
225 FRAME; FACIA 1-65671-725-8 01 1 0105-
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0105-0210
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211-
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0105-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0105-0208
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0306
338 SCREW; COVER
M5X14 		8-94148-576-1 12 1 0307-0309
338 SCREW; COVER
M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0406-
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
560 BRACKET
(A) 		1-65680-976-3 01 1 0105-
560 BRACKET
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65671-760-4 01 1 0105-
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65671-717-8 01 1 0105-0302
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65671-786-2 01 1 0303-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 0105-0306
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-72448-410-3 01 1 0105-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0105-
571 BEZEL; POCKET 1-72438-151-3 01 1 0105-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105-
574 PANEL; RELAY BOX
(A) 		1-73907-365-9 01 1 0105-
574 PANEL; RELAY BOX
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-73907-647-3 01 1 0105-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 03 1 0105-0602
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0105-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0105-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0105-

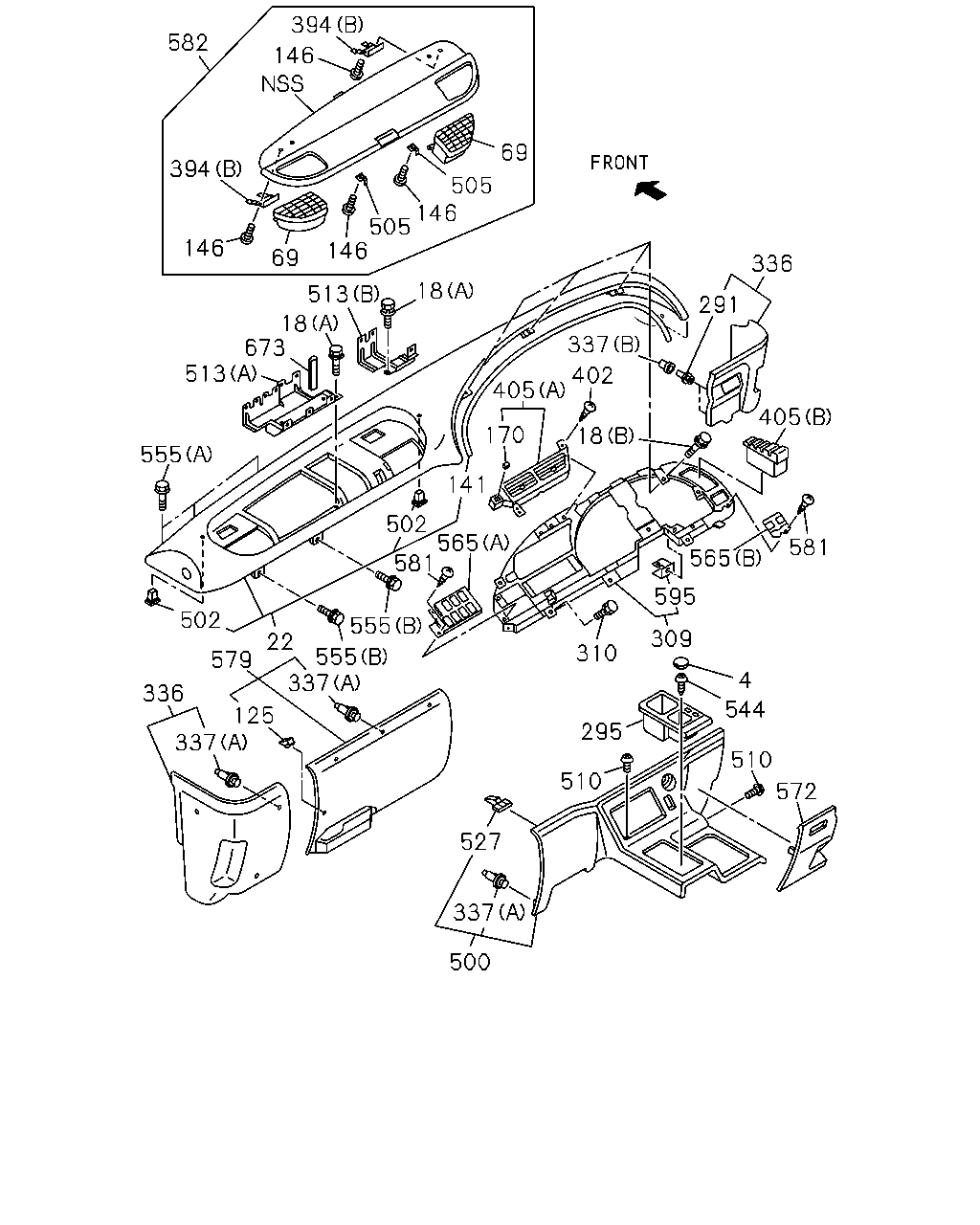

çizim 21257
394 146 582 394 146 69 146 505 146 505 69 336 291 405 581 565 18 402 337 405 18 513 18 673 513 555 502 336 337 125 579 337 22 555 555 581 502 565 141 170 595 309 4 544 510 572 310 295 510 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
18 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
18 BOLT; BRKT
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
22 PAD; INST 1-72317-347-2 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0309
125 CLIP; INST PANEL 8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105-
170 COVER; HOLE 1-76367-068-0 01 1 0105-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0105-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0105-
309 PANEL; SW,INST 1-72418-009-6 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0105-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0105-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0105-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0105-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0105-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0105-
505 LOCK; LID 1-72558-024-2 02 1 0105-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0105-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
513 BRACKET; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-73907-327-3 01 1 0105-
513 BRACKET; RELAY
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-73907-327-3 01 1 0105-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0105-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0105-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0105-
572 COVER; INSPECTION 1-72437-634-0 01 1 0105-
579 COVER; INST PNL 1-72437-626-0 01 1 0105-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0105-
595 NUT; HOOK 1-72418-013-0 11 1 0105-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105-
