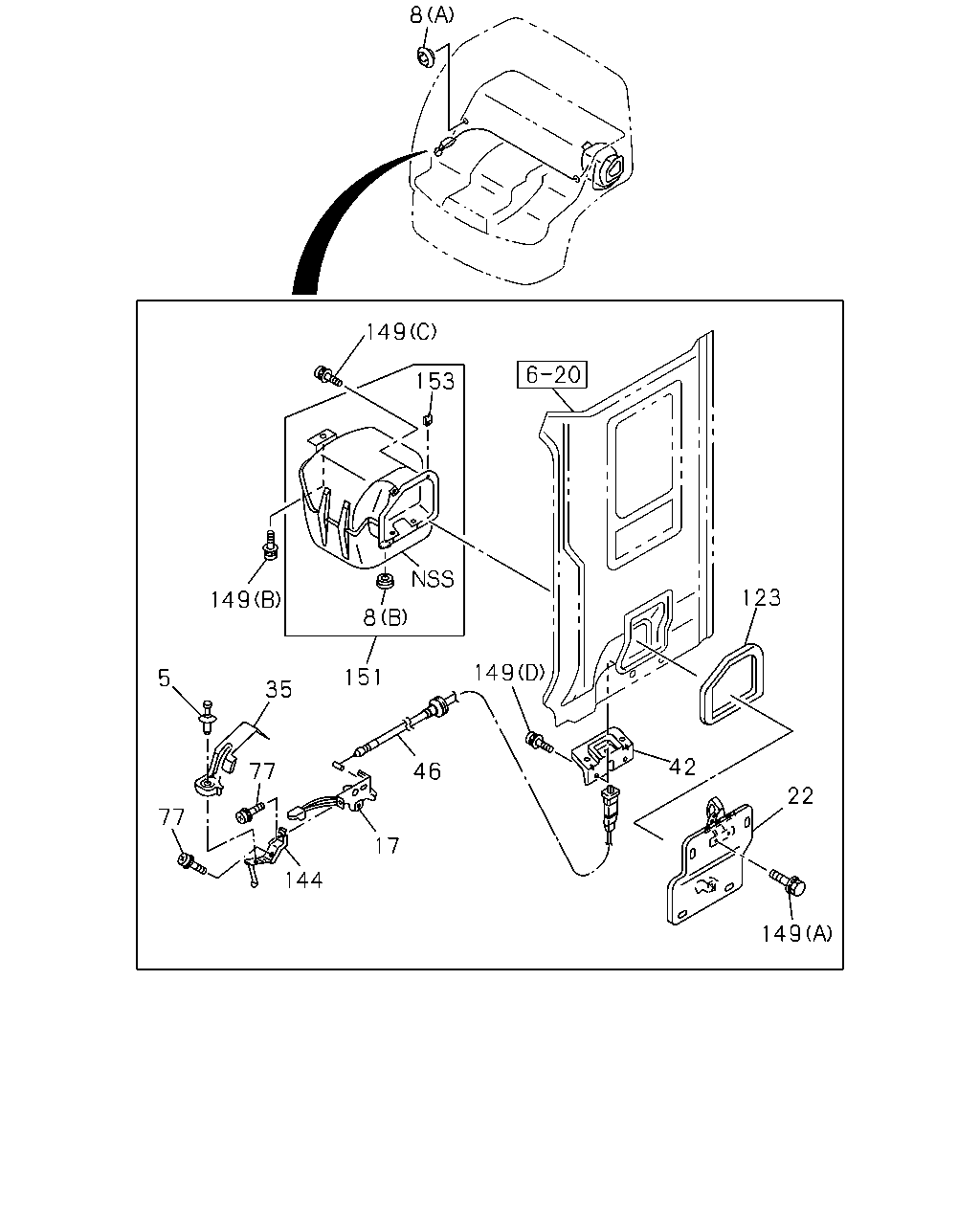

6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#12043) — 18 parça

8 149 153 149 8 5 35 151 77 77 144 17 46 149 123 42 22 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	FASTENER BAGGAGE BOX CAB RR SIDE<TBM> ID=6X6 OD=8	1-09987-194-0	01	1	0105-
8	GROMMET; BOARD FIX BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44	8-94279-727-0	01	1	0110-
8	GROMMET; BOARD FIX BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28	8-94279-720-0	01	1	0105-
8	GROMMET; BOARD FIX EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28	8-94279-720-0	02	1	0105-
17	KNOB; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-73328-018-0	01	1	0105-
22	LID; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-71707-063-0	01	1	0105-
35	COVER; LUGGAGE BAGGAGE BOX CAB RR SIDE<TBM>	1-79517-005-1	01	1	0105-
42	BRACKET ASM; HOOK BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-068-1	01	1	0105-
46	LOCK; RR COMPT LID BAGGAGE BOX CAB RR SIDE<TBM> L=2842	1-79517-008-0	01	1	0105-
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	0105-
123	SEAL; REAR BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-061-1	01	1	0105-
144	BRACKET BAGGAGE BOX CAB RR SIDE<TBM>	1-73907-267-2	01	1	0105-
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0105-
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	0105-
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0105-
151	BOX ASM BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-951-2	01	1	0105-
153	J-NUT BAGGAGE BOX CAB RR SIDE<TBM>	8-94279-056-0	02	1	0110-
