◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#12037) — 54 parça

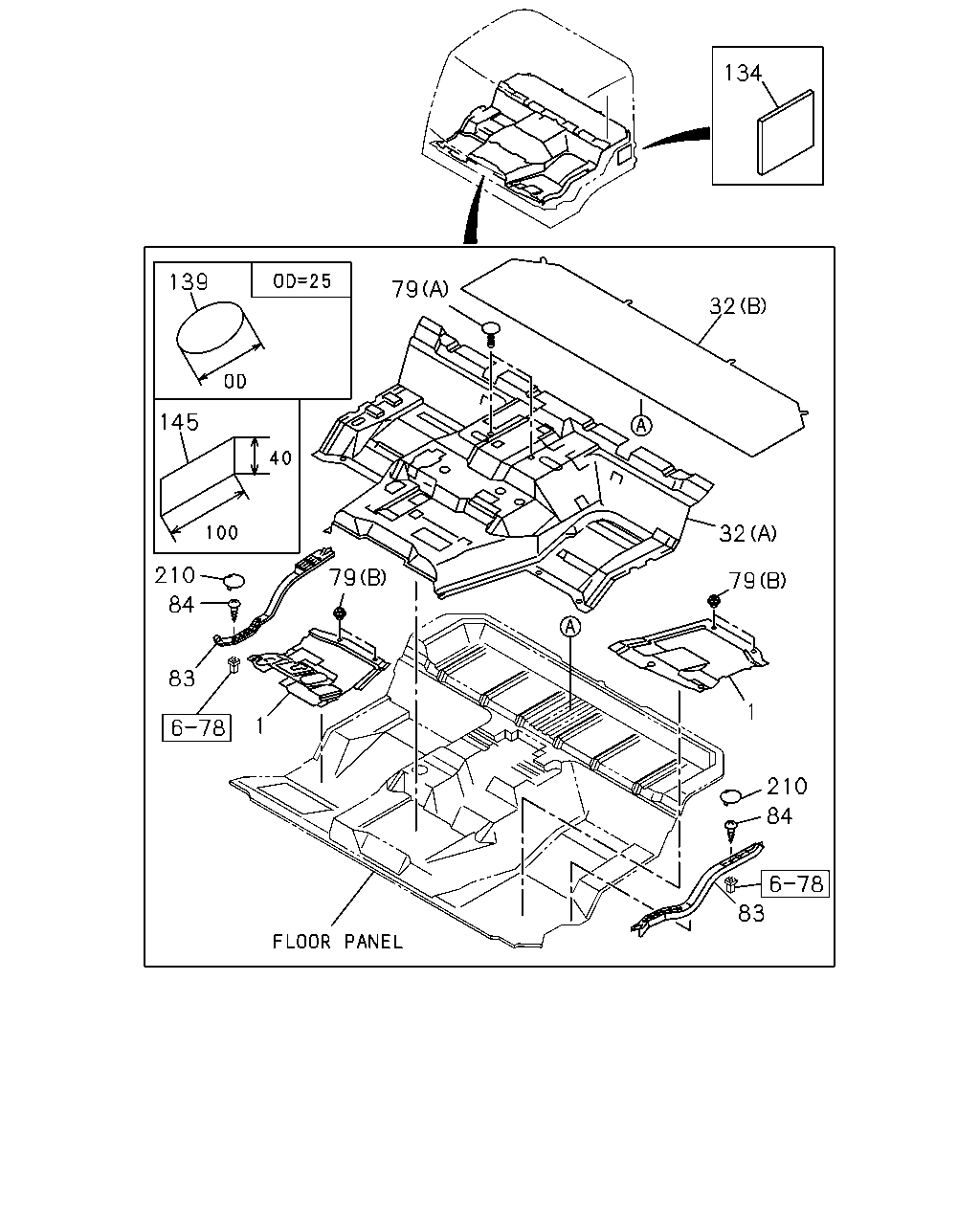

çizim 77417
134 32 32 79 210 1 84 83 1 83 79 84 210 145 139 79
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-571-1 01 1 0105-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-1 01 1 0405-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-669-0 01 1 0105-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-1 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-717-1 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-845-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-73237-743-1 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-73237-849-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE(SP9) (A) 		1-73237-744-1 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE(SP9) (A) 		1-73237-850-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-718-1 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-846-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-1 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-741-2 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-839-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-742-2 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-840-5 01 1 0405-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0105-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0105-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105-

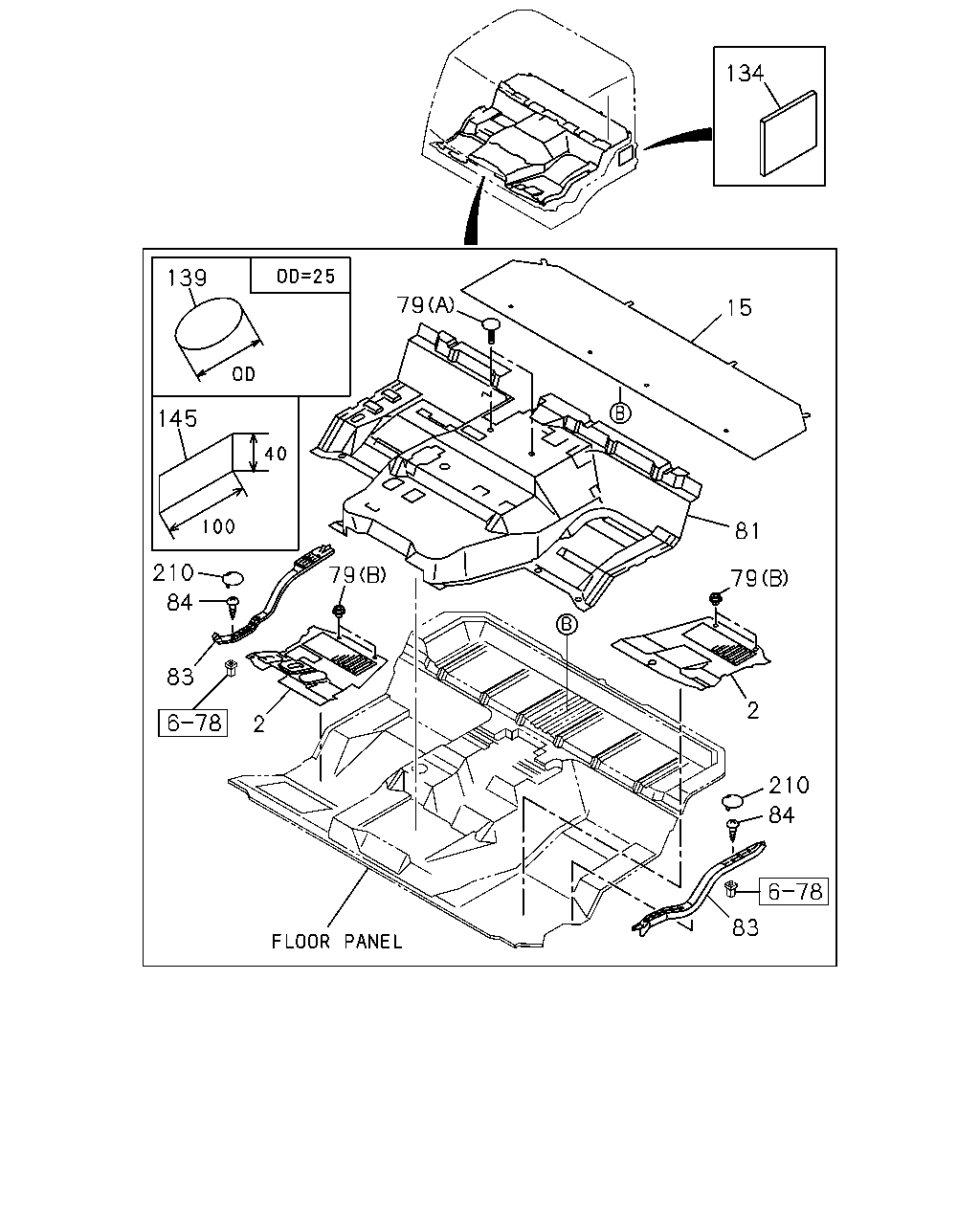

çizim 77973
134 15 81 79 2 210 84 83 2 83 84 210 79 145 139 79
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-574-0 01 1 0105-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0201-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-676-0 01 1 0105-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0201-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0105-0112
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 0201-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73237-721-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73237-800-4 01 1 0201-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-73237-722-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-73237-815-1 01 1 0201-
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5) 		1-73237-747-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5) 		1-73237-804-4 01 1 0201-
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5), CENTER SEAT DELETE(SP9) 		1-73237-748-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5), CENTER SEAT DELETE(SP9) 		1-73237-819-1 01 1 0201-
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-745-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-803-5 01 1 0201-
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-746-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-818-2 01 1 0201-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0105-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0105-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105-
