◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#12033) — 152 parça

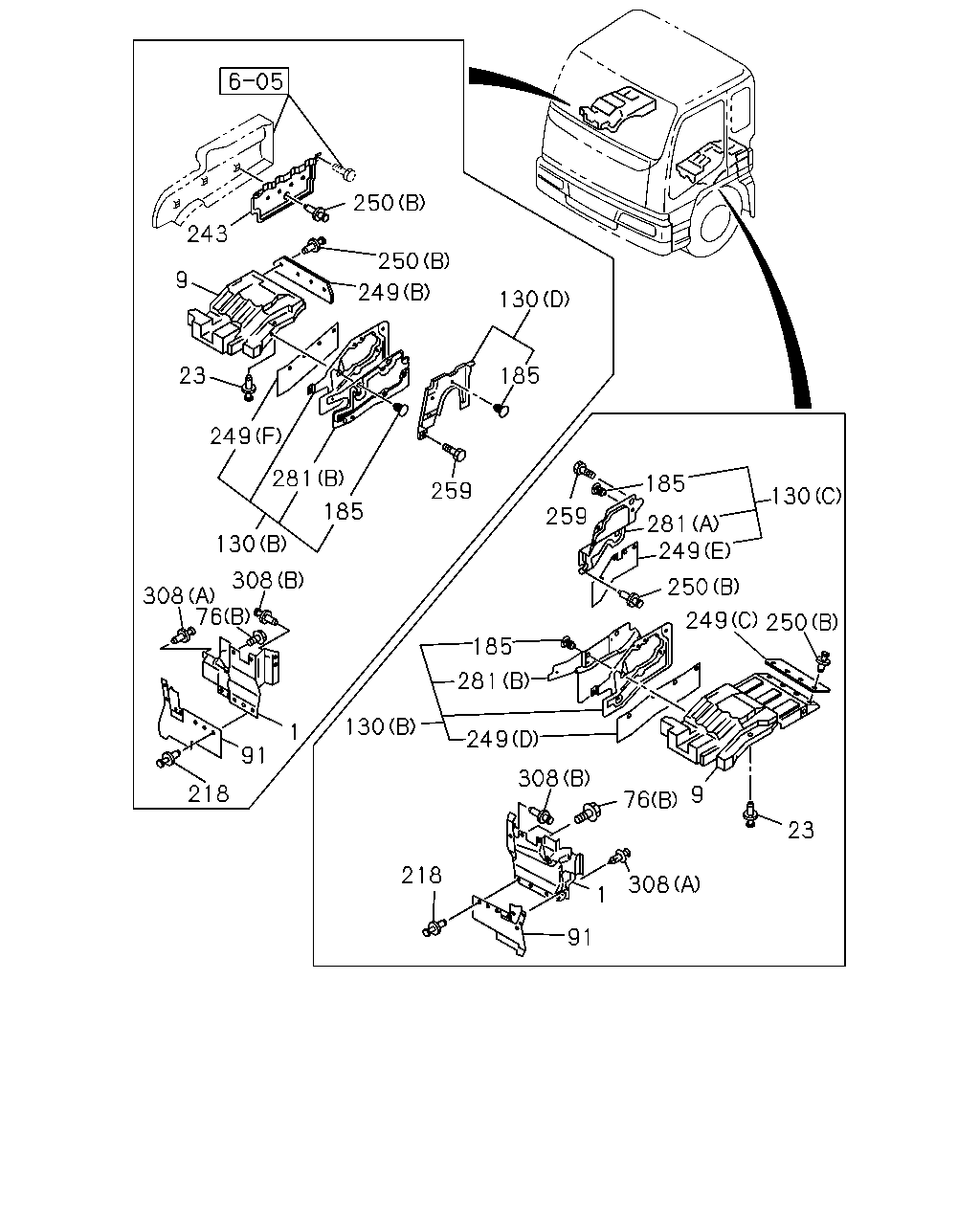

çizim 23640
250 250 249 130 185 185 130 281 249 250 249 250 23 9 76 308 1 91 218 308 249 281 185 259 259 185 281 249 23 9 243 130 308 308 76 1 130 91 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-7 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-1 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0203-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0105-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0105-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0105-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-

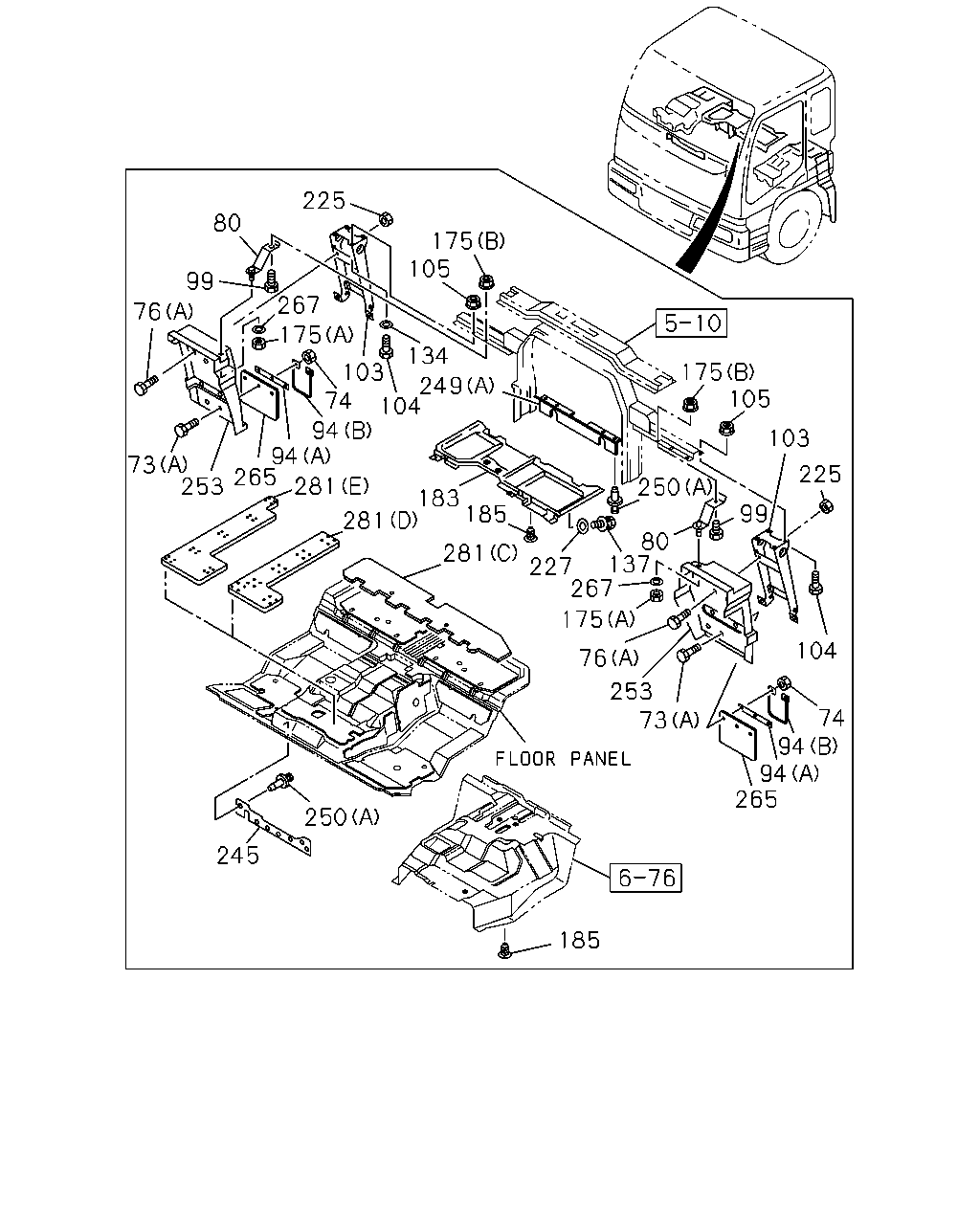

çizim 24015
225 175 105 175 105 103 225 99 104 74 94 94 265 73 185 250 245 253 76 175 267 137 80 250 227 281 185 183 281 281 249 134 104 103 175 267 80 99 76 74 94 94 265 253 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0105-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0105-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0105-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0105-
94 RETAINER; FLAP RUBBER
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-194-0 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0105-
103 BRACKET ASM; RR MUD FLAP 1-79931-308-1 01 1 0105-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 0105-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 07 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 0105-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0203-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0105-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
253 GUARD; MUD 1-79931-067-7 01 1 0105-
253 GUARD; MUD 1-79931-065-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0105-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0105-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-

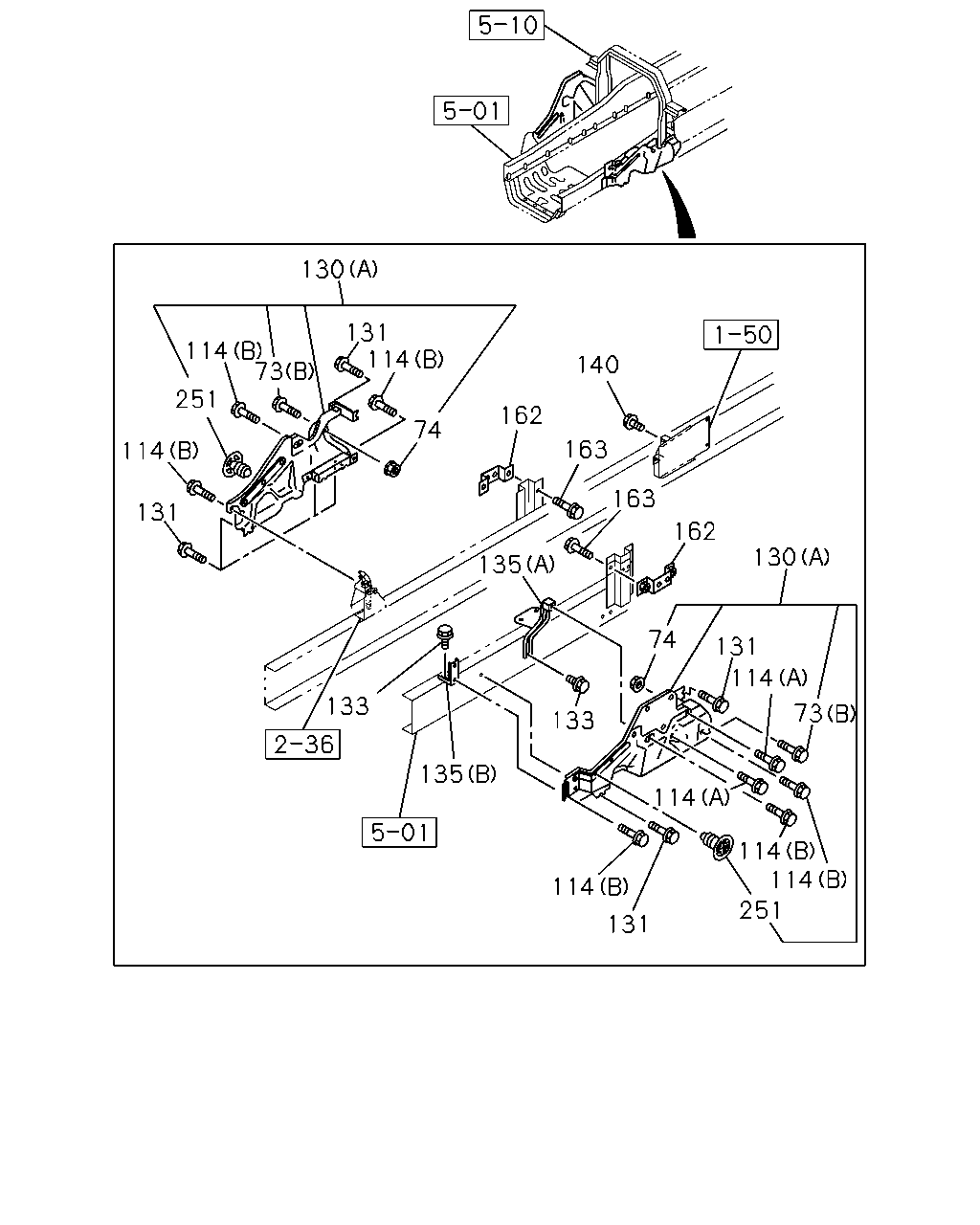

çizim 78682
130 131 114 74 73 114 251 114 131 133 135 114 131 251 114 114 114 133 135 162 140 163 163 162 130 74 131 114 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0105-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0105-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0105-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-7 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-1 01 1 0105-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 0105-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0105-
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0105-0106
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
135 BRACKET; SIDE PANEL
EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 0105-0106
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0105-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 0105-
