Sayfa 6-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶

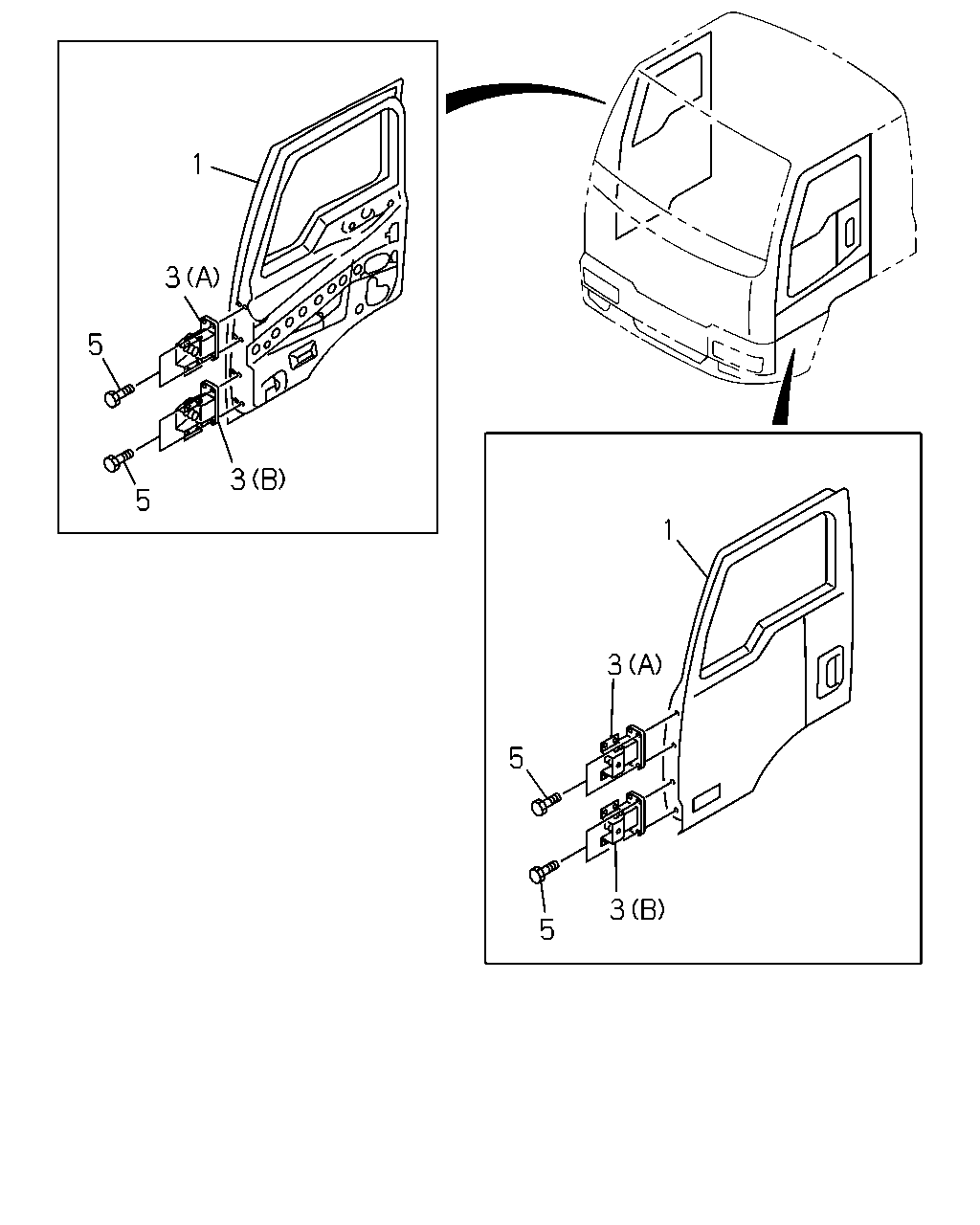

6-30 — FRONT DOOR AND HINGE (#12027) — 16 parça

1 3 5 5 3 1 3 5 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DOOR ASM; FRT,WO/TRIM DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-64080-389-2	01	1	0105-
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-391-2	01	1	0105-
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-392-2	01	1	0105-
1	DOOR ASM; FRT,WO/TRIM NEW ZEALAND EQUIPMENT(PK5)	1-64080-394-2	01	1	0105-
1	DOOR ASM; FRT,WO/TRIM NEW ZEALAND EQUIPMENT(PK5)	1-64080-395-2	01	1	0105-
1	DOOR ASM; FRT,WO/TRIM EXC. NEW ZEALAND EQUIPMENT(PK5)	1-64080-390-2	01	1	0105-
3	HINGE; DOOR FRT NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-090-2	02	1	0105-
3	HINGE; DOOR FRT NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-091-2	02	1	0105-
3	HINGE; DOOR FRT EXC. NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-088-3	01	1	0105-
3	HINGE; DOOR FRT EXC. NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-088-3	01	1	0105-
3	HINGE; DOOR FRT EXC. NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-089-3	01	1	0105-
3	HINGE; DOOR FRT EXC. NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-089-3	01	1	0105-
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0105-
5	BOLT; HINGE NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0105-
5	BOLT; HINGE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-
5	BOLT; HINGE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
