Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#120231) — 45 parça

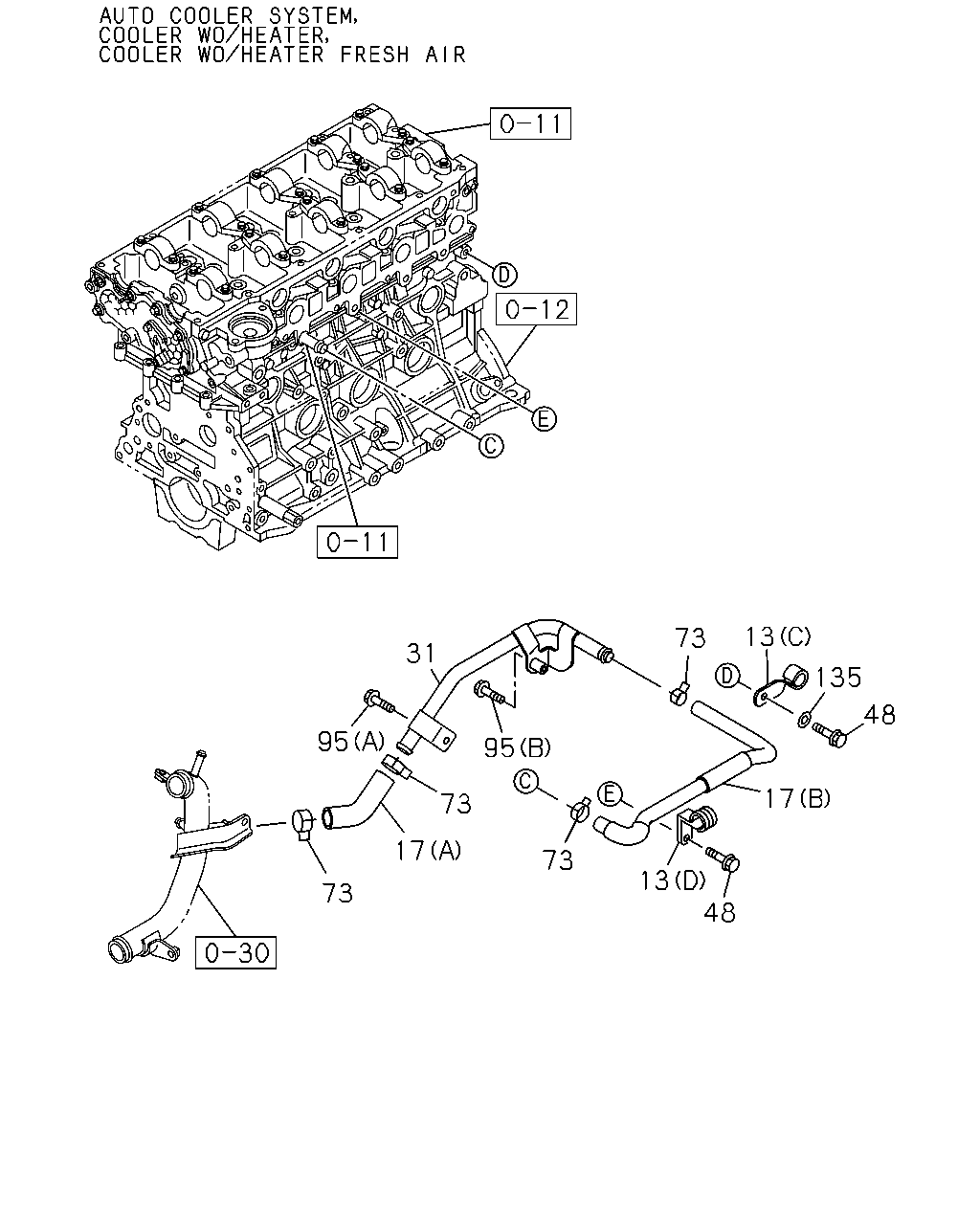

73 95 31 95 73 17 73 73 73 135 48 17 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-97359-141-0	02	1	1305-	●	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=20.8	8-98133-607-0	02	1	1305-	●	●	●	●
13	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) (C) ID=25 L=54	1-09700-392-1	01	1	1305-		●	●	●
13	CLIP; HTR HOSE AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1305-		●	●	●
17	HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) (A)	8-98132-368-0	01	1	1305-		●	●	●
17	HOSE; WATER,BYPASS AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1305-		●	●	●
31	PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0)	8-98131-989-0	01	1	1305-		●	●	●
48	BOLT; CLIP FIX 4JK1-TCX ENG(LR0) M8X12 FLANGE	0-28050-812-0	02	1	1305-		●	●	●
73	CLIP; HTR HOSE AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) ID=20.8	8-94125-862-1	04	1	1305-		●	●	●
73	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) ID=20.8	8-94125-862-1	08	1	1305-		●	●	●
95	BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) (A) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●	●	●
95	BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) (B) M8X40 FLANGE	0-28650-840-0	01	1	1305-		●	●	●
95	BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M8X16 FLANGE	0-28050-816-0	02	1	1305-		●	●	●
135	WASHER; PL 4JK1-TCX ENG(LR0) ID=8.4 OD=16	0-91610-508-0	01	1	1305-		●	●	●

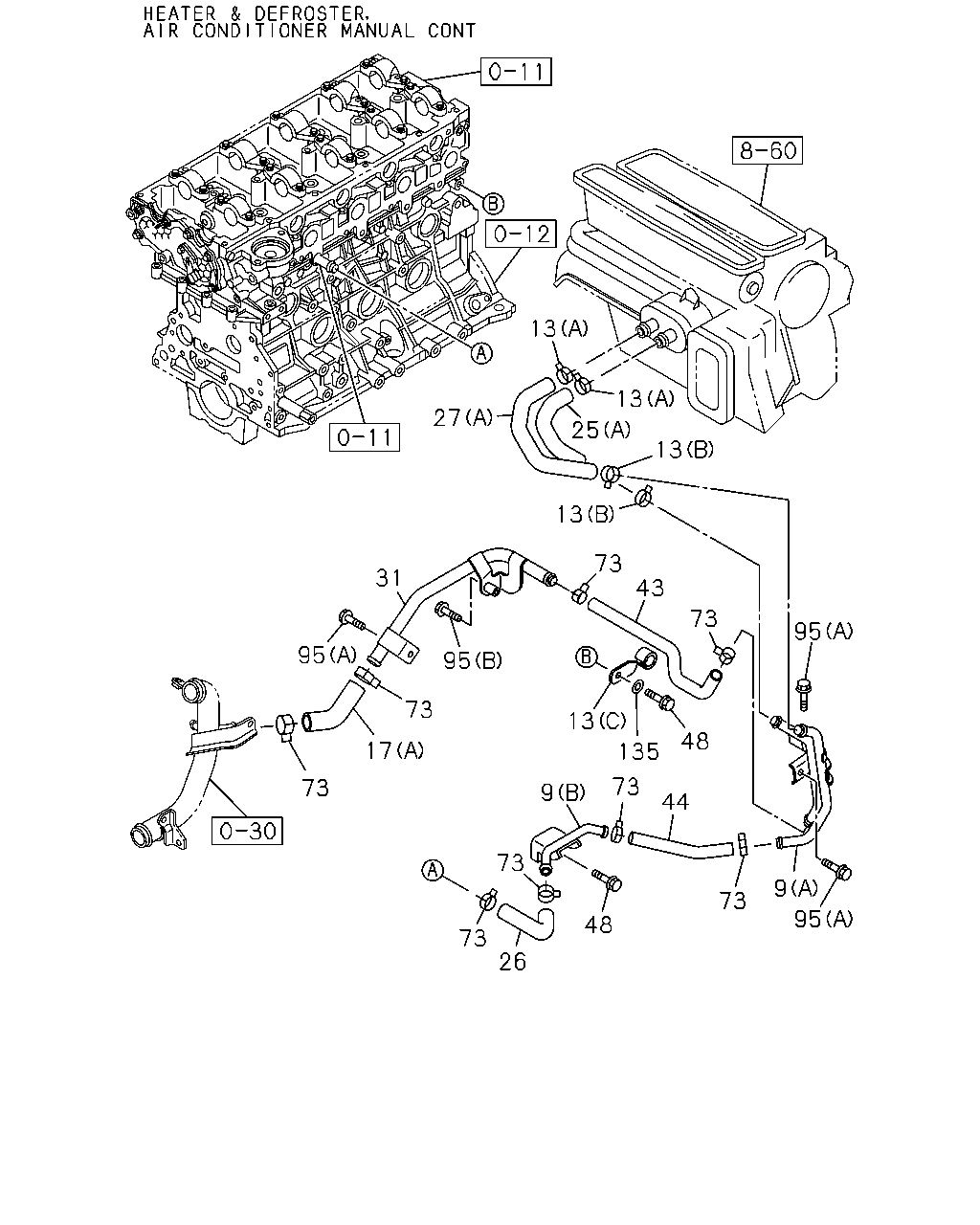

27 13 13 25 13 13 73 43 73 95 48 135 13 95 31 95 73 17 73 73 73 48 73 44 73 26 9 9 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	PIPE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98131-991-1	01	1	1305-		●	●	●
9	PIPE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98163-300-0	01	1	1305-		●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-97359-141-0	02	1	1305-	●	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=20.8	8-98133-607-0	02	1	1305-	●	●	●	●
13	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) (C) ID=25 L=54	1-09700-392-1	01	1	1305-		●	●	●
13	CLIP; HTR HOSE AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1305-		●	●	●
17	HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) (A)	8-98132-368-0	01	1	1305-		●	●	●
17	HOSE; WATER,BYPASS AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1305-		●	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98129-342-3	01	1	1305-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-341-3	01	1	1305-		●	●	●
26	HOSE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98011-630-0	01	1	1305-		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98129-340-3	01	1	1305-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-339-3	01	1	1305-		●	●	●
31	PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0)	8-98131-989-0	01	1	1305-		●	●	●
43	HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98134-332-0	01	1	1305-		●	●	●
44	HOSE; WATER,HTR,INL 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1305-		●	●	●
48	BOLT; CLIP FIX 4JK1-TCX ENG(LR0) M8X12 FLANGE	0-28050-812-0	02	1	1305-		●	●	●
73	CLIP; HTR HOSE AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) ID=20.8	8-94125-862-1	04	1	1305-		●	●	●
73	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) ID=20.8	8-94125-862-1	08	1	1305-		●	●	●
95	BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) (A) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●	●	●
95	BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) (B) M8X40 FLANGE	0-28650-840-0	01	1	1305-		●	●	●
95	BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M8X16 FLANGE	0-28050-816-0	02	1	1305-		●	●	●
135	WASHER; PL 4JK1-TCX ENG(LR0) ID=8.4 OD=16	0-91610-508-0	01	1	1305-		●	●	●

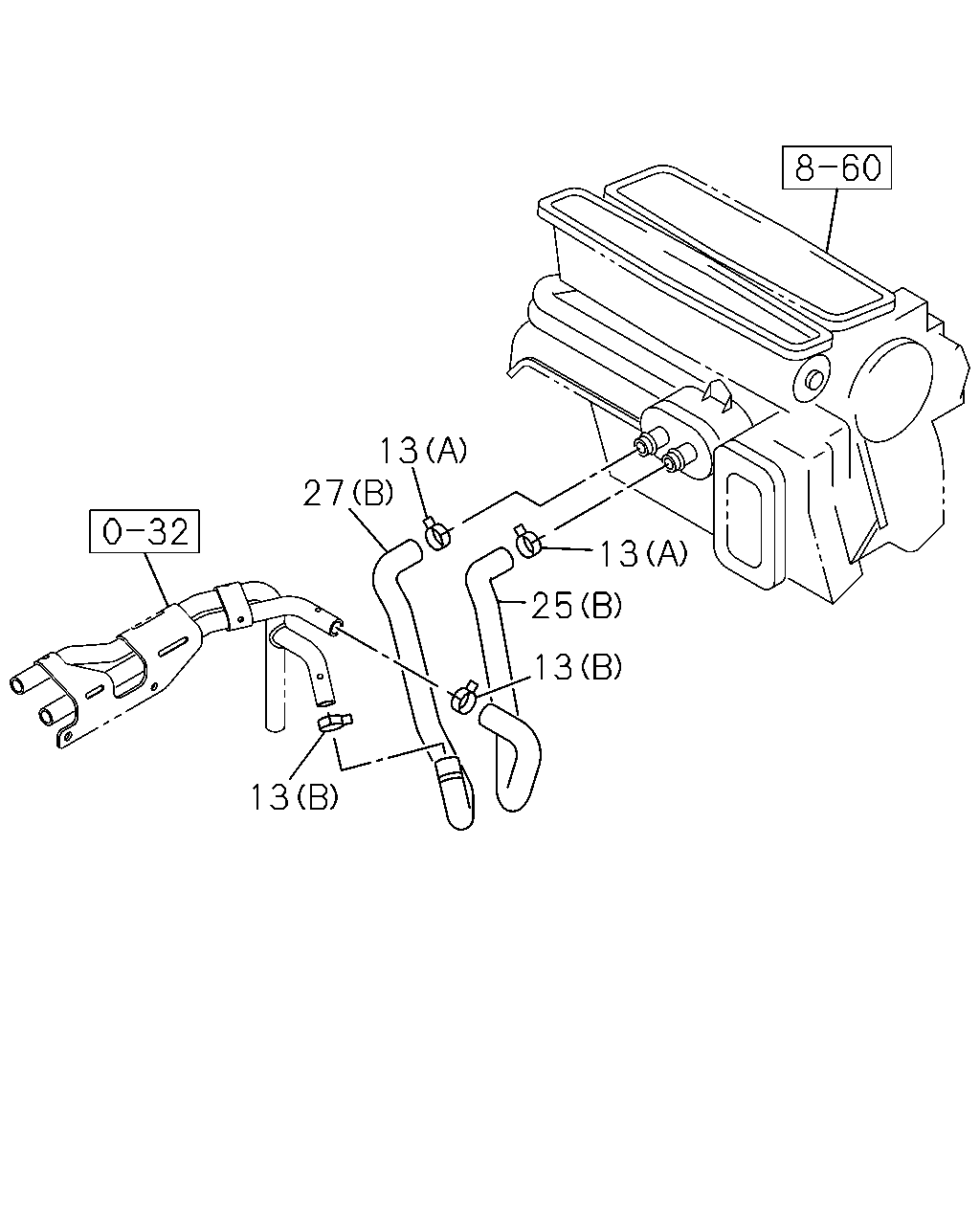

27 13 25 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-97359-141-0	02	1	1305-	●	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=20.8	8-98133-607-0	02	1	1305-	●	●	●	●
13	CLIP; HTR HOSE 4JK1-TCX ENG(LR0) (C) ID=25 L=54	1-09700-392-1	01	1	1305-		●	●	●
13	CLIP; HTR HOSE AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1305-		●	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98129-342-3	01	1	1305-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-341-3	01	1	1305-		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98129-340-3	01	1	1305-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-339-3	01	1	1305-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
