4-55 — FRONT LEAF SPRING (#120230) — 51 parça

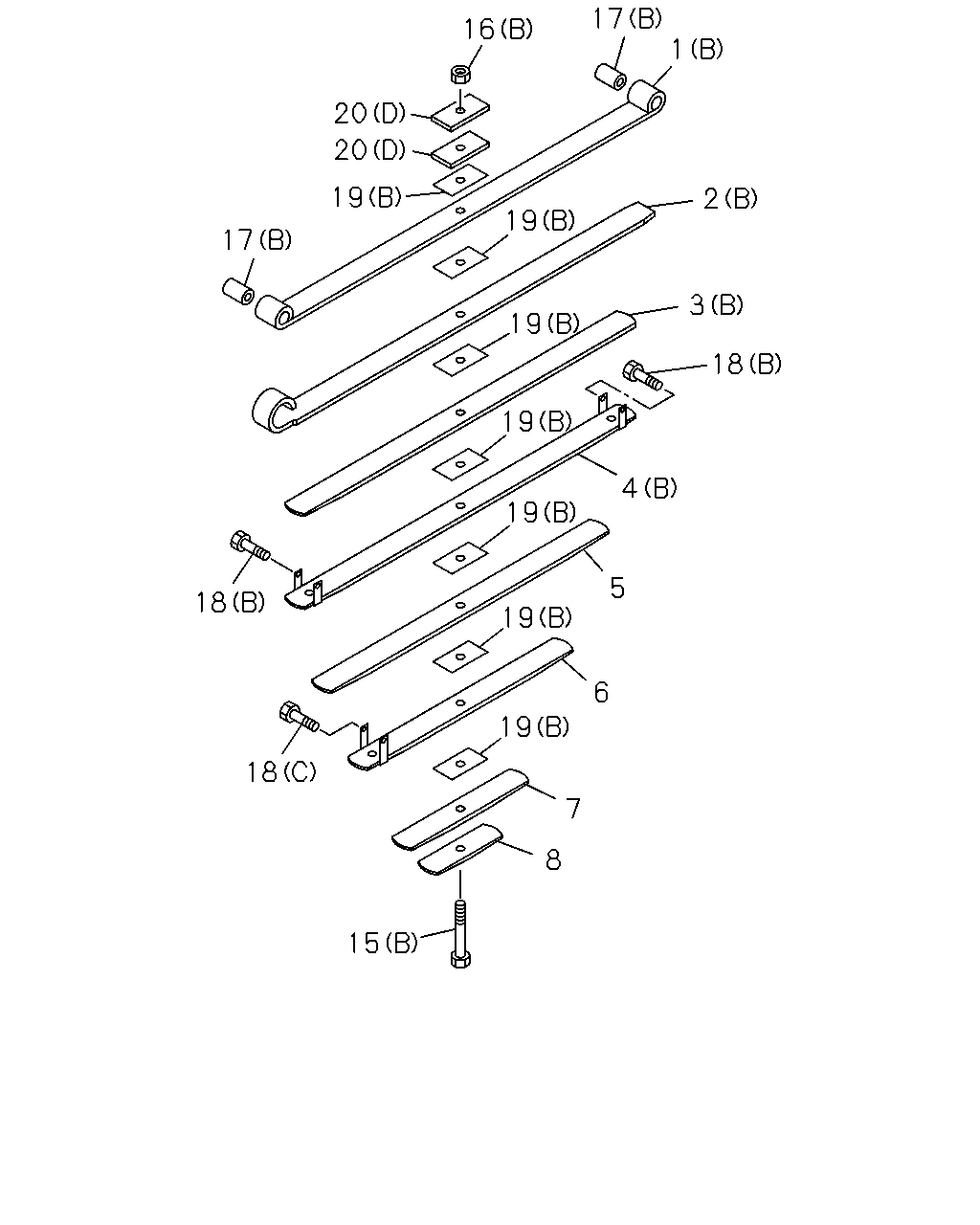

16 17 2 1 20 19 20 17 19 3 19 19 19 4 18 18 18 15 19 8 7 6 5 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-575-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-610-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-576-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-611-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-577-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-612-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-578-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-613-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98157-781-0	8-98161-579-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98157-781-0	8-98161-580-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 8-98157-781-0	8-98161-581-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 8-98157-781-0	8-98161-582-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=165 ASM PART: B = 8-98157-781-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 8-98157-779-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: B = 8-98157-781-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M16 ASM PART: A = 8-98157-779-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: B = 8-98157-781-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 8-98157-779-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-98157-781-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: B = 8-98157-781-0	8-97615-895-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98157-779-0	8-98161-627-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: B = 8-98157-781-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98157-779-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 8-98157-781-0	1-51177-074-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 8-98157-779-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 8-98157-779-0	1-51377-402-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: A = 8-98157-779-0	8-98161-626-0	01	1	-

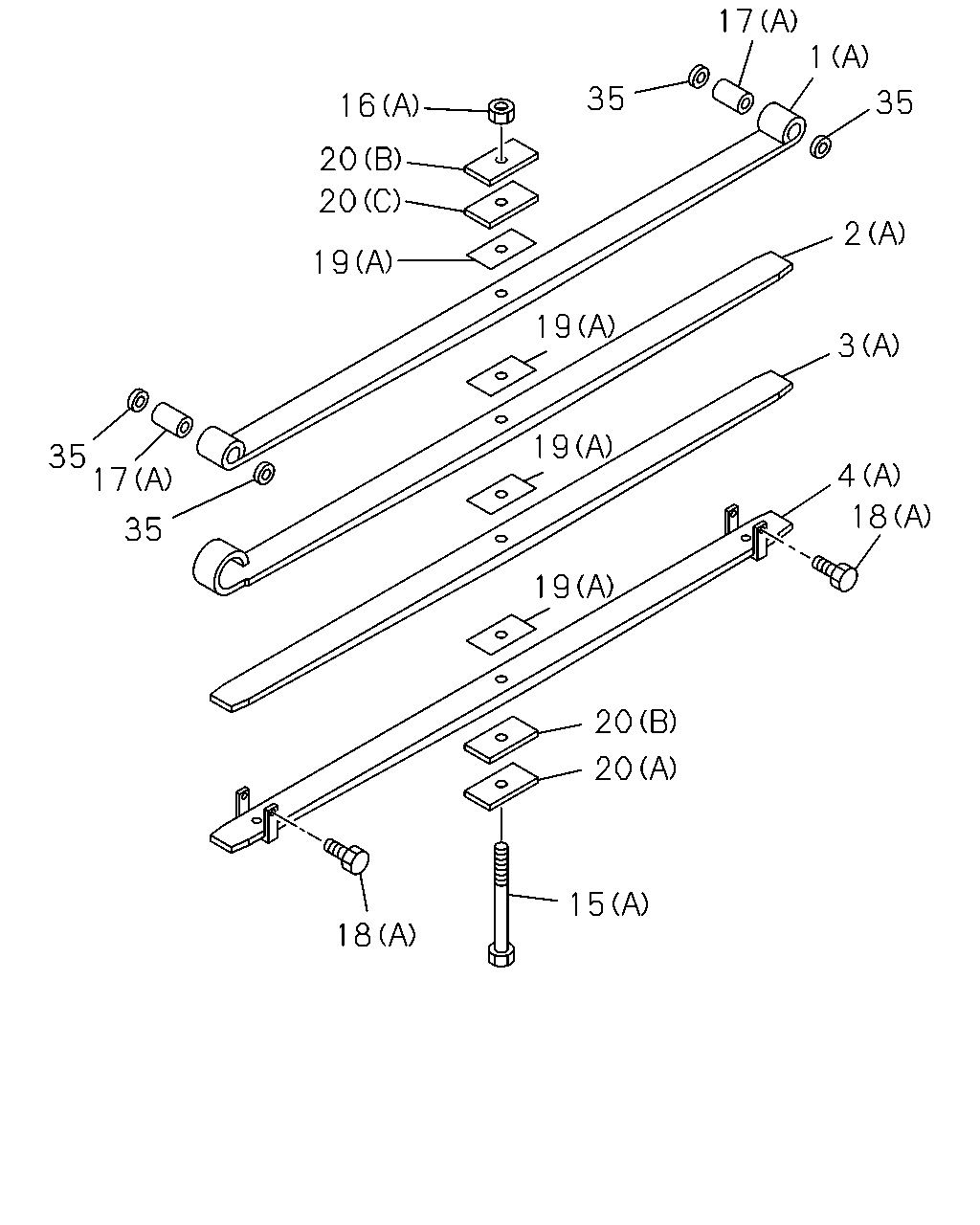

16 20 19 20 35 17 35 1 2 3 4 20 20 15 18 18 19 19 19 35 35 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-575-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-610-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-576-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-611-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-577-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-612-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98157-781-0	8-98161-578-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98157-779-0	8-98161-613-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=165 ASM PART: B = 8-98157-781-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 8-98157-779-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: B = 8-98157-781-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M16 ASM PART: A = 8-98157-779-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: B = 8-98157-781-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 8-98157-779-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-98157-781-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: B = 8-98157-781-0	8-97615-895-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98157-779-0	8-98161-627-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: B = 8-98157-781-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98157-779-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 8-98157-781-0	1-51177-074-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 8-98157-779-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 8-98157-779-0	1-51377-402-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: A = 8-98157-779-0	8-98161-626-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-98157-779-0	1-51177-321-0	04	1	-
