Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
5 - Frame, Cab Mounting
▶

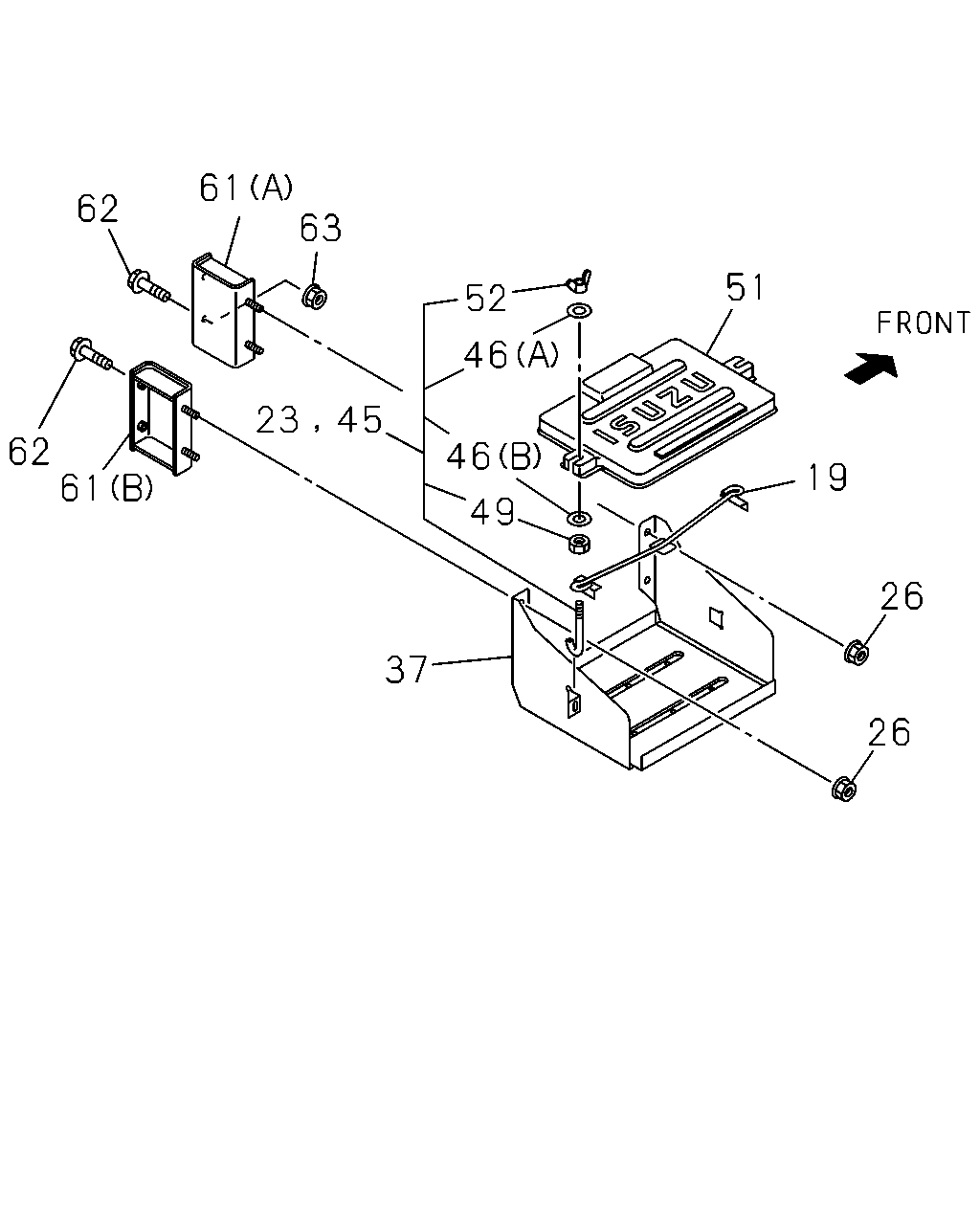

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#120227) — 15 parça
19
26
26
37
49
46
46
52
51
23
45
63
61
62
62
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
THA
8-97910-232-0
01
1
1305-
23
BOLT; STAY
THA
8-97915-640-1
02
1
1305-1305
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1305-
37
BRACKET; BATTERY
THA
8-97923-653-1
01
1
1305-
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1306-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91610-608-0
02
1
1305-1305
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1306-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1305-
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1305-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1305-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1305-
61
DISTANCE; BRKT,BATTERY
(A) THA
8-97948-024-0
01
1
1305-
61
DISTANCE; BRKT,BATTERY
(B) THA
8-98162-291-0
01
1
1305-
62
BOLT; DIST TO FRAME,BATTERY
M10X35 FLANGE THA
0-28651-035-0
04
1
1305-
63
NUT; DIST TO FRAME
M10 FLANGE THA
0-91180-210-0
04
1
1305-
