Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

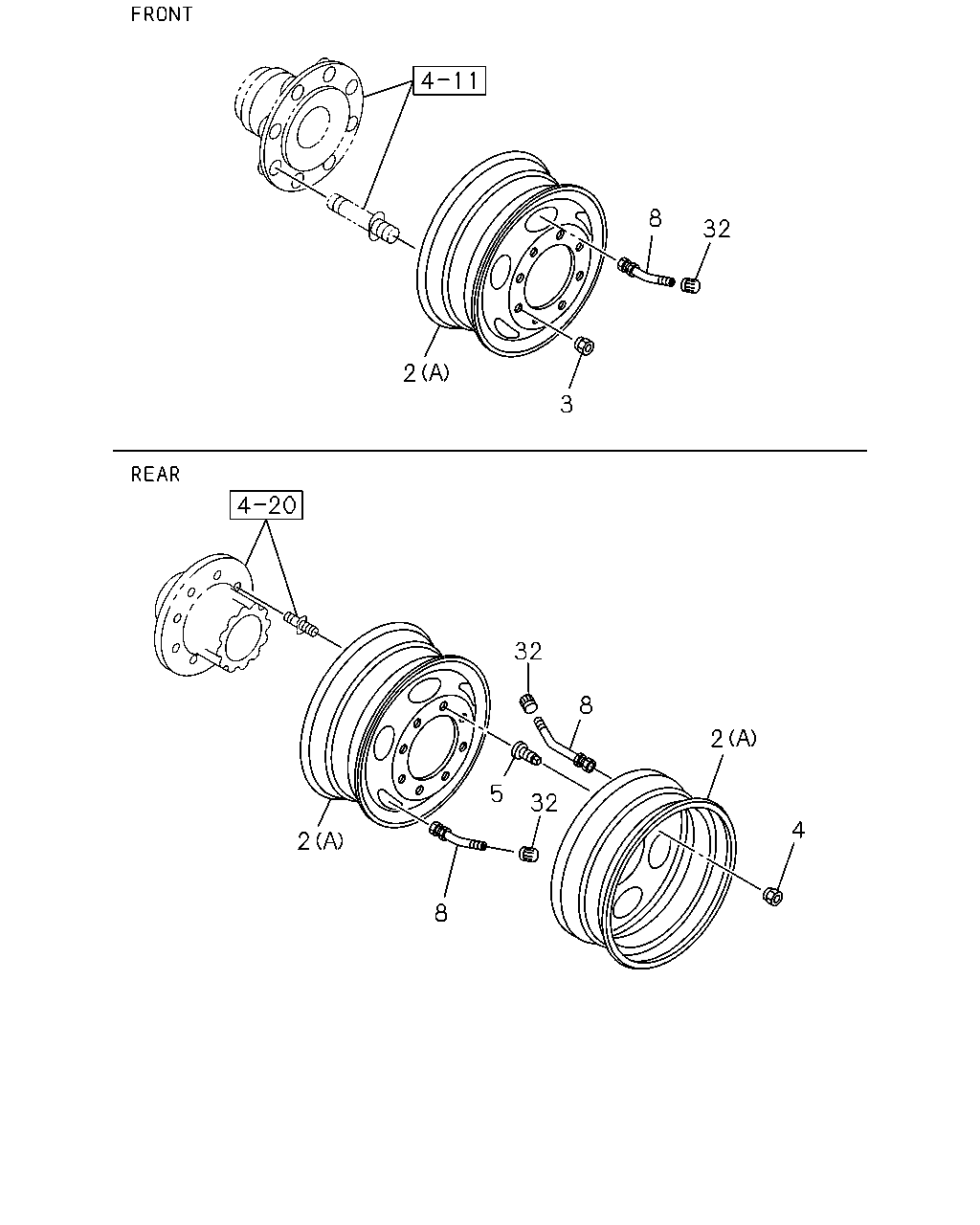

4-80 — ROAD WHEEL (#120226) — 55 parça

32 8 3 2 2 8 32 5 2 4 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT	1-42350-362-0	02	1	1305-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR	1-42350-362-0	08	1	1305-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-362-0	01	1	1305-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-667-0	01	1	1305-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT	1-42350-667-0	02	1	1305-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR	1-42350-667-0	08	1	1305-	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT	1-42350-758-0	02	1	1305-		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR	1-42350-758-0	08	1	1305-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE	1-42350-758-0	01	1	1305-		●
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24 LH THREAD	1-42334-022-3	08	1	1305-	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M24 LH THREAD	1-42334-022-3	08	1	1305-		●
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24	1-42333-022-3	08	1	1305-	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M24	1-42333-022-3	08	1	1305-		●
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 LH THREAD	8-97359-810-0	16	1	1305-	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M30 LH THREAD	8-97359-810-0	16	1	1305-		●
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 RH THREAD	8-97359-809-0	16	1	1305-	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M30 RH THREAD	8-97359-809-0	16	1	1305-		●
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1305-	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1305-		●
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1305-	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1305-		●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1305-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1305-		●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	1305-	●
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	1305-		●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1305-	●
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1305-		●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1305-	●
32	CAP; VALVE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1305-		●

2 31 32 3 2 31 31 2 5 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT	1-42350-362-0	02	1	1305-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR	1-42350-362-0	08	1	1305-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-362-0	01	1	1305-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-667-0	01	1	1305-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT	1-42350-667-0	02	1	1305-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR	1-42350-667-0	08	1	1305-	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT	1-42350-758-0	02	1	1305-		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR	1-42350-758-0	08	1	1305-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE	1-42350-758-0	01	1	1305-		●
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24 LH THREAD	1-42334-022-3	08	1	1305-	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M24 LH THREAD	1-42334-022-3	08	1	1305-		●
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24	1-42333-022-3	08	1	1305-	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M24	1-42333-022-3	08	1	1305-		●
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 LH THREAD	8-97359-810-0	16	1	1305-	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M30 LH THREAD	8-97359-810-0	16	1	1305-		●
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 RH THREAD	8-97359-809-0	16	1	1305-	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> M30 RH THREAD	8-97359-809-0	16	1	1305-		●
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1305-	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1305-		●
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1305-	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1305-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT	1-42355-004-1	02	1	1305-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR	1-42355-004-1	08	1	1305-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-004-1	01	1	1305-	●
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1305-	●
32	CAP; VALVE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
