◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#12022) — 106 parça

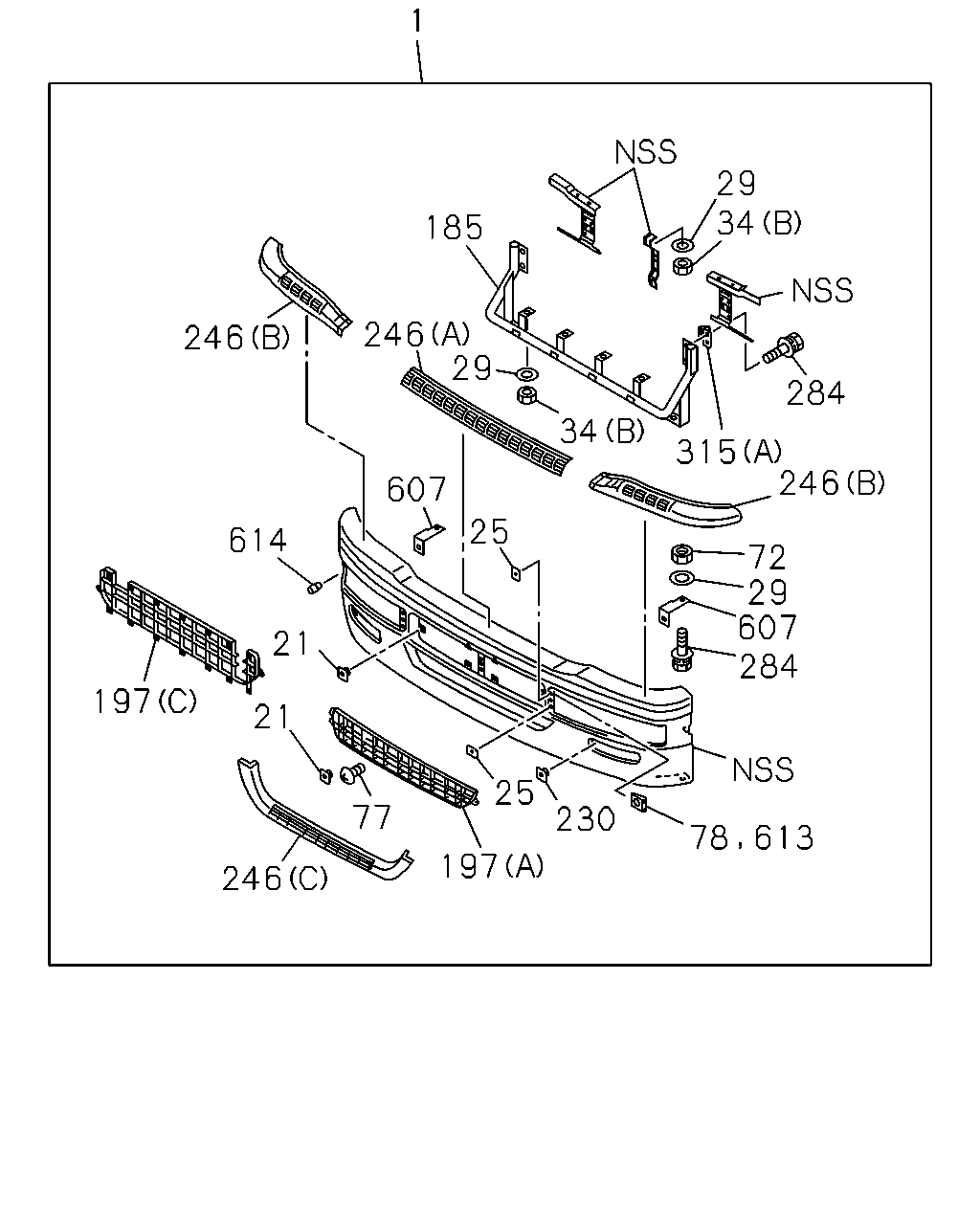

çizim 77925
1 185 29 34 284 246 315 34 29 246 246 607 25 72 29 607 284 613 78 230 25 197 77 246 21 197 21 614
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71210-746-5 01 1 0105-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 14 1 0212-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 24 1 0105-0211
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 10 1 0212-
25 SPACER; PLATFORM 1-71260-162-0 06 1 0105-
29 WASHER; FRT BUMPER
ID=8.4 		9-09160-508-0 21 1 0105-0211
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0212-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 19 1 0606-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 0105-0602
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
72 NUT; BRKT
M8 		9-09110-508-0 04 1 0105-0211
72 NUT; BRKT
M8 		9-09110-508-0 02 1 0212-0512
72 NUT; BRKT
M8 		0-91110-508-0 02 1 0601-
77 SCREW; BRKT
M5X12 		9-93490-512-0 16 1 0105-0211
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 14 1 0212-0603
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 14 1 0604-
78 NUT; SPIRE 1-71260-152-0 04 1 0105-0211
78 NUT; SPIRE 1-71260-174-0 06 1 0212-0610
185 BRACKET; BUMPER,INNER 1-71230-406-0 01 1 0105-0211
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0105-0610
197 GRILLE; BUMPER
(C) 		8-97617-998-0 01 1 0611-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0105-
230 NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0105-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-0 01 1 0105-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0105-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-1 01 1 0105-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-1 01 1 0105-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 0105-0211
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0212-0512
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0105-0512
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 0105-
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0105-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0105-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0105-
607 BRACKET 1-71230-454-0 02 1 0105-
613 CLIP 1-71260-174-0 06 1 0611-
614 STOPPER; LID 1-71260-163-0 12 1 0105-

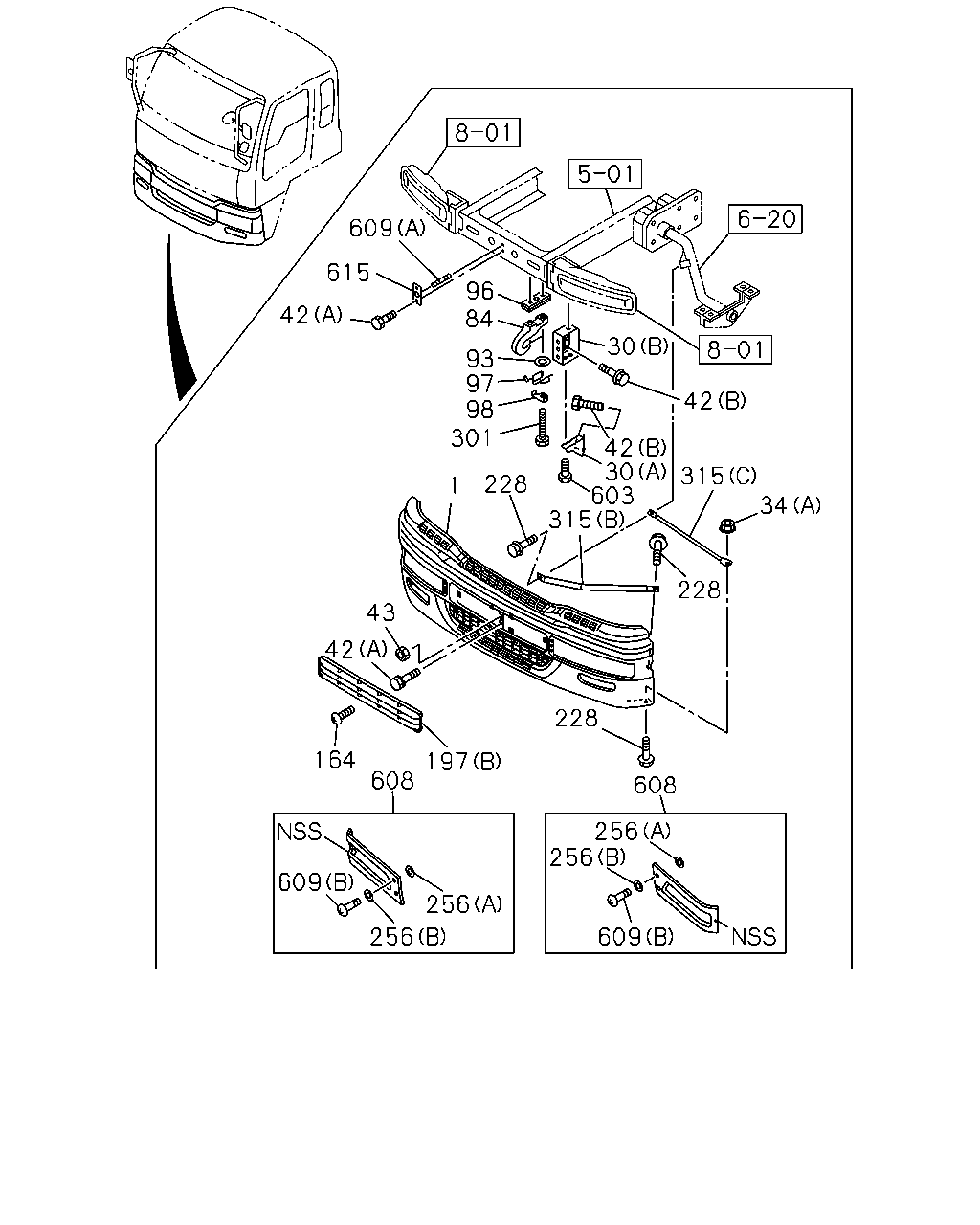

çizim 83373
609 615 42 96 84 93 97 98 301 1 228 315 603 30 42 30 42 315 34 228 228 608 256 256 609 256 256 609 608 197 164 42 43
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71210-746-5 01 1 0105-
30 BRACKET; FRT BUMPER
(A) 		1-71230-430-0 01 1 0105-
30 BRACKET; FRT BUMPER
(A) 		1-71230-431-0 01 1 0105-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71230-455-1 01 1 0105-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71230-456-1 01 1 0105-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 0105-0602
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
42 BOLT; BUMPER
(A) M10X25 FLANGE 		0-28681-025-0 07 1 0105-0512
42 BOLT; BUMPER
(A) M10X25 FLANGE 		0-28651-025-0 07 1 0601-
42 BOLT; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE 		0-28081-035-0 08 1 0105-0106
42 BOLT; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE 		0-28681-030-0 08 1 0107-0512
42 BOLT; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE 		0-28651-030-0 08 1 0601-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 02 1 0603-
84 HOOK 1-57181-027-1 01 1 0105-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0105-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-560-0 01 1 0105-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0105-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0105-
164 SCREW; AIR INT GRILLE
M6X20 		1-71260-141-0 06 1 0105-
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0105-0610
197 GRILLE; BUMPER
(C) 		8-97617-998-0 01 1 0611-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0105-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0105-0512
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 03 1 0105-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 03 1 0105-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-153-0 03 1 0105-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-165-0 03 1 0105-
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0105-0312
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0105-0312
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0401-
256 WASHER; PL
BODY COLOR MARINE BLUE(890) (A) 		1-71260-173-0 06 1 0401-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0401-
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0105-0312
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0105-0312
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0401-
256 WASHER; PL
BODY COLOR MARINE BLUE(890) (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0401-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0401-
301 BOLT; HOOK TO FRAME
M16X70 		0-10811-670-0 01 1 0105-0512
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 0601-
301 BOLT; HOOK TO FRAME
M16X80 		0-10811-680-0 01 1 0105-0512
301 BOLT; HOOK TO FRAME
M16X80 		0-10861-680-0 01 1 0601-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 0105-
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0105-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0105-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0105-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
608 LID; BUMPER
BUMPER W/HEADLAMPS<SLB> 		1-71210-753-4 01 1 0105-
608 LID; BUMPER
BUMPER W/HEADLAMPS<SLB> 		1-71210-752-4 01 1 0105-
608 LID; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71210-897-0 01 1 0105-
608 LID; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71210-896-0 01 1 0105-
609 STUD; BUMPER
(A) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0105-
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 03 1 0105-
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-164-0 03 1 0105-
609 STUD; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 06 1 0105-0312
609 STUD; BUMPER
BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 06 1 0105-0312
609 STUD; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 06 1 0401-
609 STUD; BUMPER
BODY COLOR MARINE BLUE(890) (B) 		1-71260-175-0 06 1 0401-
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 06 1 0401-
615 BRACKET; BUMPER CENTER 1-71230-407-0 01 1 0105-
