3-70 — BRAKE PIPING; AIR,AIR MASTER (#120219) — 157 parça

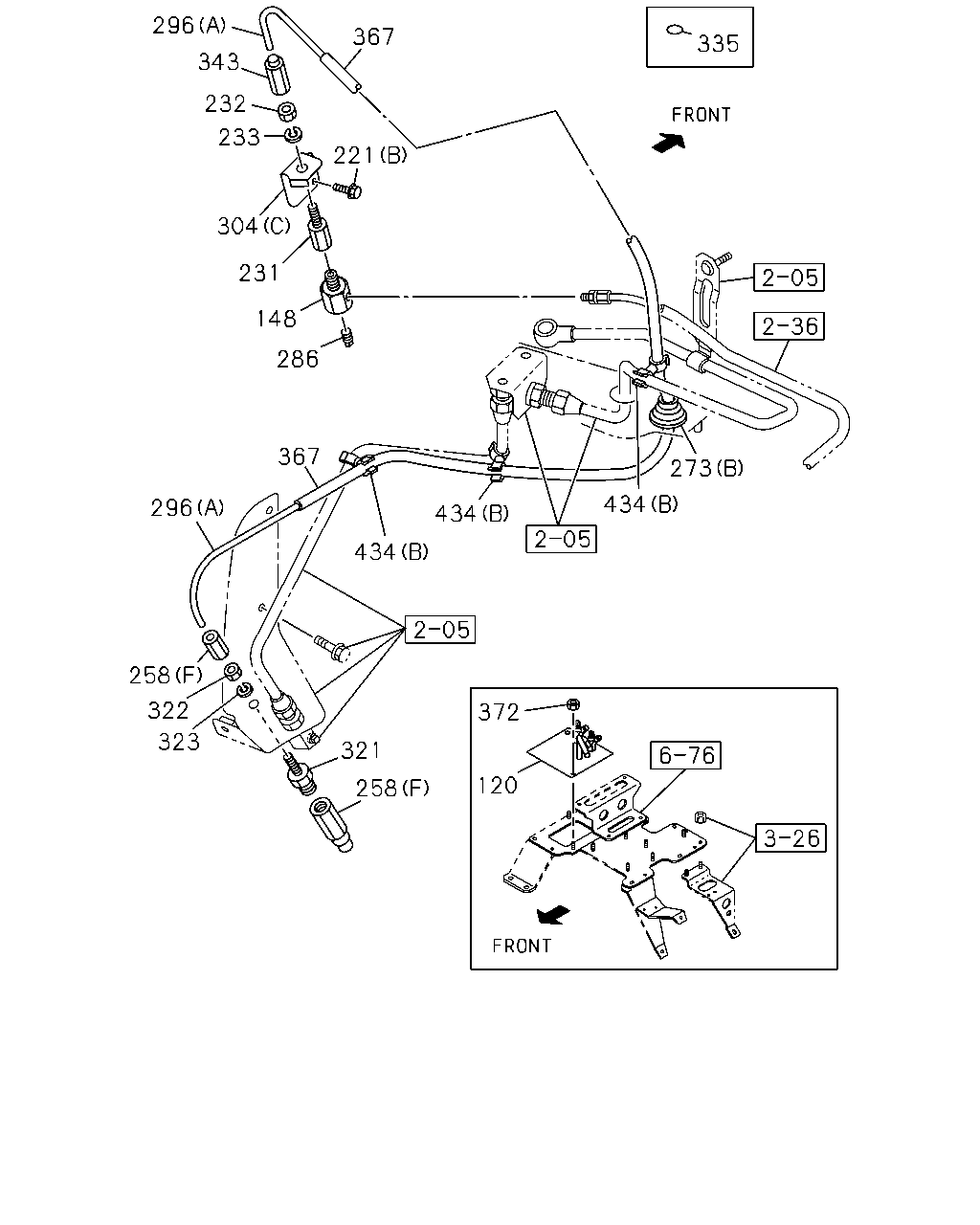

çizim 350933
296 232 367 233 304 221 231 148 367 296 258 322 323 321 258 372 120 343 286 335 273 434 434 434
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 1305-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 1305-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1305-
221 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1305-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1305-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) M10 H=8 		1-09400-029-0 01 1 1305-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (G) 		1-48319-059-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1305-
273 GROMMET
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1305-
273 GROMMET
MJX16P M/T(Y3Z) (B) 		1-09332-102-0 01 1 1305-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) 		9-09204-510-0 01 1 1307-
286 PLUG; AIR PIPE 9-09204-510-0 01 1 1305-1305
296 TUBE; NYLON
(B) 		8-98241-072-0 01 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1305-
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1305-
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1305-
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) M12 L=66.5 		0-92113-306-0 01 1 1305-
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) M12 		9-09840-280-0 01 1 1305-
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1305-
335 SEAL; UNION
OD=30 BLACK 		1-76798-035-0 01 1 1305-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) 		1-09660-796-1 01 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1305-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1305-
434 CLIP
MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3 		8-94426-175-0 03 1 1305-

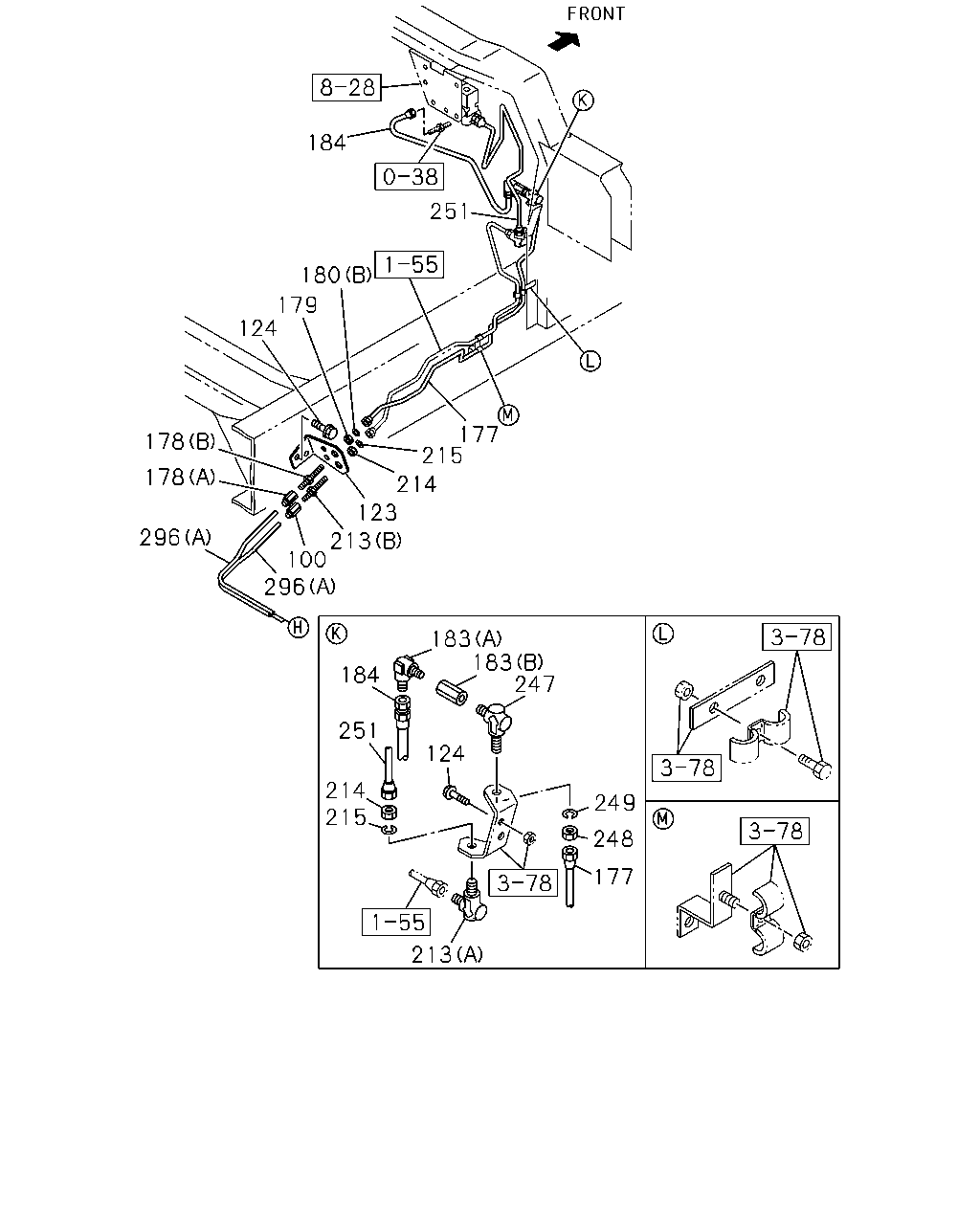

çizim 350939
184 251 180 179 124 178 178 296 177 215 214 123 213 100 296 183 184 251 124 249 248 177 214 215 213 183 247
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1305-
123 BRACKET; UNION 1-47479-146-0 01 1 1305-
124 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1305-
177 PIPE; AIR,UNION TO UNION
L=1007 SERVICED BY L=1100 		1-47428-815-0 01 1 1305-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1305-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1305-
179 NUT; UNION
M12 		9-09840-280-0 01 1 1305-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1305-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1305-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1305-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1305-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1305-
213 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 1305-
213 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1305-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 1305-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 1305-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1305-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1305-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1305-
251 PIPE; AIR,UNION TO MAG VLV
L=489 		8-98198-912-0 01 1 1305-
296 TUBE; NYLON
(B) 		8-98241-072-0 01 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-

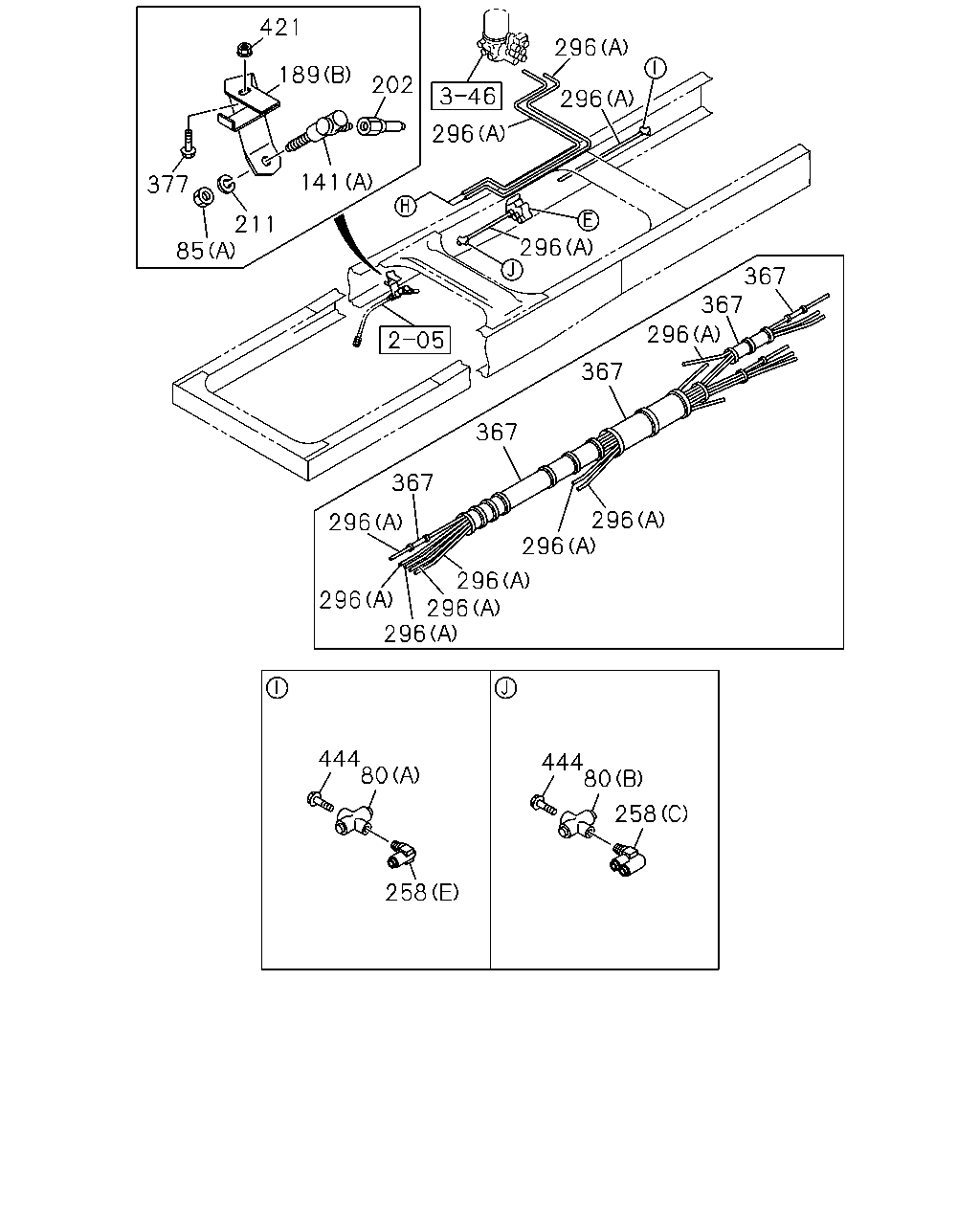

çizim 350942
421 189 202 141 211 85 377 296 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 444 80 258 258 80 444
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1305-
80 UNION; 3 WAY
MJX16P M/T(Y3Z) (A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1305-
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		0-91111-512-0 01 1 1305-
85 NUT; UNION
(B) M22 		0-91111-522-0 02 1 1305-
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (A) M12 ELBOW 		0-92125-006-0 01 1 1305-
141 UNION; FLEX HOSE
(B) M22 & M30 STRAIGHT 		1-09664-237-1 02 1 1305-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-98246-507-0 01 1 1305-
189 BRACKET; FLEX HOSE
(A) 		8-98144-753-0 01 1 1305-
202 ADAPTER
MJX16P M/T(Y3Z) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1305-
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-812-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (G) 		1-48319-059-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1305-
296 TUBE; NYLON
(B) 		8-98241-072-0 01 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1305-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1305-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1305-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 1305-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 01 1 1305-
377 BOLT; BRKT FIX
M8X40 FLANGE 		0-28650-840-0 01 1 1305-
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1305-
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1305-
444 BOLT; UNION
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28650-820-0 01 1 1305-

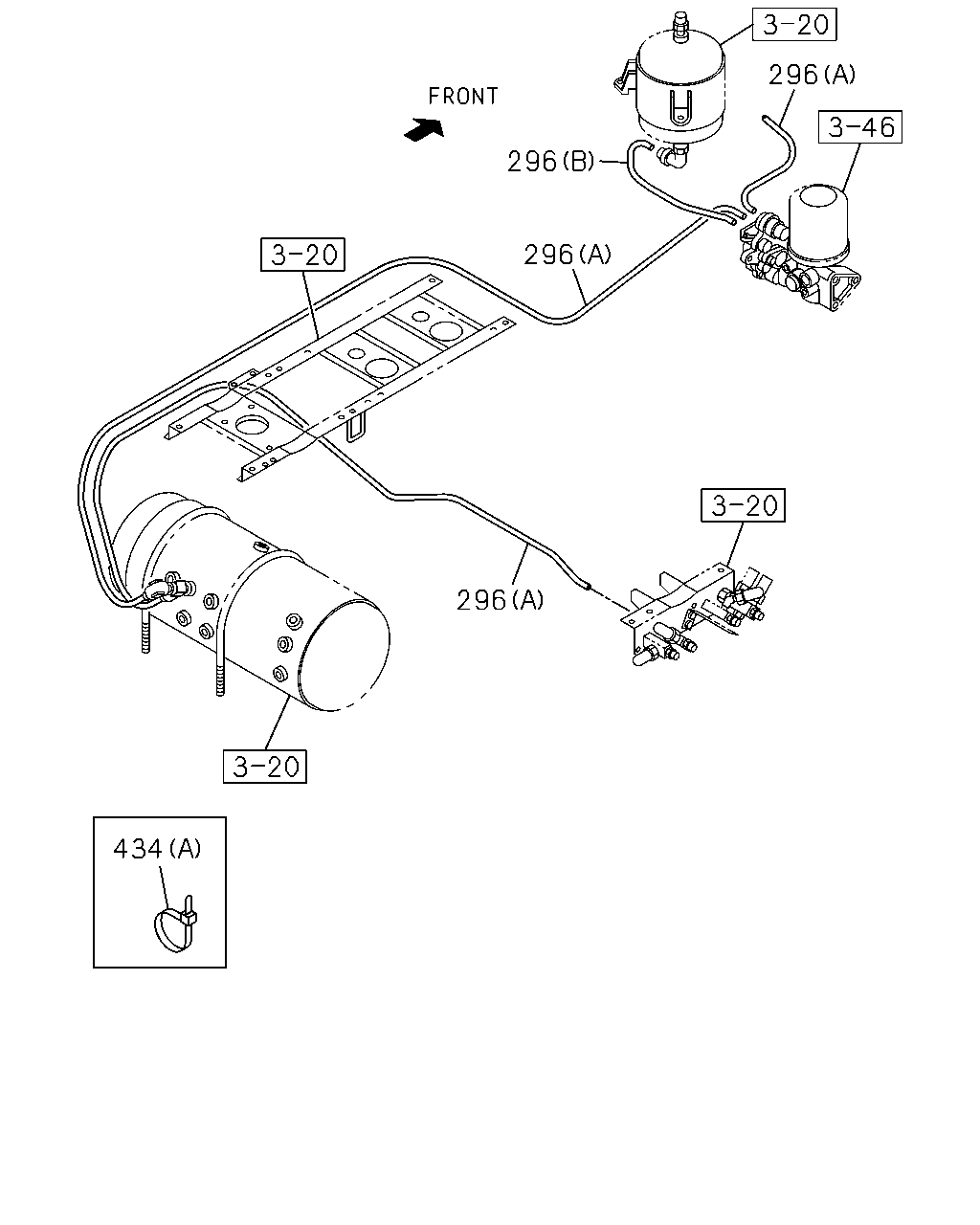

çizim 350946
296 296 296 296 434
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
(B) 		8-98241-072-0 01 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1305-
434 CLIP
MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3 		8-94426-175-0 03 1 1305-

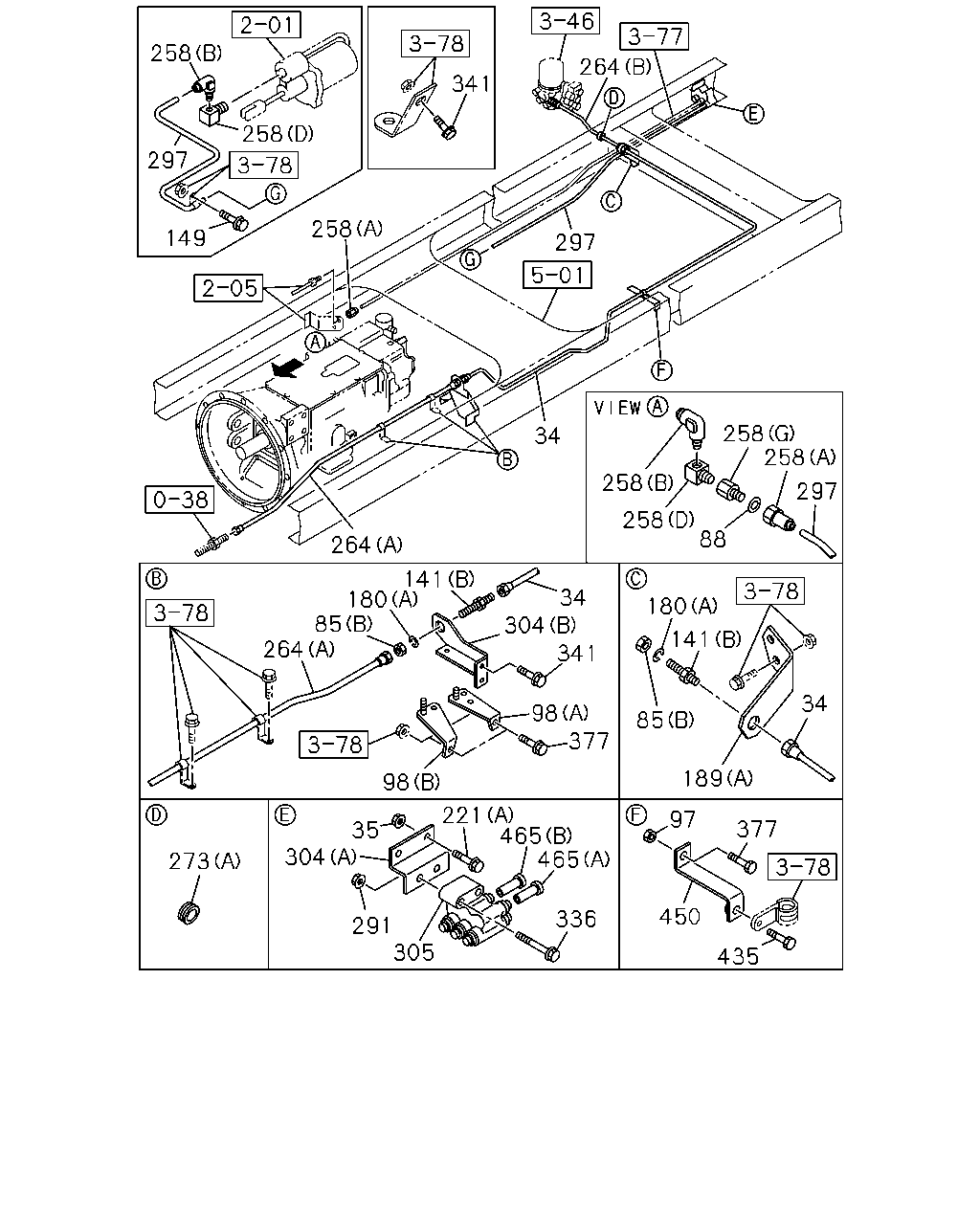

çizim 352167
258 297 258 149 258 341 264 297 258 258 264 180 85 264 273 304 221 35 98 98 377 341 304 34 141 258 88 297 258 34 336 465 465 291 97 377 450 180 141 85 189 34 305 435
BalonParca AdiParca NoAdetTipApplied Date
34 PIPE; AIR
L=1237 		8-98207-961-0 01 1 1305-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1305-
85 NUT; UNION
MJX16P M/T(Y3Z) (A) M12 		0-91111-512-0 01 1 1305-
85 NUT; UNION
(B) M22 		0-91111-522-0 02 1 1305-
88 GASKET; NYLON TUBE
MJT7S M/T(Y3E) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1305-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1305-
98 BRACKET; AIR PIPE
(B) 		1-47471-283-0 01 1 1305-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1305-
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (A) M12 ELBOW 		0-92125-006-0 01 1 1305-
141 UNION; FLEX HOSE
(B) M22 & M30 STRAIGHT 		1-09664-237-1 02 1 1305-
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1305-
149 BOLT; TUBE CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 1305-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1305-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1305-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-98246-507-0 01 1 1305-
189 BRACKET; FLEX HOSE
(A) 		8-98144-753-0 01 1 1305-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1305-
221 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1305-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (G) 		1-48319-059-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1305-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1305-
264 HOSE; FLEX
(B) L=880 		1-09363-920-0 01 1 1305-
264 HOSE; FLEX
(A) L=980 		1-09363-872-0 01 1 1305-
273 GROMMET
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1305-
273 GROMMET
MJX16P M/T(Y3Z) (B) 		1-09332-102-0 01 1 1305-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1305-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1305-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1305-
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1305-
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1305-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1305-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1305-
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1305-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1305-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 1305-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 01 1 1305-
377 BOLT; BRKT FIX
M8X40 FLANGE 		0-28650-840-0 01 1 1305-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1305-
450 BRACKET; CLIP 1-46147-101-0 01 1 1305-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 02 1 1305-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1305-
465 PLUG
MJT7S M/T(Y3E) (A) OD=6 L=27 		1-09661-615-0 01 1 1305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
