7-50 — FRONT SEAT
(#120217) — 75 parça
◀

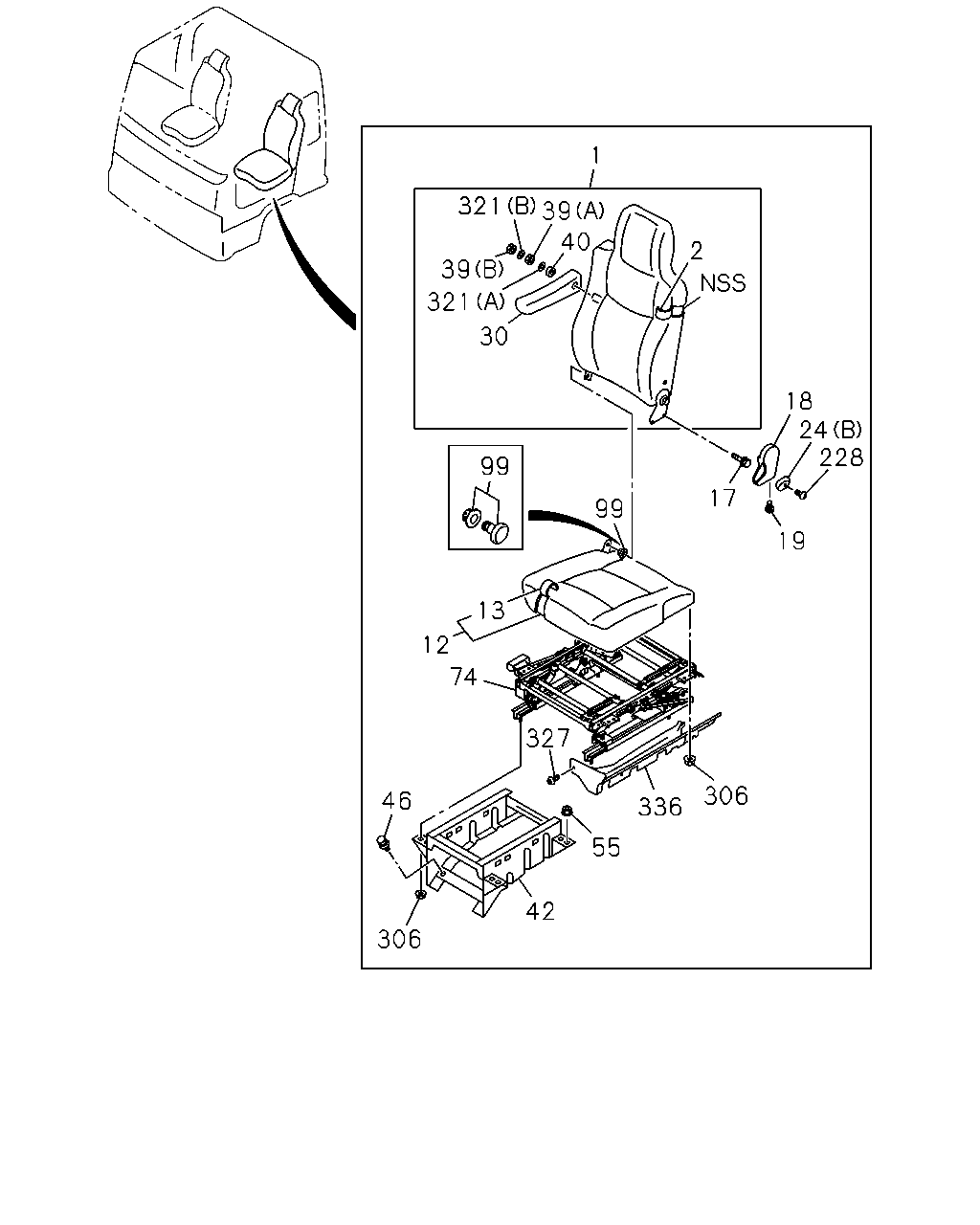

[750A] DRIVER NO.1 (26 parça)

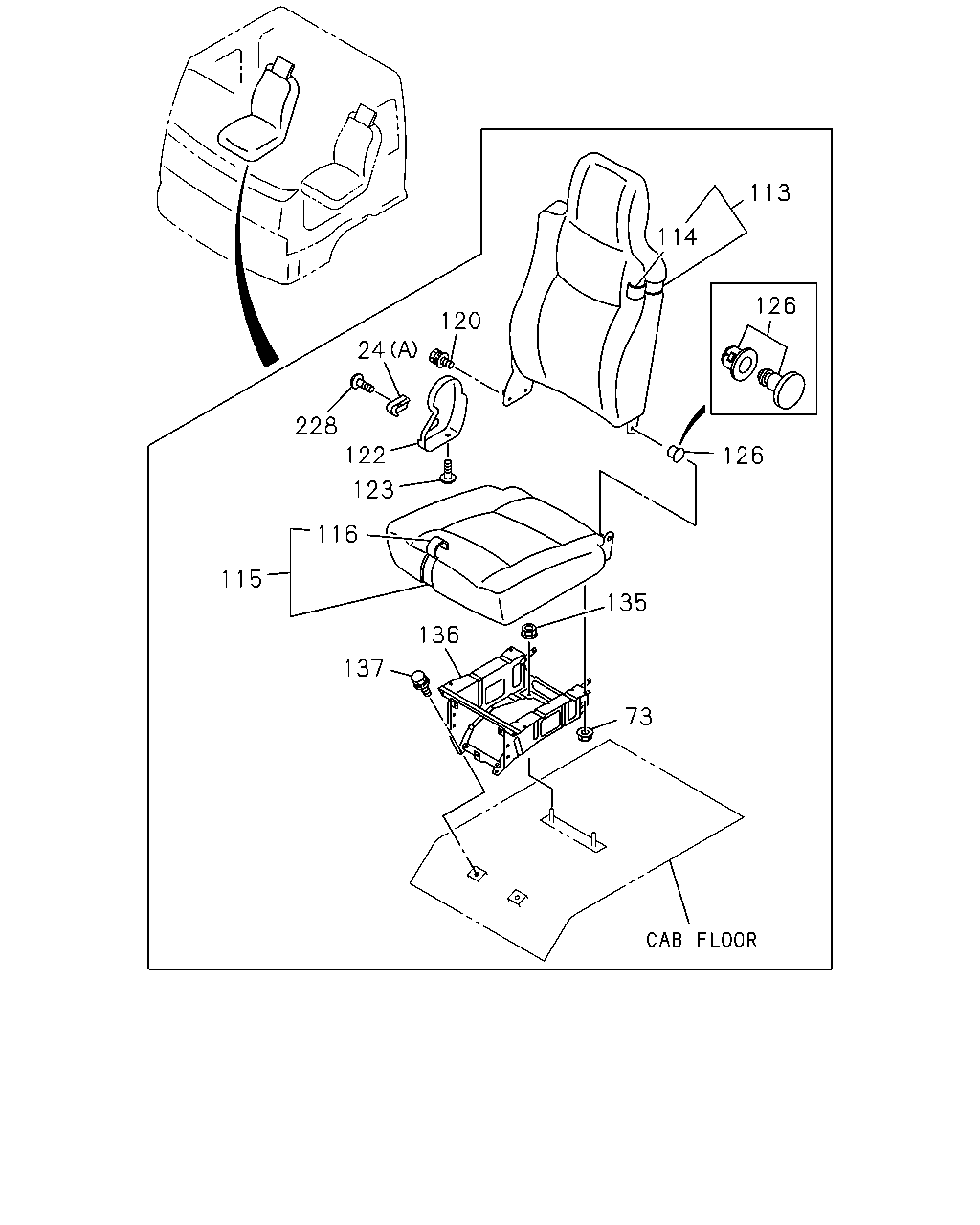

[750A] PASSENGER (17 parça)

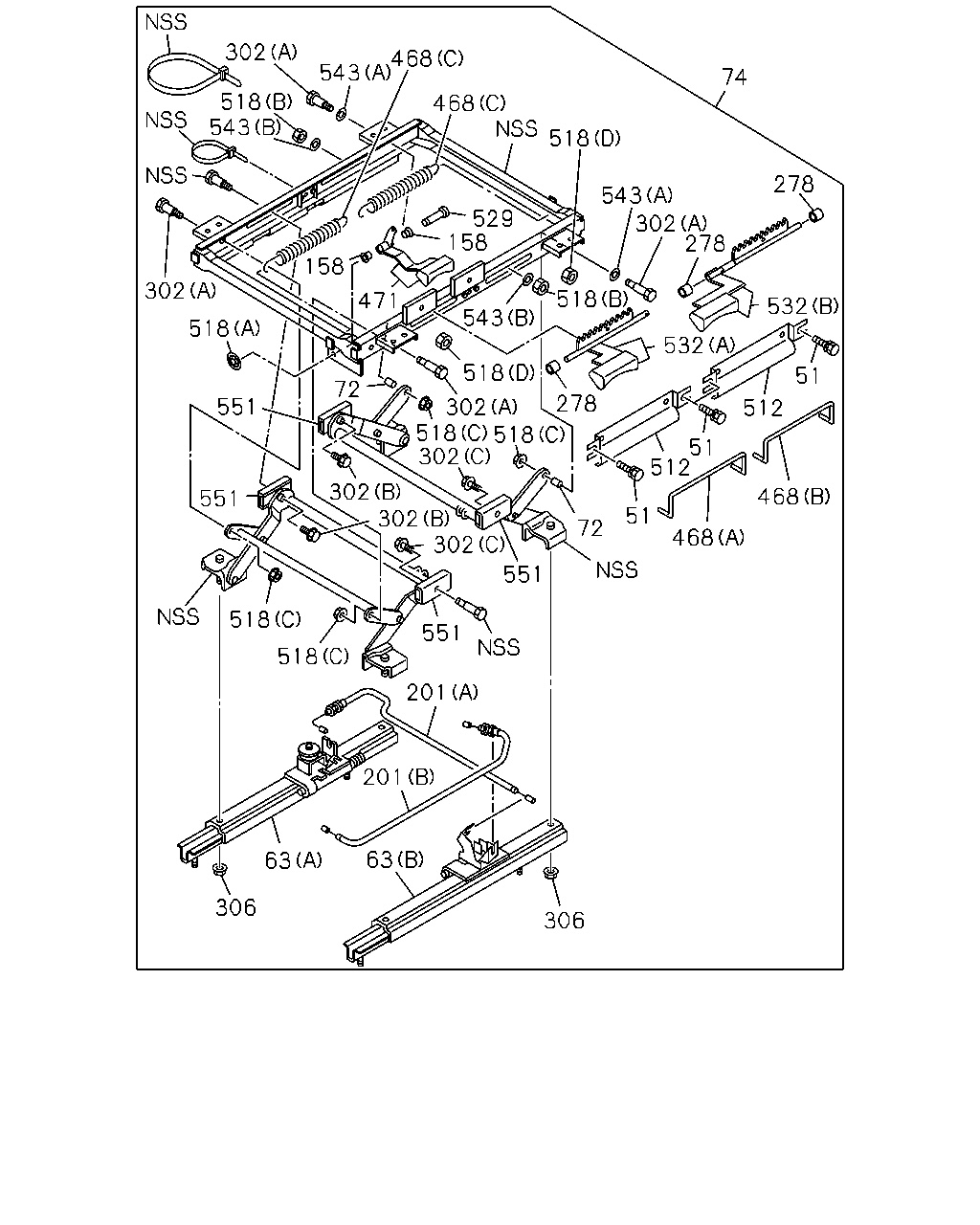

[750A] DRIVER NO.2 (32 parça)
▶
306
42
55
336
306
327
46
74
12
13
99
99
19
17
228
24
18
2
1
40
30
321
39
321
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
8-98210-851-0
01
1
1305-
2
COVER; TRIM,FRT SEAT,BACK
8-98210-852-0
01
1
1305-
12
CUSHION; SEAT,FRT
8-98210-849-0
01
1
1305-
13
COVER; TRIM,FRT SEAT,CUSHION
8-98210-850-0
01
1
1305-
17
BOLT; RECLINING
M8X20
8-97255-906-0
02
1
1305-
18
COVER; RECLINING
DARK GRAY
8-97859-018-0
01
1
1305-
19
SCREW; COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
03
1
1305-
24
KNOB; RECLINING,FRT,SEAT
(A)
1-75418-066-0
01
1
1305-
24
KNOB; RECLINING,FRT,SEAT
(B)
1-75418-067-0
01
1
1305-
30
REST ASM; ARM,FRT SEAT
8-98230-584-0
01
1
1305-
39
NUT; ARM REST
(B) M8
1-75147-657-0
01
1
1305-
39
NUT; ARM REST
(A) M10
9-09110-410-0
01
1
1305-
40
SPACER; ARM REST
8-94285-921-0
02
1
1305-
42
STAND; DRIVER SEAT
1-75558-604-2
01
1
1305-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
1305-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
1305-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-331-3
01
1
1305-1502
74
ADJUSTER; FRT SEAT,HEIGHT CONT
8-98291-646-0
01
1
1503-
99
BUSHING; SEAT BACK
8-97854-087-0
01
1
1305-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1305-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1305-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
14
1
1305-
321
WASHER; PL,ARM REST
(A) ID=10.5 OD=22
9-09160-610-0
01
1
1305-
321
WASHER; PL,ARM REST
(B) ID=8.4 OD=22
9-09164-708-0
01
1
1305-
327
CLIP; COVER
1-09987-273-0
01
1
1305-
336
COVER; DRIVER SEAT
1-75518-313-0
01
1
1305-
113
114
126
120
126
24
228
122
123
116
115
137
136
135
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
(A)
1-75418-066-0
01
1
1305-
24
KNOB; RECLINING,FRT,SEAT
(B)
1-75418-067-0
01
1
1305-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
1305-
113
BACK ASM; SEAT
8-98210-856-0
01
1
1305-
114
COVER; TRIM,PASSENGER SEAT,BACK
8-98210-857-0
01
1
1305-
115
CUSHION ASM; PASSENGER SEAT
8-98210-854-0
01
1
1305-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
8-98210-855-0
01
1
1305-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
1305-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97867-020-0
01
1
1305-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
1305-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
1305-
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
1305-
136
STAND; PASSENGER SEAT
1-75558-602-3
01
1
1305-1305
136
STAND; PASSENGER SEAT
8-98242-299-0
01
1
1306-
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
1305-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1305-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1305-
74
278
532
51
512
468
468
512
51
51
72
551
278
532
278
302
543
518
518
551
201
201
63
306
63
306
518
518
551
551
302
302
302
302
518
518
302
518
543
158
529
158
72
471
518
302
543
518
302
543
468
468
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
SCREW; COVER
1-75518-325-1
04
1
1305-
63
ADJUSTER; SEAT SLIDE
(A)
1-75518-227-1
01
1
1305-
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-324-0
01
1
1305-
72
SPACER; SEAT ADJ
1-75518-334-1
02
1
1305-1502
72
SPACER; SEAT ADJ
8-98291-668-0
02
1
1503-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-331-3
01
1
1305-1502
74
ADJUSTER; FRT SEAT,HEIGHT CONT
8-98291-646-0
01
1
1503-
158
BUSHING; LINK ARM
1-75518-209-0
02
1
1305-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
1305-
201
CABLE; ADJ
(B) L=605
1-75518-289-1
01
1
1305-
278
COLLAR; FRT SEAT
1-75518-244-0
03
1
1305-
302
BOLT; ADJ,HEIGHT CONT
(C)
1-75518-266-2
02
1
1305-
302
BOLT; ADJ,HEIGHT CONT
(A)
1-75518-270-1
04
1
1305-1502
302
BOLT; ADJ,HEIGHT CONT
(A)
8-98291-667-0
04
1
1503-
302
BOLT; ADJ,HEIGHT CONT
(B)
1-75518-336-1
02
1
1305-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
14
1
1305-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
1305-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
1305-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
1305-
471
LEVER; SEAT ADJ
8-98107-870-0
01
1
1305-
512
COVER; LEVER
1-75518-245-1
02
1
1305-
518
NUT; TILT ADJ
(A)
1-75518-263-0
01
1
1305-
518
NUT; TILT ADJ
(C) M8
1-75518-264-0
04
1
1305-
518
NUT; TILT ADJ
(D) M6 LOCK NUT
5-09984-020-0
02
1
1305-
518
NUT; TILT ADJ
(B) M8 FLANGE
8-94152-886-0
04
1
1305-
529
PIN; LINK
1-75518-262-0
01
1
1305-
532
LEVER ASM; TILT
(A)
1-75518-221-0
01
1
1305-
532
LEVER ASM; TILT
(B)
1-75518-222-1
01
1
1305-
543
WASHER; HEIGHT ADJUSTER
(A)
1-75518-335-0
02
1
1305-1502
543
WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19
8-98291-669-0
02
1
1503-
543
WASHER; HEIGHT ADJUSTER
(B) ID=8.4
9-09160-508-0
04
1
1305-
551
SLIDER; HEIGHT ADJ
1-75518-265-0
04
1
1305-
