8-90 — RADIO AND TV (#120216) — 47 parça

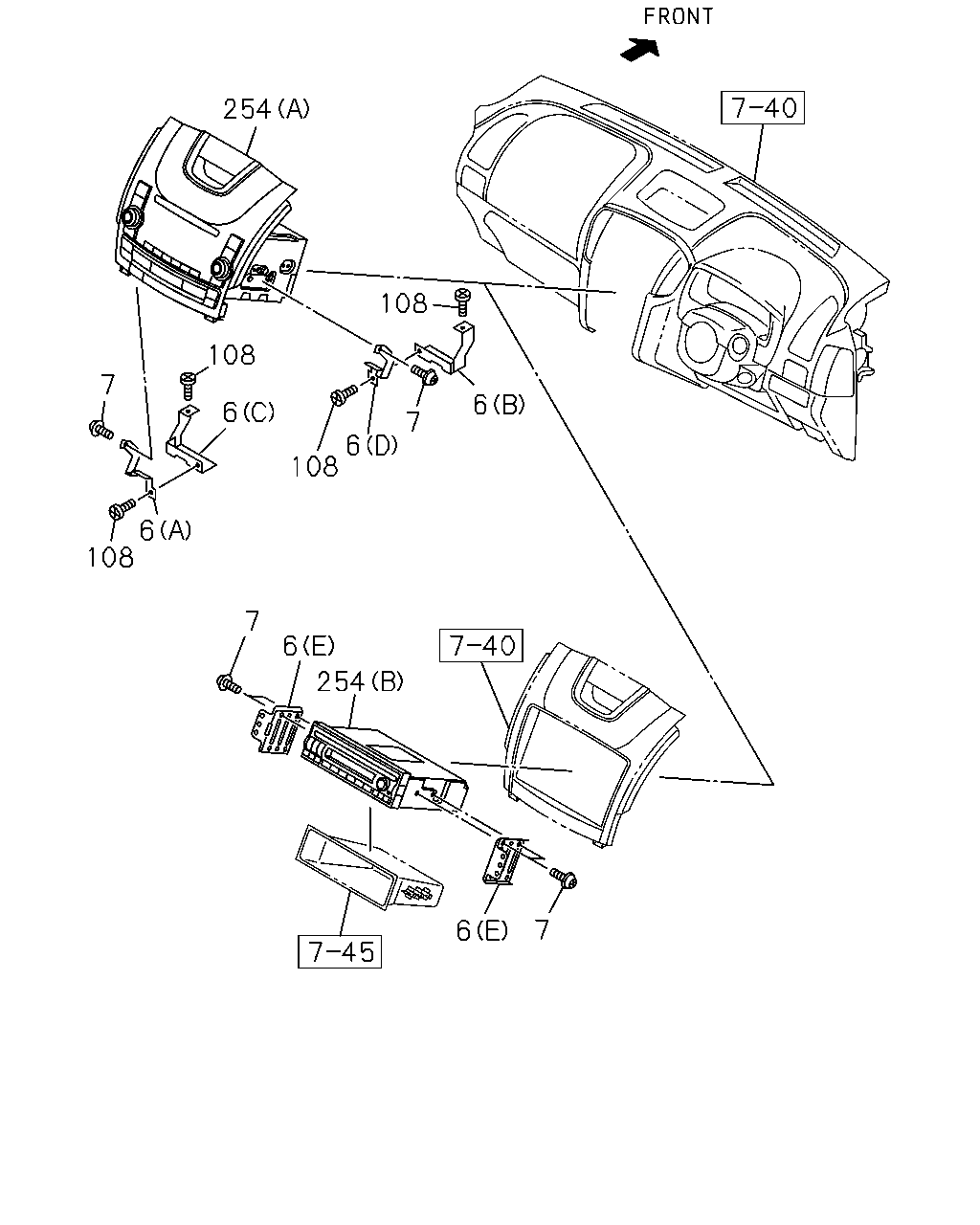

çizim 351829
254 108 6 7 6 108 6 108 7 6 108 7 6 254 6 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C) (E) 		8-98102-188-2 02 1 1305- ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5) (E) 		8-98102-188-2 02 1 1305- ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) (A) 		8-98102-186-2 01 1 1305- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) (B) 		8-98102-187-3 01 1 1305- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) (C) 		8-98106-390-3 01 1 1305- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) (D) 		8-98109-822-2 01 1 1305- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1305- ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1305- ● ●
108 SCREW; BRKT
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) M5X16 TAPPING 		8-98167-449-0 04 1 1305- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (B) 		8-98052-934-1 01 1 1305- ● ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ) (A) 		8-98052-935-3 01 1 1305- ● ●

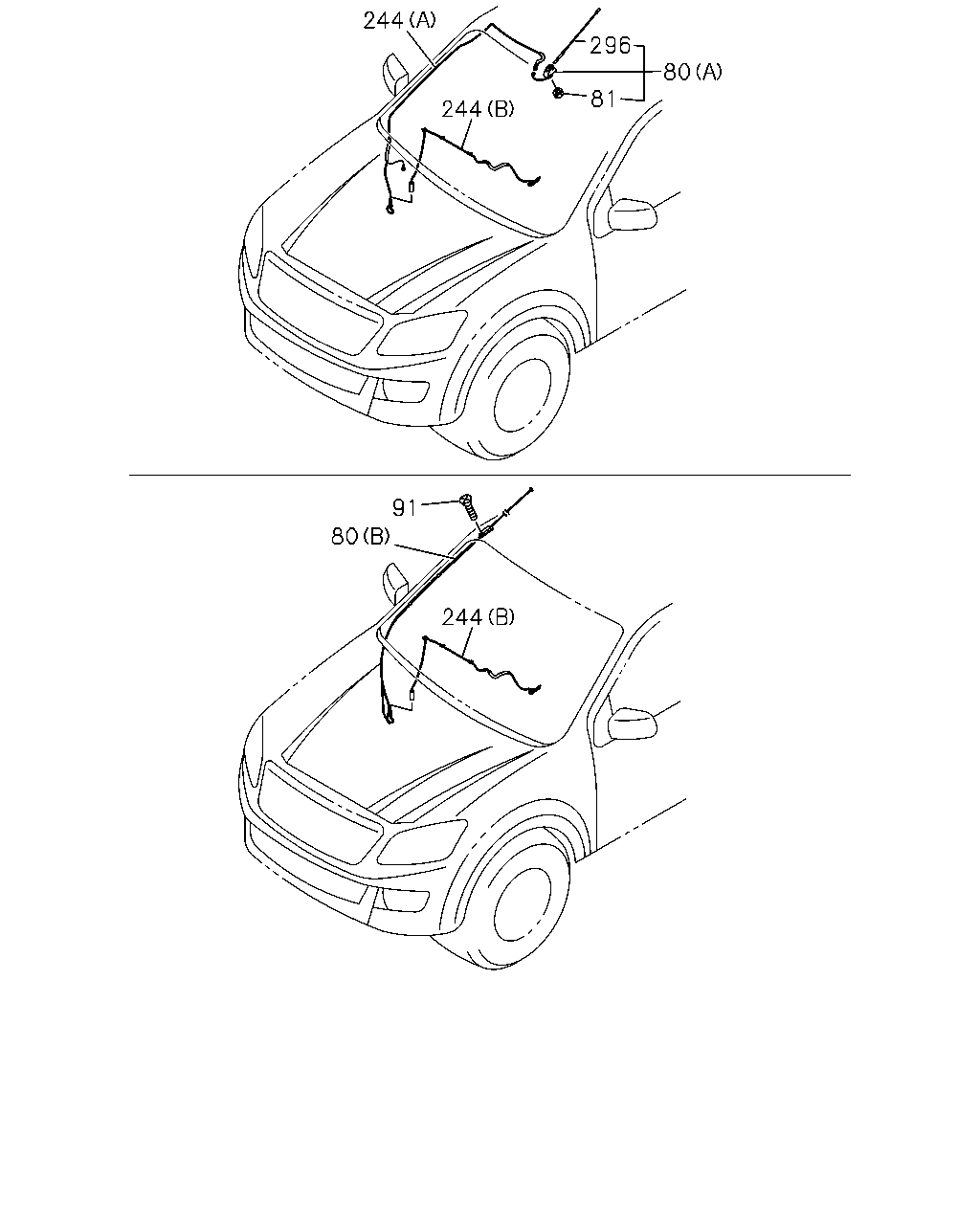

çizim 351841
80 91 244 244 244 296 81 80
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 ANTENNA
(B) 		8-98053-047-2 01 1 1305- ● ●
80 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) 		8-98053-047-2 01 1 1305- ●
80 ANTENNA
ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1305- ●
80 ANTENNA
(A) 		8-98053-048-0 01 1 1305- ●
81 NUT; ANTENNA POLE
ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1305- ●
81 NUT; ANTENNA POLE 8-98165-971-0 01 1 1305- ●
91 BOLT; ANTENNA
M5X16 		8-97375-569-0 02 1 1305- ● ●
91 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 1305- ●
244 CABLE; FEEDER
(B) 		8-98053-051-1 01 1 1305- ● ● ● ●
244 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1305- ●
244 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1305- ●
296 ROD; ANTENNA
ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1305- ●
296 ROD; ANTENNA 8-98165-969-0 01 1 1305- ●

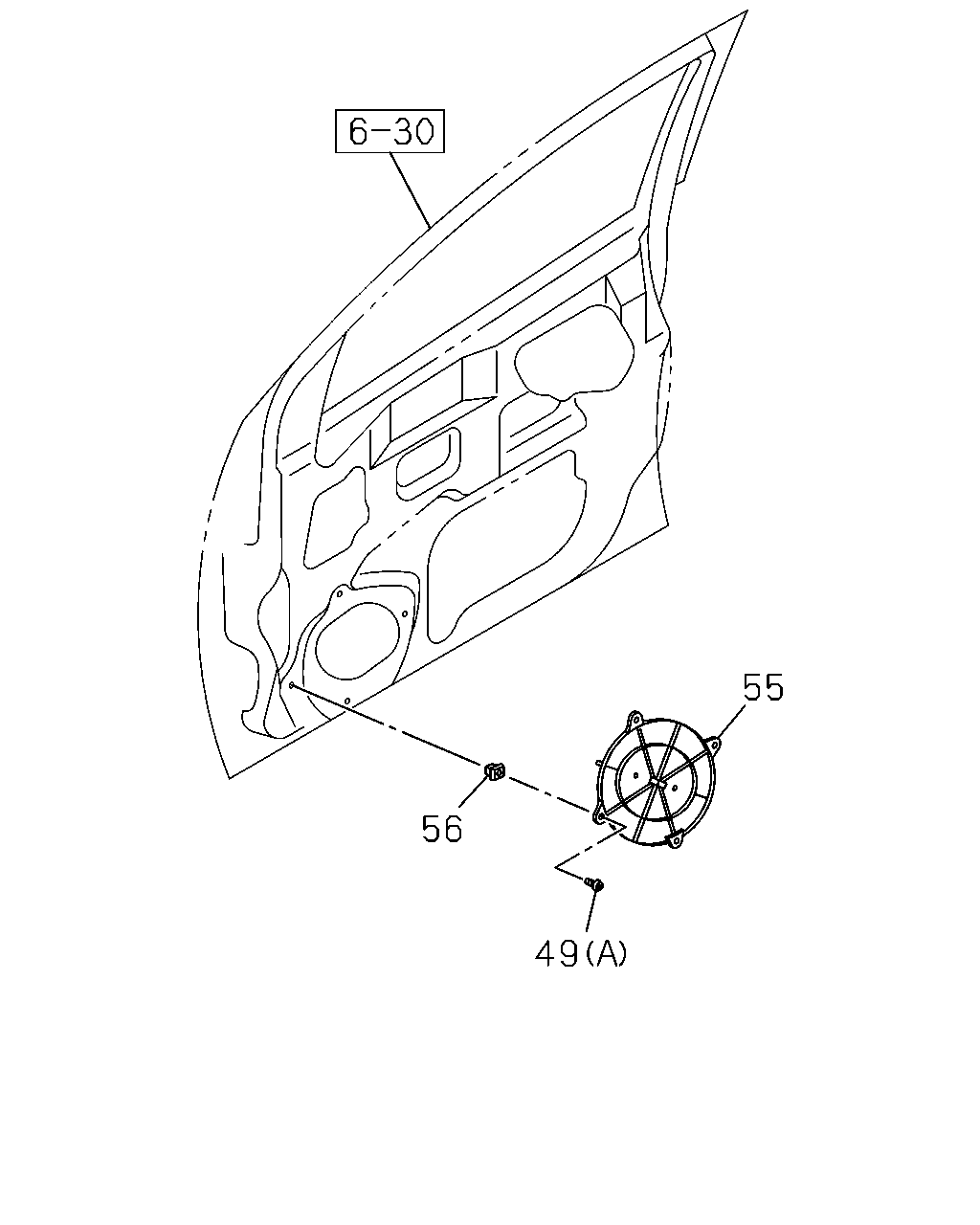

çizim 351986
55 56 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 SCREW; SPEAKER
(B) M5X14 TAPPING 		8-98184-363-0 08 1 1305- ● ● ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (B) M5X14 TAPPING 		8-98184-363-0 06 1 1305- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A) M5X16 TAPPING 		8-98167-449-0 04 1 1305- ● ●
55 COVER; SPEAKER HOLE
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1305- ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEMCUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1305- ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEMCUSTOM<UW6> 		8-98102-183-0 02 1 1305- ●
56 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1305- ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5> 		8-98163-895-0 06 1 1305- ● ●

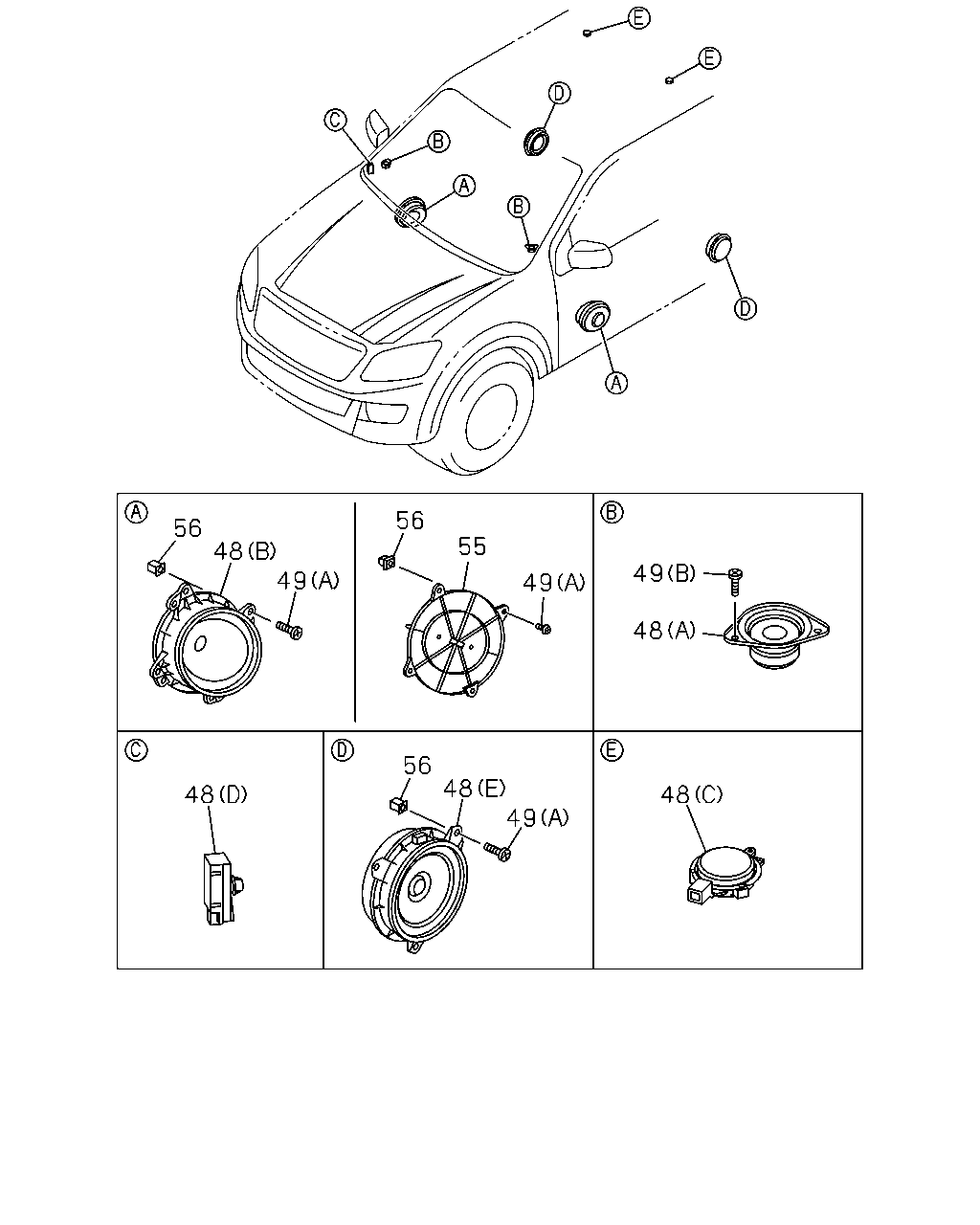

çizim 352008
56 48 49 56 55 49 49 48 56 48 48 49 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> (B) 		8-98052-937-0 02 1 1305- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98052-937-0 02 1 1305- ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (B) 		8-98052-937-0 02 1 1305- ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (E) 		8-98052-941-0 02 1 1305- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98052-940-0 02 1 1305- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C) 		8-98052-942-0 02 1 1305- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D) 		8-98064-704-0 01 1 1305- ● ●
49 SCREW; SPEAKER
(B) M5X14 TAPPING 		8-98184-363-0 08 1 1305- ● ● ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (B) M5X14 TAPPING 		8-98184-363-0 06 1 1305- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A) M5X16 TAPPING 		8-98167-449-0 04 1 1305- ● ●
55 COVER; SPEAKER HOLE
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1305- ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEMCUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1305- ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEMCUSTOM<UW6> 		8-98102-183-0 02 1 1305- ●
56 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1305- ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5> 		8-98163-895-0 06 1 1305- ● ●
