Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#120212) — 28 parça
Tümü
A - TFB5SF
B - TFS5SF
C - TFB5WF
D - TFS5WF
◀

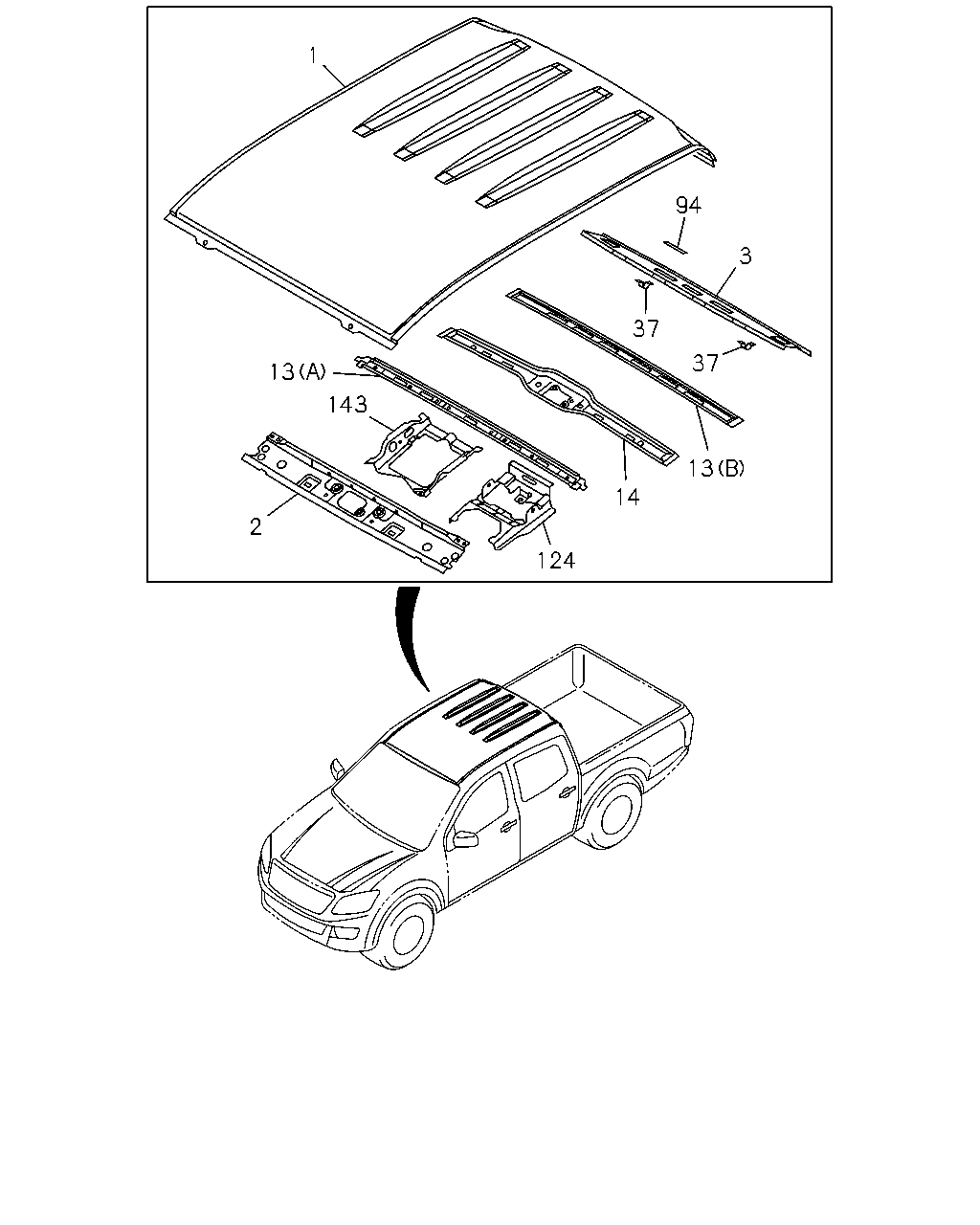

[660A] CREW CAB (17 parça)

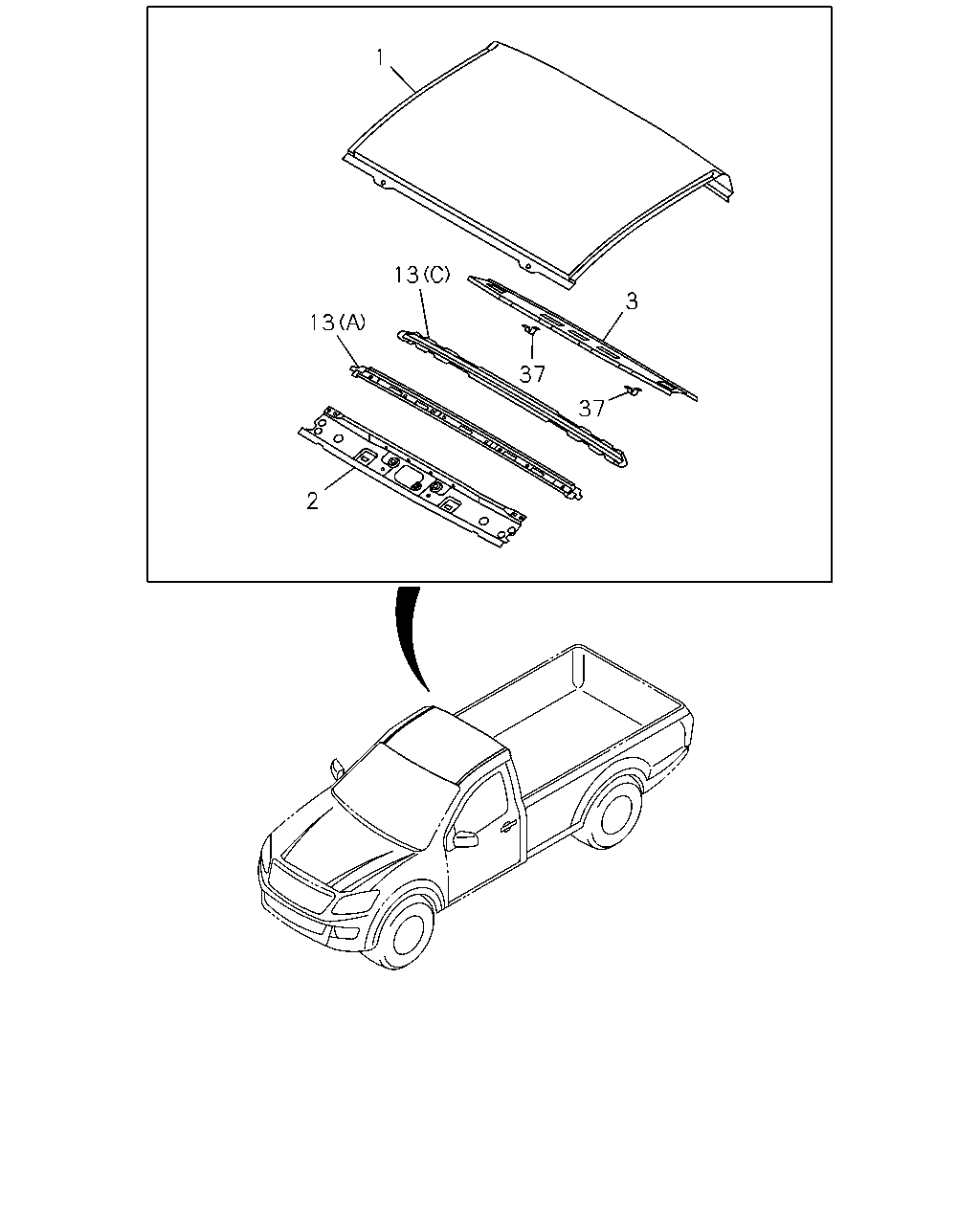

[660A] REGULAR CAB (11 parça)
▶
94
3
37
13
37
14
124
143
13
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PANEL; ROOF
8-98103-951-3
01
1
1305-
●
●
1
PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71>
8-98103-957-3
01
1
1305-1409
●
1
PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>, ROOF RADIO ANTENNA<U71>
8-98103-957-3
01
1
1410-
●
1
PANEL; ROOF
INTERIOR CUSTOM(RBD)
8-98103-960-3
01
1
1305-
●
1
PANEL; ROOF
8-98103-960-3
01
1
1305-
●
2
PANEL; ROOF,CENTER
8-98103-964-5
01
1
1305-
●
●
●
●
3
PANEL; ROOF,RR
8-98103-999-3
01
1
1305-
●
●
●
●
13
PANEL; ROOF SUPPORT
(A)
8-98103-963-1
01
1
1305-
●
●
●
●
13
PANEL; ROOF SUPPORT
(C)
8-98150-942-0
01
1
1305-
●
●
13
PANEL; ROOF SUPPORT
(B)
8-98103-982-0
01
1
1305-
●
●
14
SUPPORT; ROOF
EQUIPMENT IMPACT<EPS>
8-98112-817-1
01
1
1410-
●
●
14
SUPPORT; ROOF
8-98163-387-1
01
1
1305-1409
●
●
14
SUPPORT; ROOF
EXC. EQUIPMENT IMPACT<EPS>
8-98163-387-1
01
1
1410-
●
●
37
BRACKET; TRIM,ROOF BACK
8-98103-996-0
02
1
1305-
●
●
●
●
94
SEAL; REINFORCEMENT
8-98201-900-0
01
1
1305-
●
●
124
BRACKET; ROOM LAMP
MAP LAMP<C74>
8-98103-968-0
01
1
1305-
●
●
143
BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98103-962-1
01
1
1305-
●
●
3
37
37
13
13
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PANEL; ROOF
8-98103-951-3
01
1
1305-
●
●
1
PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71>
8-98103-957-3
01
1
1305-1409
●
1
PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>, ROOF RADIO ANTENNA<U71>
8-98103-957-3
01
1
1410-
●
1
PANEL; ROOF
INTERIOR CUSTOM(RBD)
8-98103-960-3
01
1
1305-
●
1
PANEL; ROOF
8-98103-960-3
01
1
1305-
●
2
PANEL; ROOF,CENTER
8-98103-964-5
01
1
1305-
●
●
●
●
3
PANEL; ROOF,RR
8-98103-999-3
01
1
1305-
●
●
●
●
13
PANEL; ROOF SUPPORT
(A)
8-98103-963-1
01
1
1305-
●
●
●
●
13
PANEL; ROOF SUPPORT
(C)
8-98150-942-0
01
1
1305-
●
●
13
PANEL; ROOF SUPPORT
(B)
8-98103-982-0
01
1
1305-
●
●
37
BRACKET; TRIM,ROOF BACK
8-98103-996-0
02
1
1305-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
