4-01 — PROPELLER SHAFT (#120206) — 57 parça

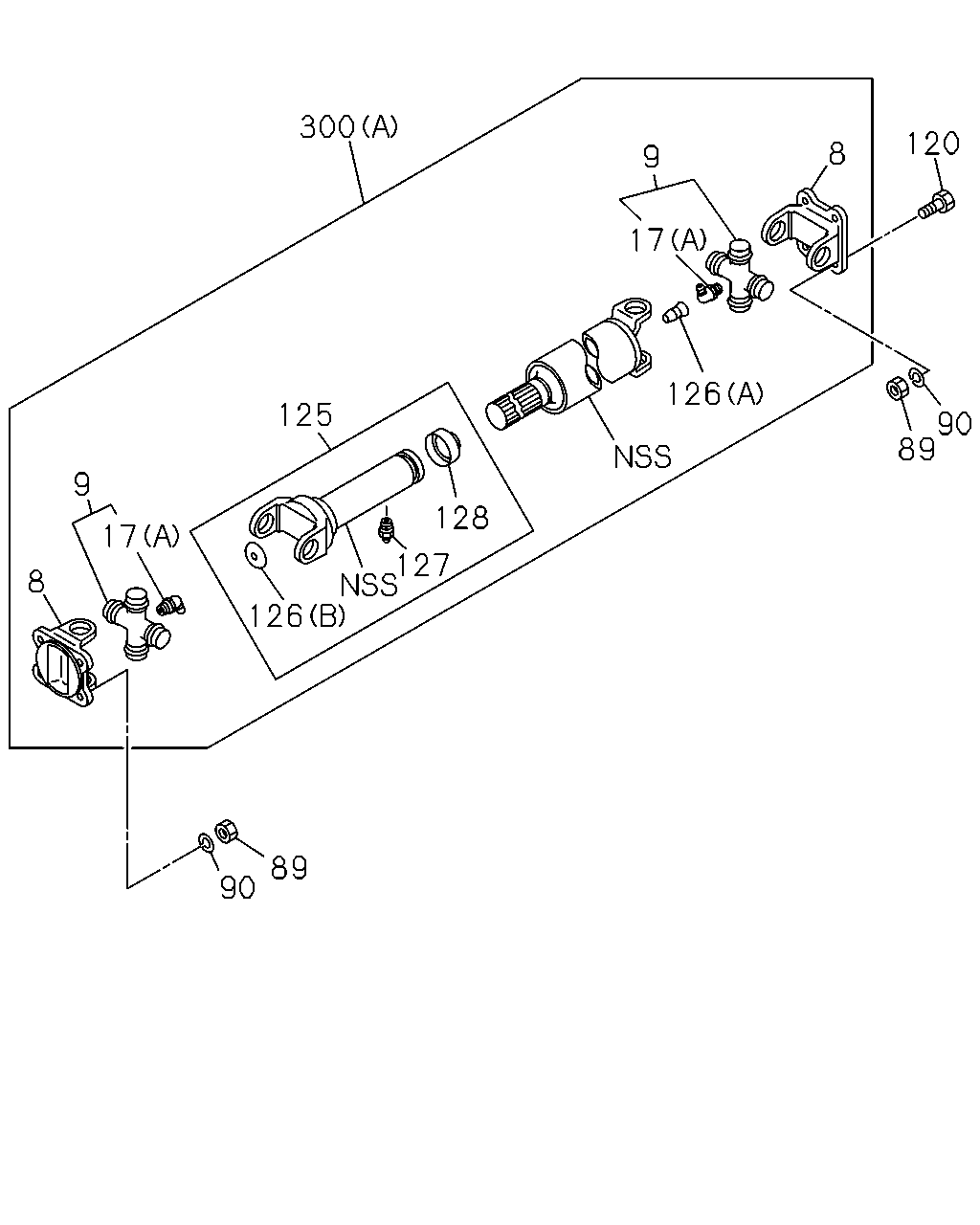

9 8 120 90 89 128 127 125 9 8 89 90 300 17 126 17 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT THA	8-97322-663-0	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM<24W> THA	8-97322-663-0	02	1	1304-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-97322-663-0	01	1	1304-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-97322-663-0	01	1	1304-		●
9	JOURNAL ASM; PROP SHAFT THA	8-98033-605-1	02	1	1304-	●	●
9	JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-98033-605-1	01	1	1304-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW IMA	0-90301-610-0	02	1	1304-	●	●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM<33W> (B) M6 STRAIGHT THA	0-90301-406-0	02	1	1304-		●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM<33W> (A) PT1/8 ELBOW IMA	0-90301-610-0	01	1	1304-		●
89	NUT; YOKE TO RR AXLE M12 IMA	8-97365-450-1	08	1	1304-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2 IMA	0-91510-812-0	08	1	1304-	●	●
120	BOLT; YOKE TO RR AXLE M12X35 IMA	8-97365-451-1	04	1	1304-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=246 THA	8-98034-338-1	01	1	1304-	●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM<24W> L=246 THA	8-98034-338-1	01	1	1304-		●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM<33W> L=183 IMA	8-98033-647-2	01	1	1304-		●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	1304-	●	●
126	PLUG; SPLINED YOKE (B) THA	8-94366-900-0	01	1	1304-	●	●
126	PLUG; SPLINED YOKE WHEEL BASE 3300MM<33W> (A) THA	1-09600-023-0	02	1	1304-		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT THA	0-90301-406-0	01	1	1304-1304	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT THA	0-90301-406-0	01	1	1305-	●
127	NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM<24W> M6 STRAIGHT THA	0-90301-406-0	01	1	1305-		●
128	SEAL; SLEEVE THA	8-97145-746-0	01	1	1304-	●
128	SEAL; SLEEVE WHEEL BASE 2400MM<24W> THA	8-97145-746-0	01	1	1304-		●
300	SHAFT ASM; PROP,RR (A) L=969 THA	8-98001-994-2	01	1	1304-	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM<24W> (A) L=969 THA	8-98001-994-2	01	1	1304-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM<33W> (B) L=775 THA	8-98039-657-1	01	1	1304-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM<33W> (C) L=1066 THA	8-97387-806-4	01	1	1304-		●

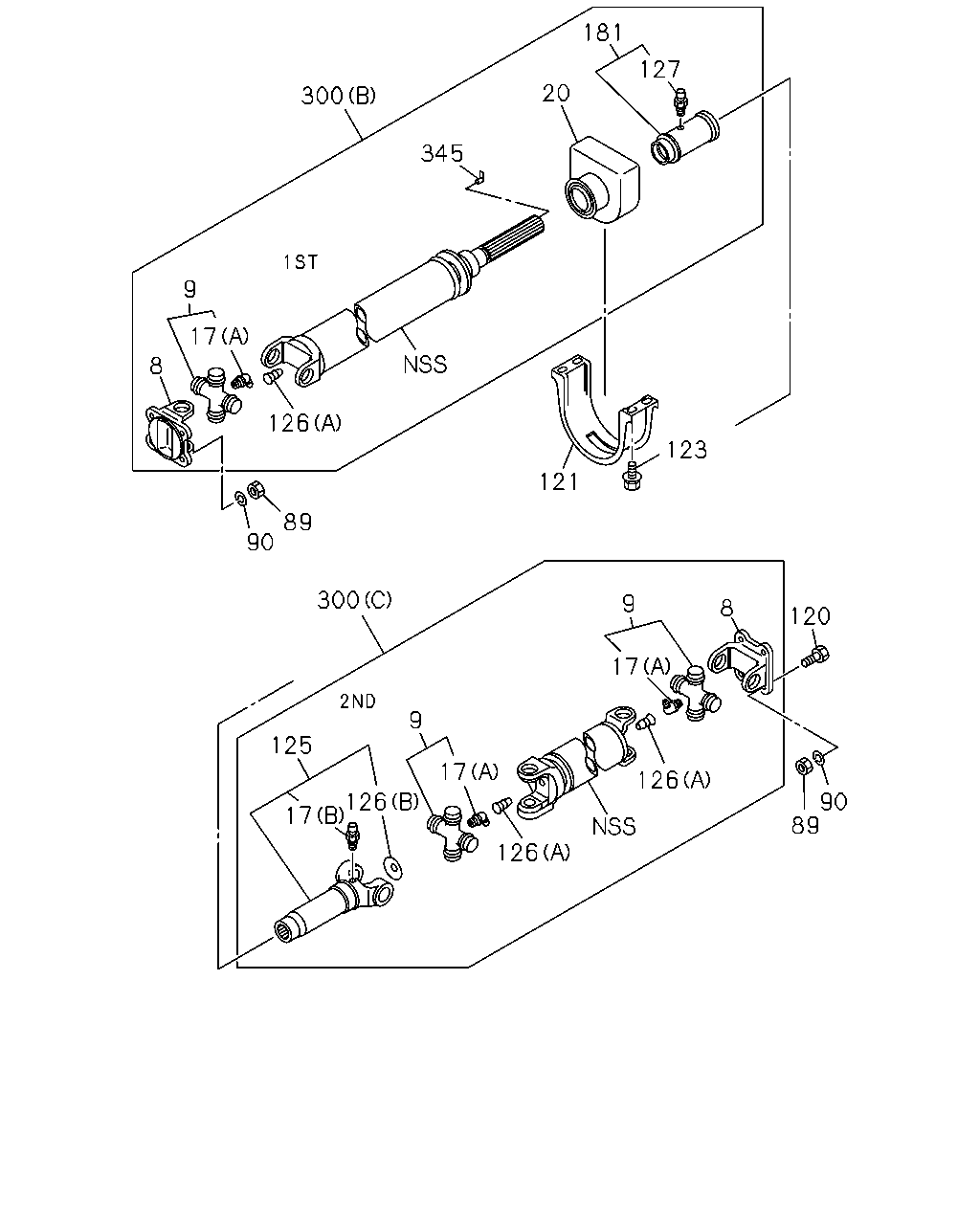

300 345 20 181 9 17 127 126 8 89 90 300 121 123 8 9 120 90 89 126 126 17 126 17 125 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT THA	8-97322-663-0	02	1	1304-	●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM<24W> THA	8-97322-663-0	02	1	1304-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-97322-663-0	01	1	1304-		●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-97322-663-0	01	1	1304-		●
9	JOURNAL ASM; PROP SHAFT THA	8-98033-605-1	02	1	1304-	●	●
9	JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-98033-605-1	01	1	1304-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW IMA	0-90301-610-0	02	1	1304-	●	●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM<33W> (B) M6 STRAIGHT THA	0-90301-406-0	02	1	1304-		●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM<33W> (A) PT1/8 ELBOW IMA	0-90301-610-0	01	1	1304-		●
20	BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-98033-936-0	01	1	1304-		●
89	NUT; YOKE TO RR AXLE M12 IMA	8-97365-450-1	08	1	1304-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2 IMA	0-91510-812-0	08	1	1304-	●	●
120	BOLT; YOKE TO RR AXLE M12X35 IMA	8-97365-451-1	04	1	1304-	●	●
121	RETAINER; CUSHION RUBBER WHEEL BASE 3300MM<33W> IMA	8-97035-623-1	01	1	1304-		●
123	BOLT; RET WHEEL BASE 3300MM<33W> M10X25 W/LK&PL WASHER IMA	0-50641-025-0	04	1	1304-		●
125	YOKE ASM; SPLINED,PROP SHAFT L=246 THA	8-98034-338-1	01	1	1304-	●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM<24W> L=246 THA	8-98034-338-1	01	1	1304-		●
125	YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM<33W> L=183 IMA	8-98033-647-2	01	1	1304-		●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	1304-	●	●
126	PLUG; SPLINED YOKE (B) THA	8-94366-900-0	01	1	1304-	●	●
126	PLUG; SPLINED YOKE WHEEL BASE 3300MM<33W> (A) THA	1-09600-023-0	02	1	1304-		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT THA	0-90301-406-0	01	1	1304-1304	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT THA	0-90301-406-0	01	1	1305-	●
127	NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM<24W> M6 STRAIGHT THA	0-90301-406-0	01	1	1305-		●
181	COVER; BRG,PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-98046-526-0	01	1	1304-		●
300	SHAFT ASM; PROP,RR (A) L=969 THA	8-98001-994-2	01	1	1304-	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2400MM<24W> (A) L=969 THA	8-98001-994-2	01	1	1304-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM<33W> (B) L=775 THA	8-98039-657-1	01	1	1304-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 3300MM<33W> (C) L=1066 THA	8-97387-806-4	01	1	1304-		●
345	PLUG; PROP SHAFT WHEEL BASE 3300MM<33W> THA	8-98042-692-0	01	1	1304-		●
